JVC EW-7811UAC USB Wi-Fi Adapter
JVC EW-7811UAC USB Wi-Fi Adapter
JVC EW-7811UAC USB Wi-Fi Adapter

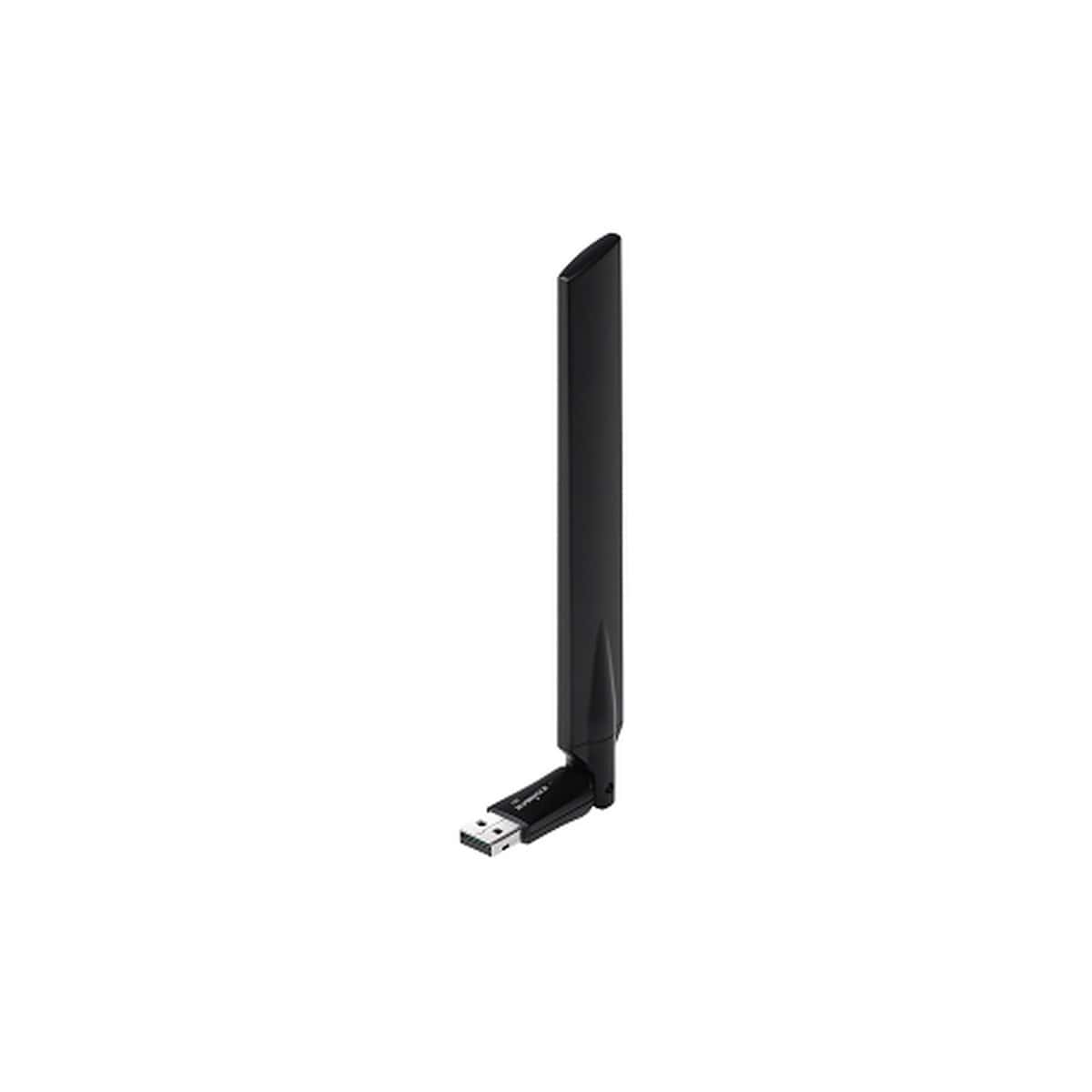

The EW-7811UAC is a high gain dual band wireless USB network adapter ideal for use with JVC's streaming camcorders equipped with a USB host connection. Its rotatable external Hi-Gain Antenna maximizes your Wi-Fi reception and provides a stable high-speed connection. The EW-7811UAC plugs into the host USB connector of JVC cameras.
Key Features
- Complies with draft IEEE 802.11ac standard and backward compatible with wireless 802.11a/b/g/n standards
- Dual-band wireless connectivity for 2.4GHz or 5GHz
- Max. Wi-Fi speeds of 150Mbps (2.4GHz) or 433Mbps (5GHz)
- Features a hardware WPS (Wi-Fi Protected Setup) button for easy wireless connections
- Features easy setup wizard
- Supports Windows XP/Vista/7/8/8.1, Linux and Mac OS X drivers
- High gain antenna, 4dBi (2.4GHz) and 6dBi(5GHz), provides high performance long distance wireless connections
- USB cradle included for flexible placement
Technical Specifications
Network
2.4GHz
IEEE 802.11 b/g/n
5.0GHz
IEEE 802.11ac (Draft), 802.11a/n
Speed
Up to 433Mbps
Security
WEP 64/128, WPA, WPA2, IEEE802.1X
Hardware & Software WPS Configuration
Antenna
Hi-Gain 4dBi (2.4GHz) and 6dBi (5.0GHz)
Output Power (2.4GHz)
11b: 17dBm±1.5dBm
11g: 15dBm±1.5dBm
11n(20MHz): 14dBm±1.5dBm
11n(40MHz): 14dBm±1.5dBm
Output Power (5.0GHz)
11a (54mbps): 14dBm±1.5dBm
11n(20MHz): 13dBm±1.5dBm
11n(40MHz): 13dBm±1.5dBm
11ac (80MHz, MCS9): 12dBm±1.5dBm
Power
USB 2.0 Type A
LED
Link/Activity
Dimensions
7.5(H) x 0.8(W) x 0.3(L) in
Weight
0.6oz (18 grams)
Temperature
Operating: 32~104 Degrees F (0~40 Degrees C)
Humidity
Operating
Max. 95% (NonCondensing)
Certification
FCC, CE
