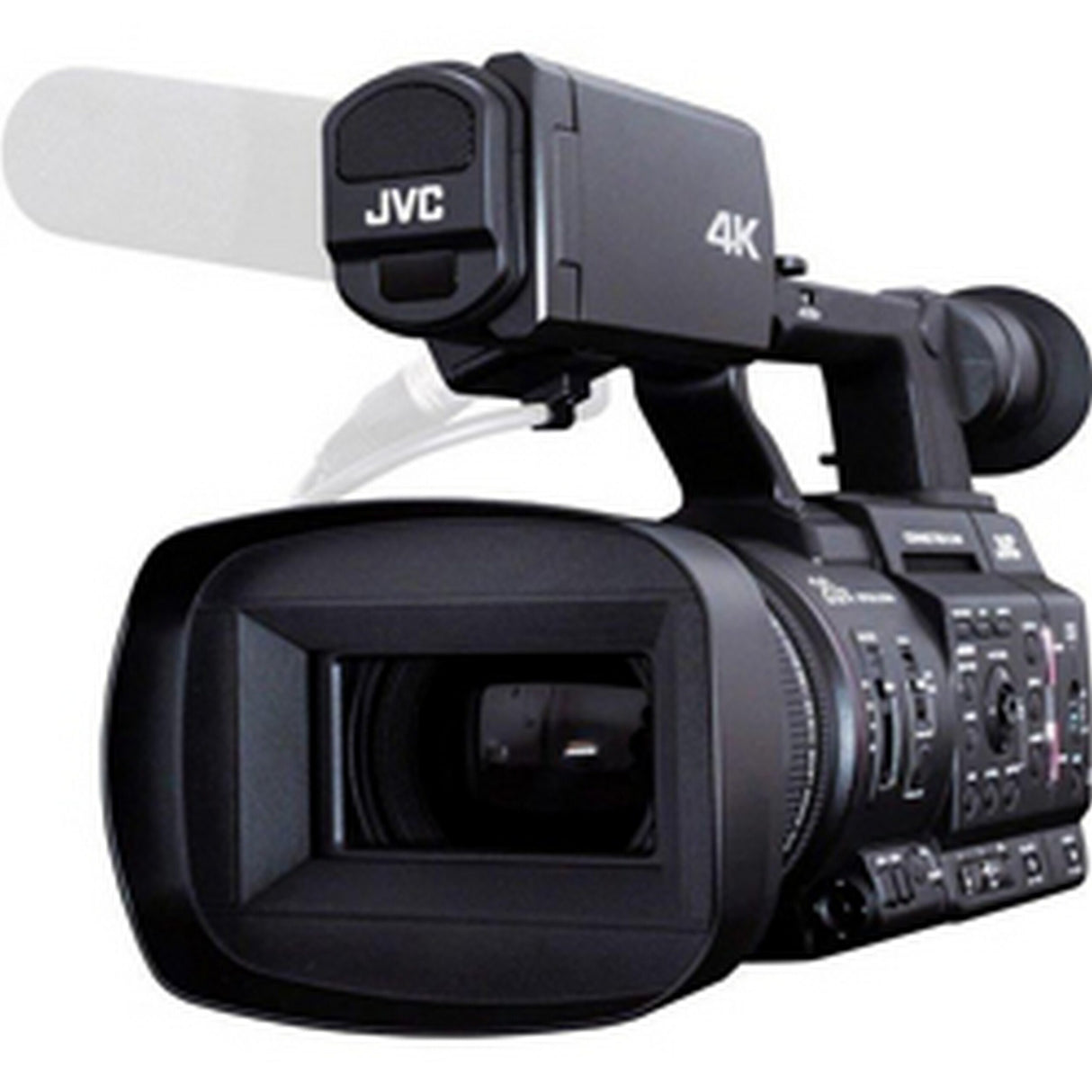

JVC GY-HC500SPC 4K Sports Production and Coaching Connected 1 Inch Camcorder

The GY-HC500SPCU is JVC's highest quality and most versatile sports production camera, capable of producing professional quality coverage of sporting events complete with score overlay and game clock. Scores can be input manually with a tablet, or automatically, straight from your facility's scoreboard with ScoreHub. Your camera produces the high resolution lower third graphics with network quality, and overlays them on pristine video that can be recorded and streamed directly from the camera. Coaches and team managers will take advantage of the camera's unique sports metadata capability and Sports Exchange recording format--compatible with DV Sport and XOS digital platforms.

Key Features

• 10-bit ProRes 422/422HQ/422LT at 4K resolution and 50/60p frame rates recording to M.2 SSD**
• 4K UHD 30p/25p/24p 4:2:2 10-bit / 4:2:0 8-bit (150Mbps) and various HD recording to SDHC/SDXC card*
• HDR recording, HLG or J-Log1 (10-bit)
• 1-inch (effective) CMOS sensor with high picture quality
• Clip Continuous Mode: This mode allows you to consolidate several rounds of start/stop recording into one clip.
• F11 Sensitivity
• Newly-developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
• 40x lossless dynamic zoom
• 4-inch high resolution LCD monitor
• LCOS Quad VGA viewfinder
• XLR audio connectors
• High performance 1080 60p/50p live streaming
• (4K Rec + HD streaming + 4K HDMI output)
• Low latency and high-quality streaming up to 20Mbps
• SRT (Secure Reliable Transport> and Zixi QoS Technology
• HEVC/H.265 encoding for streaming with 50% reduction in bit rate-or-contribution quality 4:2:2 10-bit streaming at up to 24Mbps (via optonal KA-EN200G)
• LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
• Return over IP (Return video and IFB)
• Auto FTP to upload native video clips automatically
• Network Time Protocol (NTP)for precise time code synchronization

Technical Specifications

Power
DC12V (AC adapter), DC7.2V (battery)
Power consumption
Approx. 24W
Dimensions (W x H x D)
188 mm x 227mm x 437mm (with hood and viewfinder)
Weight
9.2lb (3.6kg with hood and battery, without wireless LAN antenna unit)
Moisture protection
Weather resistant
CAMERA
Image sensor
1" (effective) CMOS, effective number of pixels: approx 9.35 million
Stabilizer
Optical image stabilizer
Sensitivity
F11 at 2000lx 89.9% reflectance
Lens
F2.8 (wide) to F4.5 (tele), f=9.43mm to 188.6mm (f=28mm to 560mm (35mm equivalent))
Filter diameter
82mm
Shutter speed
1/6 to 1/10000
ND filter
Off, 1/4, 1/16, 1/64
Viewfinder
0.4" LCOS Quad VGA (1280 x 960), 1280 x 720 at 16:9
LCD monitor
3.97" LCD /WVGA (800 x 480), 800 x 450 at 16:9
VIDEO/AUDIO RECORDING
Video codec
Apple ProRes 422, MPEG-4 AVC/H.264 (HD/SD), MPEG-2 (HD)*
File format
MOV, MP4
4K UHD 60p/50p
3840 x 2160, Apple ProRes 422 HQ/Apple ProRes 422/Apple ProRes 422 LT, 10-bit
4K UHD 30p/25p/24p (H.264)
3840 x 2160, 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps
HD (H.264)
1920 x 1080/1280 x 720, 4:2:2 10-bit / 4:2:0 8-bit mode, etc., 50Mbps - 8Mbps
SD (H.264)
720 x 480 (U model)/720 x 576 (E/EU model), 8Mbps
Proxy (H.264)
960 x 540/480 x 270, 3 - 1.2Mbps
Audio recording
LPCM 2ch, 48kHz/16-bit (MOV), -Law 2ch (Proxy), AAC 2ch (MP4)
INTERFACES
Video output
3G-SDI output (BNC x 1)
HDMI output x 1
AV output (-3.5mm mini jack x 1)
Audio input
XLRx 2 (MIC, +48V/LINE), -3.5mm mini jack x 1
Audio output
AV output (-3.5mm mini jack x 1)
Headphone
-3.5mm mini jack x 1
Remote
-2.5mm mini jack x 1
Time code input/output
RCA
USB
HOST x 1 (network connection)
Ethernet
RJ-45 x 1
Built-in slot
Optional SSD media case and for future expansion
