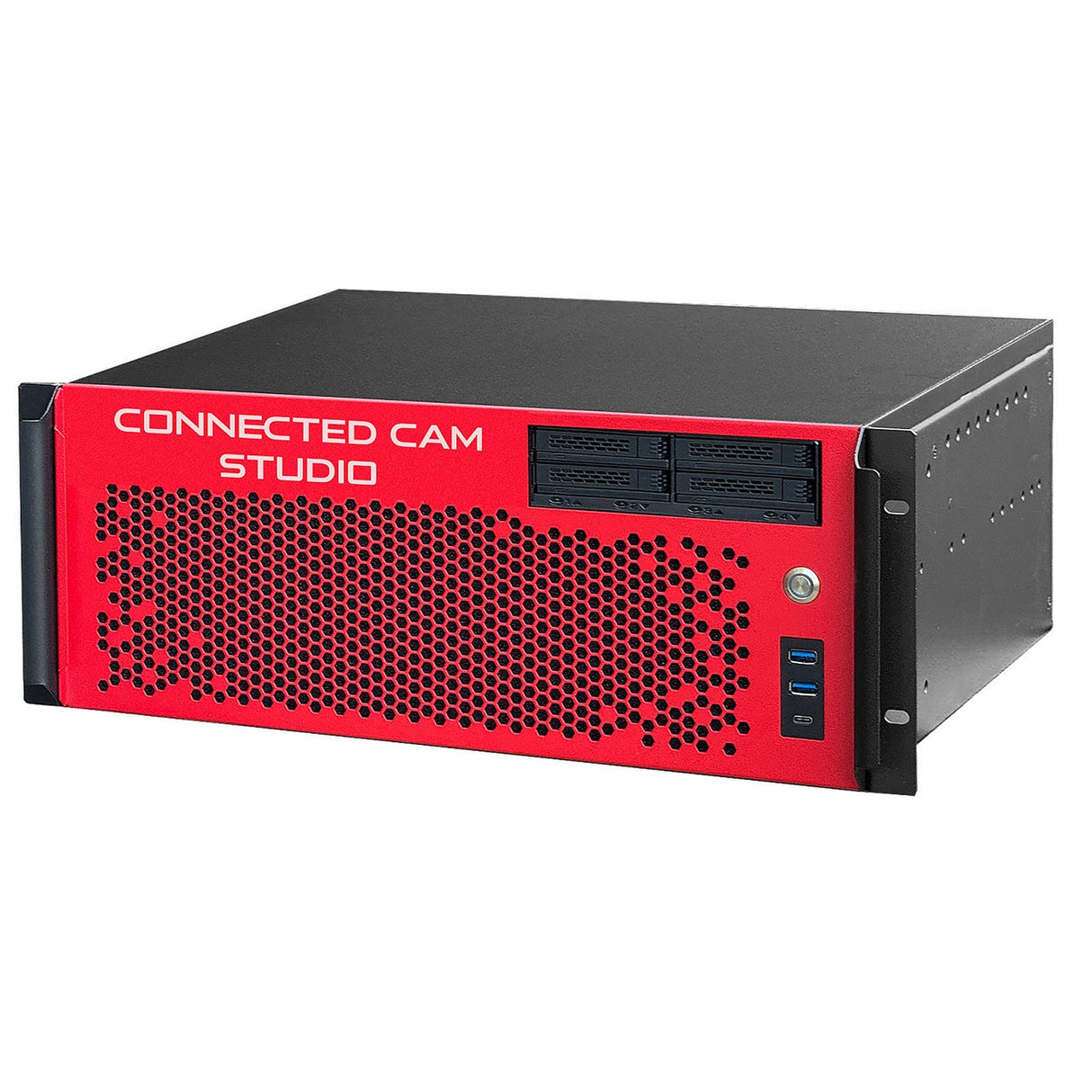

Unleash the power of professional live production with the JVC KM-IP12S8PRO 12 NDI/SRT and 8 SDI Input 4K vMix Pro Studio Switcher, meticulously crafted for large-scale productions and high-pressure environments.

Effortlessly handle complex multi-camera setups:
Switch flawlessly between 4K and high-definition sources with 12 NDI/SRT and 8 SDI inputs, ensuring pristine visuals for your audience.
Capture every angle with ease: Manage up to 4 live 3840x2160 60p feeds simultaneously via 12G-SDI/NDI.
Relive the action instantly: 8-channel instant replay lets you capture and replay highlights on the fly, keeping your viewers on the edge of their seats.

Built for Efficiency and Silence:

Liquid-cooled housing ensures whisper-quiet operation even under demanding use, allowing you to focus on your production.
vMix Pro software pre-installed provides a robust platform for professional video production and live streaming.

Unparalleled Flexibility and Control:
Broad connection options: Supports multiple inputs/outputs including 12G-SDI, 3G-SDI, HDMI, and DisplayPort.
Expand your workflow: Front dock for 4 x SSDs and USB 3.0 Gen.2 ports for digital audio and control surfaces (like the RM-LP350G or RM-LP450 Desktop vMix Control Surfaces - sold separately).

Additional Highlights:
Stream to a Multitude of Platforms: Reach your audience anywhere with concurrent output to three CDNs.
Record Isolated Feeds: Capture pristine recordings of each source for editing or archival purposes with ISO recording.
Enhanced Network Connectivity: Connect to numerous networks with three 2.5 GbE Ethernet ports for NDI, SRT, Dante, and RTMPS/Internet connectivity.

Technical Specifications

12G SDI In/Out
4
HDSDI IN
4
Optional Inputs
NDI, SRT, RTSP, RTMP/VLC, UDP, H.264, H.265
IP Video stream input
12
NDI Input
12
HDSDI output
Yes
NDI output
Yes
HDMI output (PGM)
Yes
SDI/HDMI embeded Audio
Yes
USB Audio card support
Yes
Graphics DSK
4 x DSKs
ISO
ISO Recording of all inputs
Live Streaming
Yes
2160P (4K)
25p/29.97p/50p/59.94p
1080P
1080 25p/29.97p/50i/50p/59.94i/59.94p
720P
720 25/29.97/50/59.94p
Smart PTZ
Yes
Powered by Vmix
Yes
vMix Replay
Yes
Measurements (WxHxD) in Inches
W: 17 H: 7 D: 17
19" Rackmount
Yes
Rackmount Height in U
4 U
