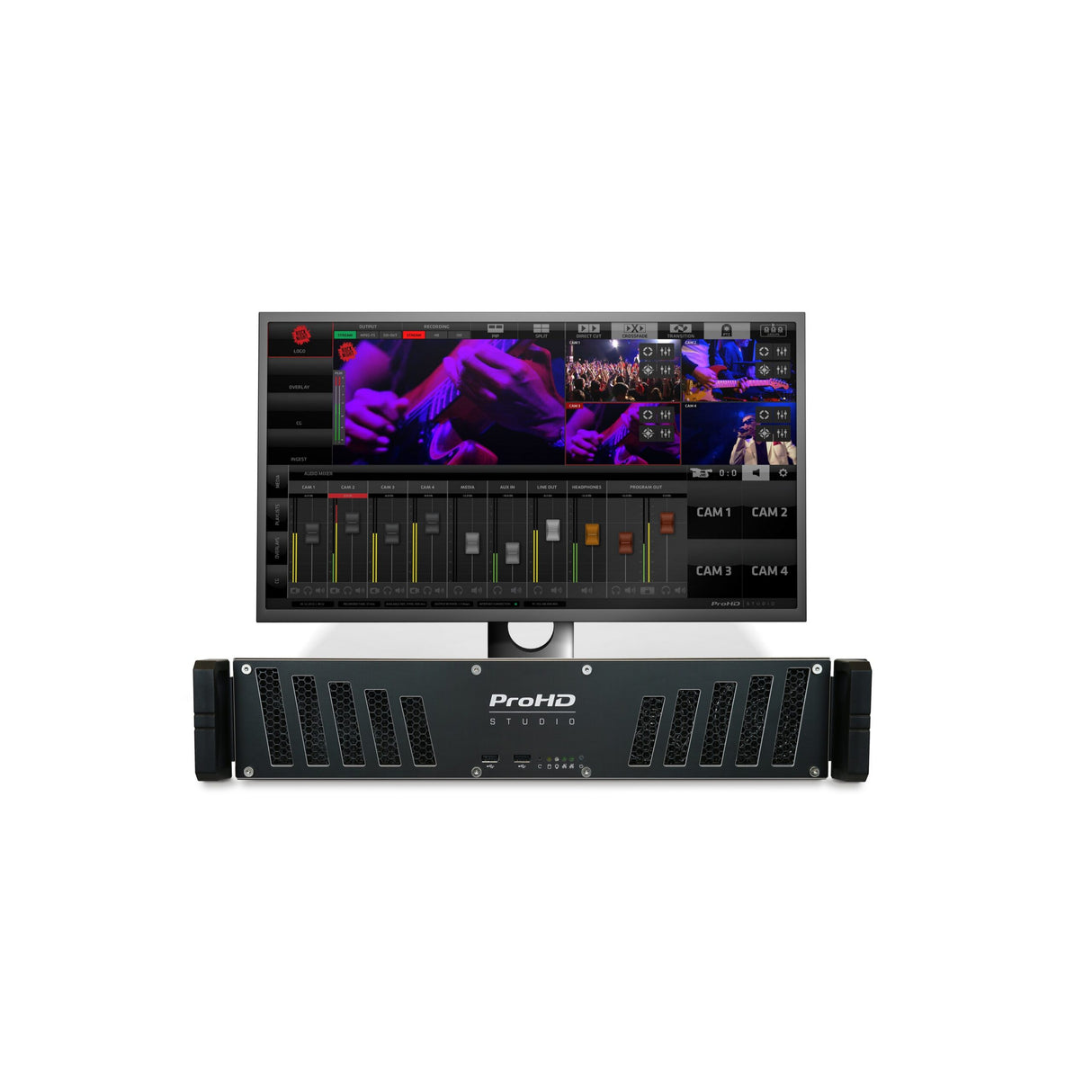

JVC KM-IP4000 ProHD 4000 Live Production and Streaming Studio

The JVC ProHD Studio offers four-channel switching, and live video streaming in a compact form suitable for remote or studio use. This versatile switcher includes four HD-SDI inputs, four IP stream inputs, and four NDI inputs for maximum flexibility with a variety of feeds. Multiple frame rates up to 60 fps are supported, and an integrated encoder provides 1080p60 streaming at rates up to 10 Mb/s. Multiview output is available via HDMI, DVI, or DisplayPort, and ISO (isolated) recordings of each channel provide expanded options for editing. Features include 4:4:4:4 ARGB processing, simultaneous program-stream recording, a full audio mixer, automatic tracking of JVC PTZ cameras, JVC camcorder control, and integration with popular streaming platforms such as Facebook Live. Switcher functions include four DSK (downstream key) layers, an internal character generator with templates, PiP and splIt'screen layouts, and automated transition-switching modes.

Key Features

• Intuitive and easy-to-use touch screen user interface
• 4x HD-SDI input
• 4x IP Stream input
• 4x NDI input
• 1x Ingest input for HDMI or NDI with transparency
• IP video stream inputs from JVC streaming camcorders
• Integrated JVC camcorder remote control
• External signal ingest with keying (for PowerPoint, Keynote, Facebook, GoPro or even a smart phone camera)
• 1x HD-SDI video out
• 1x HDMI video out - PGM
• 1x HDMI/Display port video out - multiview or PGM
• up to 1080@50/60p streaming @ 10 Mbps max
• RTMP & MPEG-TS simultaneous output
• Cut/Crossfade/Transitions automated switching modes
• Monetizing system with advertising statistics
• Internal character generator with templates
• 4 layers of DSK - CG/images/animations with transparency
• Instant, unlimited video clips playback - No transcoding!
• Unlimited playlists - Media management/playout
• PIP and SplIt'screen layouts

Technical Specifications

Video Input
4 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 1080i
Network Video Input
4 x IP video inputs via NDI, RTSP, RTMP, UDP unicast, UDP multicast, HLS, SRT
SDI Video input
4 x HD/SD-SDI connections supporting video input in any combination
1080i: 50, 60, 59.94
1080p: 25, 30, 29.97
720p: 50, 60, 59.94
SD: 50, 60, 59.94
SDI Video Output
1x HD/SD-SDI + HDMI: Program output with embedded audio
1080i, 50, 59.94
720p: 50, 59.94
SD: 50, 59.94
HDMI or NDI Video Input
1x HDMI input, usable as video input for capturing any external screen ( laptop, pc , tablet ) or NDI transparency ingest input usable for external Sport graphics software or CG applications
Network Video Output
1x NDI IP video program output
H.264 + AAC-LC stream output, RTMP, SRT, MPEG-TS UDP
Streaming to up to 5 destinations at the same time
Streaming resolutions
1080p: 15, 25, 30
720p: 15, 25, 30, 50, 60
540p: 15, 25, 30, 50, 60
576p: 15, 25, 30, 50, 60
486p: 15, 25, 30, 50, 60
Multiview Output
HDMI/DVI/Display port (depends on GPU version), supporting standard display resolutions, configurable: full PGM / All Inputs grid / All Inputs + PGM grid
Recording
ISO recording of all cameras in MPGEG2 Intraframe
Program recording HD: MPEG2 @ ~18 Mpbs or SD: MPEG2 @ ~8 Mbps
Simultaneous Stream Recording in H.264 + AAC at streaming settings bitrate ,resolution and fps
Storage
120GB SSD - system
500GB SSD - media and recording storage (recording time varies depending on amount of media files stored on drive and recordings configuration. Maximum of 60h of HD program recording)
Audio Input
3.5mm line in/microphone connector
HD/SD-SDI embedded audio
IP input embedded audio
Support for USB audio device input via compatible WDM audio drivers
