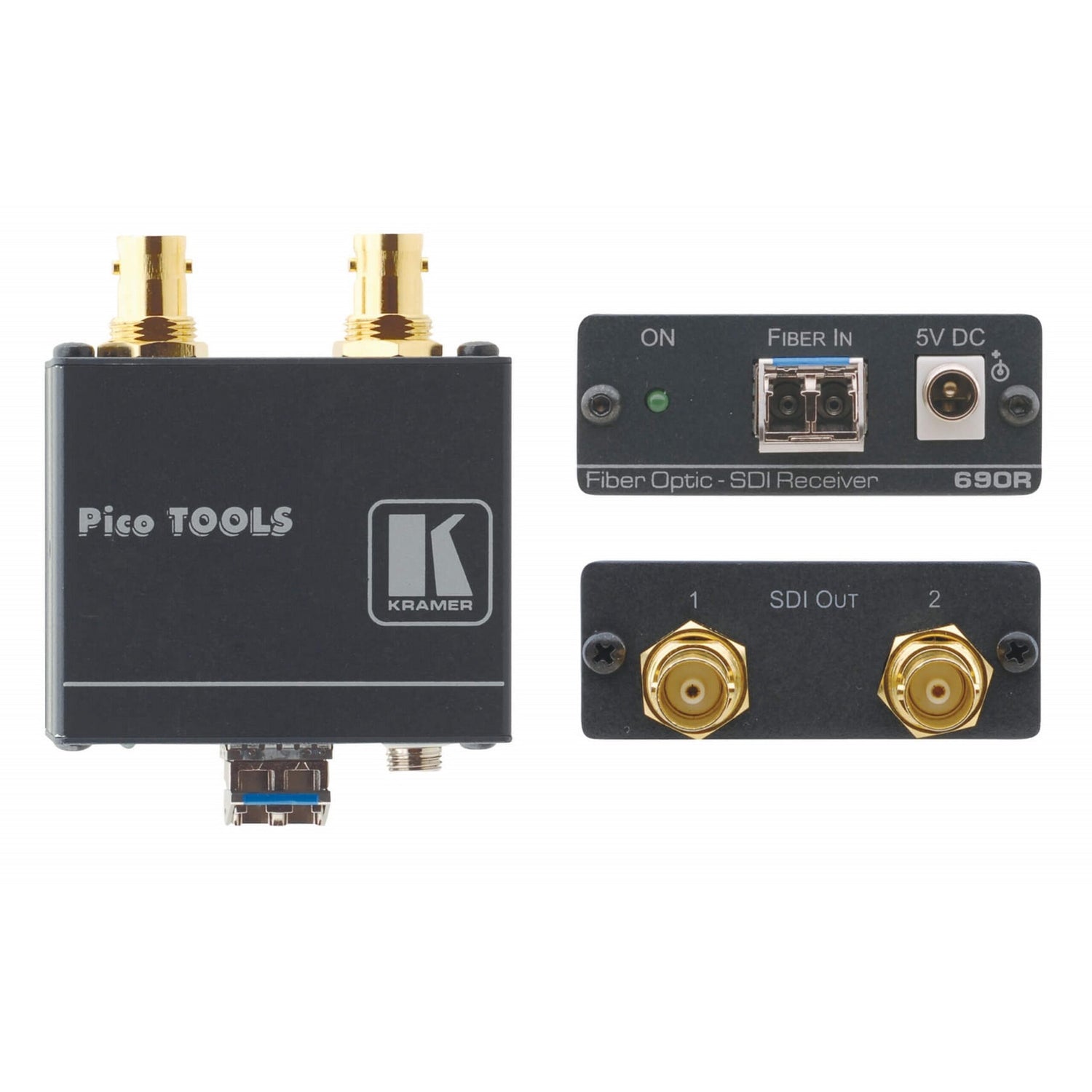

Kramer 690R 2x3G-SDI Receiver over Ultra-Reach SM Fiber

The 690R is a high-performance fiber optic receiver for SDI video signals up to 3G HD-SDI. The 690T converts two 3G HD-SDI signals to single-mode fiber optic and the 690R receiver converts them back to the two original SDI formats. Compatible with the fiber optic matrix VS-88FO.

Key Features

• Max. Data Rate - 3Gbps.
• Inputs - 2 single-mode fiber optic on LC connectors.
• Outputs - 2 SDI on BNC connectors.
• HDTV Compatible.
• Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M).
• Laser Standards Compliance - IEC 60825-1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
• Kramer Equalization & re Klocking Technology - Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD-SDI) & 100m (3G HD-SDI).
• System Range - Up to 10km (6.2mi).

Technical Specifications

INPUTS
Dual single-mode fiber (9/125) over LC connectors
OUTPUTS
2 SD/HD/3G HD-SDI on BNC connectors
BANDWIDTH
Supports up to 3Gbps bandwidth for each input
FIBER OPTIC EXTENSION
Up to 10km (>6.2 miles) for 3G-SDI
INPUT CABLE EQUALIZATION
200m for SDI, 100m for 3G-SDI
POWER CONSUMPTION
5V DC, 350mA
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
INCLUDED ACCESSORIES
Power supply
PRODUCT DIMENSION
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.1kg (0.2lbs) approx.
