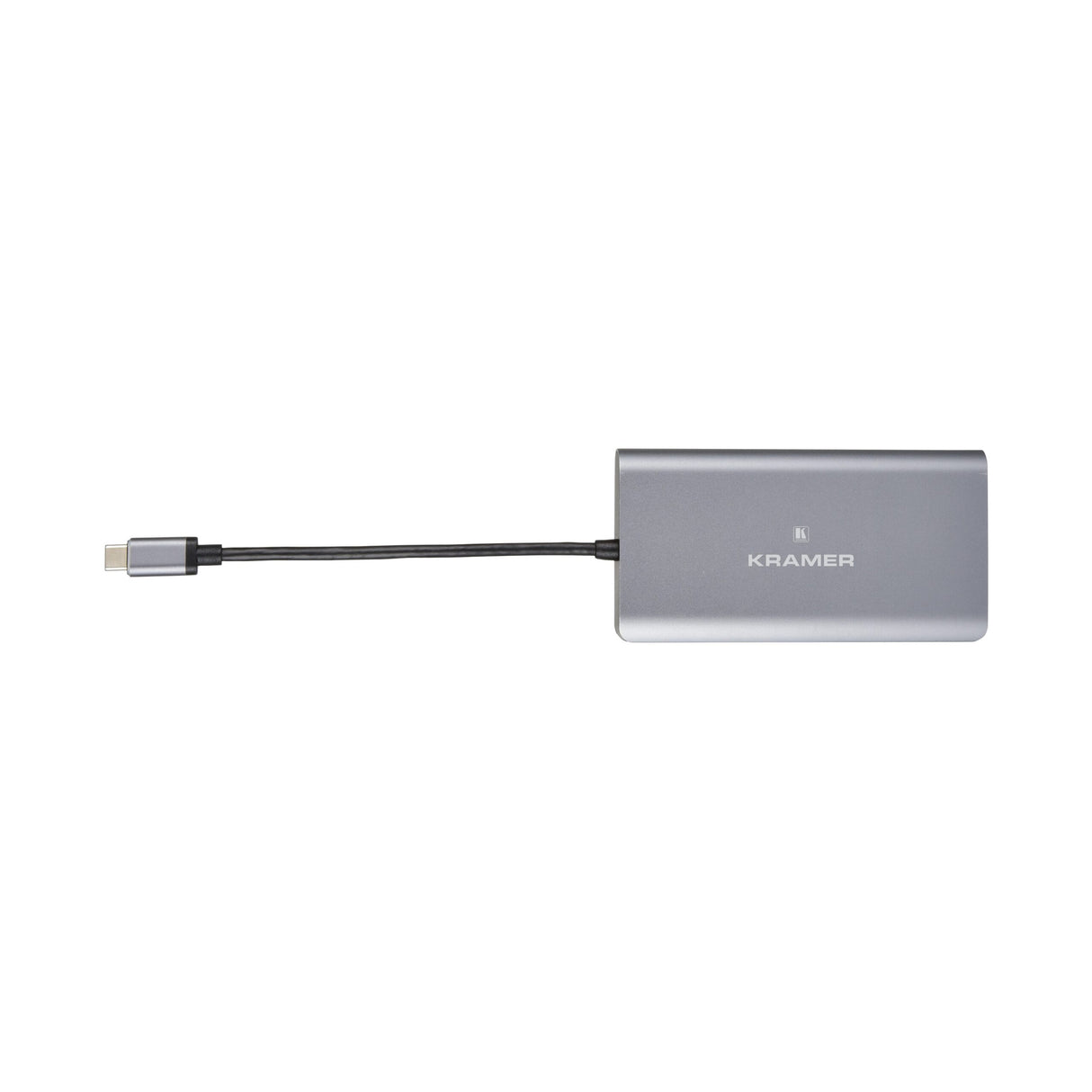

Kramer KDock-3 USB-C Hub Multiport Adapter
KDock-3 is a USB-C hub multiport adapter specially designed to support mobile devices and is an ideal accessory for MacBook, laptops equipped with USB Type-C, mobile phones, and tablets. KDock-3 enables you to connect your USB-C device to HDMI and DisplayPort video outputs, 2 USB 3.0 ports, an Ethernet port, SD card port and USB-C data and charging pass-through.
Note: Video output for smartphones is supported only for smartphones that support DisplayPort Alt mode through USB-C.
Technical Specifications
INPUTS
1 USB: On a USB Type-C male connector
OUTPUTS
1 HDMI: On a female HDMI connector
1 DisplayPort: On a female DisplayPort connector
PORTS
2 USB 3.0/2.0: On female USB type-A connectors
1 Ethernet: On an RJ-45 connector
1 USB 3.0: On a female USB type-C connector for data and charging
SD: On an SD card port
VIDEO
Max Resolution: 3840x2160P@30Hz (with one display connected)
Max Resolution: 1920x1080P@60Hz (with two displays connected)
Max Data Rate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel)
Multiple Video Output Support: Via MST (Multi-Stream Transport) technology
Content Protection (HDMI output): HDCP 1.4
EXTENDED ETHERNET
Max Data Rate: 1000M (Gigabit)/100M/10M
Includes: Wake-on-LAN (WoL), single Mac address, PXE boot
GENERAL
USB 3.0 Data Transmission Speed (USB 3.0 & USB-C): Up to 5.0Gbps
POWER
Delivery: 100W
USB Charging: BC1.2 (5V 1.5A)
USB Limited Current when Connected to Power via female USB-C port: 1.9A
USB Limited Current when Not Connected to Power via female USB-C port: 1A
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +70C (32 to 158F)
Storage Temperature: -10 to +55C (14 to 131F)
Humidity: 5% to 90%, RHL non-condensing
ENCLOSURE
Type: Aluminum with built-in 16cm/6.3" flexible USB-C cable
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety: CE
Environmental: RoHs, FCC
PRODUCT DIMENSIONS
11.65cm x 6.08cm x 1.60cm (4.59" x 2.39" x 0.63" ) W, D, H
PRODUCT WEIGHT
0.1kg (0.3lbs) approx.
SHIPPING DIMENSIONS
15.60cm x 10.20cm x 3.50cm (6.14" x 4.02" x 1.38" ) W, D, H
SHIPPING WEIGHT
0.2kg (0.4lbs) approx.
