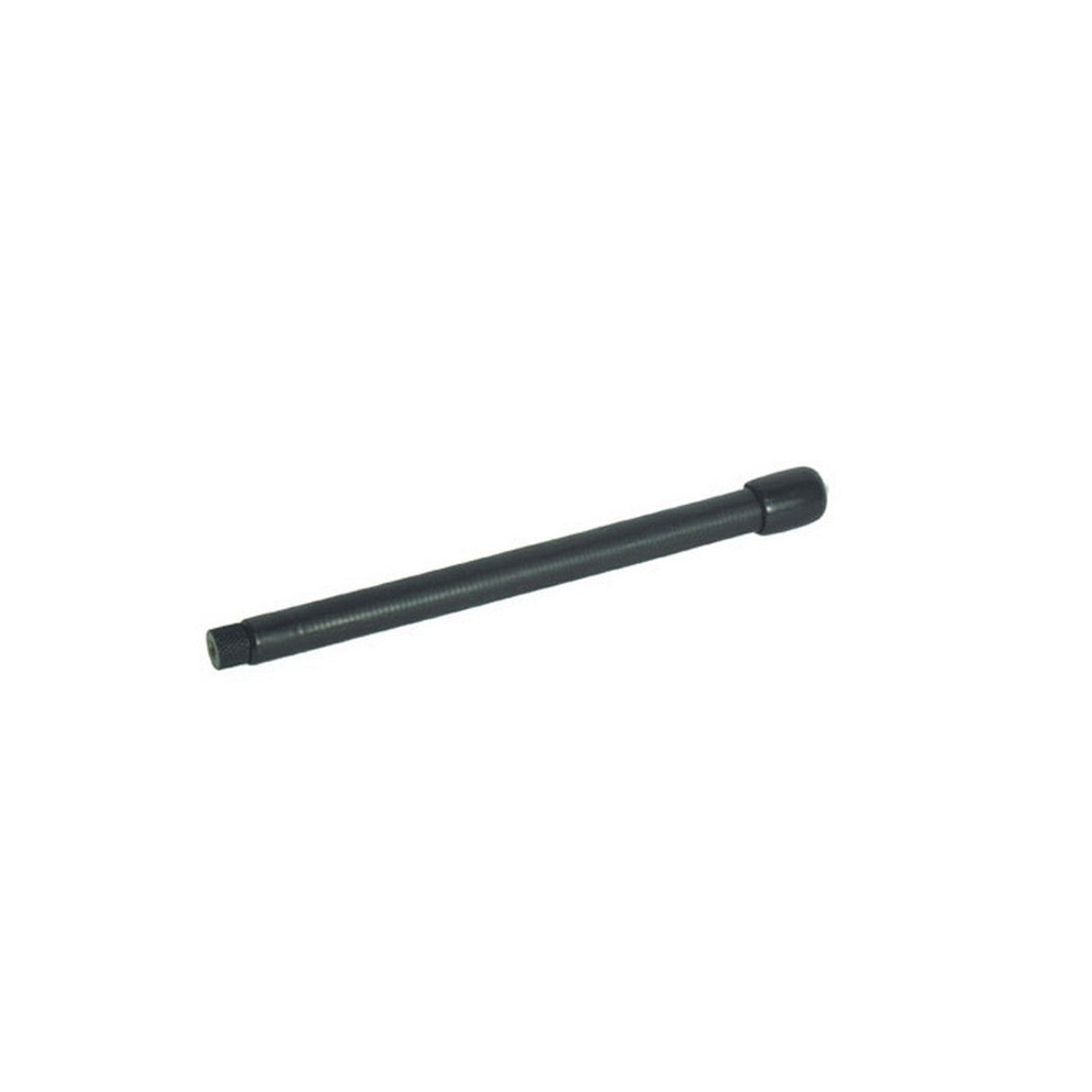

Listen Tech LA-101 Helical Top Mounted Antenna, 72 MHz
Listen Tech LA-101 Helical Top Mounted Antenna, 72 MHz
Listen Tech LA-101 Helical Top Mounted Antenna, 72 MHz
The LA-101 Helical Top Mounted Antenna mounts to our LT-800-072 72 MHz transmitter, allowing for use and installation in low-clearance applications where space is at a premium. It offers a cost-effective antenna solution for smaller venues or spaces where transmission range is not a concern.
Key Features
- Affordable, low-clearance antenna
- Ideal for installations where space or clearance are at a premium
- Works well in small to mid-size venues
- Designed for use with the 72 MHz version of our LT-800 transmitter
Technical Specifications
Interconnections
Thread Diameter
10-32
RF
Frequency Range
72.0250 - 75.9500 MHz
Number of Channels
57 (17 wide, 40 narrow)
Typical Range
Range up to 122 m / 400 ft.
Physical
Length
6.00 in. (15.24 cm)
Color
Dark Grey
Shipping Weight
1 lb. (0.5 kg)
Diameter
0.44 in. (1.10 cm)
Weight
1.60 oz. (45 g)
