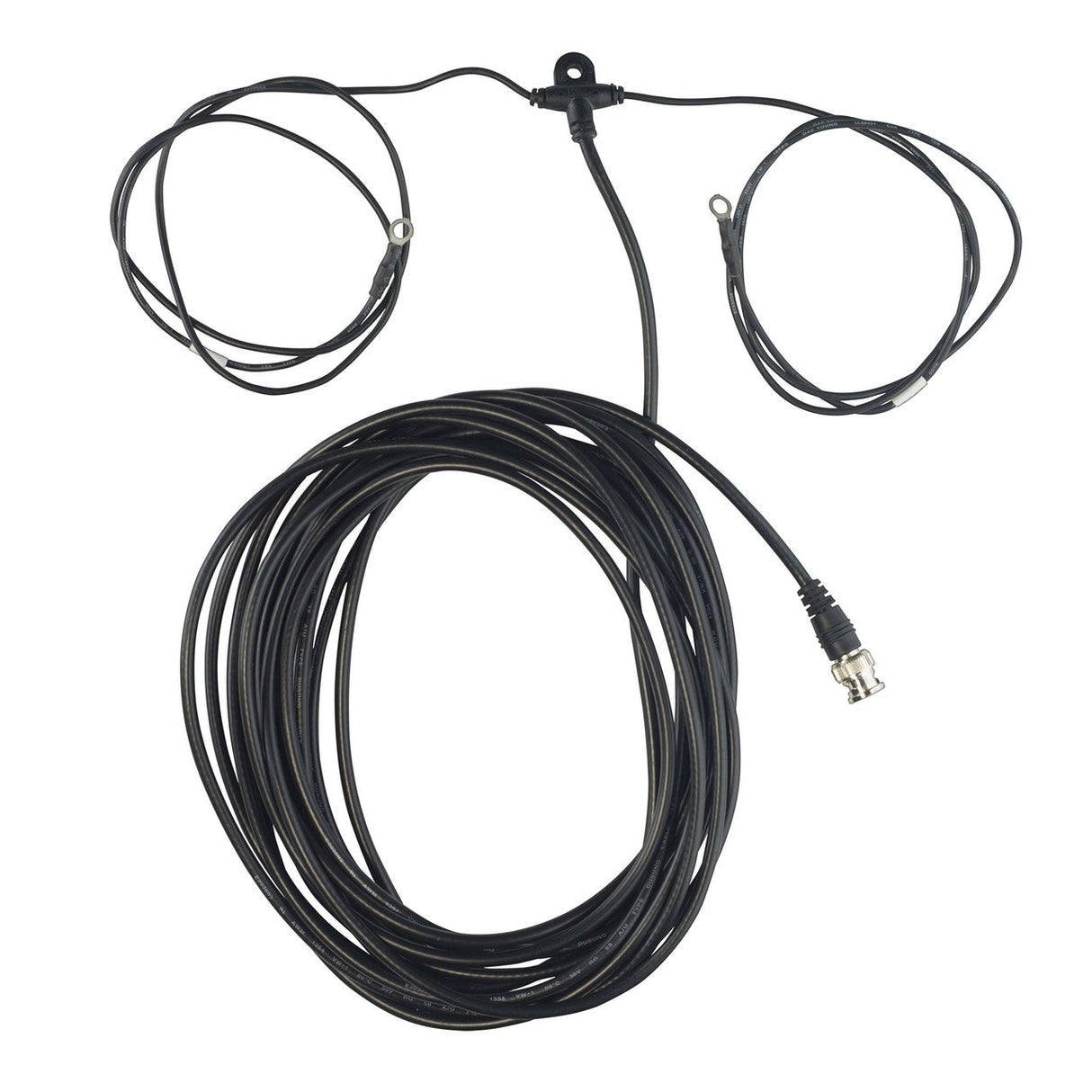

Listen Tech LA-116 Coaxial Dipole Remote Antenna, 72 MHz
Listen Tech LA-116 Coaxial Dipole Remote Antenna, 72 MHz
Made for permanent installations, the LA-116 flexible dipole antenna can be mounted on a wall, inside a drop ceiling, or anywhere that requires discreet placement and extended range. Configured for use with our 72 MHz transmitters and receivers, the LA-116 is 203 cm (80 in.) in length and flexible to fit any space or venue where it is needed.
Key Features
- Flexible for many different applications
- For use with 72 MHz products
- Easy to install
- Transmission range of up to 244 m (800 ft.)
Technical Specifications
RF
Frequency Range
72.0250 - 75.9500 MHz
Typical Range
Range up to 244 m / 800 ft.
Physical
Material
Polyethylene Insulation, PVC Jacket, tinned copper conductor, tinned copper braided shield
Shipping Weight
0.5 kg (1.0 lb)
Diameter
4.88 mm (0.19 in.)
Cable Length
7.62 m (25 ft.)
Cable Type
RG-58 50 Ohm Coaxial
Weight
0.38 kg (13.40 oz.)
