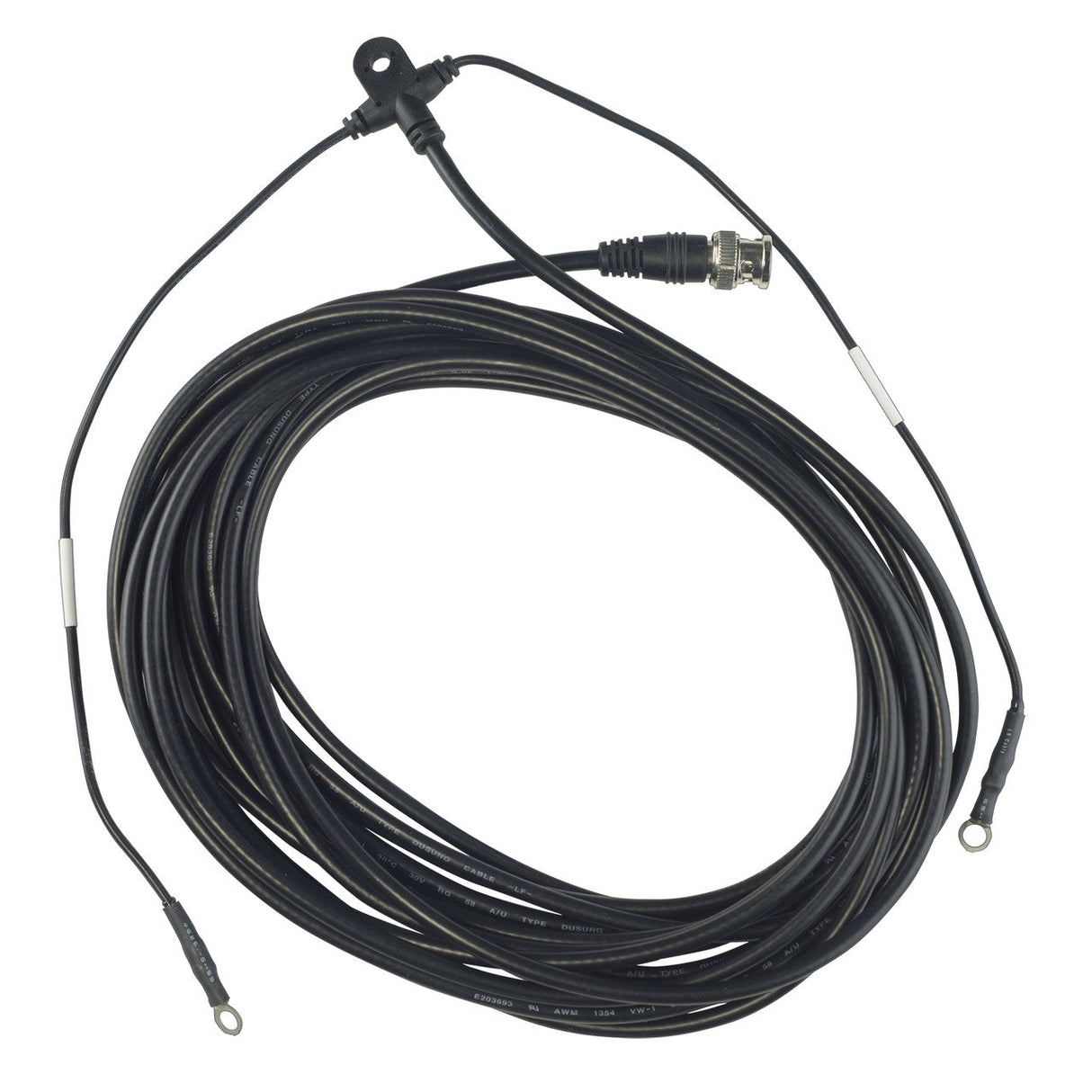

Listen Tech LA-117 Coaxial Dipole Remote Antenna, 216 MHz
Made for permanent installations, the LA-117 flexible dipole antenna can be mounted on a wall, inside a drop ceiling, or anywhere that requires discreet placement and extended range. Configured for use with our 216 MHz transmitters and receivers, the LA-117 is 68.6cm (27 in.) in length and flexible to fit any space or venue where it is needed.
Key Features
- Flexible design for multiple installation options including wall mounting, drop ceiling placement, and more
- Compatible with Listen Technologies’ 216 MHz transmitters and receivers
- Easy to install
Technical Specifications
RF
Frequency Range
216.0125 - 216.9875 MHz
Typical Range
Range up to 914 m / 3,000 ft.
Physical
Length
27.00 in. (68.6 cm)
Material
Polyethylene Insulation, PVC Jacket, tinned copper conductor, tinned copper braided shield
Shipping Weight
1.0 lb (0.5 kg)
Diameter
0.19 in. (4.88 mm)
Cable Length
25 ft. (7.62 m)
Cable Type
RG-58 50 Ohm Coaxial Cable
Weight
13.40 oz. (0.38 kg)
