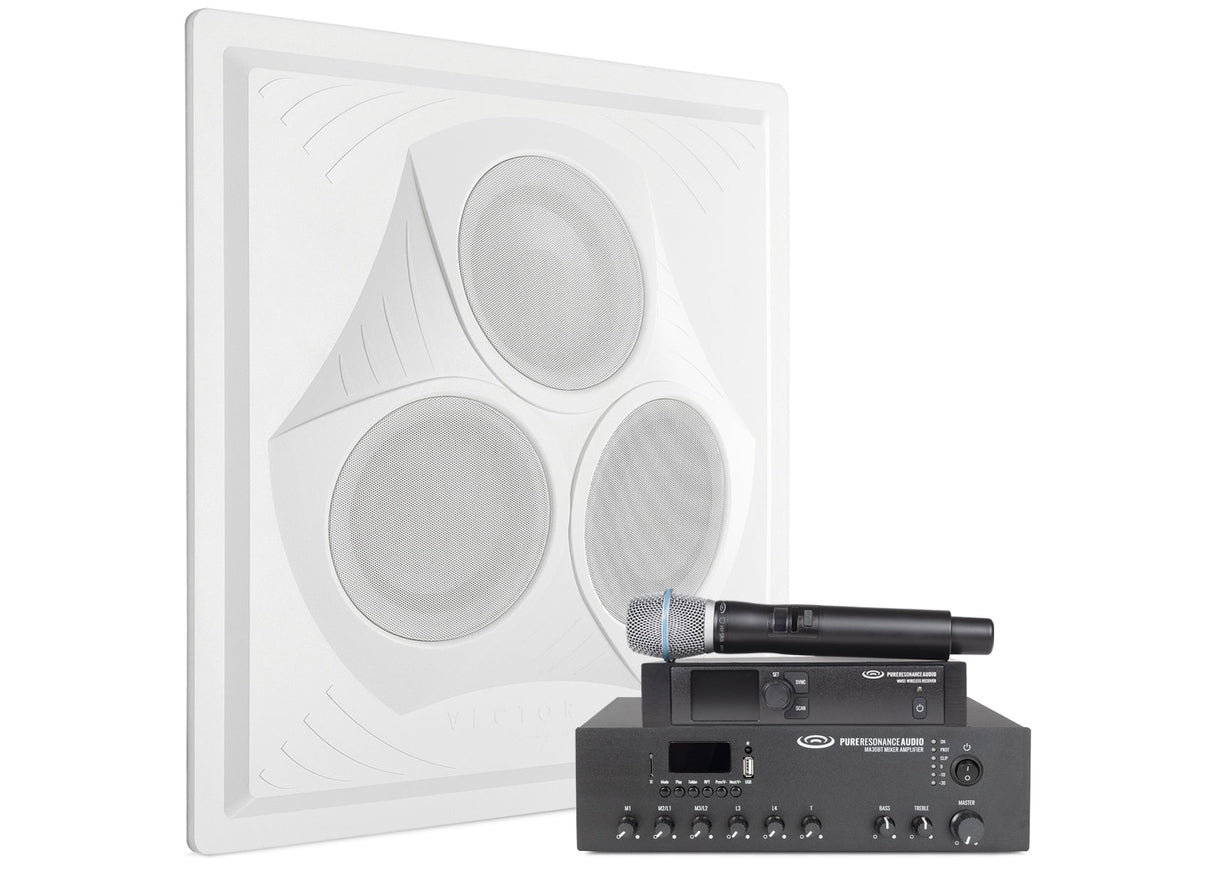

Pure Resonance Audio School Speaker System with VCA8 Vector Ceiling Tile Speaker, MA30BT Bluetooth Mixer Amplifier, and WMS1-HH Wireless Handheld Microphone

High-Performance 360° Classroom Audio Coverage

This school speaker system delivers exceptional 360° sound coverage, ensuring clear and consistent audio throughout the learning environment. The VCA8 Vector Ceiling Tile Speaker Array provides wide dispersion for balanced sound, while the MA30BT Bluetooth Mixer Amplifier offers easy wireless audio streaming and multiple input options to support projectors, computers, and media players.

The included WMS1-HH wireless handheld microphone provides flexibility for lectures, presentations, and classroom activities, reducing vocal strain for educators. Perfect for classrooms, labs, study halls, and educational facilities, this system offers reliable, high-quality audio performance tailored for modern instruction.

Key Features

• 360° Audio Coverage: Hemispherical sound dispersion across the entire classroom.
• Bluetooth Streaming: Wireless audio playback from mobile devices.
• Multiple Media Inputs: Supports projectors, computers, and audio sources.
• Wireless Microphone System: Clear, reliable handheld mic for lectures and presentations.
• High-Fidelity Speaker System: Three 6.5" aluminum woofers with wide frequency response.
• Efficient 30W Amplifier: Multiple impedance options for flexible installations.
• Professional Classroom Integration: Perfect for education spaces of all sizes.

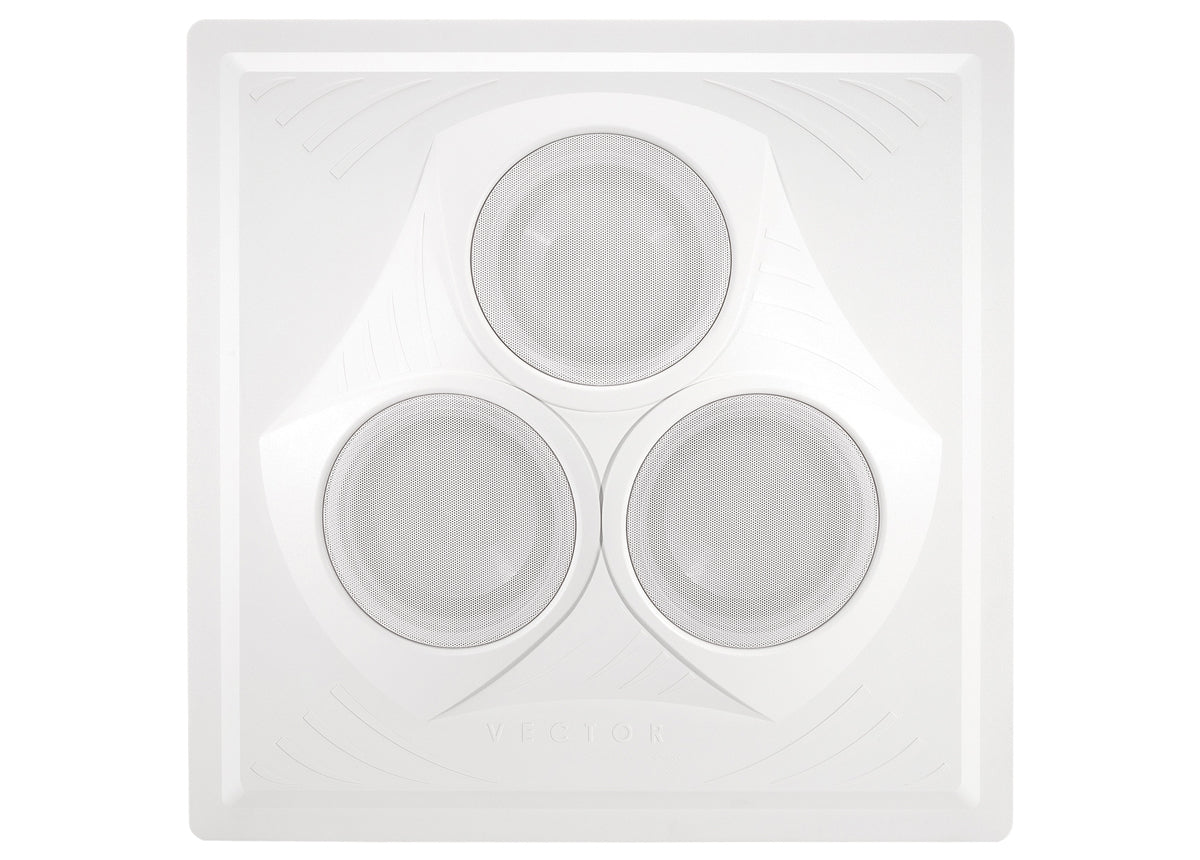

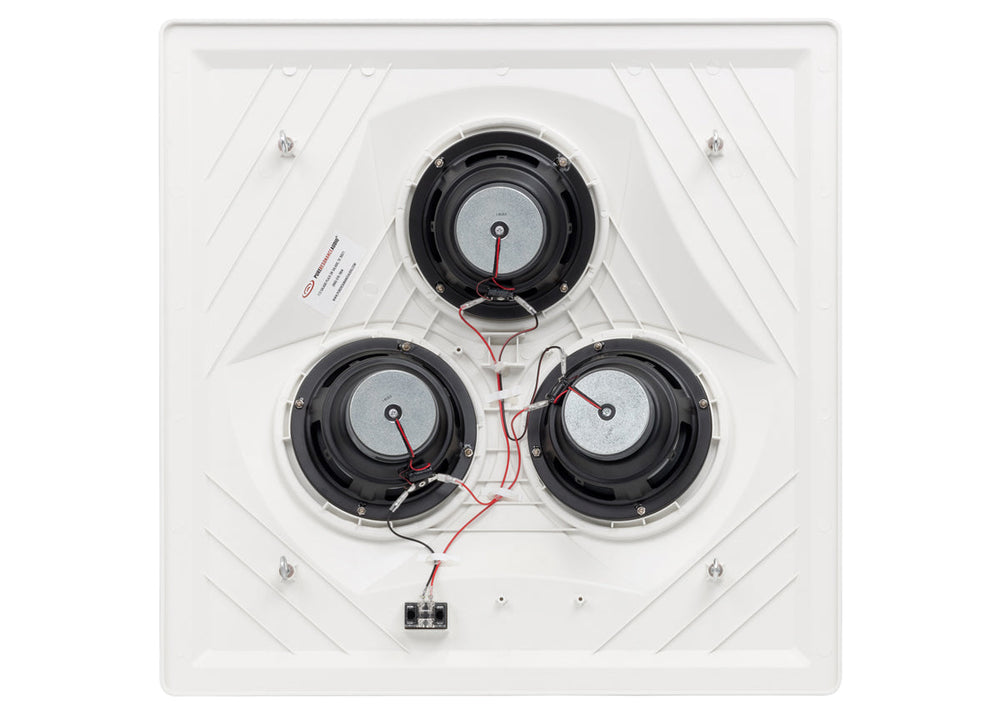

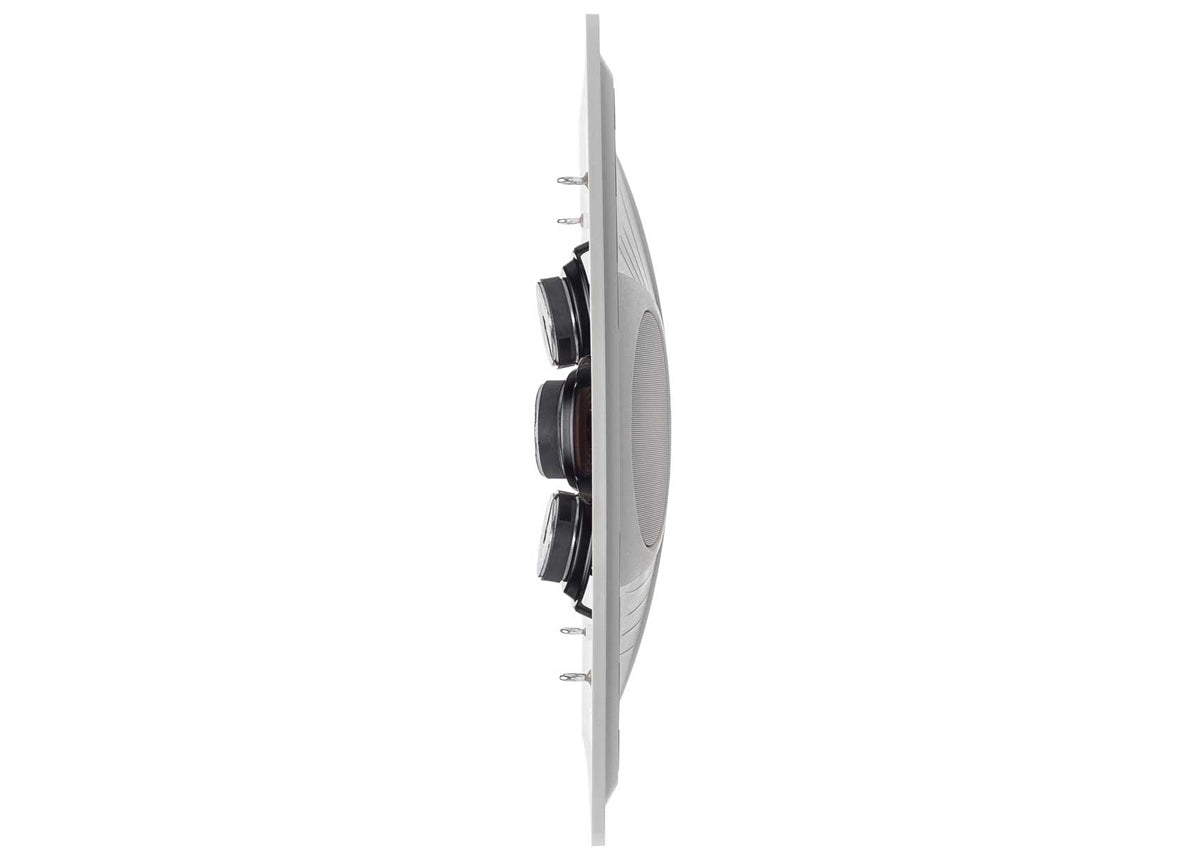

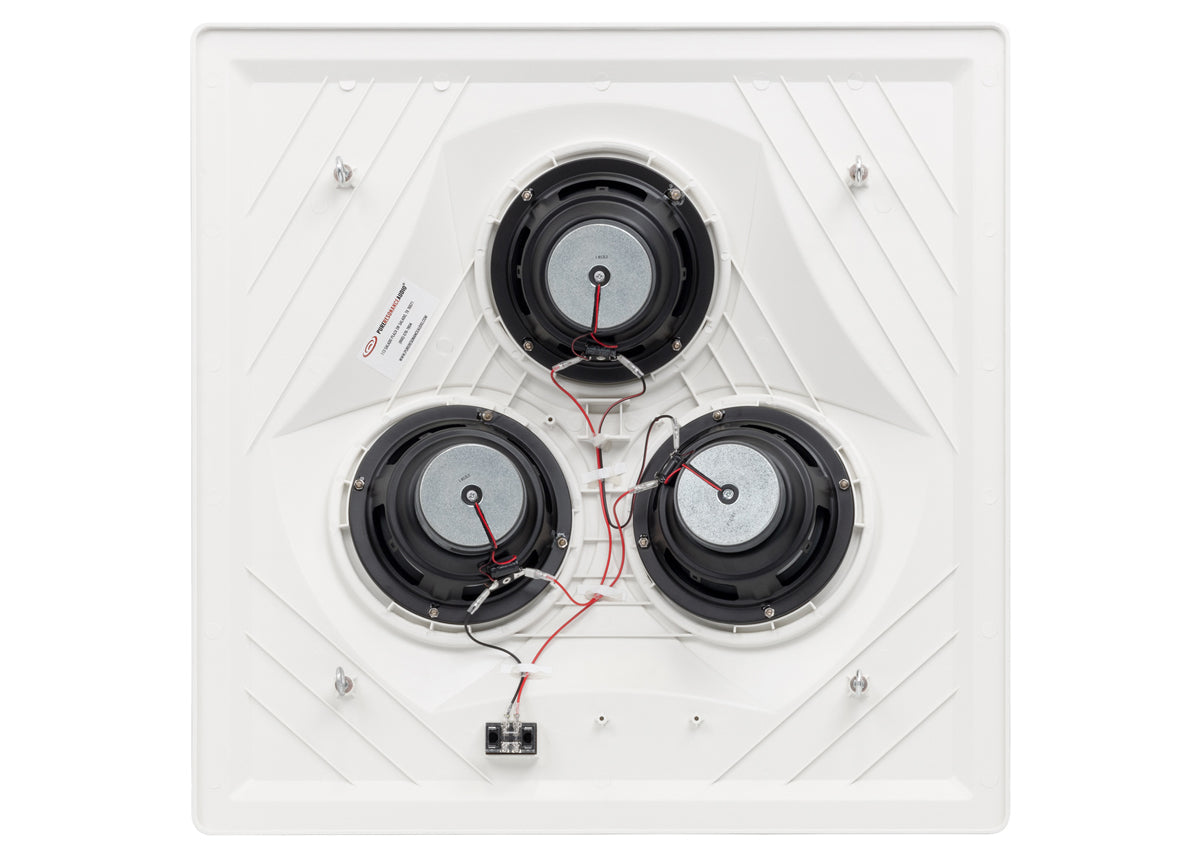

VCA8 Ceiling Speaker Specifications

• Power Handling: 120W
• Frequency Response: 35 Hz – 20 kHz
• Sensitivity: 92 dB (half space)
• Impedance: 8 Ohms
• Woofers: Three 6.5" aluminum drivers
• Dispersion: 180 × 360 degrees (hemispherical)
• Dimensions: 23.75" × 23.75" × 4.75"
• Net Weight: 16 lbs

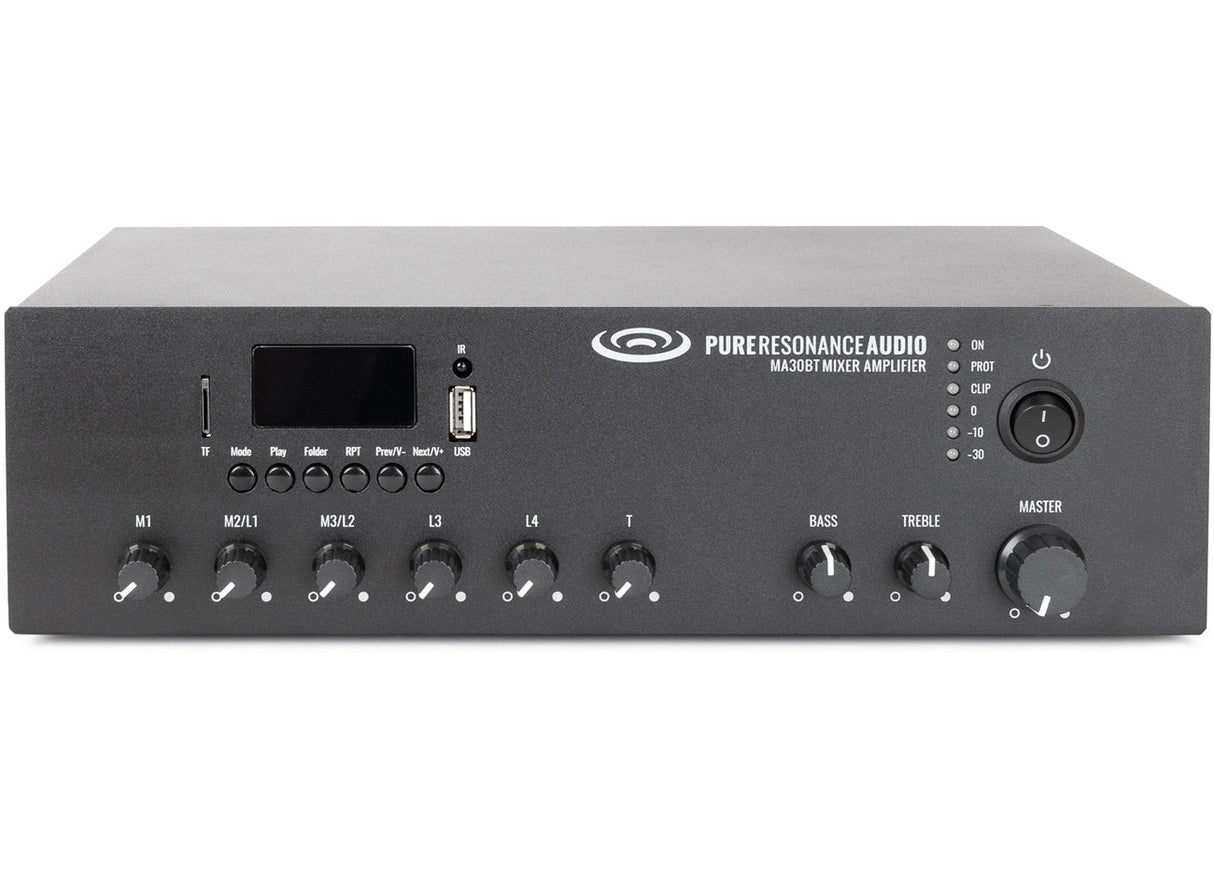

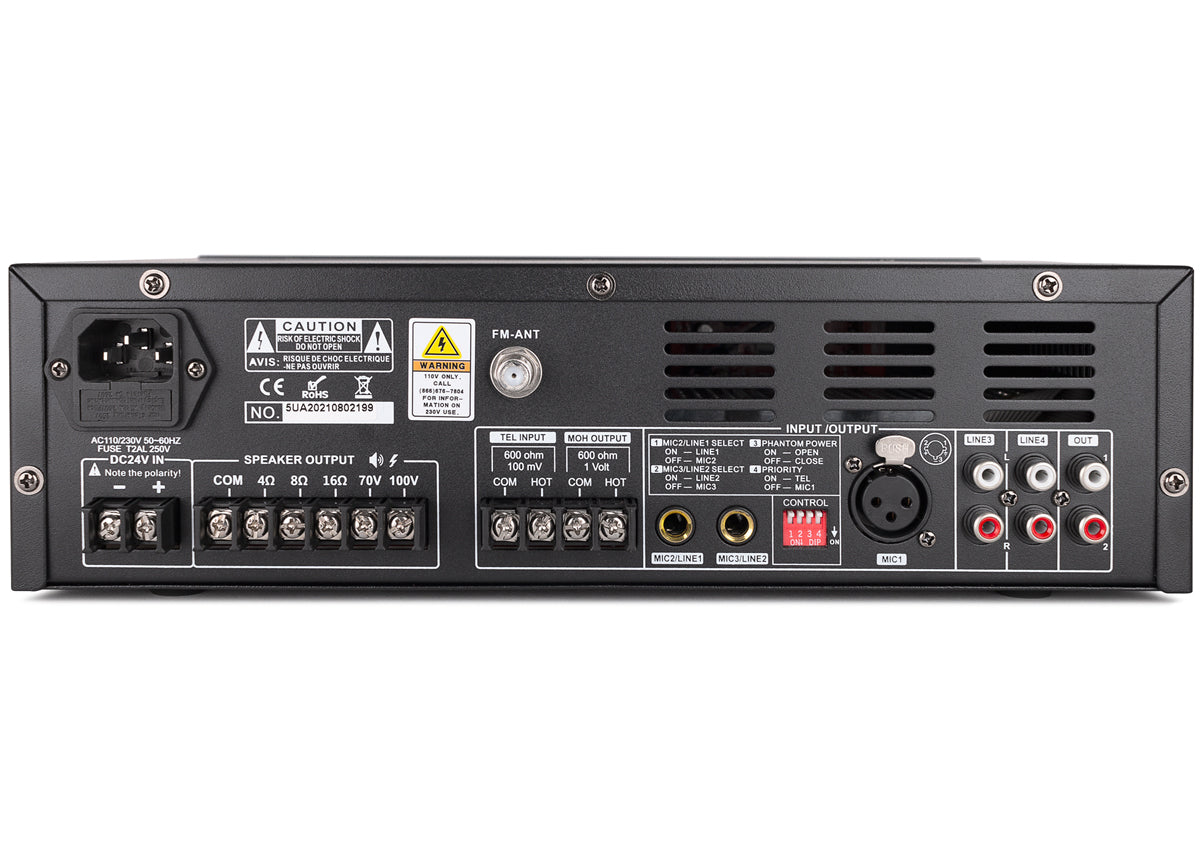

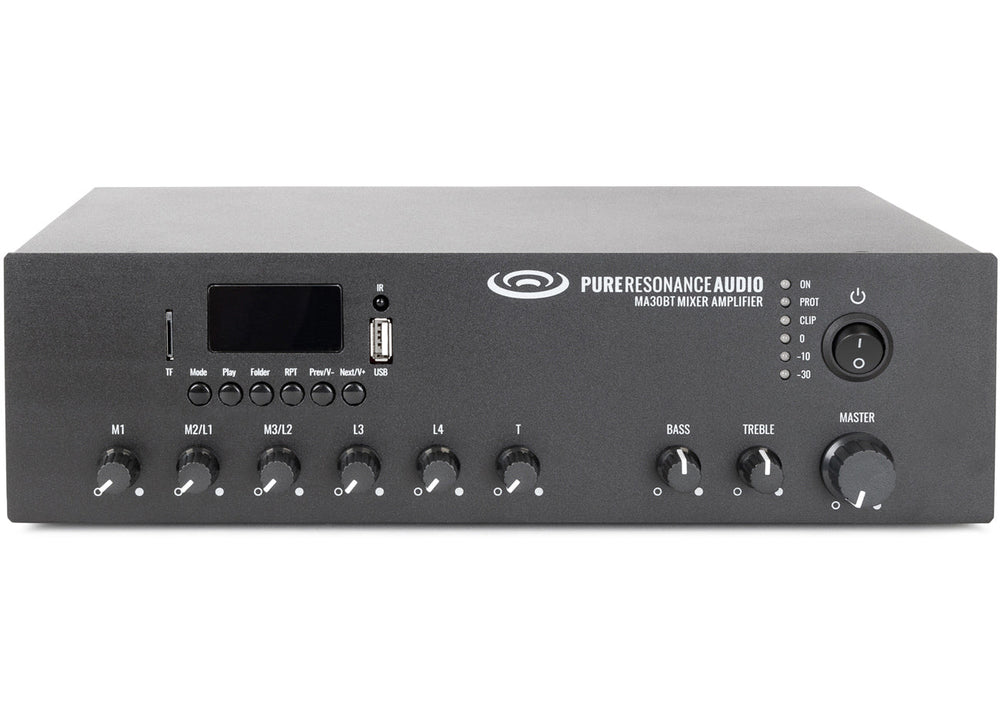

MA30BT Mixer Amplifier Specifications

• Rated Power Output: 30W
• Speaker Outputs: 70V, 100V, 4Ω, 8Ω, 16Ω
• Inputs: Mic 1 (balanced XLR with phantom power), Input 2–3 Mic/Line switchable 1/4", Line 1–2 RCA
• Line Output: RCA
• Frequency Response: 60 Hz – 15 kHz (±3 dB)
• Protection: Short-circuit, clip, overload, high temperature
• Dimensions: 3.5" × 11.8" × 10.8"
• Weight: 7.9 lbs

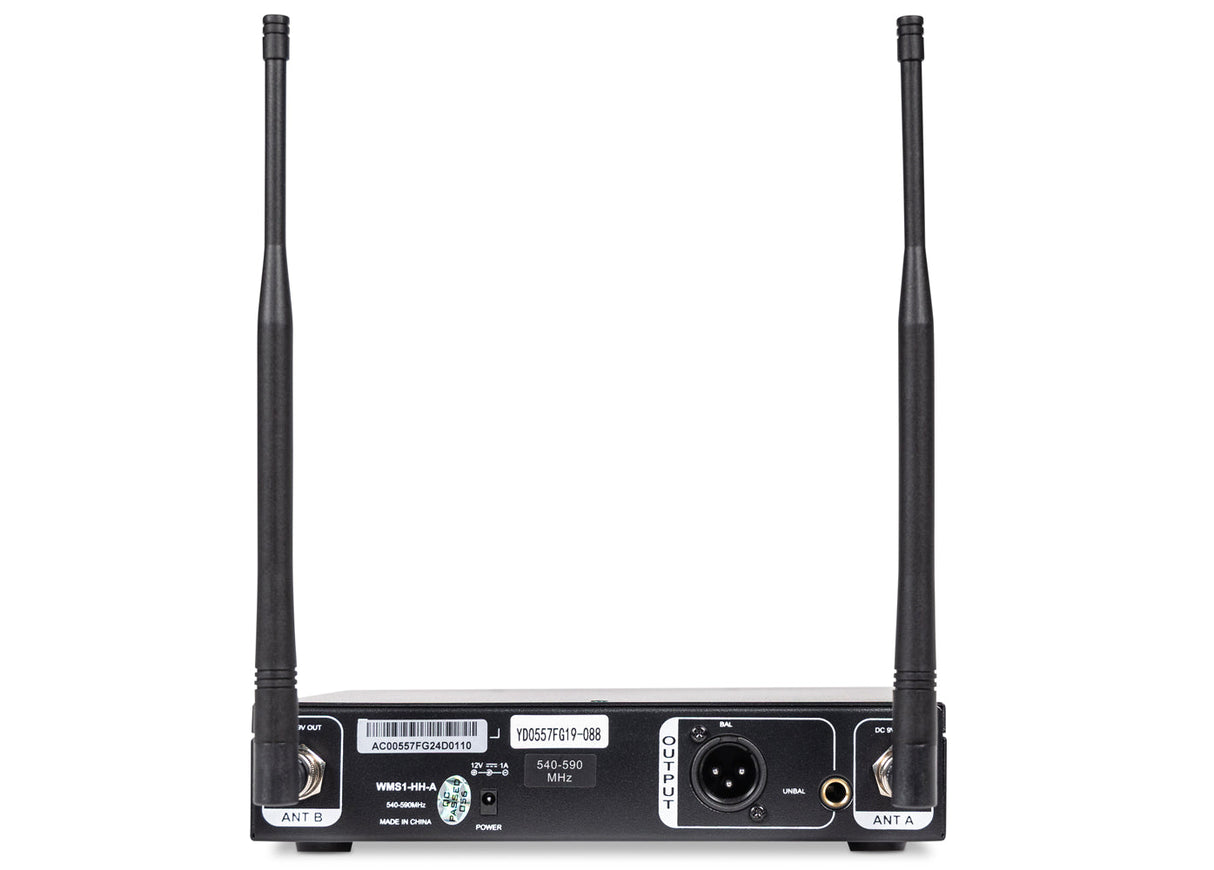

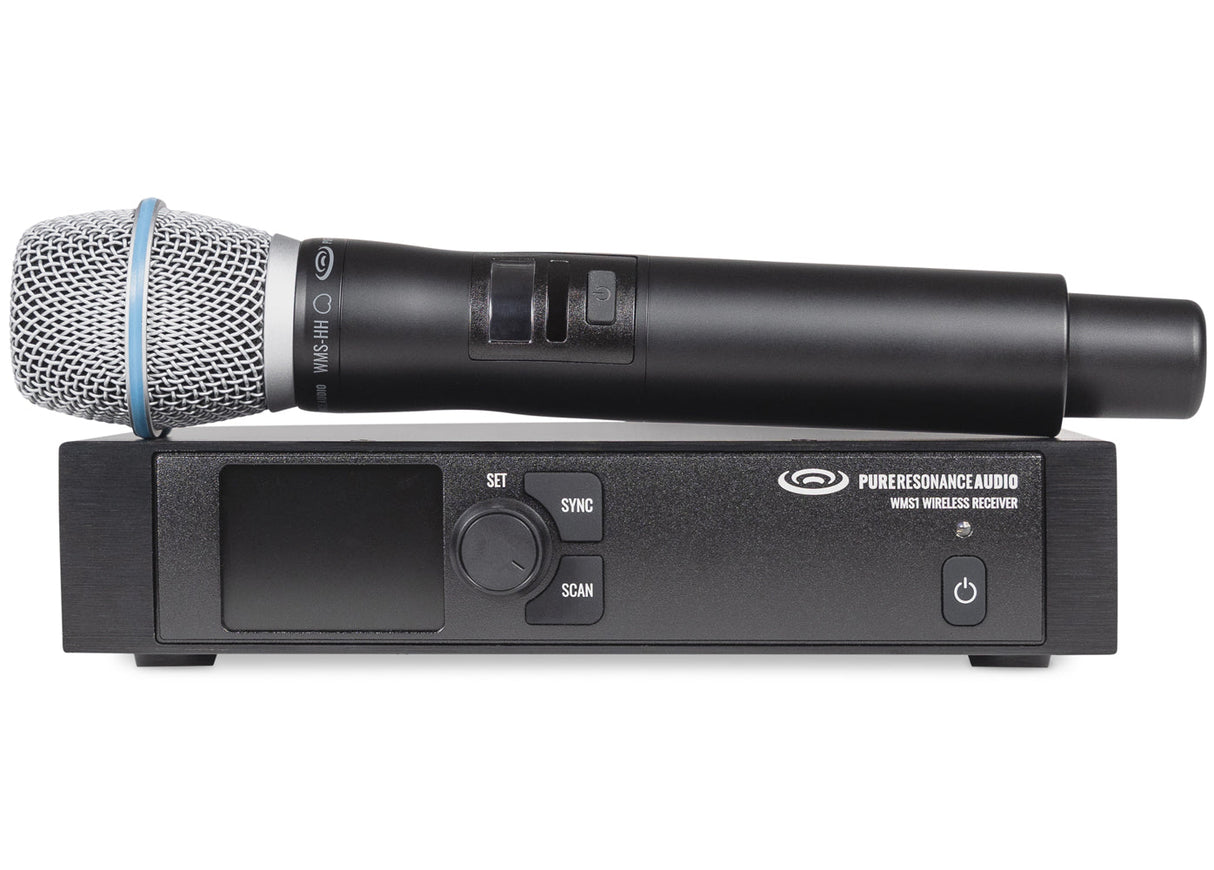

WMS1-HH Wireless Handheld Microphone Specifications

• RF Range: 540–590 MHz
• Modulation: π/4-DQPSK
• Frequency Response: 20 Hz – 20 kHz (±3 dB)
• Distortion: < 0.1%
• Signal-to-Noise Ratio: ≥105 dB (XLR)
• Operating Range: Up to 328 ft (100 m)
• Antenna Interface: BNC/50Ω
• Receiver Sensitivity: < -95 dBm
• Output Levels: 500 mV (balanced), 1000 mV (unbalanced)
• Receiver Dimensions: 1.72" × 8.35" × 8.43"
• Receiver Weight: 2.91 lbs
• Microphone Cartridge: Dynamic
• Microphone Output Power: ≥10 dBm
• Battery Type: (2) AA batteries
• Battery Life: Up to 10 hours
• Microphone Dimensions: 9.65" × 1.54"
• Microphone Weight: 0.88 lbs

What's in the Box

• x1 VCA8 Vector Ceiling Speaker Array
• x1 Steel Wire Safety Cable

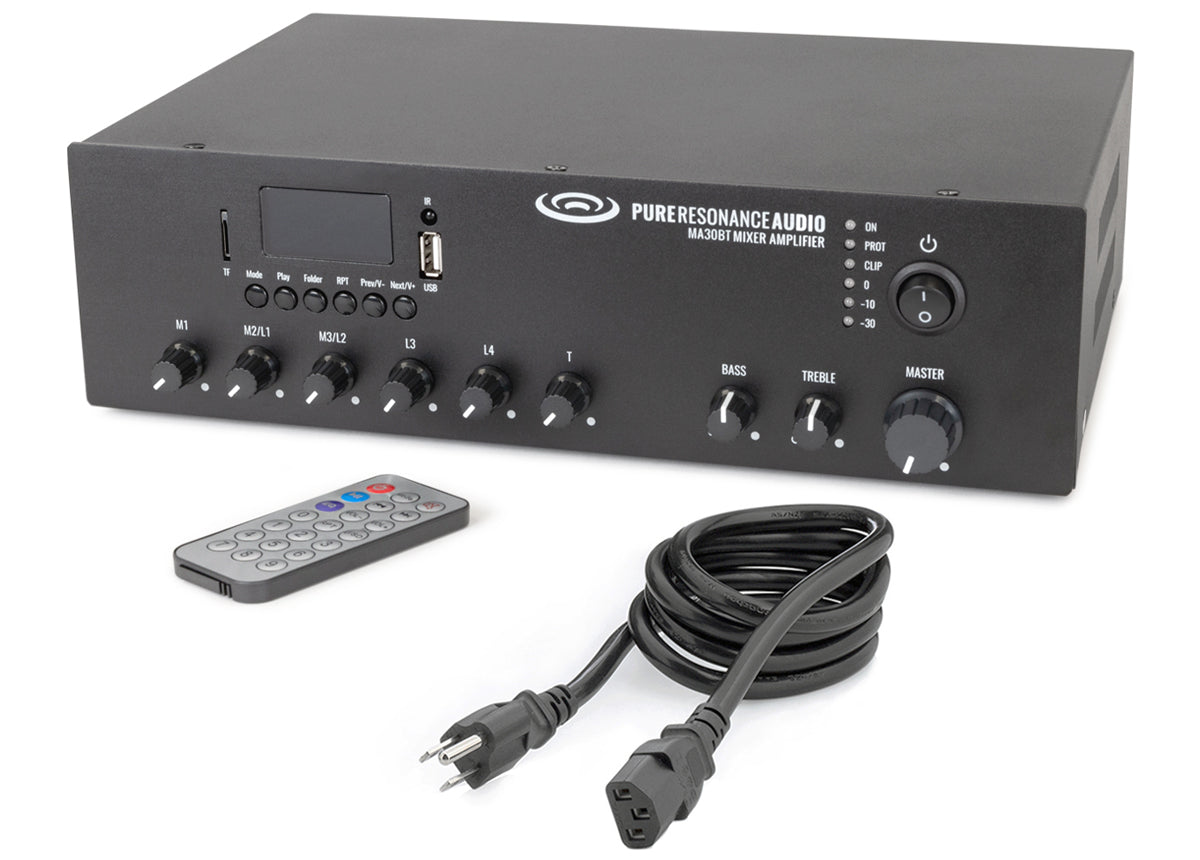

• x1 MA30BT 30W Bluetooth Mixer Amplifier
• x1 IR Remote Control
• x1 Power Cord

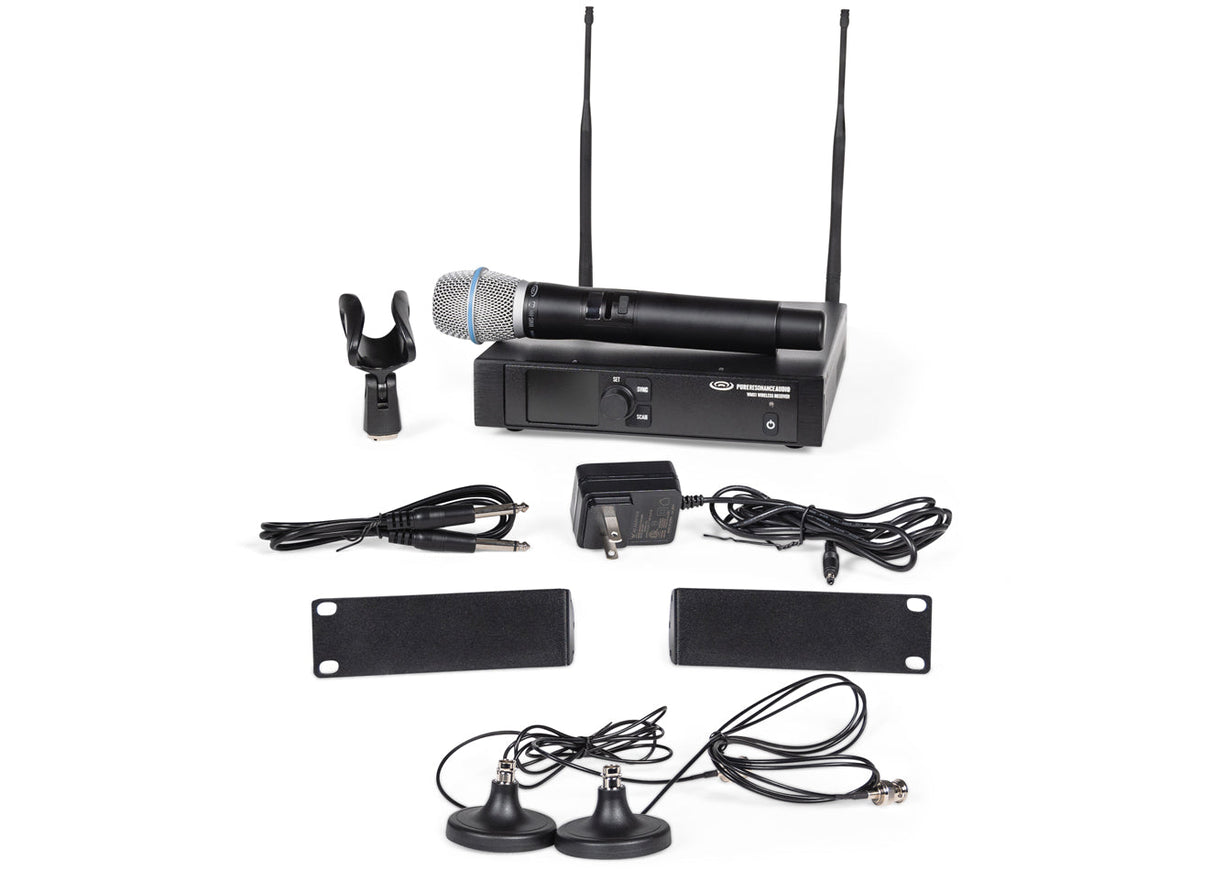

• x1 WMS1-HH-A Wireless Handheld Microphone System
• x1 Wireless Handheld Microphone Transmitter
• x1 Rack Mountable Wireless Receiver
• x1 Microphone Clip
• x1 Power Supply
• x1 Unbalanced ¼" TS Cable (4 ft)
• x1 Rack Mount Bracket Set (2 pcs)
• x2 External Antenna Bases with 60" Cables
• x2 Antennas with BNC Connectors
• x1 XLR-3 Female to Male XLR Cable (3 ft)
• x1 50 ft 18/2 Gauge Speaker Wire
