AVYCON AIVO-70A8KM 7-Inch H.265 All-In-One Tester for CCTV

AVYCON AIVO-70A8KM 7-Inch H.265 All-In-One Tester for CCTV

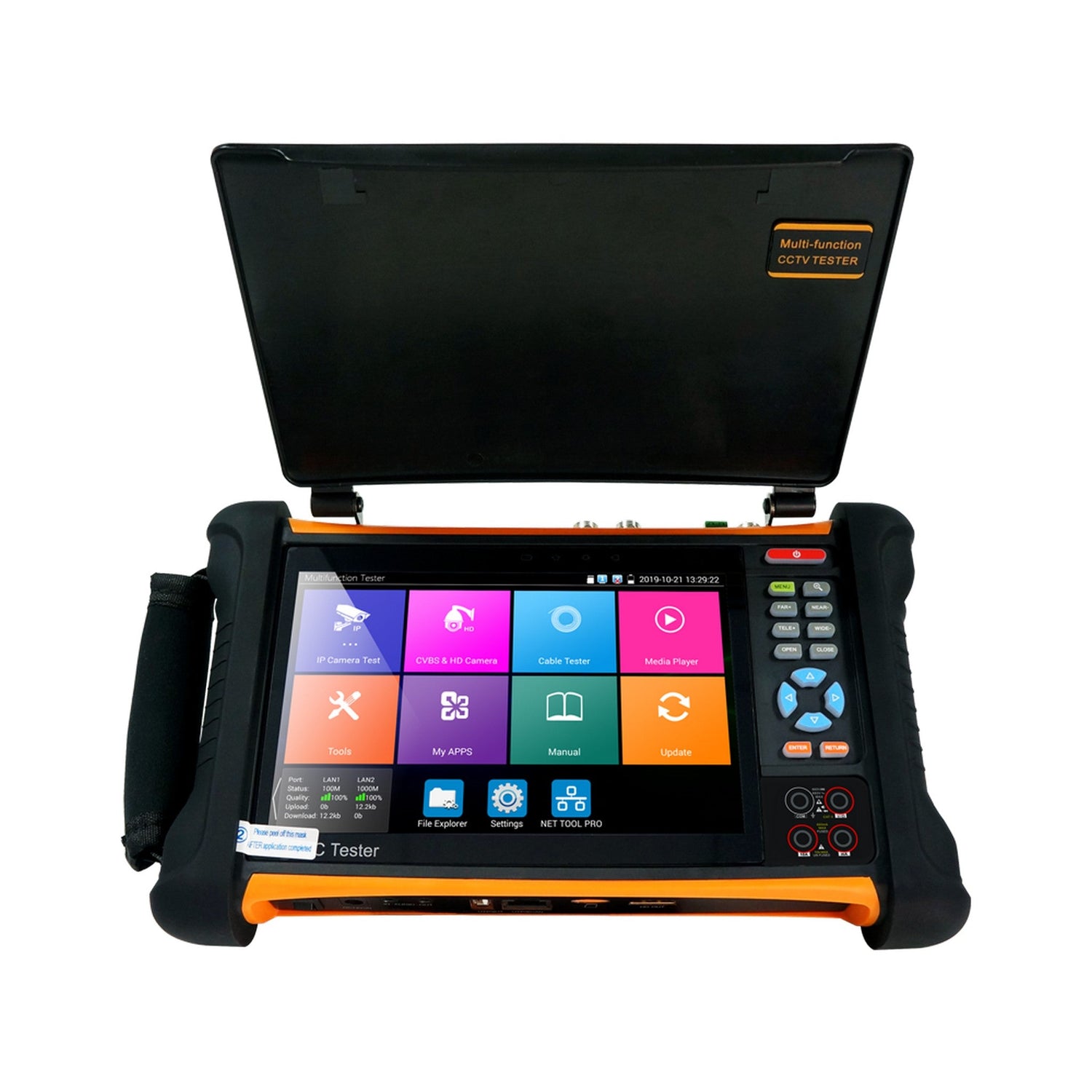

The AVYCON AIVO-70A8KM is a professional-grade, all-in-one CCTV tester designed to streamline installation and troubleshooting processes for security professionals. Featuring a 7-inch retina touch screen with a high-resolution display of 1920x1200, this device ensures crystal-clear visuals for precise diagnostics. Its robust compatibility encompasses IP, HD-CVI, HD-TVI, AHD, and CVBS formats, supporting resolutions up to 8MP (4K), making it an indispensable tool for modern surveillance systems.

Equipped with advanced H.265/H.264 decoding capabilities, the AIVO-70A8KM can handle up to 8K video streams, providing unparalleled clarity during testing. The built-in Wi-Fi module supports both 2.4GHz and 5.8GHz bands, allowing for seamless wireless connectivity and the creation of a Wi-Fi hotspot for IPC testing. Dual RJ45 ports facilitate network scanning and ONVIF camera discovery, enabling rapid identification and configuration of connected devices.

Beyond video testing, this versatile tester includes a suite of diagnostic tools such as a digital multimeter, TDR cable tester, and RS-485 data monitoring. It also offers HDMI and VGA inputs/outputs, audio testing capabilities, and PoE power output up to 25.5W, ensuring comprehensive support for various testing scenarios. With a durable design and a battery life of up to 16 hours, the AIVO-70A8KM is built to withstand the demands of fieldwork, providing reliability and efficiency for security technicians.

Key Features

• 7" retina touch screen with 1920x1200 resolution
• Supports H.265/H.264 decoding up to 8K resolution
• Compatible with IP, HD-CVI, HD-TVI, AHD, and CVBS formats
• Built-in Wi-Fi (2.4GHz & 5.8GHz) with hotspot creation capability
• Dual RJ45 10/100/1000M network ports
• ONVIF camera discovery and configuration
• HDMI input/output supporting up to 4K @ 30fps
• VGA input supporting resolutions up to 1920x1200 @ 60fps
• PoE power output up to 25.5W (802.3af/at)
• Digital multimeter and TDR cable testing
• RS-485 data monitoring and control
• Up to 16 hours of battery life with 7800mAh lithium-ion battery

Technical Specifications

Display: 7" Touch Screen with 1920x1200 resolution
Supported On-Screen Languages: English, Spanish, Korean, Italian, French, Polish, Portuguese, Japanese, Turkish, German, Russian, Serbian, Czech, Vietnamese
Network Port: Dual RJ45 10/100/1000M ports
Wi-Fi: Built-in Wi-Fi with speeds up to 150Mb/s (2.4GHz) and 433Mb/s (5.8GHz); Ability to create Wi-Fi hotspot for IPC testing
IPC Formats: H.265/H.264 decoding up to 8K resolution
IP Discovery: Can scan entire network for ONVIF IPCs
Rapid ONVIF: Quick ONVIF Camera Search with automatic login and live stream display
Supported IP Cameras: ONVIF-compliant cameras, including Dahua, Hikvision, Samsung, Tiandy, Axis, and others
Included IP Tools: Batch activation, IP address and credential modification for Dahua, Hikvision, Uniview cameras
Analog Video Inputs: 1 channel BNC Input with NTSC/PAL autodetection; Measures Peak/SYNC signal levels and Color Burst chroma levels
Analog Video Outputs: 1 channel BNC Output with configurable NTSC/PAL output
Local Media Capture: Records still images (JPG) and live video (MP4); Includes media player for review
HDMI Input: Supports resolutions up to 3840x2160 @ 30fps
HDMI Output: Supports up to 4K (3840x2160) @ 30fps
VGA Input: Supports resolutions up to 1920x1200 @ 60fps
DC Power Output: DC12V @ Max. 3,000mA; DC24V @ Max. 2,000mA
USB 5V Power Output: 5V 2A power output
PoE Power Output: 802.3af/at Output, Max. 25.5W
PoE/PSE Voltage Test: Measures PoE switch/injector voltage and displays pin configuration
Drop Down Shortcut Menu: Access to PoE power switch, IP settings, Wi-Fi switch, HDMI Input functions, Screen lock, Password or Pattern Lock
Audio Testing: 1 Channel Audio Signal Input, 1 Channel Audio Output with headphone connection
PTZ Control: Supports RS-485 and CoC/UTC serial communication; Compatible with over 30 protocols including PELCO-D/P, Samsung, Panasonic, Lilin, Yaan
Color Bar Generator: NTSC/PAL Color bar video signal for testing monitor or video cable (RGB, White, Black)
RTSP Streaming: Configurable device access via RTSP (H.264)
RJ45 Cable TDR Testing: Tests cable pair status, length, attenuation, reflectivity, impedance, and skew
UTP Cable Testing: Digital cable tracer, cable search, and UTP cable testing (customizable)
RS-485 Data Monitoring: Captures/analyzes and sends RS-485 data; Supports hexadecimal format
Advanced Networking Tools: Wi-Fi Tool, Link
