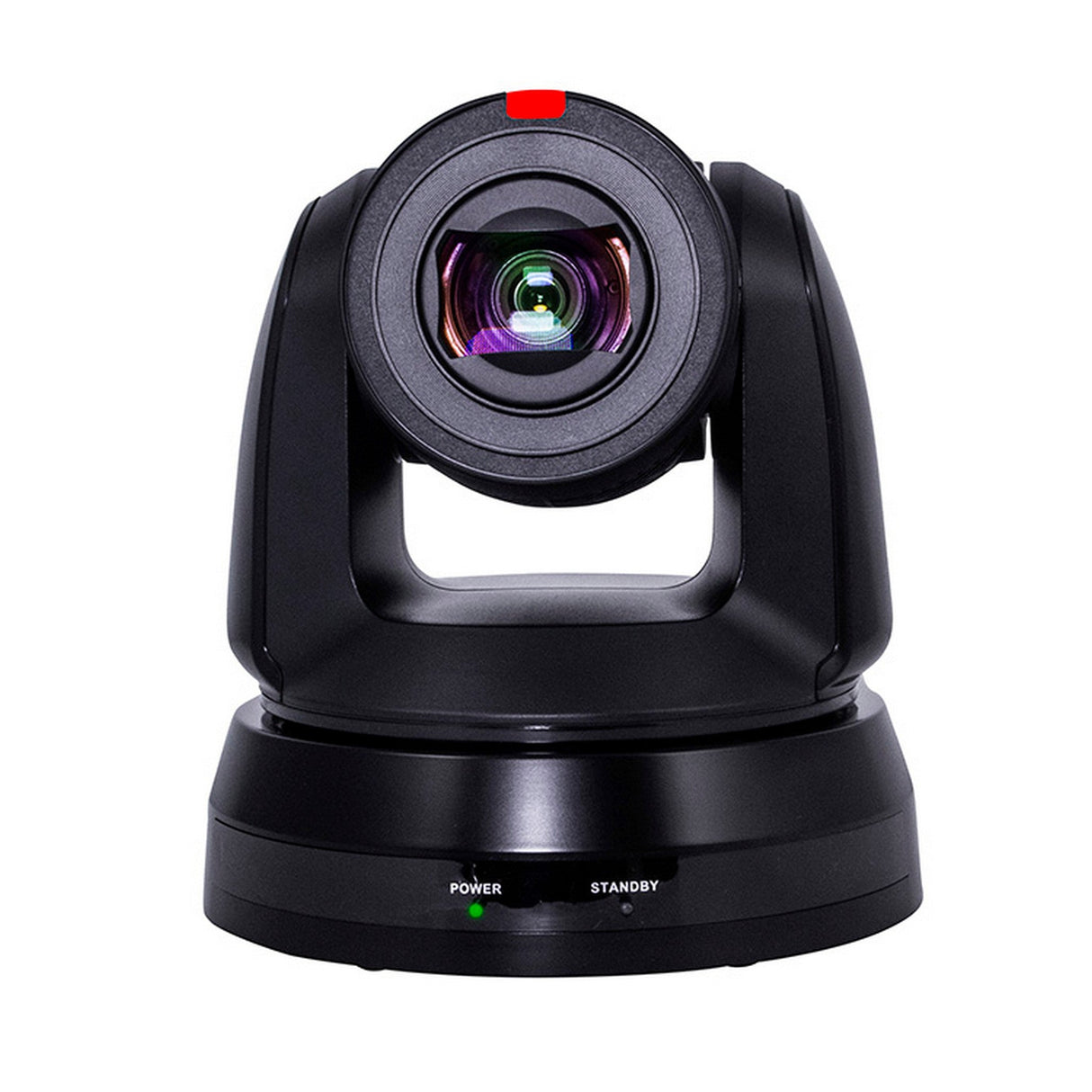

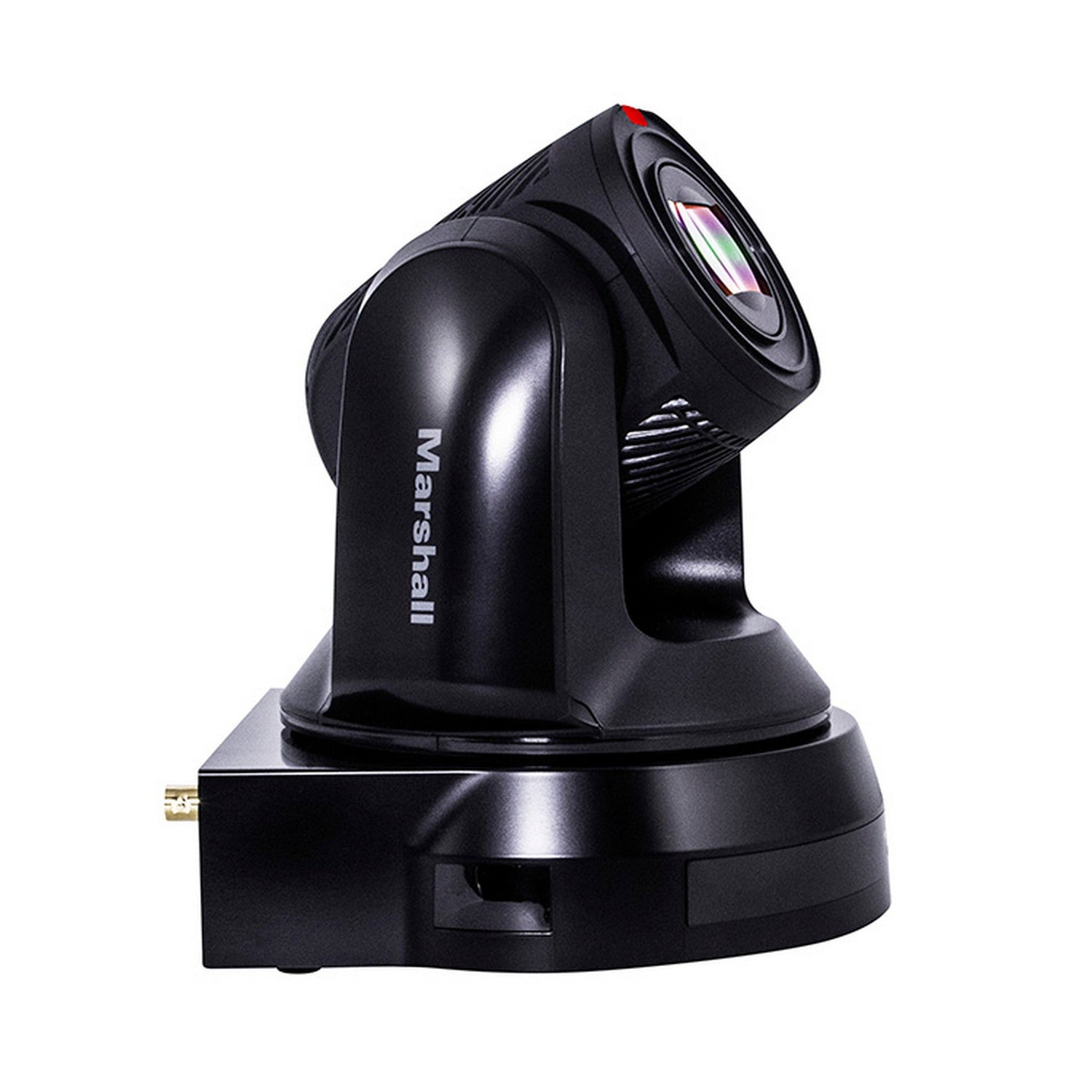

Marshall Electronics CV630-BI 5X UHD60 IP PTZ 8MP Camera
The Marshall CV630-BI camera deliver professional broadcast-quality Ultra-HD video through HDMI, 3G-SDI, or Ethernet streaming. Designed for dynamic environments, these cameras feature precise PTZ motor control and powerful 25X optical zoom, ensuring smooth, detailed capture across wide and distant shots. Their flexibility and multi-output support make them ideal for broadcast studios, live events, houses of worship, and conference rooms.
Equipped with a robust 8MP 1/2.5" sensor, these cameras support simultaneous IP, HDMI, and 3G-SDI outputs, along with stereo audio embedding. Advanced control compatibility with Visca, Pelco, Onvif, and Marshall's own controller systems ensures seamless integration into professional workflows. Power-over-Ethernet (PoE+) streamlines installation for efficient, economical setup.
Key Features:
- 8 Megapixel 1/2.5" CMOS sensor
- UHD video up to 3840x2160p at 60fps
- 25X Optical Zoom (4.6mm to 120.5mm)
- Wide 68° angle-of-view at widest zoom
- Simultaneous HDMI, 3G-SDI, and triple-stream IP outputs (H.265/H.264)
- Stereo audio input with embedding across outputs
- Compatible with Visca, Visca over IP, Pelco, and Onvif protocols
- Silent synchronous pan, tilt, and zoom motors
- Integrated PoE+ support for single-cable power and data
Technical Specifications:
Sensor: 8MP 1/2.5" CMOS
Video Resolutions: UHD 3840x2160p, HD 1920x1080p, HD 1280x720p, 1920x1080i
Zoom: 25X Optical (4.6mmā120.5mm)
Field of View: 68° (Wide) to 3° (Tele)

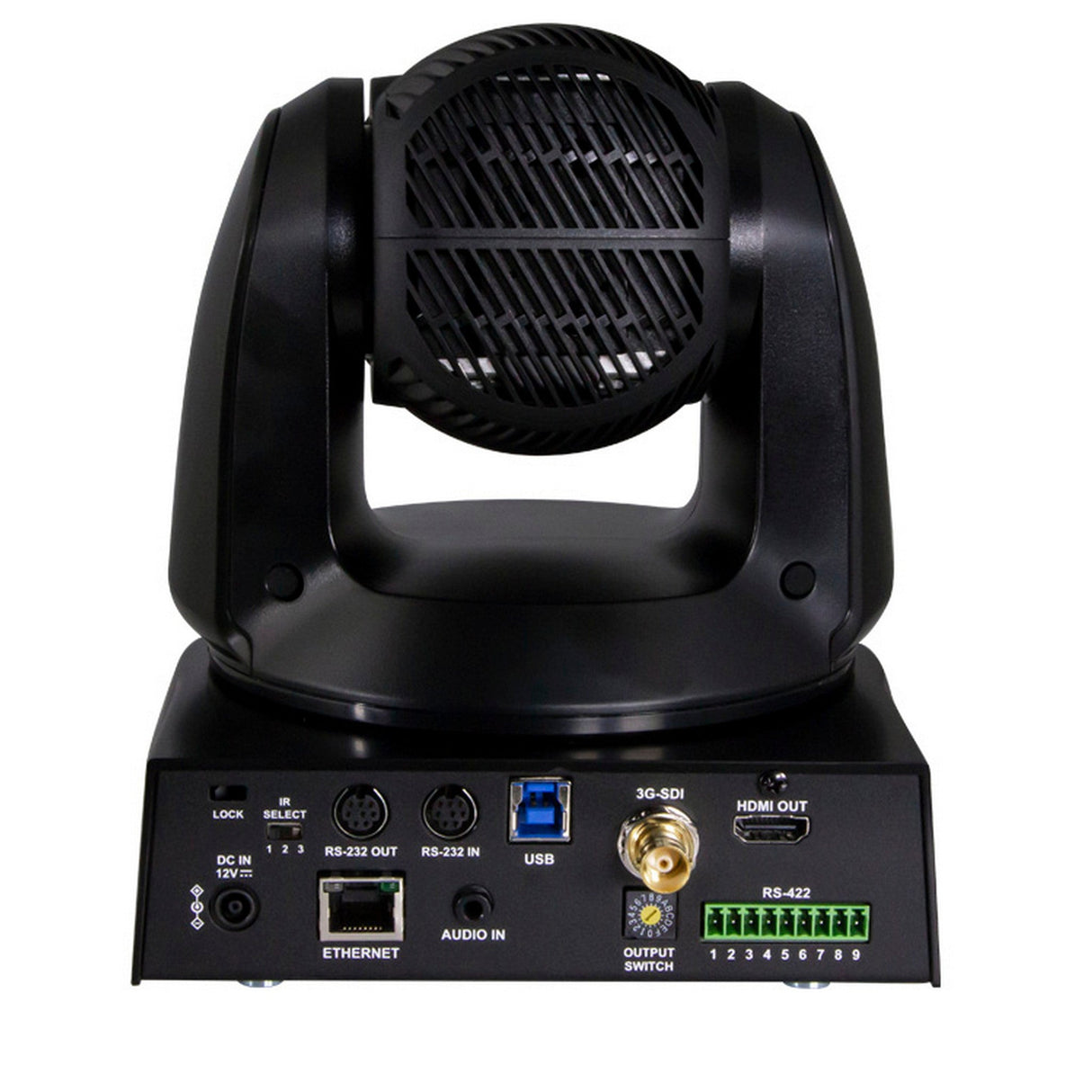

Outputs: HDMI, 3G-SDI, IP Streaming (Triple Stream H.265/H.264)
Control Interfaces: RS-232, RS-422, IR Remote, IP Control (Visca over IP, Pelco, Onvif)
Audio Input: Stereo (Line-in), Embedded in all outputs
Power: PoE+ or 12V DC (included adapter)
Package Contents:
- Marshall CV630-BI
- Power Adapter (12V DC)
- IR Remote Control
- Mounting Bracket with Screws
- RS-232 Connection Cable
- User Manual
