DZOFILM PAVO 135 mm T2.5 2× Anamorphic Prime Lens (Blue Coating, PL/EF Mount)
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

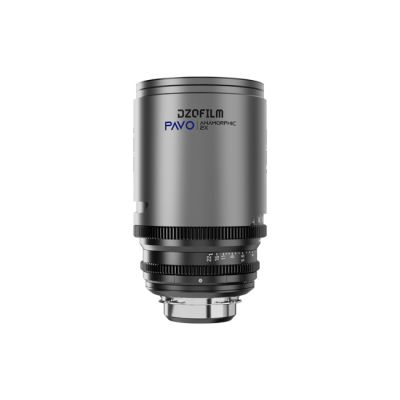

DZOFilm PAVO 135 mm T2.5 2× Anamorphic Prime Lens
The DZOFilm PAVO 135 mm T2.5 anamorphic prime brings telephoto reach to Super 35 cinematography with its 2× compression, delivering creamy “waterfall” bokeh and elegant horizontal flares courtesy of its blue-coated elements. Its bright T2.5 maximum aperture enables low-light work, while the robust aluminum-alloy barrel and interchangeable PL/EF mounts ensure compatibility across a variety of rigs.
Featuring 16 elements in 11 groups and a 16-blade iris, the PAVO 135 mm maintains high contrast and sharpness from center to edge, with minimal chromatic aberration. A generous 270° focus throw and 79° iris throw give precise manual control, and a 1.04 m close-focus distance affords tight framing with true anamorphic character.
Key Features
- Focal Length: 135 mm
- Aperture Range: T2.5 – T22
- Mount: ARRI PL (includes Canon EF adapter)
- Squeeze Ratio: 2× true anamorphic
- Format Coverage: Super 35 / APS-C (φ31.5 mm image circle)
- Optical Construction: 16 elements in 11 groups
- Iris Blades: 16
- Horizontal Flares: Blue-toned
- Close Focus: 1.04 m (3 ft 5 in)
- Focus Throw: 270° rotation
- Iris Throw: 79° rotation
- Gear Pitch: 0.8 MOD
- Front Diameter: φ95 mm
- Filter Thread: M86 (86 mm)
- Weight: 4.39 lb (1.994 kg)
- Length: 6.30" (160 mm)
Technical Specifications
- Model Number: DZO-PA13525PLIB
- Compression Ratio: 2×
- Image Circle: φ31.5 mm (Super 35)
- Flange Distance: 52 mm (PL) / 44 mm (EF)
- Optical Design: 16 elements in 11 groups
- Iris: 16 blades, T2.5 – T22
- Close Focus Distance: 1.04 m (from sensor plane)
- Filter Size: 86 mm
- Front Diameter: φ95 mm
- Focus Control: Manual (270°)
- Iris Control: Manual (79°)
- Material: Aluminum Alloy
What's Included
- DZOFilm PAVO 135 mm T2.5 2× Anamorphic Prime Lens (Blue Coating, PL/EF Mount)
- Front Cap
- Rear Cap (PL)
- Canon EF Bayonet Adapter
- Rear Cap (EF)
- 2 × Packets of Screws
- Shim Kit
- Screwdriver
- Set of Stickers
- User Manual (PDF)
- 1-Year Manufacturer Warranty
