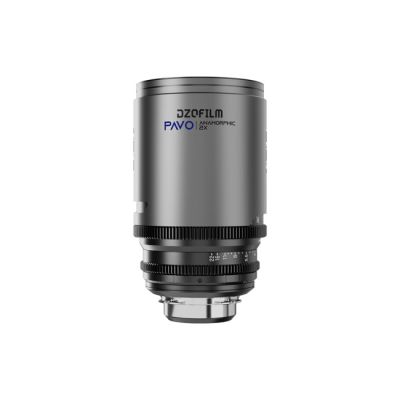

DZOFILM PAVO 180 mm T2.8 2× Anamorphic Macro Prime Lens (Blue Coating, PL/EF Mount)
DZOFILM | SKU: DZO-DZOPA18028PLIB
Loading...
$5,49900
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
DZOFilm PAVO 180 mm T2.8 2× Anamorphic Macro Prime Lens
The DZOFilm PAVO 180 mm T2.8 Macro is a telephoto anamorphic prime that brings extended reach and true 2× squeeze to Super 35 and APS-C cameras. Its fast T2.8 aperture and proprietary blue coating deliver classic horizontal flares and “waterfall” bokeh, even in challenging low-light conditions.
Featuring 16 elements in 11 groups and a 16-blade iris, this lens maintains exceptional sharpness and contrast from center to edge. With a generous 2:1 macro reproduction ratio and a minimum focus distance of just 1.04 m, plus 300° focus rotation and 79° iris throw, filmmakers gain precise creative control for dramatic close-ups and cinematic compositions.
Key Features
- Focal Length: 180 mm
- Aperture Range: T2.8 – T22
- Mount: ARRI PL with Canon EF adapter included
- Squeeze Ratio: 2× true anamorphic
- Format Coverage: Super 35 / APS-C (φ31.5 mm image circle)
- Optical Construction: 16 elements in 11 groups
- Iris Blades: 16
- Macro Capability: 2:1 reproduction ratio
- Close Focus: 3 ft 5 in (1.04 m)
- Focus Throw: 300° rotation
- Iris Throw: 79° rotation
- Gear Standard: 0.8 MOD
- Front Diameter: φ95 mm
- Filter Thread: 86 mm
- Weight: 4.30 lb (1.95 kg)
- Length: 6.3" (16.00 cm)
Technical Specifications
- Model Number: DZO-PA18028PLIB
- Compression Ratio: 2× true anamorphic
- Image Circle: φ31.5 mm (Super 35/APS-C)
- Flange Distance: 52 mm (PL) / 44 mm (EF)
- Electronic Communication: None
- Optical Design: 16 elements in 11 groups
- Iris: 16 blades, T2.8–T22
- Close Focus Distance: 1.04 m (3 ft 5 in)
- Filter Thread: 86 mm
- Front Diameter: φ95 mm
- Focus Scale: Imperial (feet)
- Gear Pitch: 0.8 MOD
- Magnification: 2:1 macro
What's Included
- DZOFilm PAVO 180 mm T2.8 2× Anamorphic Macro Prime Lens (Blue Coating, PL/EF Mount)
- Front Cap
- Rear Cap (PL)
- Canon EF Bayonet Adapter
- Rear Cap (EF)
- 2 × Packets of Screws
- Set of Shims
- Screwdriver
- Set of Stickers
- Limited 1-Year Manufacturer Warranty
- User Manual (16 MB PDF)
