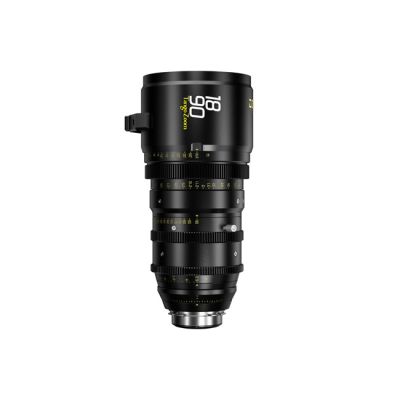

DZOFilm TANGO 18–90 mm T2.9 Super 35 Zoom Lens

The DZOFilm TANGO 18–90 mm T2.9 is a 5× Super 35 cine zoom combining ENG-style ergonomics with cinema-grade optics. Its constant T2.9 aperture, parfocal design, and 16-blade iris deliver smooth bokeh and consistent exposure across the zoom range. Interchangeable ARRI PL and Canon EF mounts provide broad camera compatibility.

Built around 24 elements in 17 groups, this zoom covers a 31.5 mm image circle and features multi-layer anti-reflective coatings for high contrast and color fidelity. With a metal barrel, 270° focus throw, 100° zoom throw, and minimal focus breathing (≤ 0.5% at 24 mm), the TANGO excels in precise manual operation.

Key Features

• Focal Length: 18 – 90 mm
• Aperture Range: T2.9 – T22
• Mounts: ARRI PL (native) & Canon EF (adapter kit included)
• Format Coverage: Super 35 / APS-C (Ø 31.5 mm image circle)
• Optical Construction: 24 elements in 17 groups
• Iris: 16 blades, manual (74.1° throw)
• Focus Throw: 270° manual
• Zoom Throw: 100° manual
• Zoom Ratio: 5×
• Focus Breathing: ≤ 0.5% at 24 mm
• Close Focus: 0.7 m / 2 ft 3 in (from sensor plane)
• Gear Pitch: 0.8 MOD
• Barrel Diameter: Ø 114 mm (4.48")

Technical Specifications

• Model Number: DZO-T189029I
• Image Circle: Ø 31.5 mm (Super 35)
• Flange Distance: 52 mm (PL) / 44 mm (EF)
• Minimum Focus Distance: 0.7 m / 2 ft 3 in
• Relative Illumination: 70.7%
• Weight: 7.78 lb (3.53 kg)
• Length: 9.8" (249.1 mm)

What's Included

• DZOFilm TANGO 18–90 mm T2.9 Super 35 Zoom Lens (ARRI PL & Canon EF)
• Front Cap
• Rear Cap (PL)
• Rear Cap (EF)
• Canon EF Mount Adapter Kit
• Shim Kit & Screws
• Screwdriver
• Lens Support Rod
• Hard Carry Case
• Limited 1-Year Manufacturer Warranty
