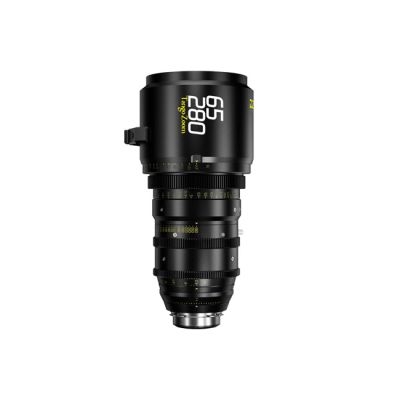

DZOFilm TANGO 65–280 mm T2.9–4 Super 35 Zoom Lens

The DZOFilm TANGO 65–280 mm T2.9–4 is a versatile telephoto cine zoom covering Super 35 sensors with a constant T2.9 aperture that ramps to T4 at 280 mm. Interchangeable ARRI PL and Canon EF mounts, a parfocal design, and robust metal construction make it ideal for both run-and-gun and cinematic workflows.

Featuring 21 elements in 17 groups with multi-layer anti-reflective coatings, the TANGO delivers high contrast, minimal focus breathing (≤ 0.5 % at 65 mm), and smooth bokeh from its 16-blade iris. Cinema-standard 0.8 MOD gearing, 270° focus throw, 100° zoom throw, and 73.5° iris throw ensure precise manual control across the entire focal range.

Key Features

• Focal Length: 65 mm – 280 mm
• Aperture Range: T2.9 – T22 (ramps to T4 at 280 mm)
• Mounts: ARRI PL & Canon EF (bayonet included)
• Format Coverage: Super 35 / APS-C (Ø 31.5 mm image circle)
• Optical Construction: 21 elements in 17 groups
• Iris Blades: 16
• Close Focus: 3 ft 7 in (1.10 m)
• Zoom Ratio: 4.31×
• Focus Throw: 270° rotation
• Zoom Throw: 100° rotation
• Iris Throw: 73.5° rotation
• Gear Standard: 0.8 MOD
• Front Diameter: Ø 114 mm
• Filter Thread: 105 mm

Technical Specifications

• Model Number: DZO-T6528029I
• Parfocal: Yes (maintains focus throughout zoom)
• Focus Breathing: ≤ 0.5 % at 65 mm
• Minimum Illumination: Constant T2.9 – T4
• Image Circle: Ø 31.5 mm (Super 35)
• Flange Distance: 52 mm (PL) / 44 mm (EF)

What's Included

• DZOFilm TANGO 65–280 mm T2.9–4 Super 35 Zoom Lens (ARRI PL & Canon EF)
• Front Cap
• Rear Cap (PL & EF)
• Canon EF Bayonet Adapter Kit
• Shim Kit & Screws
• Screwdriver
• Lens Support Bracket
• Hard Carry Case
• Limited 1-Year Manufacturer Warranty
