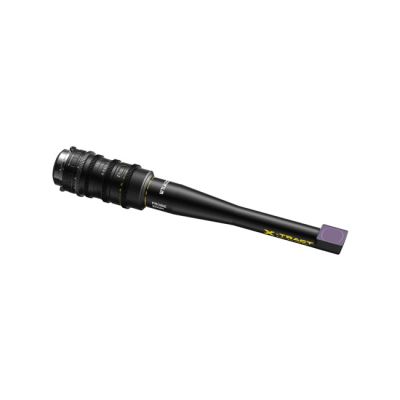

DZOFILM X-TRACT 18 – 28 mm T8 Probe Zoom Lens – 90° Right-Angle (ARRI PL)
Designed for macro cinematography in spaces where normal glass cannot reach, the 90° X-TRACT probe zoom couples an 18–28 mm ultra-wide range with a constant T8 aperture and parfocal design. Its right-angle prism provides a lateral viewpoint for skimming along tabletops, product interiors, or miniature sets while 0.24″ (6 mm) working distance and 2.1 : 1 magnification reveal extreme detail without shadowing the subject.
The slender 29.6 mm probe tip slips through gaps smaller than a U.S. quarter, yet the rear barrel retains full cine ergonomics: 0.8 MOD gears on focus, iris and zoom rings, a long 300° focus throw for precision pulls, and native PL mount with a robust Y-bracket support. Waterproof IP-rated sealing, ED / HRI optics, and ±2 % distortion control ensure sharp, color-accurate images even under splash rigs or dusty sets.
Key Features
- Focal Length: 18 – 28 mm wide-angle probe (1.56 × zoom)
- Maximum Aperture: T8 (T22 minimum)
- Coverage: Ø 43.2 mm image circle for full-frame/VistaVision sensors
- Magnification: up to 2.1 : 1 macro
- Minimum Working Distance: 6 mm from front element
- Focus / Zoom / Iris Rotation: 300° / ≈100° / ≈72°*
- Gear Standard: 0.8 MOD on all rings
- Front Diameter: 29.6 mm probe tip; 80 mm rear gear section
- Construction: anodized-aluminum, waterproof & dustproof (IP-rated)
- Mount: ARRI PL with ¼″ & ⅜″ support threads
Technical Specifications
- Weight: 2.38 lb (1.08 kg)
- Length: 16.3″ (41.5 cm)
- Front Diameter: 1.2″ (30 mm)
- Image Circle: 43.2 mm
- Zoom Ratio: 1.56 × (18–28 mm)
- Aperture Range: T8 – T22
- Magnification: 2.1 : 1
- Minimum Focus: 1′ 6″ (47.3 cm)
- Working Distance: 0.24″ (6 mm)
- Focus Throw: 300°
- Gear Pitch: 0.8 MOD
- Package Weight: 10.535 lb (4.78 kg)
- Package Size: 24.2″ × 15.1″ × 6.6″
What's Included
- DZOFILM X-TRACT 18-28 mm T8 90° Probe Zoom Lens (PL mount)
- 90° probe tube with rotating ring
- Front & rear caps
- Y-bracket lens support & three support rings
- Shim set & bolt driver
- Hard carry case with custom foam inlay
- Limited 1-Year Manufacturer Warranty
*Manufacturer lists 100° zoom and 72° iris rings for X-TRACT series; exact values for 90° tube not separately published.
