IC Realtime HDEG-B50F-IR-M1 5MP HD-AVS Indoor/Outdoor Mid-Size Bullet Camera w/Fixed Lens

Discover unparalleled surveillance reliability with the IC Realtime HDEG-B50F-IR-M1, a state-of-the-art 5MP 16:9 HD-AVS bullet camera designed for both indoor and outdoor use. Engineered with a 1/2.7" Starlight CMOS sensor, this camera excels in low-light environments, ensuring high-definition clarity regardless of time and lighting conditions. Benefit from Smart IR technology that provides up to 131.2 feet of precise illumination, making night-time monitoring more effective than ever.

This mid-size bullet camera comes with a 2.8mm fixed lens that offers a generous 132° field of view, ideal for comprehensive coverage of large residential and commercial spaces. Built to endure harsh conditions, the camera's IP67-rated weatherproof casing guarantees performance in extreme operating temperatures from -40°F to +140°F while resisting dust and water.

The HDEG-B50F-IR-M1 offers compatibility with multiple video formats including AVS, TVI, AHD, and CVBS, making it versatile for integration with diverse security setups. Whether you're safeguarding your home or business, this camera's blend of advanced technology and robust design promises unparalleled surveillance dependability.

Key Features

• 1/2.7" Starlight CMOS Sensor for excellent low-light imaging
• 5MP resolution with 16:9 aspect ratio and 132° wide-angle view
• Smart IR technology with an illumination range of up to 131.2 feet
• Fixed 2.8mm lens for consistent and high-quality image capture
• IP67-rated weatherproof construction suitable for indoor and outdoor use
• Supports various video formats: AVS, TVI, AHD, CVBS
• Built-in microphone for audio capabilities
• Wide Dynamic Range (WDR) of 120dB for balanced lighting conditions

Specifications

• Image Sensor: 1/2.7" Starlight CMOS
• Effective Pixels: 2880 (H) × 1620 (V) 5MP
• Scanning System: Progressive
• Minimum Illumination: 0.001 Lux/F1.6, 30IRE; 0Lux IR on
• S/N Ratio: More than 65dB
• Illumination Distance: 131.2 ft
• Illumination On/Off Control: Auto / Manual
• Illumination LEDs: 2
• IR Wavelength: 850 nm
• Lens Type: Fixed lens / Fixed iris
• Mount Type: M12
• Focal Length: 2.8mm
• Max. Aperture: F1.6
• Angle of View: 132° × 111°
• Close Focus Distance: 3.0 ft
• DORI Distances: Detect: 208.7 ft; Observe: 83.3 ft; Recognize: 41.7 ft; Identify: 21 ft
• Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
• Frame Rate: NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
• Day/Night: Auto (ICR) / Manual
• Backlight Compensation: BLC/HLC/WDR/HLC-Pro
• White Balance: Auto / Manual
• Gain Control: Auto / Manual
• Noise Reduction: 2D / 3D
• Smart IR: Auto / Manual
• WDR: 120dB
• Smart Phone Compatibility: Android, iOS
• Video Interface: 1-channel BNC high definition video output / AVS/ TVI/ AHD/ CVBS Support (DIP switch)
• Audio I/O: Built-in Mic
• Power Supply: 12V DC +/- 30%
• Power Consumption: Max 5.9W (12V DC, IR on)
• Operating Conditions: –40°F to +140°F; < 95% (non-condensation)
• Ingress Protection: IP67
• Casing: Metal body, Plastic sunshade

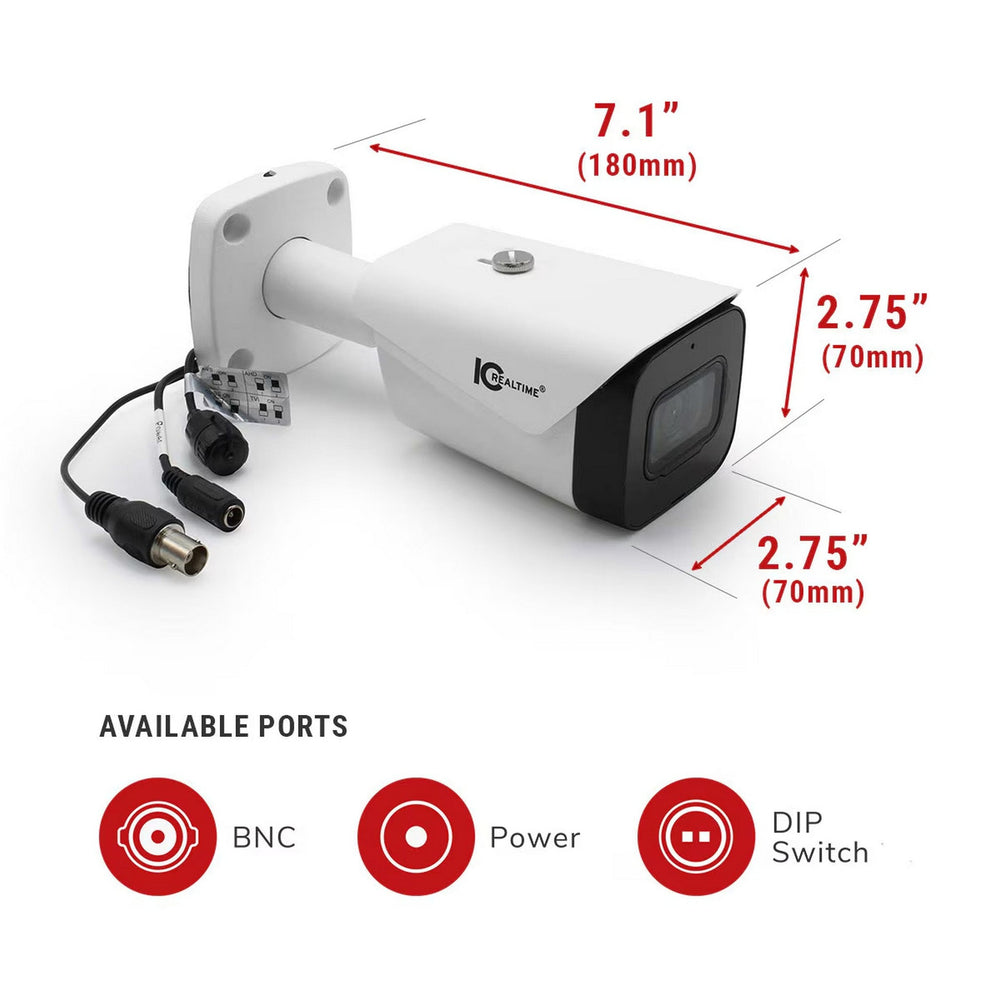

• Dimensions: 7.08" x 2.76" x 2.76"
• Gross Weight: 1.23 lbs
• Mounting Pan/Tilt/Rotation: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Package Contents

• IC Realtime HDEG-B50F-IR-M1 Camera
• Mounting Kit
• Quick Start Guide
