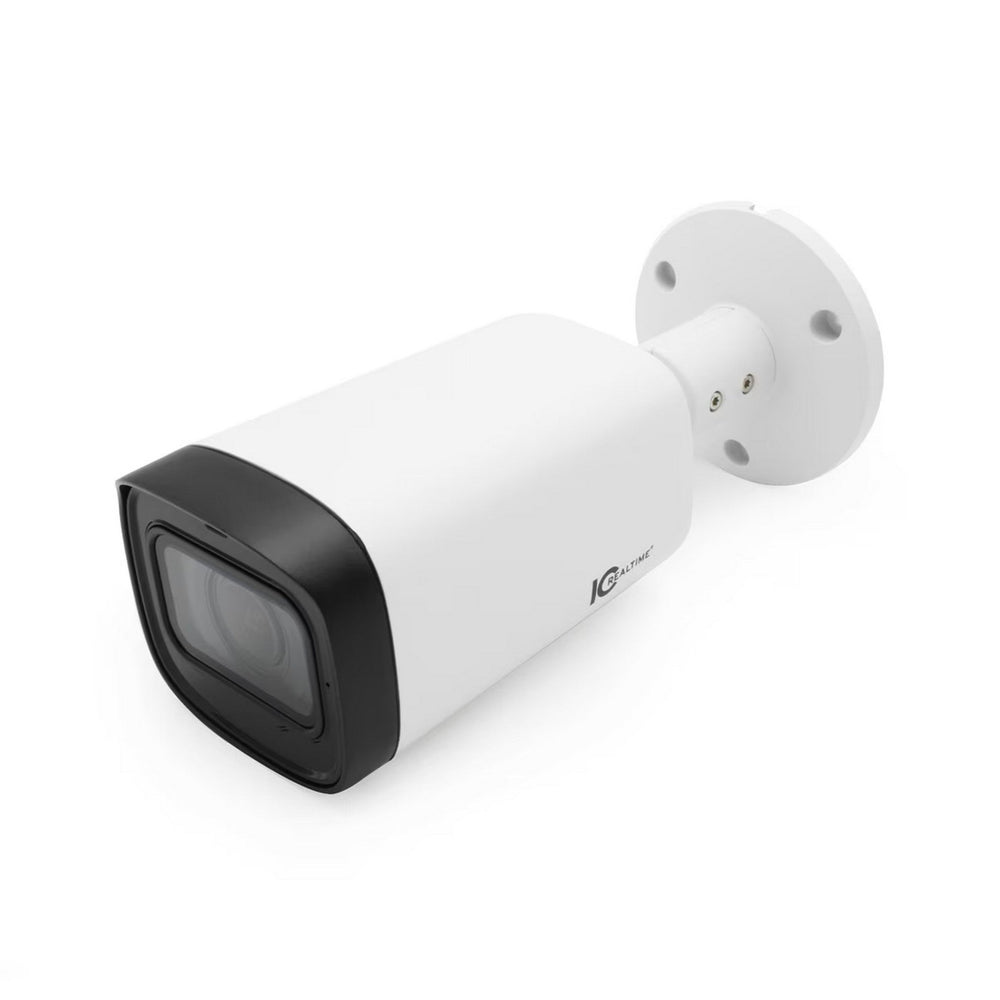

IC Realtime HDEG-B80V-IRM1 4K 8MP HDAVS Indoor/Outdoor Mid-Size Bullet Camera

The IC Realtime HDEG-B80V-IRM1 is an advanced surveillance solution engineered for both indoor and outdoor environments. This 8-megapixel bullet camera stands out with its powerful 4K Ultra HD resolution, delivering exceptional clarity and detail for a wide array of security applications. Designed to meet demanding commercial or residential security requirements, it comes protected in a robust metal housing rated IP67, ensuring complete resistance to dust and water ingress for reliable operation in even the harshest weather conditions.

Fitted with a motorized vari-focal lens ranging from 2.7 mm to 13.5 mm, the HDEG-B80V-IRM1 offers flexible adjustment to capture broad overviews or hone in on critical zones with ease. Its wide horizontal angle of view—from 114° down to 32°—makes it suitable to oversee expansive areas or concentrate on focused locations. Superior night vision is achieved with two built-in IR LEDs, allowing the camera to see up to 196 feet in total darkness. Whether deployed in a bustling office, a warehouse, or perimeter security around your property, this camera ensures sharp imagery day or night—even in complex lighting conditions thanks to 120 dB Wide Dynamic Range (WDR), 3D Noise Reduction, and advanced exposure controls.

Supporting multiple video output formats, including AVS, TVI, AHD, and CVBS, the HDEG-B80V-IRM1 provides excellent compatibility with various recorders and surveillance infrastructures. The integrated microphone adds audio monitoring capability, further strengthening your security setup. Built to thrive in temperatures from –22°F to +140°F and tolerate up to 95% relative humidity, you can trust this camera to deliver consistent surveillance performance year-round.

Key Features

• 8 Megapixel CMOS image sensor with stunning 4K resolution (3840 x 2160)

• Motorized vari-focal lens (2.7 mm–13.5 mm) with auto-focus for flexible monitoring

• Integrated infrared illumination up to 196 feet (60 meters) for clear night vision

• Supports multiple video output formats: AVS, TVI, AHD, CVBS

• 120 dB Wide Dynamic Range (WDR) for exceptional image quality in diverse lighting

• 3D Noise Reduction for minimized video noise and improved clarity

• Built-in microphone for real-time audio monitoring

• Heavy-duty IP67-rated metal housing for all-weather durability

Specifications

• Image Sensor: 8 Megapixel CMOS

• Effective Pixels: 3840 (H) × 2160 (V) (8MP/4K)

• Scanning System: Progressive

• Minimum Illumination: 0.01 lux@F1.5 (Color, 30 IRE); 0.001 lux@F1.5 (B/W, 30 IRE); 0 lux (IR on)

• IR Illumination Distance: 196 feet (60 m)

• IR LEDs: 2, with auto/manual control

• Lens Type: Motorized vari-focal (φ14 mount)

• Focal Length: 2.7 mm–13.5 mm

• Max. Aperture: F1.5

• Horizontal Viewing Angle: 114°–32°

• Vertical Viewing Angle: 58°–17°

• Auto Focus capability

• Close Focus Distance: 4.27 ft (1.3 m)

• Detection Distance: 279–918 ft

• Observation Distance: 91–367 ft

• Recognition Distance: 56–183 ft

• Identification Distance: 27–91 ft

• Resolutions Supported: 4K (3840 × 2160), 5M (2880 × 1620), 4M (2560 × 1440), 1080p (1920 × 1080), 960H

• Frame Rate (AVS): NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps | PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps

• Frame Rate (AHD/TVI): NTSC/PAL: 4K@15 fps

• Frame Rate (CVBS): NTSC/PAL: 960H

• Day/Night: Auto(ICR)/Color/B/W

• Backlight Compensation: BLC, HLC-Pro, WDR

• White Balance: Auto, Area white balance

• Noise Reduction: 3D NR

• Digital Zoom: 4x

• WDR: 120 dB

• Video Interface: 1 BNC port

• Video Output Formats: AVS/TVI/AHD/CVBS (OSD-selectable)

• Audio: Built-in microphone

• Power Supply: DC 12V ±30%

• Power Consumption: Max 7.9W (IR on)

• Operating Temperature: –22°F to +140°F (–30°C to +60°C)

• Storage Temperature: –22°F to +140°F (–30°C to +60°C)

• Operating and Storage Humidity: < 95% RH

• Ingress Protection: IP67

• Casing: Metal

• Dimensions: 3.56" × 3.55" × 8.25" (90.4 mm × 90.1 mm × 209.6 mm)

Package Contents

• IC Realtime HDEG-B80V-IRM1 4K 8MP HDAVS Indoor/Outdoor Mid-Size Bullet Camera
