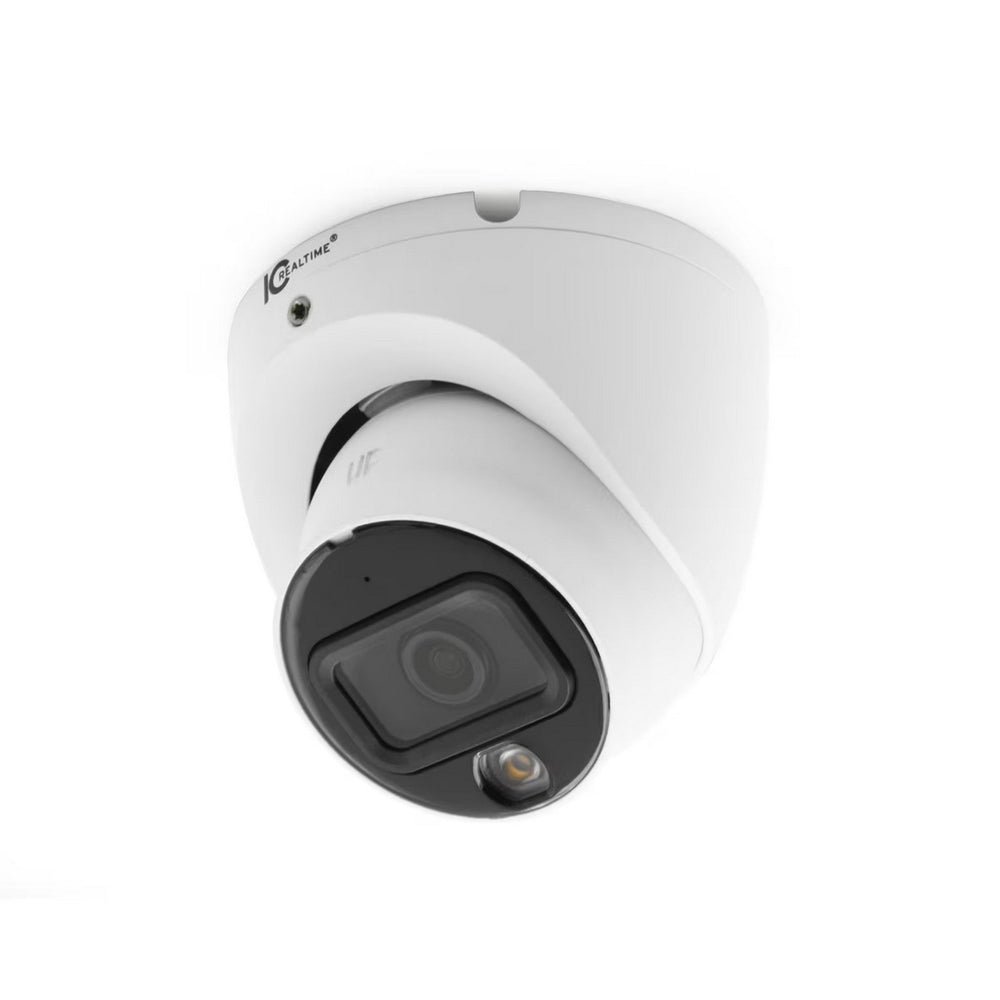

IC Realtime HDEG-E80F-DI-M1: 4K Ultra HD Security Camera

The IC Realtime HDEG-E80F-DI-M1 is a top-tier 4K security camera offering unparalleled clarity for both residential and commercial surveillance needs. Featuring a 4K CMOS image sensor, this camera provides an astounding 8MP resolution, capturing every detail in ultra-high definition. Its advanced dual illumination technology ensures seamless transition between infrared and white light, providing optimal visibility even in low-light or complete darkness.

Built for versatility and durability, the IC Realtime HDEG-E80F-DI-M1 comes with a fixed-focal 2.8mm lens offering a wide horizontal angle of view of 106°. This makes it ideal for monitoring expansive areas. Constructed with a robust combination of metal and plastic components, it guarantees reliable performance in extreme temperatures and challenging environments. The IP67 weatherproof rating protects the camera from dust, rain, and other outdoor elements, making it a dependable choice for outdoor installations.

The camera is equipped with several advanced features such as 120 dB Wide Dynamic Range (WDR) for balanced lighting, 3D Noise Reduction for clear images, and Smart IR technology for enhanced nighttime performance. Additional features include a built-in microphone for audio recording and support for multiple video output formats to ensure compatibility with various security systems.

Key Features

• 4K Ultra HD resolution (3840 × 2160) for detailed video quality
• Dual illumination with infrared and white light LEDs for adaptability in all lighting conditions
• Wide 106° horizontal field of view with a fixed 2.8mm lens
• Durable construction with IP67-rated weather resistance for reliable outdoor use
• Advanced imaging technologies: 120 dB WDR, Smart IR, and 3D Noise Reduction
• Supports multiple video output formats (AVS, TVI, AHD, CVBS)
• Built-in microphone for integrated audio recording

Specifications

• Image Sensor: 4K CMOS
• Effective Pixels: 3840 × 2160 (8MP)
• Scanning System: Progressive
• Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
• Illumination Distance: White Light/IR Distance: 131.23 ft (40 m)
• Illumination On/Off Control: WL Mode; IR Mode; Smart Dual Illumination Supported
• Illumination LEDs: 2x IR LED, 2x Warm Light LED
• Camera Illumination Type: IR and White Light
• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 2.8mm
• Max. Aperture: F2.0
• Angle of View: Horizontal: 106°; Vertical: 56°
• Close Focus Distance: 4.27 ft (1.3 m)
• DORI: Detect: 288 ft; Observe: 115 ft; Recognize: 57 ft; Identify: 28 ft
• Resolution: 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
• Frame Rate: AVS: NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps; PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
• Backlight Compensation: BLC; HLC; WDR; HLC-Pro
• Noise Reduction: 3D NR
• WDR: 120 dB
• Video Interface: 1 BNC port
• Video Output Formats: AVS/TVI/AHD/CVBS (Toggled by OSD)
• Audio I/O: Built-in Mic
• Power Supply: DC 12V ±30%
• Power Consumption: Max 5.7 W (12 VDC, Illuminators on)
• Operating Conditions: –40 °F to +140 °F; < 95%
• Storage Conditions: –40 °F to +140 °F; < 95%
• Ingress Protection: IP67
• Casing: Metal front cover + plastic rear cap + metal bracket
• Dimensions: 3.70" × 3.37" (94.0 mm × 85.7 mm)
• Gross Weight: 1.04 lbs (0.47 kg)
• Mounting Pan/Tilt/Rotation: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Package Contents

• IC Realtime HDEG-E80F-DI-M1 Camera
• Mounting Accessories
• Quick Start Guide
