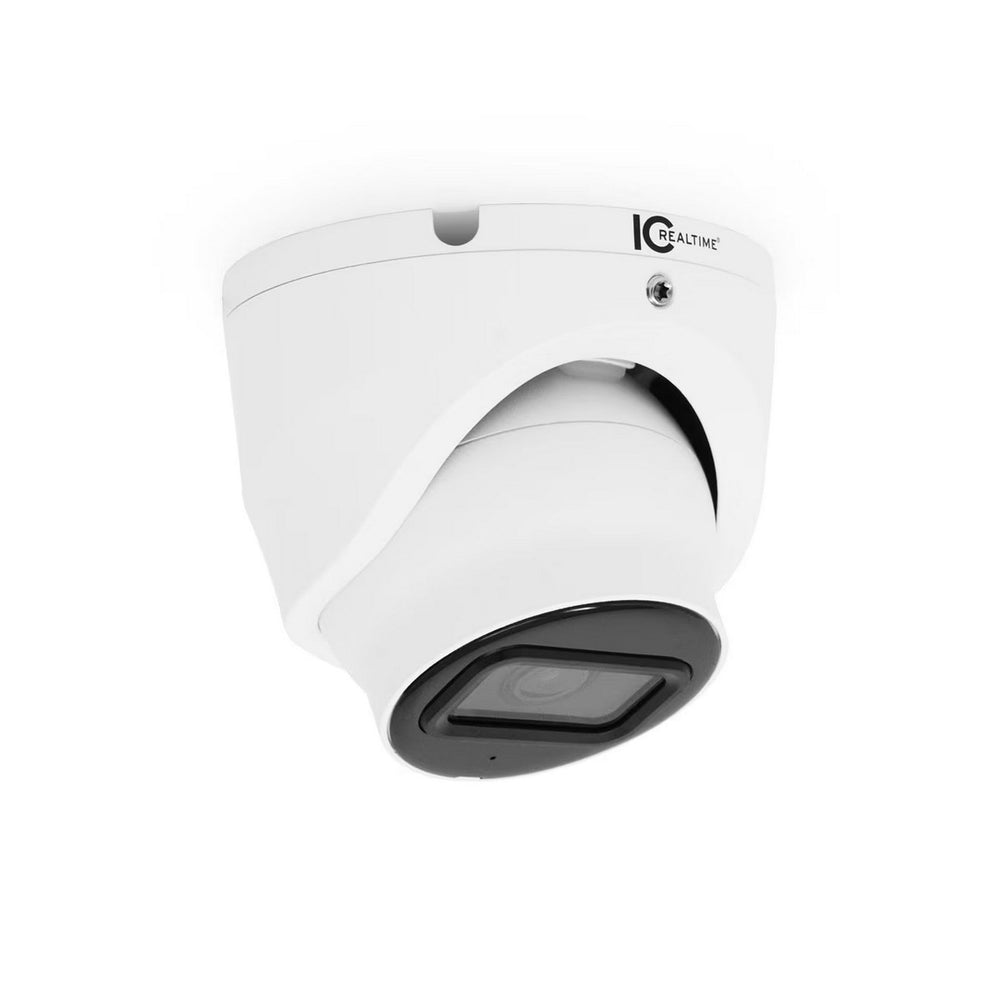

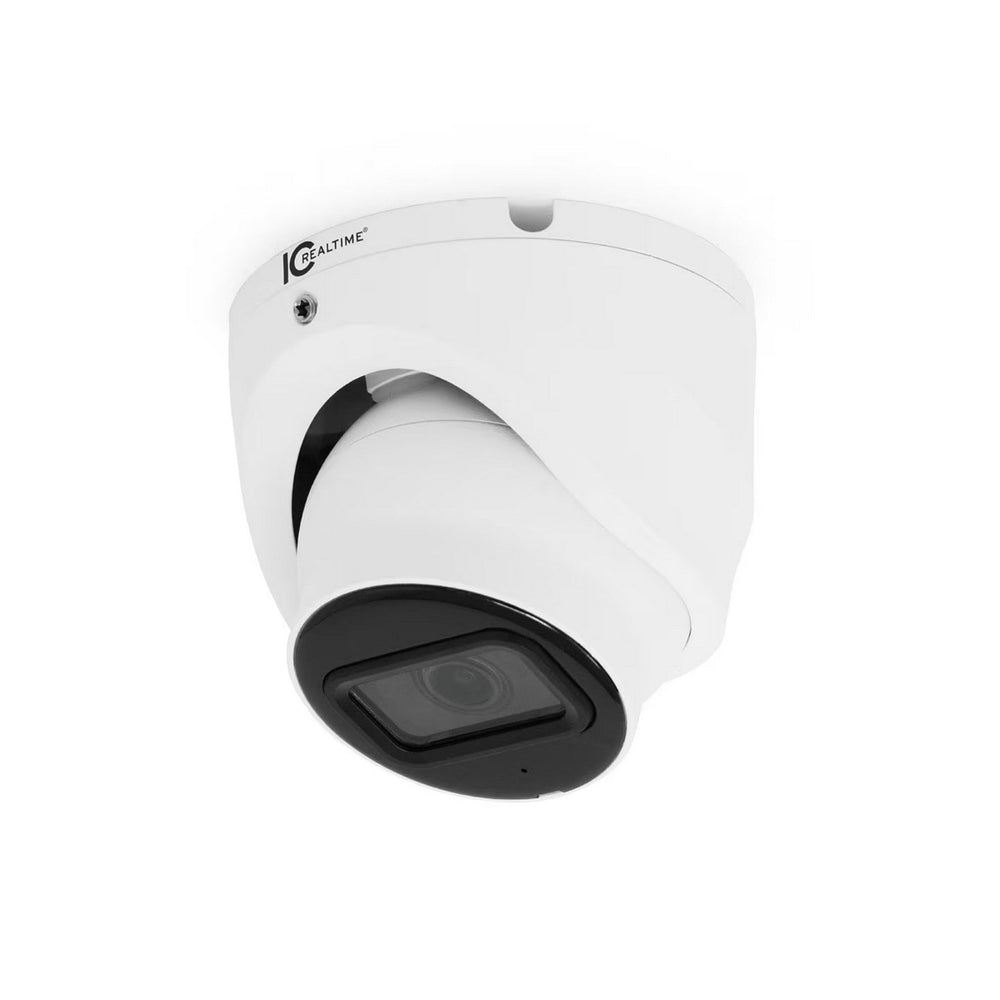

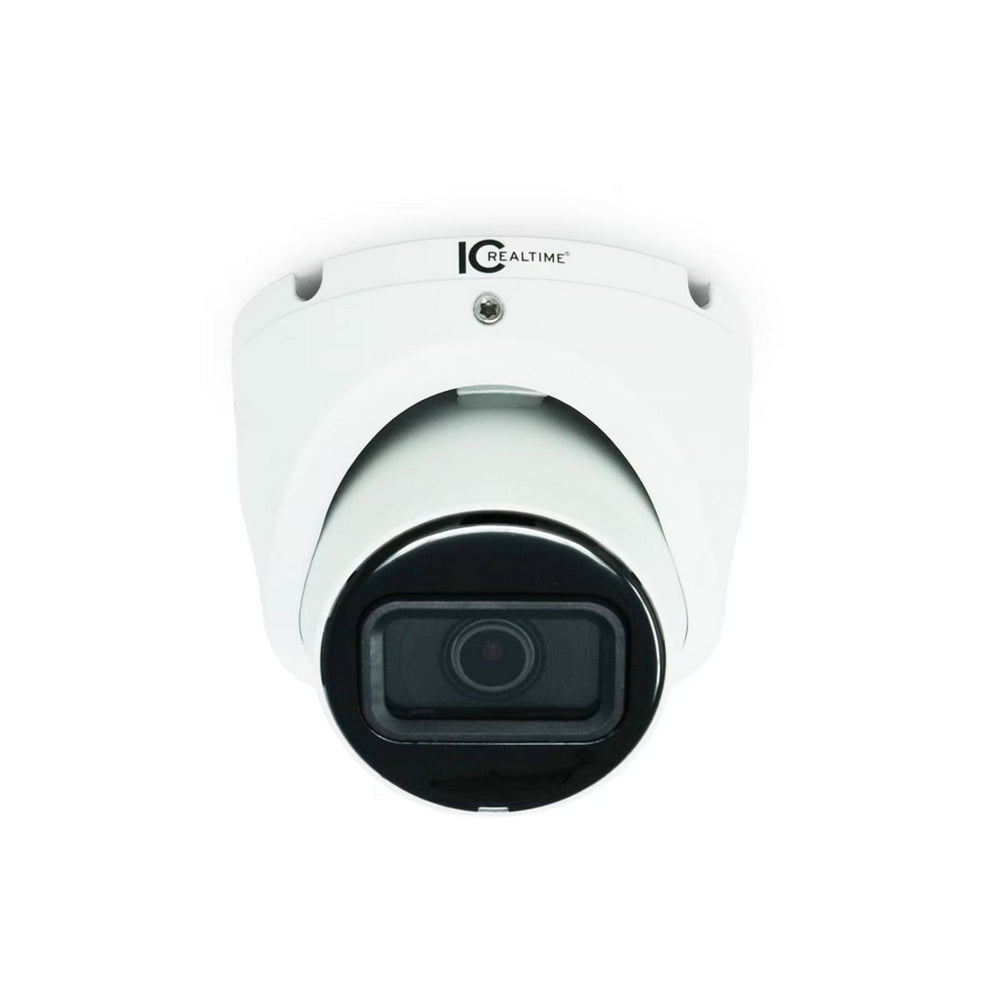

IC Realtime IPEG-E80F-IRW1 8MP IR Indoor/Outdoor Eyeball Network Camera

The IC Realtime IPEG-E80F-IRW1 8MP IR Eyeball Network Camera is a premium surveillance solution that excels in providing detailed video capture for both indoor and outdoor settings. With an 8-megapixel (4K) resolution and a 1/2.7" CMOS image sensor, this advanced camera offers superior image quality that leaves nothing to chance.

Featuring a fixed 2.8 mm lens, the IPEG-E80F-IRW1 supplies a horizontal field of view of 105° and a vertical field of view of 56°, capturing wide areas efficiently. Its sophisticated infrared (IR) technology delivers clear nighttime images up to 98.4 feet (30 meters), making it reliable even in low-light conditions. This ensures your property is under constant, high-quality surveillance regardless of the time.

Constructed with an IP67-rated metal casing, this camera is designed to withstand extreme weather conditions, providing reliable performance in challenging environments. Its robust build ensures longevity and consistent protection, making it an ideal asset for various surveillance applications from residential to commercial properties.

Key Features

• 8MP (4K) resolution for ultra-clear imagery
• Fixed 2.8 mm lens with a wide 105° horizontal field of view
• Infrared night vision up to 98.4 ft (30 m)
• Durable IP67-rated metal housing for outdoor use
• Supports H.265 and H.264 video compression formats
• Built-in microphone for audio monitoring
• Compatible with ONVIF (Profile S/Profile T) standards

Specifications

• Image Sensor: 1/2.7" CMOS
• Effective Pixels: 3840 (H) × 2160 (V)
• RAM/ROM: 16MB/256MB
• Scanning System: Progressive
• Minimum Illumination: 0.04 Lux@F2.0 (Color, 30 IRE); 0.004 Lux@F2.0 (B/W, 30 IRE); 0 Lux (Illuminator on)
• Illumination Distance: 98.4 ft (30 m)
• Illumination On/Off Control: Auto / Manual
• Illumination LEDs: 1
• Camera Illumination Type: IR
• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 2.8 mm
• Max. Aperture: F1.4
• Angle of View: Horizontal: 105°; Vertical: 56°
• Close Focus Distance: 3.28 ft (1.0 m)
• Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
• Streaming Capability: 2 Streams
• Resolution: 3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2048 × 1536; 2304 × 1296; 1920 × 1080; 1280 × 960; 1280 × 720; 704 × 576/704 × 480; 640 × 480; 352 × 288/352 × 240
• Frame Rate: Main stream: 1 fps–30 fps; Sub stream: 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps)
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 32 Kbps–8192 Kbps; H.265: 12 Kbps–8192 Kbps
• Day/Night: Auto(ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / DWDR
• Gain Control: Auto / Manual
• Noise Reduction: 3D NR
• Smart IR: Supported
• Flip: 0°/90°/180°/270° (supports 90°/270° with 2688×1520 resolution and lower)
• Mirror: Yes
• Iris Control: Fixed aperture
• WDR: DWDR
• Audio Compression: G.711a; G.711Mu; G.726; PCM
• Ethernet: RJ-45 (10/100 Base-T)
• Compatibility: ONVIF (Profile S/Profile T); CGI; P2P
• Max. User Access: 6 (Total bandwidth: 48 M)
• Edge Storage: FTP
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: IC Now
• Audio I/O: Built-in Mic
• Power Supply: 12V DC/PoE (802.3af)
• Power Consumption: Basic: 2.3 W (12V DC); 3.1 W (PoE); Max.: 4.6 W (12V DC); 5.6 W (PoE)
• Operating Conditions: –40°F to 131°F (–40°C to +55°C)/Less than 95% RH
• Storage Conditions: –40°F to 131°F (–40°C to +55°C)/Less than 95% RH
• Ingress Protection: IP67
• Casing: Metal

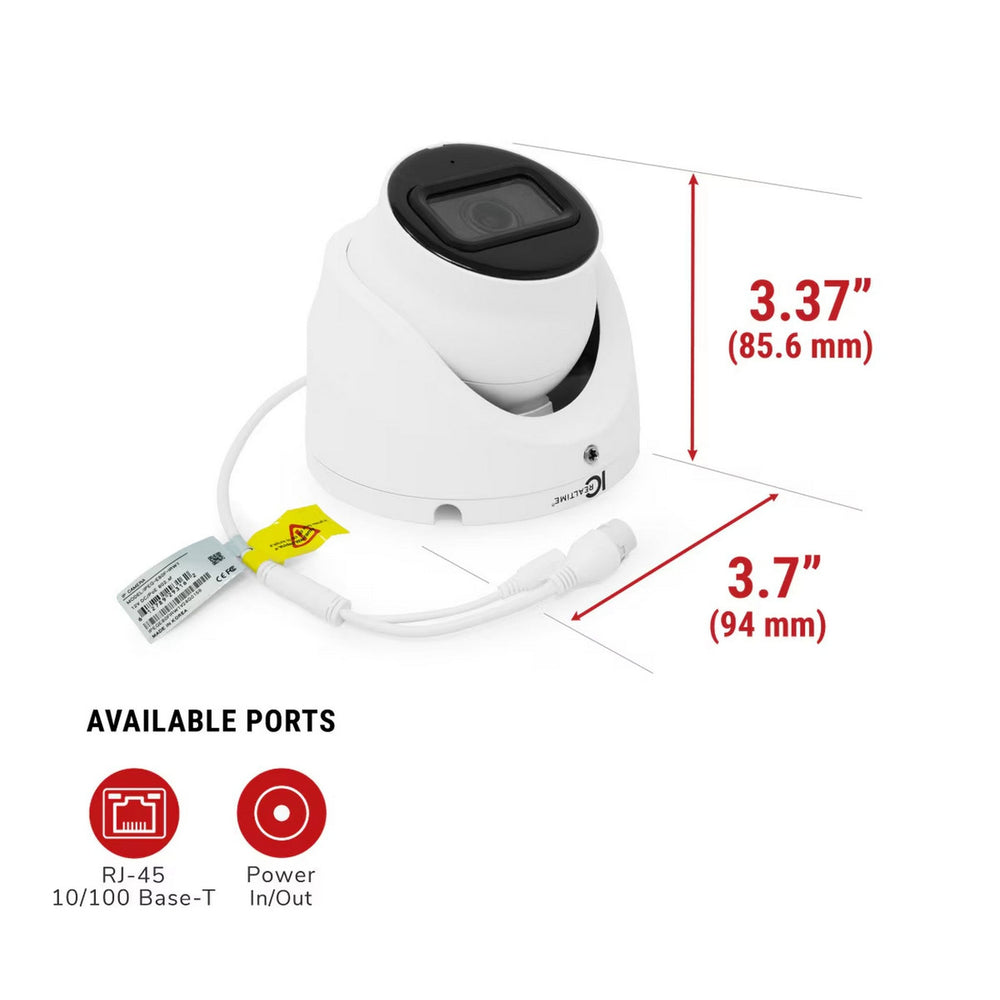

• Dimensions: 3.4" × Φ3.7" (85.6 mm × Φ94.0 mm)
• Gross Weight: 0.95 lb (0.43 kg)
• Mounting Pan/Tilt/Rotation: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Package Contents

• IC Realtime IPEG-E80F-IRW1 8MP IR Eyeball Network Camera
• Installation hardware
• Quick start guide
