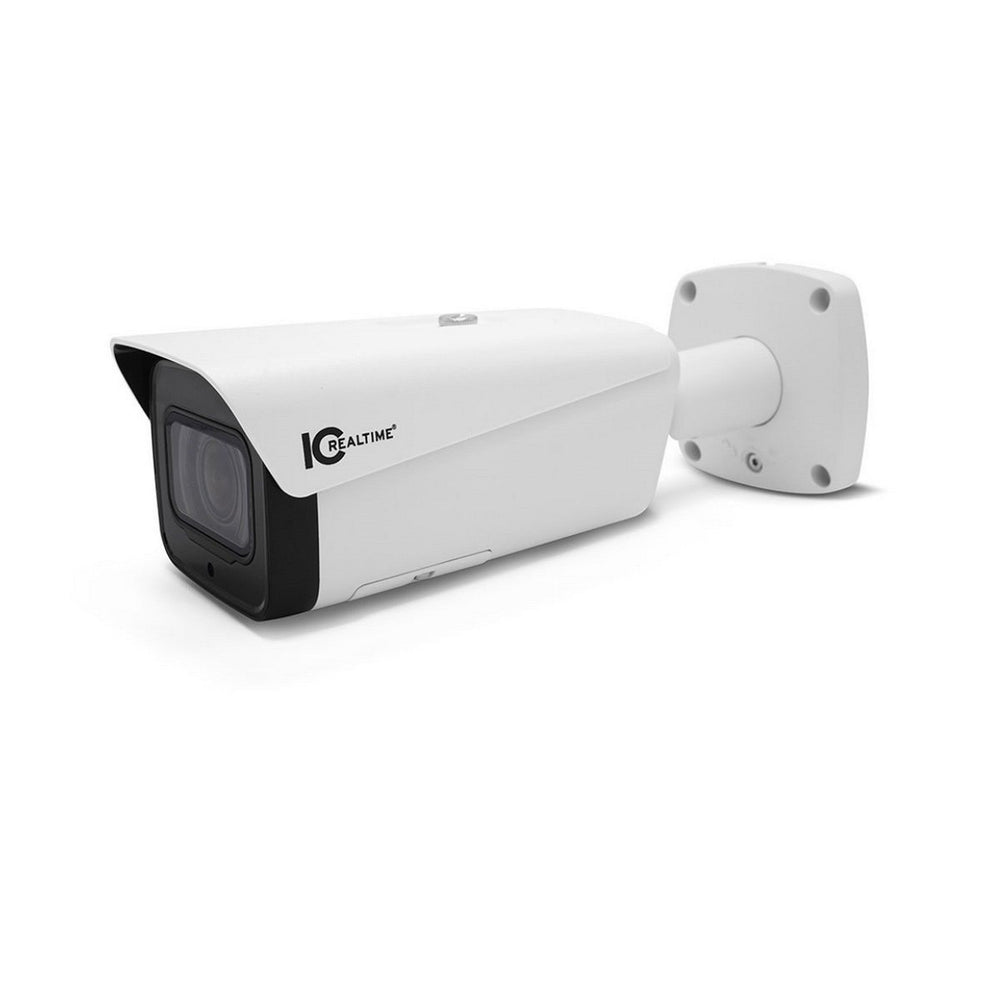

IC Realtime IPEL-B2012X-IRW2 2MP IP Indoor/Outdoor Full Size Bullet Camera, White

The IC Realtime IPEL-B2012X-IRW2 is the pinnacle of our full-size bullet camera series, embodying the best in security technology for both indoor and outdoor settings. Building upon the timeless design and robust performance of its predecessors, this 2MP IP camera continues to set the standard with advanced features and unparalleled reliability. Trusted by professionals and installed in thousands of systems, the IPEL-B2012X-IRW2 has now been enhanced to deliver even more precise and effective surveillance capabilities.

This updated model boasts Sony's renowned STARVIS Starlight video chipset, offering exceptional image clarity and superior low-light performance. Designed to operate seamlessly under challenging lighting conditions, the STARVIS sensor ensures that you capture every detail, no matter the time of day. Complementing the superior imaging technology is a versatile 5.3mm-64.0mm motorized varifocal lens, capable of providing a range of views from a narrow 4-degree focus to a wide 58-degree field of view. This flexibility makes the IPEL-B2012X-IRW2 ideal for monitoring expansive areas or zooming in for detailed inspections.

Beyond its optical strengths, this camera is equipped with IC Realtime's full suite of FlexSmartAi features, making it a formidable tool in business intelligence, perimeter protection, and facial recognition. Whether you require precise face detection, people counting, or detailed object monitoring, the IPEL-B2012X-IRW2 delivers. Its advanced algorithms not only detect motion but also analyze and differentiate between various activities, minimizing false alarms and ensuring accurate alerts for human or vehicle intrusions.

Key Features

• 1/2.8 CMOS Starvis | 2MP | 30fps@2MP
• 5.3 mm-64.0 mm | Motorized Varifocal | AoV 58 Degrees to 4 Degrees
• Max. IR Length 492ft | Smart IR | 4 IR LEDs
• 2-channel Audio In, 1-channel Audio Out | 1-channel Alarm In, 1-channel Alarm Out | 256GB MSD
• IP67 | IK10 | 12VDC Or PoE | IVS | Perimeter Protection
• IVS | AGC | 120dB True WDR | HLC | BLC | 3DNR

Specifications

• Image Sensor: 1/2.8 2 Megapixel progressive scan STARVIS CMOS
• Effective Pixels: 1920(H) x 1080(V)
• RAM/ROM: 32MB/256MB
• Scanning System: Progressive
• Minimum Illumination: 0.002 Lux@F1.5
• S/N Ratio: > 56 dB
• Illumination Distance: Up to 150 m (492 ft)
• Illumination On/Off Control: Auto/Manual
• Illumination LEDs: 4
• IR Wavelength: 850 nm
• Illumination Type: IR
• Lens Type: Motorized vari-focal
• Mount Type: Board-in
• Focal Length: 5.3-64mm
• Max. Aperture: F1.5
• Angle of View: H: 58 Degrees-4 Degrees, V: 34 Degrees-2 Degrees
• Optical Zoom: 12x
• Focus Control: Motorized
• Close Focus Distance: 1.0 m-1.5 m (3.28 ft-4.92 ft)
• DORI - Detect: 240ft-2897ft
• DORI - Observe: 95ft-1158ft
• DORI - Recognize: 49ft-580ft
• DORI - Identify: 23ft-289ft
• IVS: Object Abandoned/Missing, Heat Map
• Perimeter Protection: Tripwire, Intrusion detection for vehicle and people, fast moving, loitering detection, parking detection, and people gathering
• Face Detection: Face detection, track, optimization, snapshot, report high-quality picture, face enhancement, face exposure, and supports extraction of 6 facial attributes
• People Counting: Supports line crossing/region/queuing people counting, up to 4 rules
• Compression: H.265, H.264, H.264B, H.264H, MJPEG (only supported by sub stream)
• Streaming Capability: 3 streams
• Resolution: 1080P (1920 x 1080), 1.3M (1280 x 960), 720P (1280 x 720), D1 (704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/342 x 240)
• Frame Rate: Main Stream: 1080P (1 fps-25/30 fps), Sub Stream: D1 (1 fps-25/30 fps), Third Stream: 1080P (1 fps-6 fps)
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 32 Kbps-8192 Kbps, H.265: 19 Kbps-7424 Kbps
• Day/Night: Auto (ICR)/Color/B/W
• Backlight Compensation: BLC/HLC/WDR (120dB)
• White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
• Gain Control: Auto/Manual
• Noise Reduction: 3D DNR
• Motion Detection: Off/On (4 Zone, Rectangle)
• Region of Interest: Off/On (4 Zone)
• Smart IR: Support
• Flip: 0 Degrees/90 Degrees/180 Degrees/270 Degrees
• Mirror: Off/On
• Privacy Masking: Up to 4 areas
• WDR: 120dB
• Audio Compression: G.711a, G.711Mu, AAC, G.726, G.723
• Ethernet: RJ-45 (100/1000Base-T)
• Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T), CGI
• Compatibility: ONVIF Profile S&G/API
• Streaming Method: Unicast/Multicast
• Max. User Access: 20 Users
• Edge Storage: NAS, Local PC for instant recording, Micro SD card 256GB
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: SmartICRSS, DSS
• Smart Phone: IOS, Android
• Audio I/O: 1/1 channel In/Out
• Memory Slot: Micro SD Card 256GB
• Power Supply: DC12V, PoE (802.3af) (Class 0), ePOE Support
• Power Consumption: Less than 10.3W
• Operating Conditions: -30 Degrees C to +60 Degrees C (-22 Degrees F to +140 Degrees F), Less than 95% RH
• Storage Conditions: -30 Degrees C to +60 Degrees C (-22 Degrees F to +140 Degrees F), Less than 95% RH
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Casing: Metal
• Dimensions: 273.2mmx95.0mmx95.0mm (10.76 x 3.74 x 3.74 inches)
• Gross Weight: 1.51Kg (3.33lb)

Package Contents

• IC Realtime IPEL-B2012X-IRW2 2MP IP Indoor/Outdoor Full Size Bullet Camera
