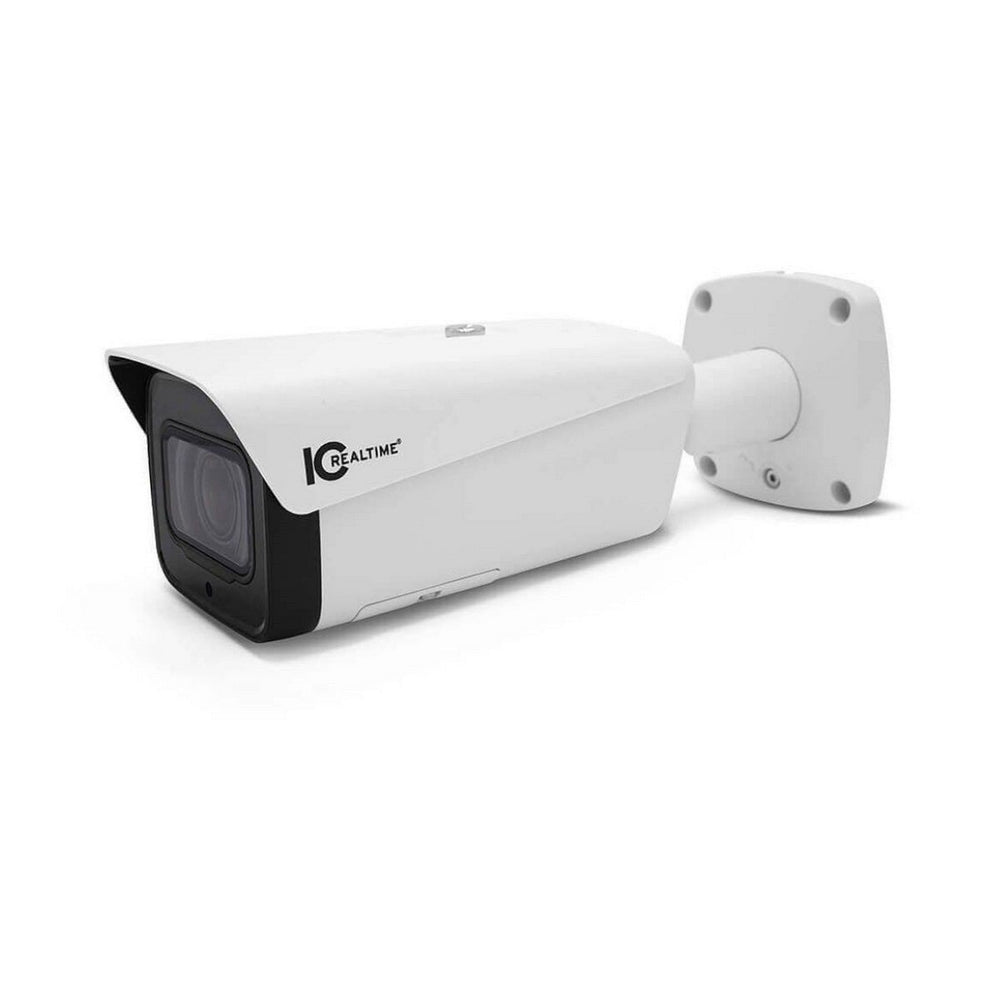

IC Realtime IPEL-B40V-IRW1-AI 4MP IP Indoor/Outdoor Full Size Bullet Camera, White

Experience the pinnacle of surveillance technology with the IC Realtime IPEL-B40V-IRW1-AI 4MP IP Indoor/Outdoor Full Size Bullet Camera. As a distinguished member of the IC Realtime Elite family, this camera brings you high-resolution imagery coupled with advanced deep learning artificial intelligence algorithms. It is a versatile solution for both indoor and outdoor security needs, bolstering perimeter security with unparalleled precision.

Equipped with the Pro A.I. series features, this camera excels in providing dependable face detection and people-counting functionalities. It integrates Starlight and Smart IR technology, effectively stretching its capabilities to capture clear, detailed images even in low-light conditions, up to distances of 164 feet. The True Wide Dynamic Range (WDR) technology ensures that images are sharp and well-defined, regardless of contrast or lighting conditions.

Designed with convenience in mind, this camera supports ePoE and PoC transmission technologies, significantly simplifying the wiring setup and achieving distances tenfold greater than the conventional 328ft IP standard. The IC Realtime IPEL-B40V-IRW1-AI is synonymous with design flexibility, reliability, and efficient cost management, making it an ideal choice for sophisticated security requirements.

Key Features

• 1/1.8” CMOS sensor offering 4MP resolution at 30fps
• Motorized varifocal lens ranging from 2.7mm to 12mm with an Angle of View (AoV) spanning from 114 degrees to 47 degrees
• Starlight and Smart IR technology with a maximum IR length of 164 feet
• True Wide Dynamic Range (WDR) at 140dB to handle varied lighting conditions
• Supports ePoE and PoC transmission technologies
• Supports up to three video streams
• Advanced AI functionalities including face detection and perimeter protection
• Robust metal and plastic casing with IP67 ingress protection and IK10 vandal resistance

Specifications

• Image Sensor: 1/1.8” 4 Megapixel progressive scan CMOS
• Effective Pixels: 2688(H) x 1520(V)
• Minimum Illumination: 0.003 Lux@F1.8
• Illumination Distance: Up to 50m (164ft)
• Illumination LEDs: 4 IR LEDs
• IR Wavelength: 850 nm
• Lens Type: Motorized vari-focal
• Focal Length: 2.7 mm-12.0 mm
• Max. Aperture: F1.8
• Angle of View: H: 114 Degrees-47 Degrees, V: 62 Degrees-26 Degrees
• Frame Rate: Main Stream: 4M (1 - 25/30fps), Sub Stream: D1(1 - 25/30fps), Third Stream: 1080P (1 fps-16 fps)
• Bit Rate: H.264: 32 Kbps-8192 Kbps, H.265: 19 Kbps-8192 Kbps
• Day/Night: Auto (ICR) / Color / B/W
• Compression: H.265, H.264, H.264B, H.264H, MJPEG (sub stream)
• Noise Reduction: 3D DNR
• Audio Compression: G.711a, G.711Mu, AAC, G.726, G.723
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T), CGI, P2P, Milestone
• Max. User Access: 20 Users
• Edge Storage: NAS / Local PC for instant recording / Micro SD Card 128GB
• Operating Conditions: -30 C to +60 C (-22 F to +140 F) / Less than 95% RH
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Dimensions: 273.2mm x 95.0mm x 95.0mm (10.76in x 3.74in x 3.74in)
• Gross Weight: 1.51Kg (3.33lb)

Package Contents

• IC Realtime IPEL-B40V-IRW1-AI 4MP IP Indoor/Outdoor Full Size Bullet Camera, White
