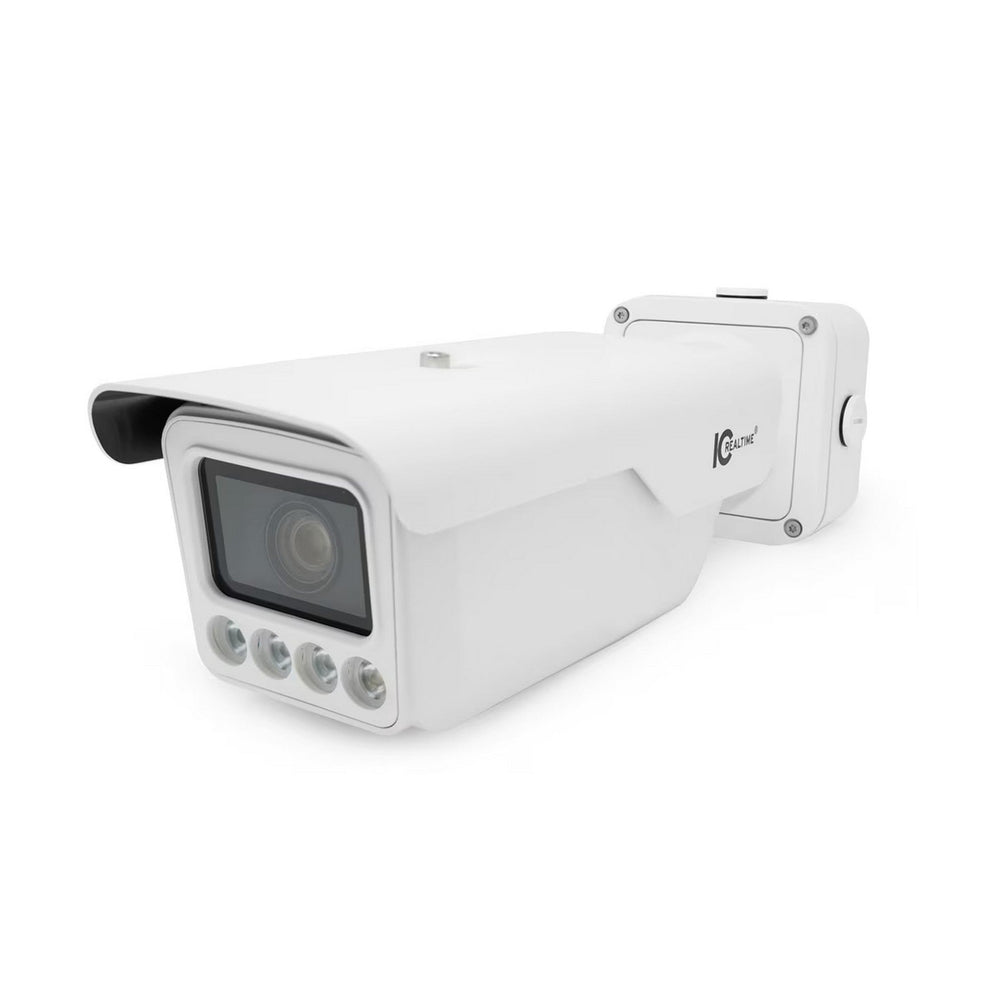

IC Realtime IPEL-B40V-LPR1 4MP IP Indoor/Outdoor Full-Size Bullet Camera w/Advanced Vehicle Capture

The IC Realtime IPEL-B40V-LPR1 is a cutting-edge 4MP License Plate Recognition (LPR) camera, meticulously engineered for precise vehicle monitoring and analysis. Equipped with a powerful 1/1.8'' CMOS image sensor and a motorized vari-focal lens, this camera is perfect for critical security applications that demand accurate vehicle detection and recognition. Whether installed indoors or outdoors, it guarantees exceptional clarity even under low-light and challenging lighting conditions, thanks to its robust IR and warm light illuminators.

This advanced LPR camera captures clear vehicle images from distances ranging from 26 to 65 feet and identifies up to 10 different types of vehicles, boasting a vehicle capture rate of 99% under optimal conditions. Its intelligent video surveillance (IVS) technology includes features like intrusion and loitering detection, making it a reliable and durable choice for various weather conditions. Built with a rugged aluminum casing, the IPEL-B40V-LPR1 is ideal for residential, commercial, or industrial security applications.

Incorporating dual-stream video capabilities, edge storage, and seamless compatibility with IC Now and DSS software, this camera integrates effortlessly into any security infrastructure. It ensures you never miss critical details, revolutionizing vehicle monitoring and license plate recognition with its superior technology and performance.

Key Features

• 4MP resolution with a 1/1.8'' CMOS image sensor for high-definition clarity
• Motorized vari-focal lens with 8–32 mm focal length and F1.6 aperture
• Advanced vehicle detection supporting 10 vehicle types
• Intelligent video surveillance (IVS) for intrusion and loitering detection
• Dual IR and warm light illumination with adjustable brightness
• Durable aluminum alloy casing with IP67 and IK10 ratings
• Comprehensive network protocols, including ONVIF support

Specifications

• Image Sensor: 1/1.8'' CMOS
• Effective Pixels: 4MP (2688 × 1520)
• RAM/ROM: 4GB/1GB
• Scanning System: Progressive
• Minimum Illumination: 0.001 Lux (Color), 0.0002 Lux (B/W), 0 Lux (Illuminator On)
• Illumination Distance: ANPR: 65.62 ft; Monitoring: 196.85 ft
• Illumination On/Off Control: Auto, On, Off, Schedule
• Illumination LEDs: 2 IR illuminators and 2 warm light LEDs
• IR Wavelength: 730 nm
• Lens Type: Motorized Vari-focal
• Focal Length: 8 mm–32 mm
• Max Aperture: F1.6
• Angle of View: Horizontal: 39.9°–15.1°; Vertical: 21.8°–8.5°
• Focus Control: Auto, Area Focus, Manual
• DORI Distance: Detect: 524 ft–1334 ft; Identify: 52 ft–133 ft
• Vehicle Detection: Recognizes 10 vehicle types
• Capture Distance: 26.25 ft–65.62 ft
• Detection Width: 19.69 ft–26.25 ft
• Recognition Rate: ≥ 96% (under optimal conditions)
• Compression: H.264, H.265, MJPEG
• Resolution: Main: 4MP/1080p/720p; Sub: 720p/D1/CIF
• Frame Rate: Up to 30 fps (NTSC)
• Day/Night: IR Filter (Color, B/W, Auto)
• Noise Reduction: 3D DNR
• WDR: 140 dB
• Ethernet: RJ-45, 100/1000M
• Protocols: HTTP, HTTPS, TCP, UDP, RTSP, ONVIF, and more
• Edge Storage: Micro SD (up to 64GB)
• Operating Temperature: −22°F to +149°F
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Casing: Aluminum alloy body, plastic visor

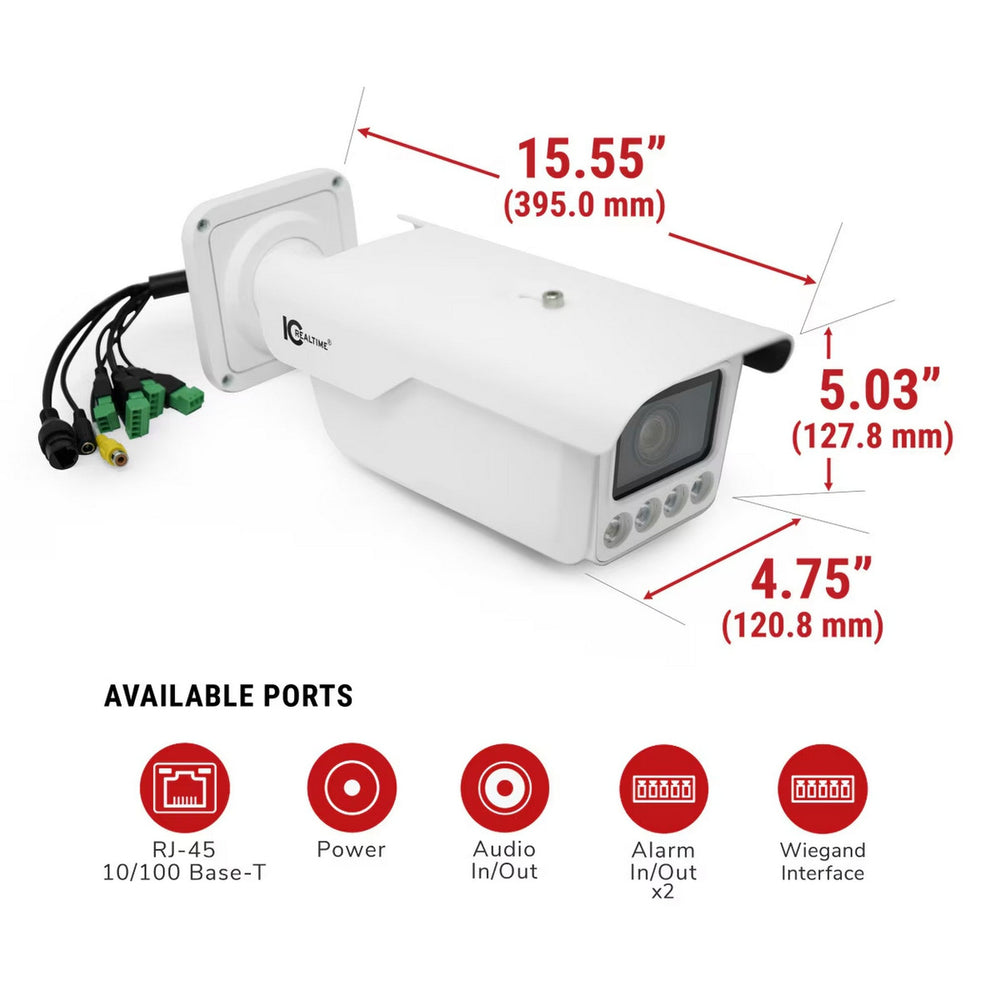

• Dimensions: 15.55" x 4.76" x 5.03" (Camera Only); 17.60" x 9.45" x 9.17" (with bracket)
• Weight: 7.05 lbs

Package Contents

• IC Realtime IPEL-B40V-LPR1 Camera
• Mounting Bracket
• Power Adapter (12VDC, 2A)
• User Manual
