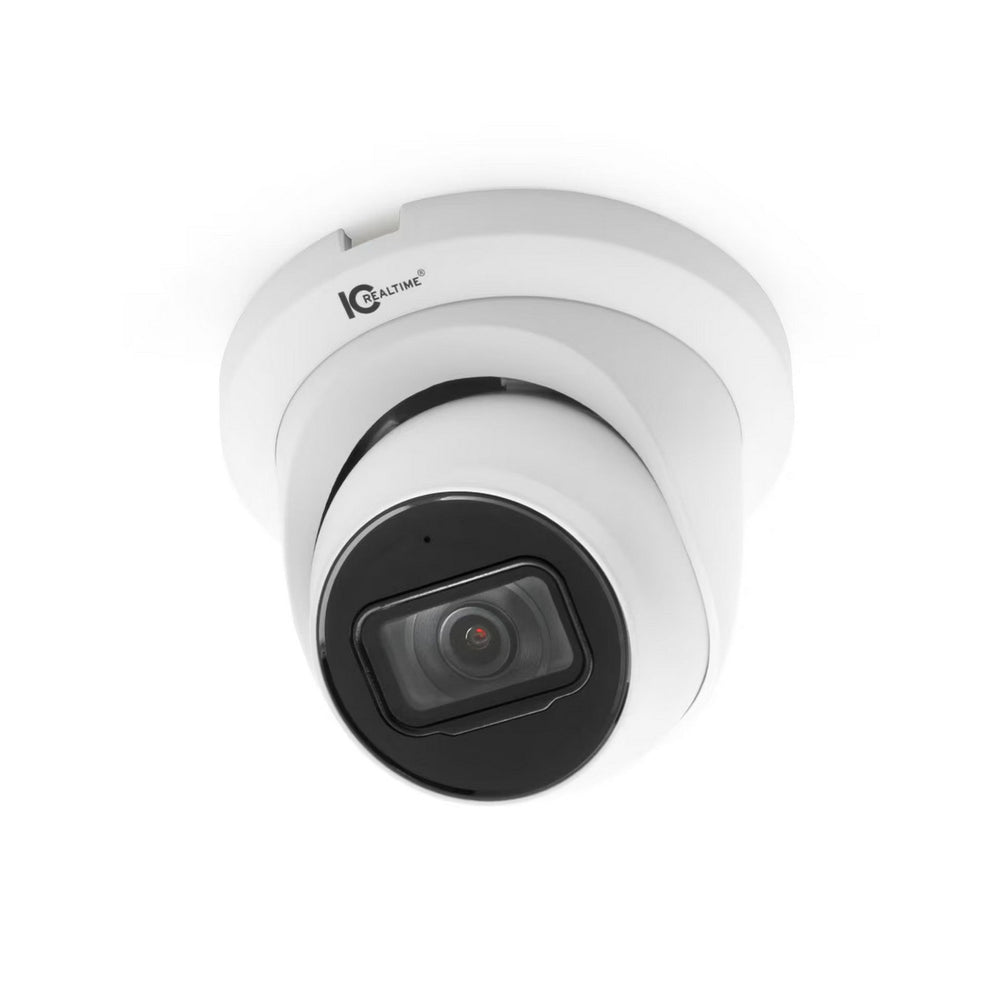

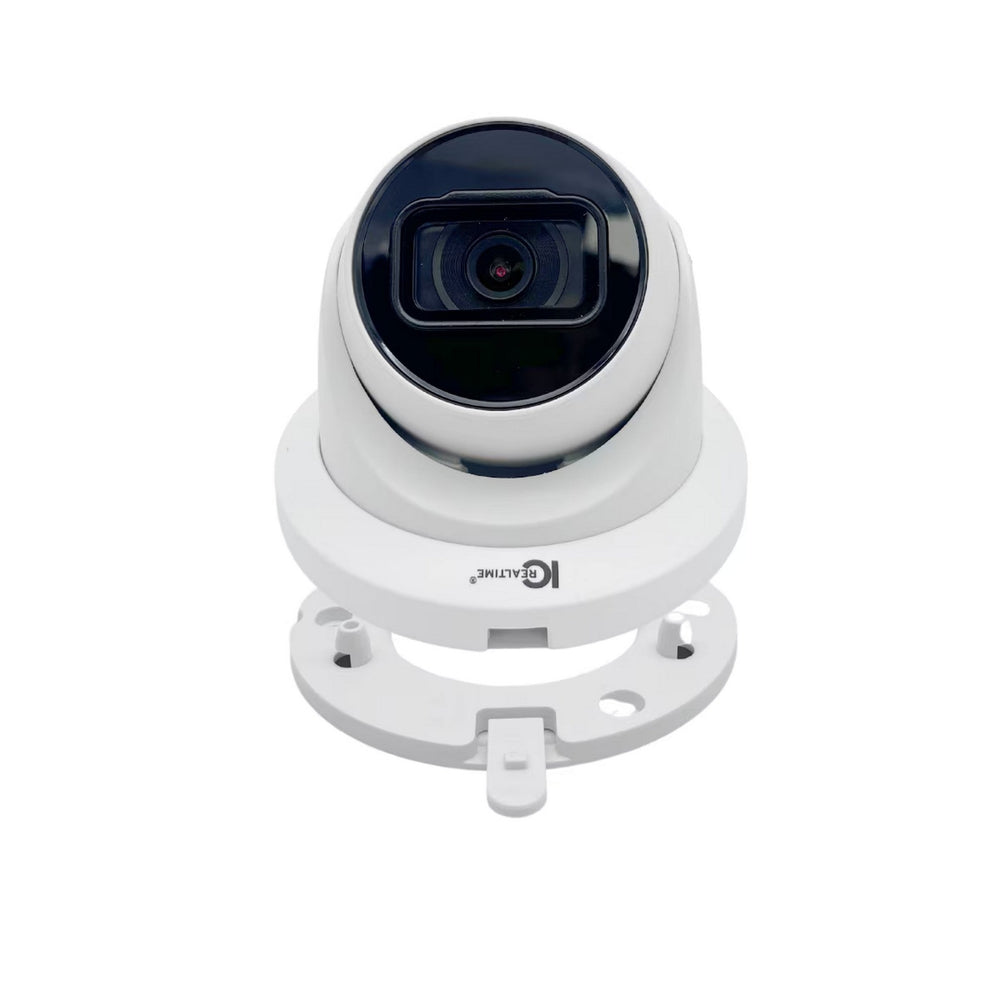

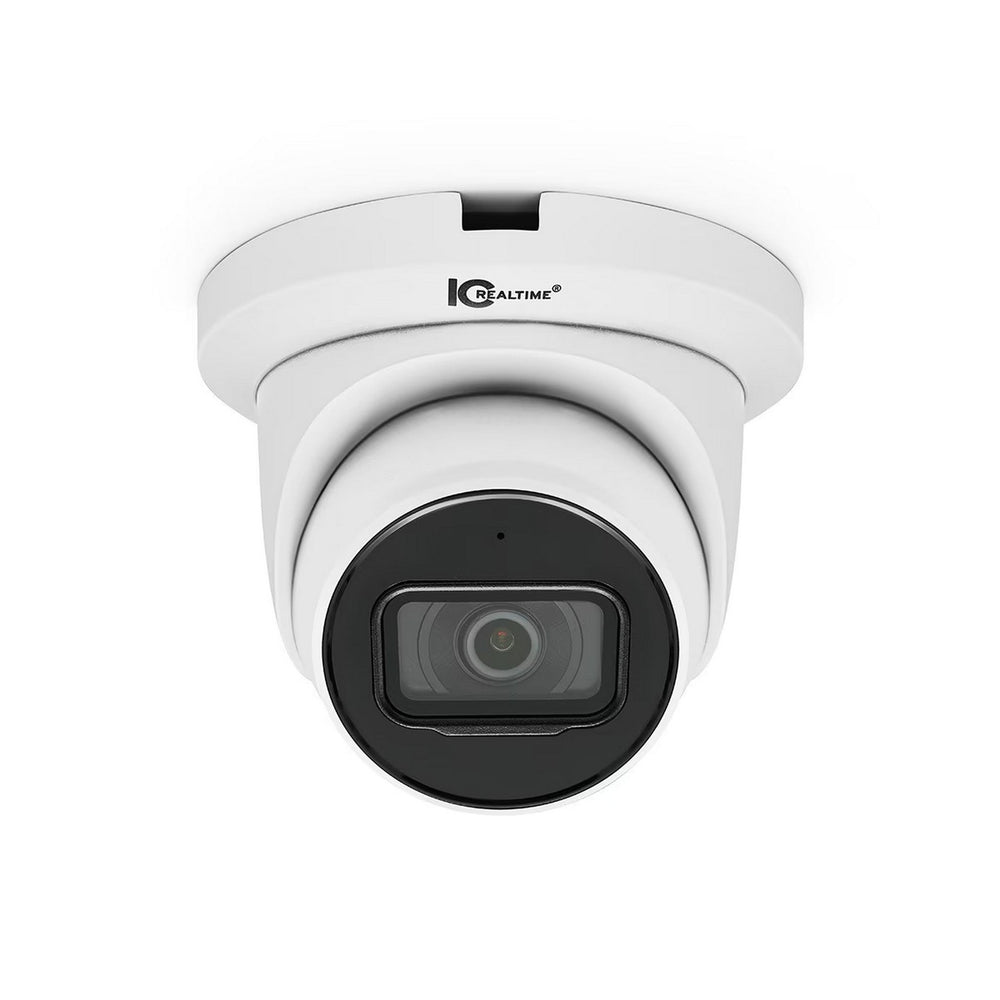

IC Realtime IPEL-E80F-IRW3 8MP IP Indoor/Outdoor Mid-Size Eyeball Dome Camera

Introducing the IC Realtime IPEL-E80F-IRW3, a premium 8MP IP Eyeball Dome Camera for indoor and outdoor use. This camera offers unparalleled video clarity with its 8MP/4K UHD resolution and Starlight sensor, perfect for capturing detailed images even in low light conditions down to 0.007 lux. With its advanced AI detection features and SMART IR illuminators that reach up to 95 feet, this camera is a robust solution for enhanced nighttime surveillance.

The IPEL-E80F-IRW3 features a sleek, durable design that ensures easy installation, making it an excellent choice for any security system. The 2.8mm lens provides a medium wide-angle view of 107° horizontally and 56° vertically, covering a broad area while delivering sharp details. Its 4K UHD resolution ensures every image is rich in detail, and the Starlight technology ensures low-light performance is second to none.

This camera supports multiple streaming options with H.265 and H.264 compression formats, offering customizable and secure outputs. The advanced AI detection, powered by iMD 2.0, includes features like intrusion and tripwire alerts for precise motion detection. Rated IP67 for weatherproofing and equipped with PoE support and up to 256GB Micro SD card capacity for onboard storage, the IPEL-E80F-IRW3 is designed for high-performance, reliable surveillance in any environment.

Key Features

• 8MP/4K UHD resolution for crystal-clear video
• Starlight sensor for exceptional low-light capabilities
• SMART IR illuminators with up to 95 feet of visibility for night surveillance
• Advanced AI detection with features like intrusion and tripwire alerts
• IP67 weatherproof rating for reliable outdoor use
• PoE support for hassle-free installation
• Supports up to 256GB Micro SD card for extensive onboard storage
• Customizable streaming with H.265 and H.264 formats
• 107° horizontal and 56° vertical field of view for wide coverage

Specifications

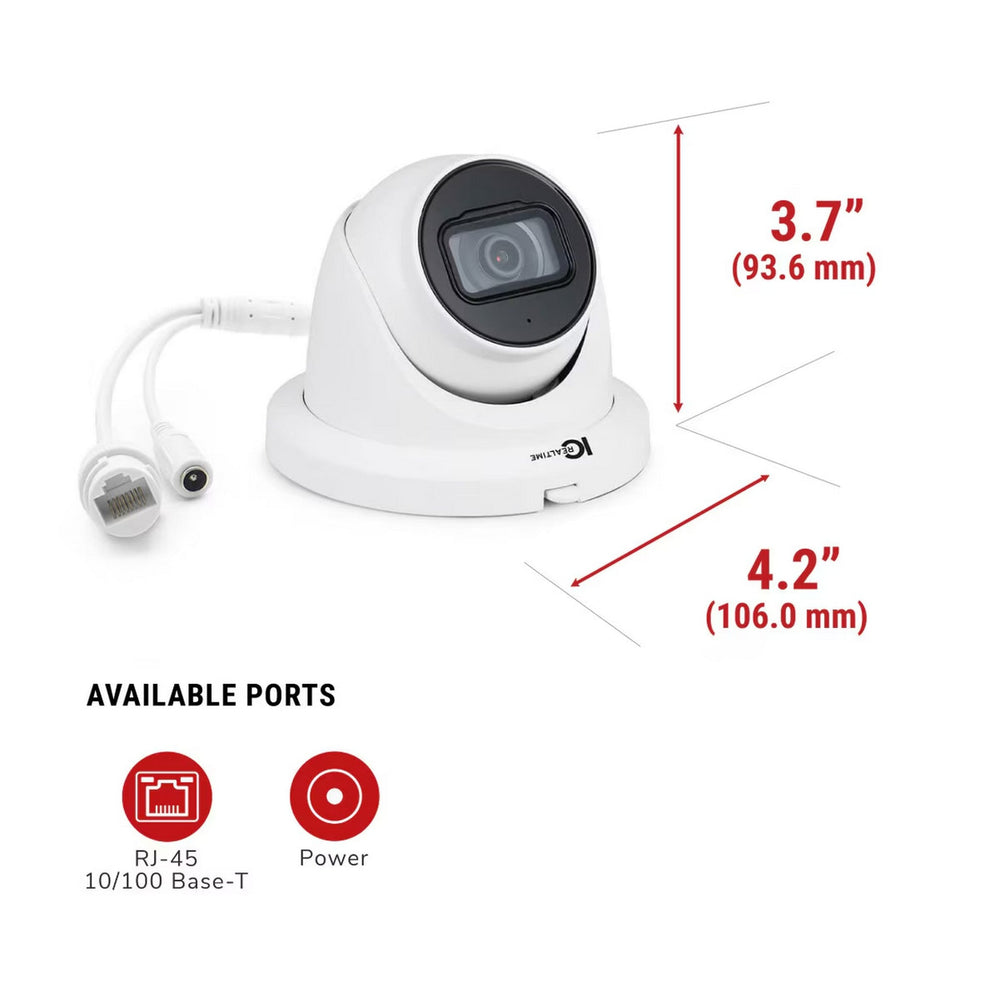

• Dimensions: 3.69" × Φ4.17" (93.6 mm × Φ106.0 mm)
• Gross Weight: 1.7 lbs (770 g)
• Image Sensor: 1/2.8” 8 Megapixel progressive CMOS
• Effective Pixels: 3840 (H) × 2160 (V)
• RAM/ROM: 128MB/1GB
• Scanning System: Progressive
• Minimum Illumination: 0.007 lux@F1.4 (Color, 30 IRE), 0.0007 lux@F1.4 (B/W, 30 IRE), 0 lux (Illuminator on)
• S/N Ratio: > 56 dB
• Illumination Distance: 98.4 ft (30 m)
• Illumination On/Off Control: Auto/Manual
• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 2.8 mm
• Max. Aperture: F1.4
• Angle of View: Horizontal: 107°; vertical: 56°
• Close Focus Distance: 4.9 ft (1.5 m)
• Detect: 287ft
• Observe: 115ft
• Recognize: 57ft
• Identify: 28ft
• Tripwire; Intrusion
• Perimeter Protection, Intelligent Motion Detect 2.0
• Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
• Streaming Capability: 3 Streams
• Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
• Frame Rate: Main stream: 3840 × 2160 @ (1–25/30) fps, Sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps), Third Stream: 1920 × 1080 @ (1–25/30 fps)
• Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P
• Streaming Method: CBR/VBR
• Max. User Access: 20 (Total bandwidth: 64 M)
• Edge Storage: NAS, FTP, SFTP, Micro SD Card (256 GB)
• Local PC for instant recording
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: SmartICRSS, DSS
• Smart Phone: IOS, Android
• Audio I/O: Built-in Mic, 1 channel input/output (RCA port)
• Memory Slot: Micro SD Card (256 GB)
• Power Supply: DC12V, PoE (802.3af)
• Power Consumption: Basic: 4.3 W (12 VDC); 4.9 W (PoE), Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)
• Operating Conditions: –40°F to +140°F (–40°C to +60°C)/Less than 95% RH
• Ingress Protection: IP67
• Casing: Metal

Package Contents

• IC Realtime IPEL-E80F-IRW3 Camera
• Mounting Accessories
• User Manual
• Power Adapter
