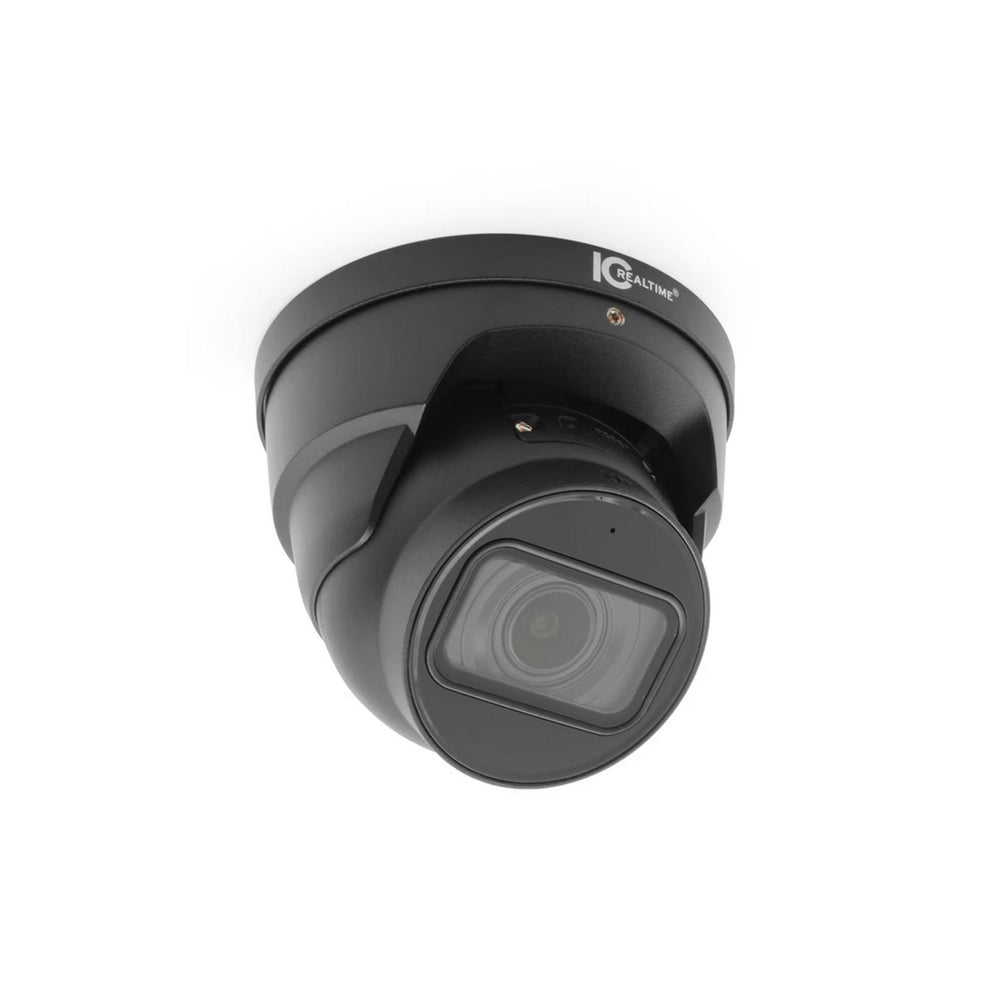

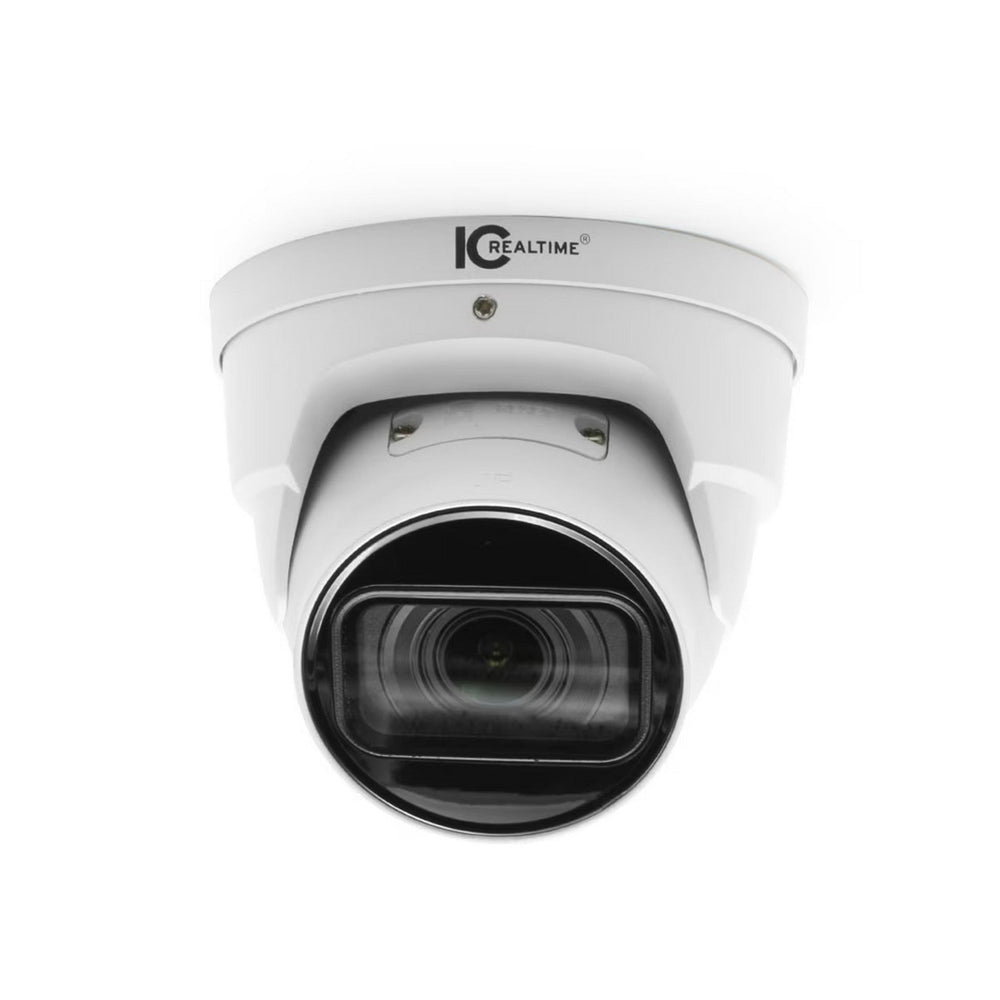

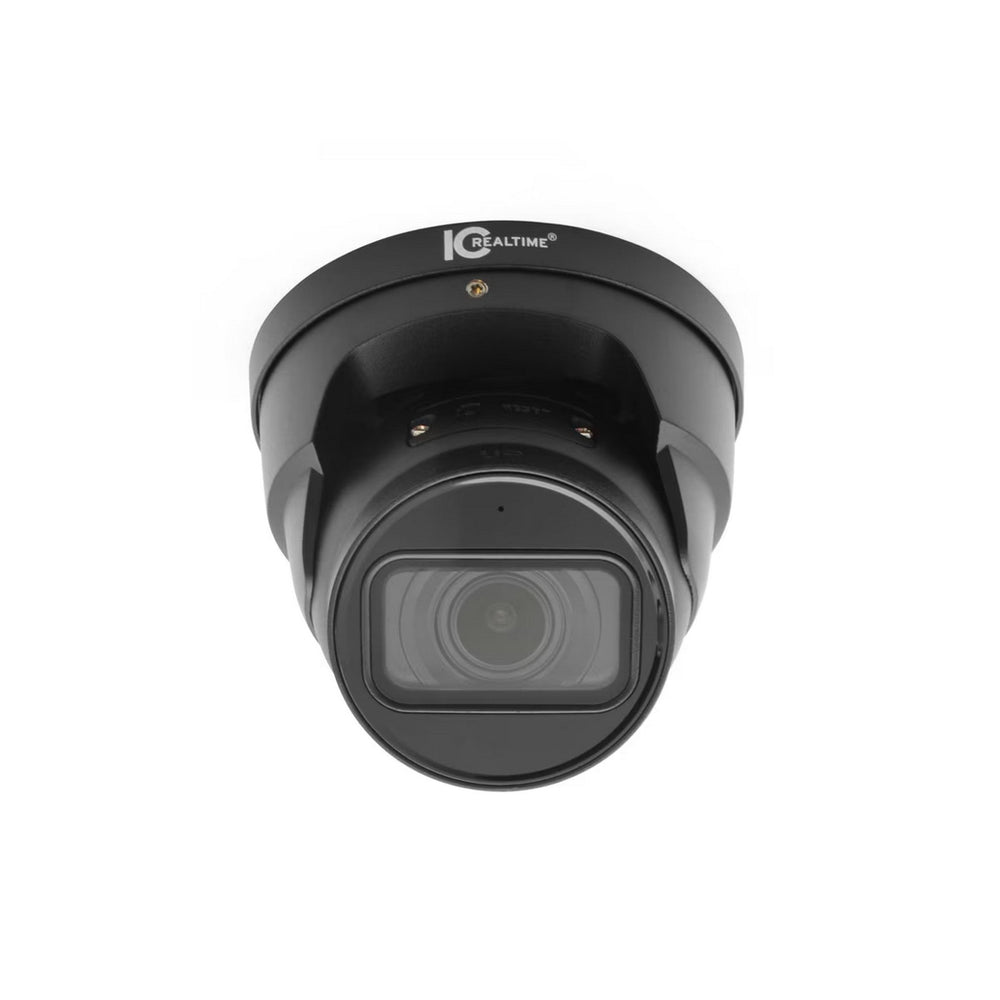

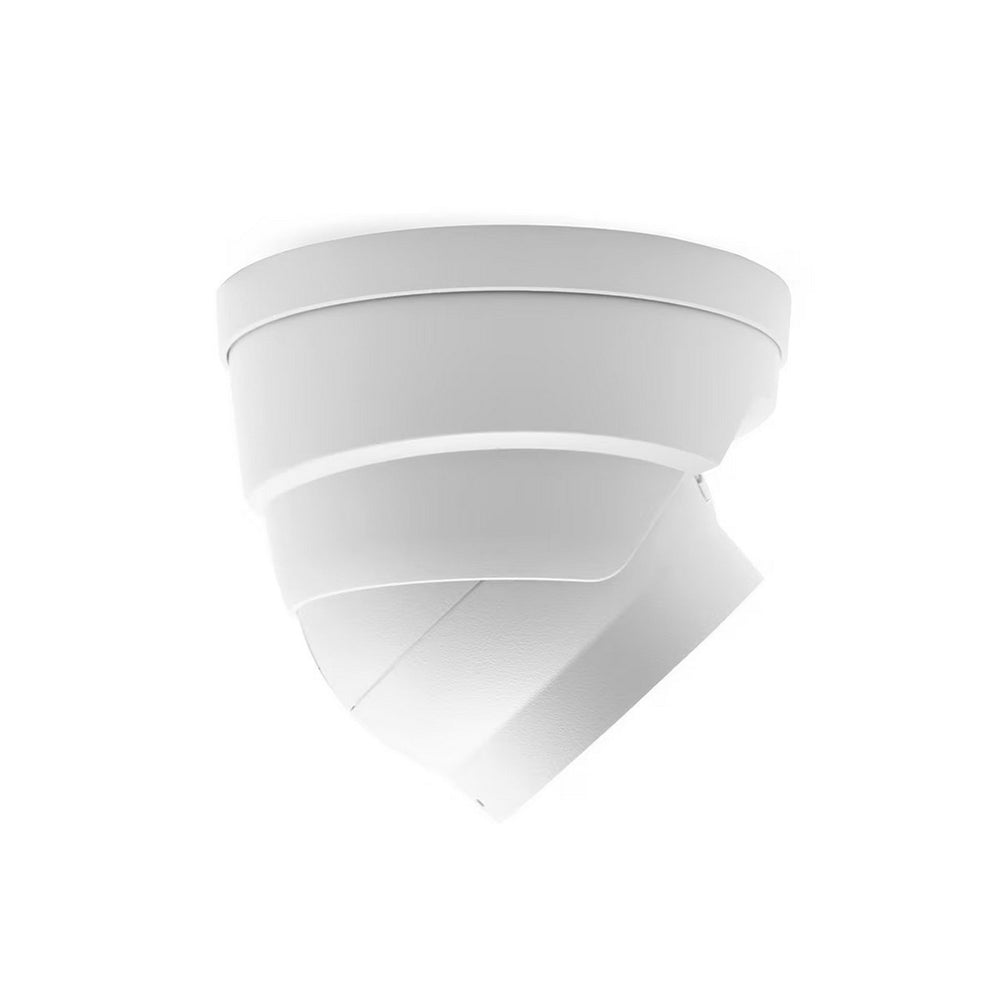

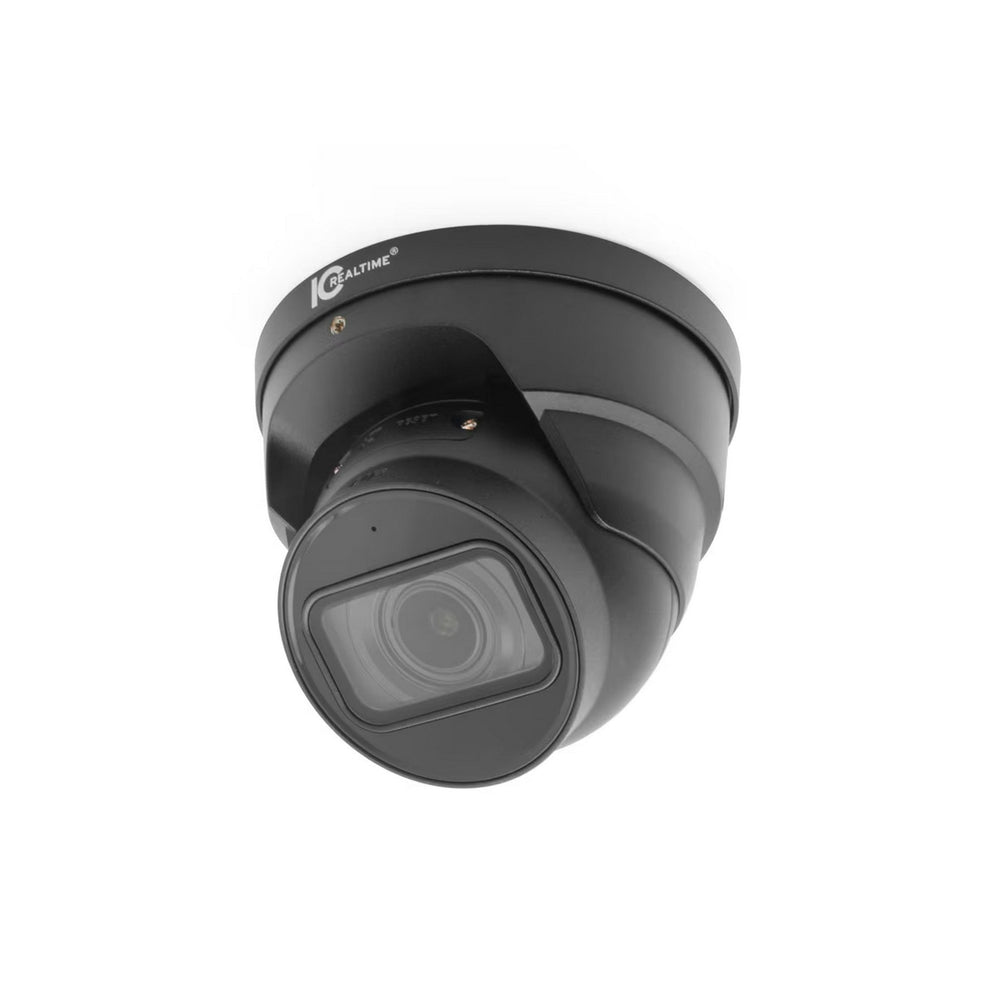

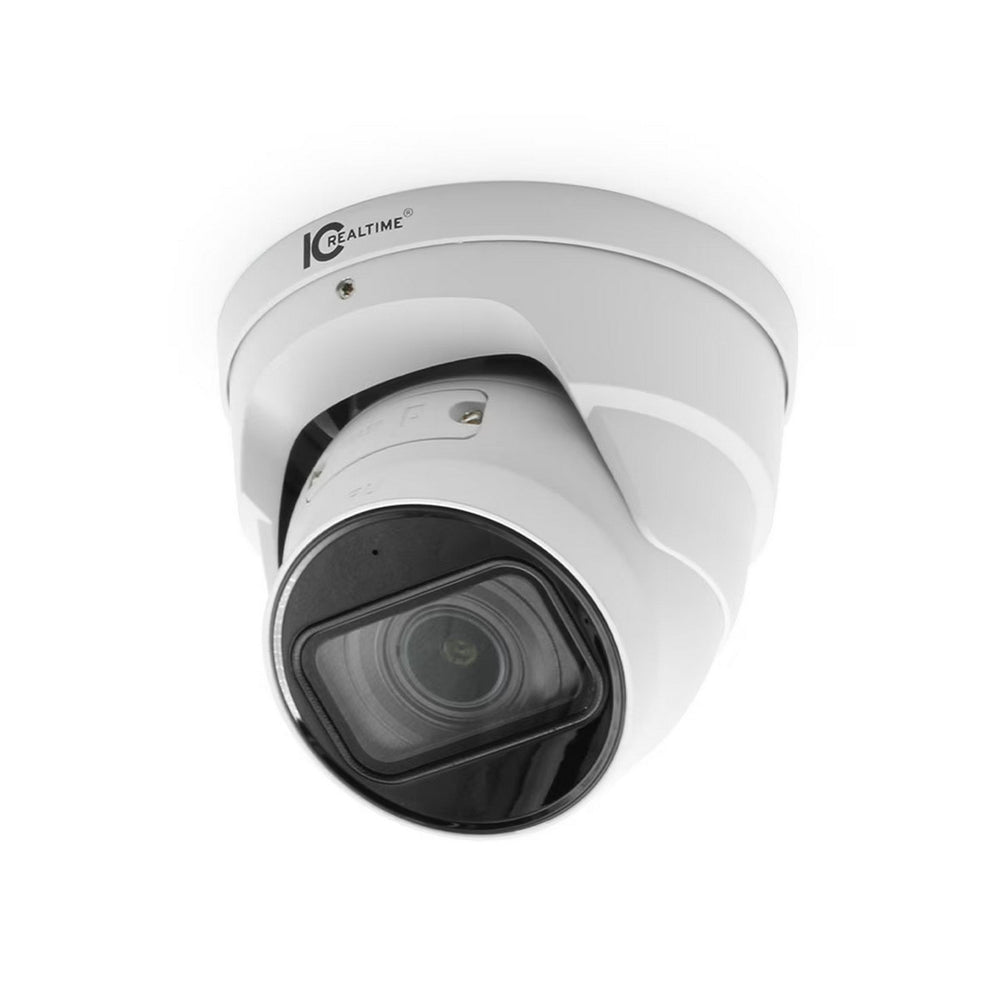

IC Realtime IPEL-E80V-IRB3 8MP IP Vandal Eyeball Dome Camera w/Varifocal Motorized Lens

The IC Realtime IPEL-E80V-IRB3 is a top-tier 8MP network camera built for robust indoor and outdoor surveillance. This camera features a state-of-the-art 1/2.8” 8 Megapixel progressive CMOS image sensor, delivering breathtaking image clarity and detail at a resolution of 3840 × 2160. With its motorized varifocal lens, offering a focal range from 2.7 mm to 13.5 mm, the camera provides an exceptional horizontal field of view ranging from 109° to 30° and a vertical field ranging from 56° to 17°, ensuring comprehensive scene coverage and precise surveillance area definition.

Designed to perform extraordinarily well in low-light conditions, the IPEL-E80V-IRB3 boasts a minimum illumination of 0.007 lux in color mode and 0.0007 lux in black and white mode at F1.5, guaranteeing clear visuals despite challenging lighting circumstances. Equipped with dual infrared LEDs, the camera has an impressive night vision illumination distance of up to 131 feet (40 meters), making it a versatile solution for both day and night monitoring. The advanced Intelligent Motion Detect 2.0 (iMD 2.0) technology incorporated in this camera provides accurate human and vehicle detection by minimizing false alarms caused by environmental interferences.

The camera also offers perimeter protection capabilities, featuring tripwire and intrusion detection, allowing users to set up customized security alerts. Its IP67-rated weather-resistant enclosure ensures durability in various environmental conditions. With built-in audio support and flexible power options including DC12V and PoE (802.3af), the IC Realtime IPEL-E80V-IRB3 is an adaptable and resilient choice for any high-security surveillance system.

Key Features

• High-Resolution Imaging: 8MP (3840 × 2160) resolution for detailed surveillance footage.
• Motorized Varifocal Lens: 2.7 mm to 13.5 mm focal length with a horizontal field of view from 109° to 30° and vertical field of view from 56° to 17°.
• Low-Light Performance: Minimum illumination of 0.007 lux at F1.5 in color mode and 0.0007 lux at F1.5 in black and white mode.
• Infrared Illumination: Two infrared LEDs providing up to 131 feet (40 meters) of night vision.
• Advanced Motion Detection: Intelligent Motion Detect 2.0 for human and vehicle detection with reduced false alarms.
• Perimeter Protection: Tripwire and intrusion detection capabilities for customized security setups.
• Weather Resistance: IP67-rated enclosure for durability in various environmental conditions.
• Audio Support: Built-in microphone for audio recording.
• Power Options: Supports DC12V and PoE (802.3af) for flexible installation.
• Storage Support: Micro SD card slot supporting up to 256 GB for local storage.
• Available Colors: Black, White

Specifications

• Dimensions: 4.26" × 4.8" (108.3 mm × Φ122 mm)
• Weight: 2.02 lbs (915 g)
• Image Sensor: 1/2.8” 8 Megapixel progressive CMOS
• Effective Pixels: 3840 (H) × 2160 (V)
• RAM/Rom: 128MB/512MB
• Scanning System: Progressive
• Minimum Illumination: 0.007 lux@F1.5 (Color, 30 IRE); 0.0007 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
• Illumination Distance: 131 ft (40 m)
• Illumination On/Off Control: Auto / Manual
• Illumination LEDs: 2
• Camera Illumination Type: IR
• Lens Type: Motorized varifocal
• Mount Type: φ14
• Focal Length: 2.7 mm–13.5 mm
• Max. Aperture: F1.5
• Angle of View: Horizontal: 109°–30°, Vertical: 56°–17°
• Close Focus Distance: 2.6 ft (0.8 m)
• DORI - Detect: 289 ft–950 ft
• DORI - Observe: 115 ft–379 ft
• DORI - Recognize: 58 ft–189 ft
• DORI - Identify: 28 ft–95 ft
• IVS: Tripwire; Intrusion
• Advanced Intelligent Functions: Perimeter Protection: Tripwire; Intrusion (Classifies and detects vehicle and human objects)
• Intelligent Motion Detect 2.0: Advanced secondary filtering for human and vehicle detection, reducing false alarms from environmental factors. Supports Object Search with compatible NVRs
• AI Search: Integrates with AI-enabled NVRs for refined intelligent search, event extraction, and event video merging
• Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
• Streaming Capability: 3 Streams
• Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
• Frame Rate: Main stream: 3840 × 2160 @ (1–25/30) fps; Sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps); Third Stream: 1920 × 1080 @(1–25/30 fps)
• Compression: G.711a; G.711Mu; G726; AAC
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI
• Max. User Access: 20 (Total bandwidth: 64 M)
• Audio I/O: Built-in Microphone
• Memory Slot: Micro SD Card (supports max. 256 GB)
• Power Supply: DC12V, PoE (802.3af)
• Power Consumption: Basic: 5.7 W (12 VDC); 6.4 W (PoE); Max. (WDR + IR intensity + Intelligence): 8.9 W (12 VDC); 10.2 W (PoE)
• Operating Conditions: –22°F to +140°F (–30°C to +60°C)/Less than 95% RH
• Ingress Protection: IP67
• Casing: Metal

Package Contents

• IC Realtime IPEL-E80V-IRB3 Eyeball Dome Camera
• Installation Hardware
• Quick Start Guide
• Warranty Card
