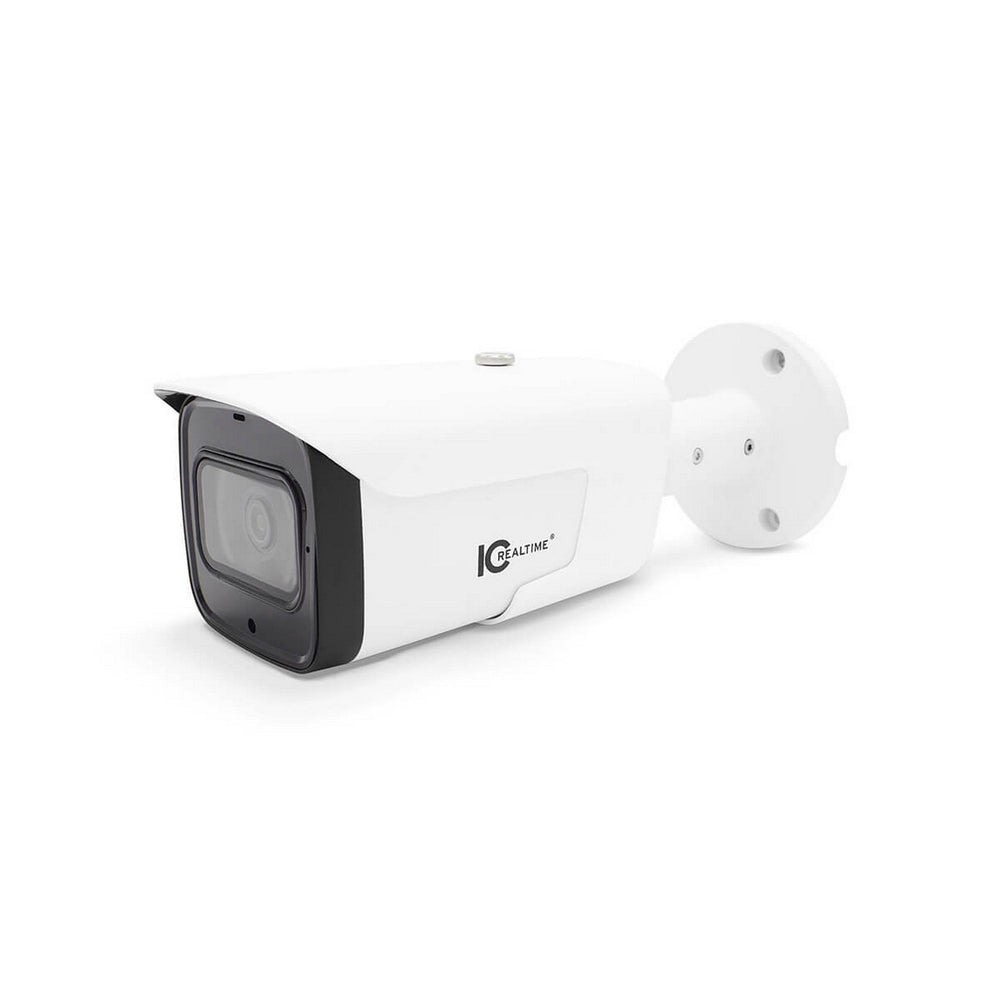

IC Realtime IPFX-B80V-IRW1 8MP IP Indoor/Outdoor Mid Size Bullet Camera, White

IC Realtime introduces the IPFX-B80V-IRW1, an advanced 8MP IP camera designed specifically for both indoor and outdoor security needs. This mid-size bullet camera, encased in sleek white housing, brings high-definition imaging, robust construction, and a suite of intelligent features, making it a fundamental part of any modern surveillance system.

Notably, the IPFX-B80V-IRW1 boasts a powerful 12-megapixel progressive scan CMOS sensor that delivers stunning 4K UHD video resolution (4000 x 3000 pixels). This unparalleled clarity in video output is further complemented by a motorized varifocal lens and a wide-angle field of view, ensuring no detail is missed. With a built-in junction box for seamless installation and weatherproof IP67 rating, this camera performs reliably even in harsh conditions.

Key Features

• High-definition 1/1.7 CMOS sensor with 12MP resolution at 30fps
• Motorized varifocal lens with a focal range of 2.7 mm-12 mm
• Quad Smart IR LEDs with a maximum 196ft illumination distance
• 1-channel audio input and output
• Advanced perimeter protection with AI-based detection for reduced false positives
• Supports multiple streaming capabilities (up to 5 streams)
• Weatherproof (IP67) and vandal-resistant (IK10) casing for durable performance
• Powered by 12VDC, 24VAC, PoE+, and ePoE
• Compatible with ONVIF Profile S, G, and T for broad interoperability

Specifications

• Image Sensor: 1/1.7 12 Megapixel progressive scan CMOS
• Effective Pixels: 4000(H) x 3000(V)
• RAM/ROM: 2GB/ 4GB
• Illumination Distance: Up to 196.9 ft
• Lens Type: Motorized varifocal
• Focal Length: 2.7 mm-12 mm
• Max. Aperture: F1.8
• Angle of View: 103 Degrees (H) to 44 Degrees (H), 75 Degrees (V) to 33 Degrees (V)
• Tripwire, Intrusion, Fast Moving Detection
• Advanced Intelligent Functions: Perimeter Protection, People Counting, Face Detection, and Face Recognition
• Day/Night Mode: Auto (ICR) / Color / B/W
• Dynamic Range: Digital WDR
• 3D Noise Reduction
• Network Protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, and more
• Edge Storage: Micro SD card up to 256GB
• Operating Conditions: -40 C to +60 C (-40 F to +140 F)
• Ingress Protection: IP67
• Vandal Resistance: IK10

Package Contents

• IC Realtime IPFX-B80V-IRW1 Camera
• User Manual
• Mounting Hardware
• Installation Guide
