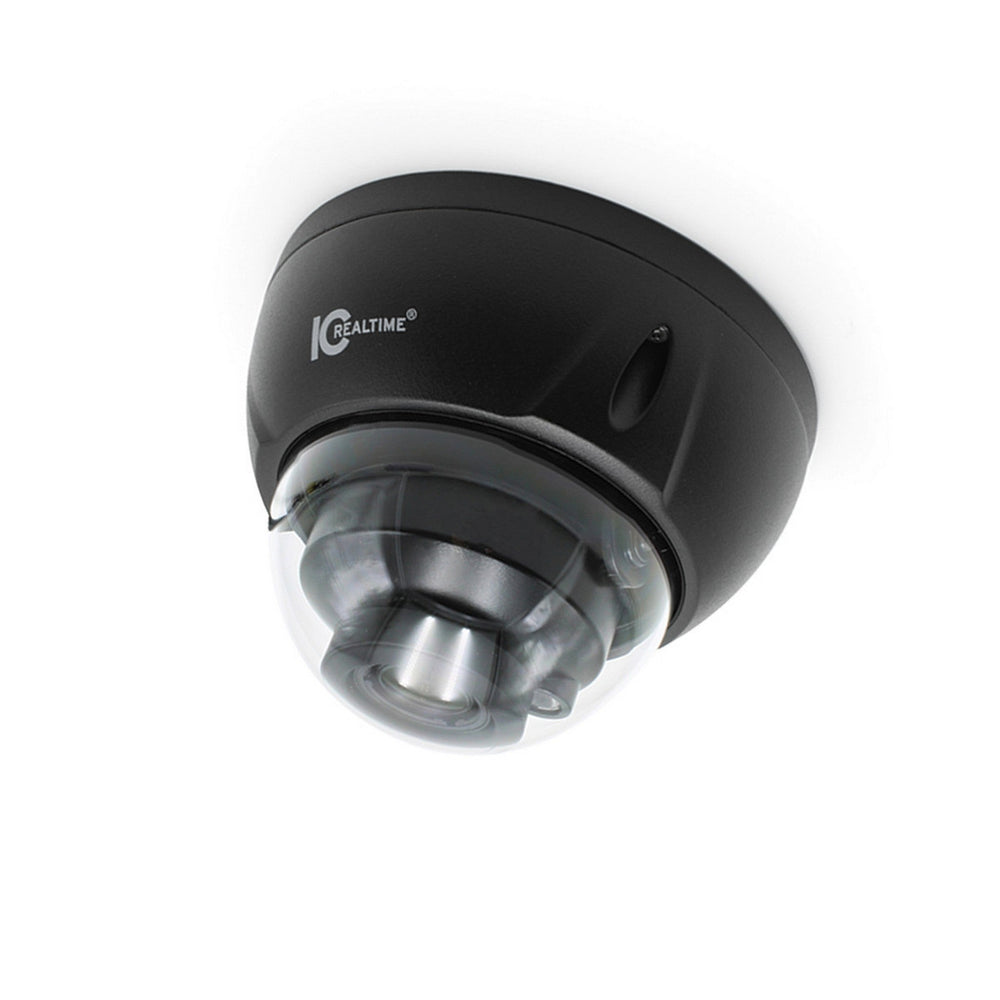

IC Realtime IPFX-D40V-IRB2 4MP IP Indoor/Outdoor Mid Size Vandal Dome Camera

The IC Realtime IPFX-D40V-IRB2 is a professional-grade 4MP IP vandal dome camera meticulously designed for both indoor and outdoor surveillance. Built in South Korea and fully TAA compliant, this camera delivers unparalleled reliability for demanding security installations at government, commercial, and industrial sites. With advanced Starlight imaging and flexible motorized varifocal lens, it ensures crisp, detailed footage in virtually any lighting condition, including ultra-low light environments. SmartIR technology extends up to 131 feet, making it an excellent choice for monitoring wide areas under complete darkness.

This mid-size dome’s robust construction is both IP67 weather-resistant and IK10 vandal-proof, providing exceptional durability against harsh elements and tampering attempts. The camera integrates seamlessly with various security systems through support for ONVIF, CGI, and P2P protocols. Enhanced intelligent features powered by FlexSmartAi, including human and vehicle detection and reduction of false alarms from environmental factors like foliage and light changes, make it practical and efficient for high-traffic or sensitive locations.

Flexible installation is supported by PoE power or 12V DC, while local storage on micro SD cards up to 256GB ensures continuous recording. Multiple video streams, advanced compression, and industry-standard cybersecurity measures ensure performance, compatibility, and peace of mind. Whether safeguarding building perimeters, entry points, or expansive outdoor spaces, the IPFX-D40V-IRB2 stands out as a reliable, intelligent surveillance solution that adapts to your security needs.

Key Features

• 4MP progressive CMOS sensor provides high detail and clarity (2688 x 1520 pixels)
• Motorized 2.7–13.5mm varifocal lens with 104° to 28° adjustable angle of view
• Starlight chipset enables superior low-light and nighttime imaging
• SmartIR illumination up to 131 feet for clear night vision
• TAA compliant and manufactured in South Korea
• FlexSmartAi with intelligent human/vehicle recognition and false alarm filtering
• H.265/H.264/MJPEG coding for efficient storage use
• Advanced perimeter protection and intelligent motion detection
• ONVIF, CGI, P2P support for system integration
• IP67 weatherproof and IK10 vandal-resistant metal housing
• 256GB micro SD card local storage support
• PoE or 12V DC power options for flexible installation

Specifications

• Image Sensor: 1/2.7” 4MP progressive CMOS
• Effective Pixels: 2688(H) x 1520(V)
• RAM/ROM: 128MB / 512MB
• Scanning System: Progressive
• Min. Illumination: 0.005 Lux@F1.5 (Color), 0.0005 Lux@F1.5 (B/W), 0 Lux (IR on)
• Illumination Distance: Up to 40m (131ft)
• IR Wavelength: 850 nm
• Lens: Motorized 2.7-13.5mm
• Angle of View: Horizontal 104°–27°, Vertical 55°–15°, Diagonal 124°–31°
• Focus Control: Motorized
• Close Focus Distance: 0.8m (2.6ft)
• DORI (Detect/Observe/Recognize/Identify): 210ft/84ft/42ft/21ft
• IVS: Tripwire, Intrusion
• Advanced Functions: Human/vehicle recognition, smart search
• Compression: H.265, H.264, MJPEG
• Streaming: 3 streams
• Resolutions: 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
• Frame Rate: Up to 30 fps at 4MP
• Day/Night Switching: Auto (ICR), Color, B/W
• Backlight Compensation: BLC, HLC, WDR (120dB)
• Noise Reduction: 3D DNR
• Smart IR: Supported
• Digital Zoom: 16x
• Flip/Mirror: Supported
• Privacy Masking: 4 configurable zones
• Audio Compression: G.711a/u, G726, AAC
• Network Interface: RJ-45 (10/100Base-T)
• Network Protocols: HTTP/S, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Cyber Security: Video/firmware/config encryption, IP/MAC filtering, account lockout, syslog, trusted boot
• Interoperability: ONVIF (Profile S/G), CGI, P2P, Milestone
• Max. User Access: 20 simultaneous users
• Storage: Micro SD card (up to 256GB), NAS, local PC
• Management Software: Smart ICRSS, DSS
• Mobile Support: iOS, Android
• Audio I/O: 1-channel input (RCA port)
• Power Supply: 12V DC/PoE (802.3af)
• Power Consumption: less than 8.5W
• Operating Temperature: -30°C to +60°C (-22°F to +140°F) < 95% RH
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Casing: Metal
• Dimensions: 122 mm x 88.9 mm (4.8” x 3.5”)
• Weight: 663g (1.5lb)
• Mounting: Pan 0–355°, Tilt 0–75°, Rotation 0–355°

Package Contents

• IC Realtime IPFX-D40V-IRB2 4MP IP Indoor/Outdoor Mid Size Vandal Dome Camera
