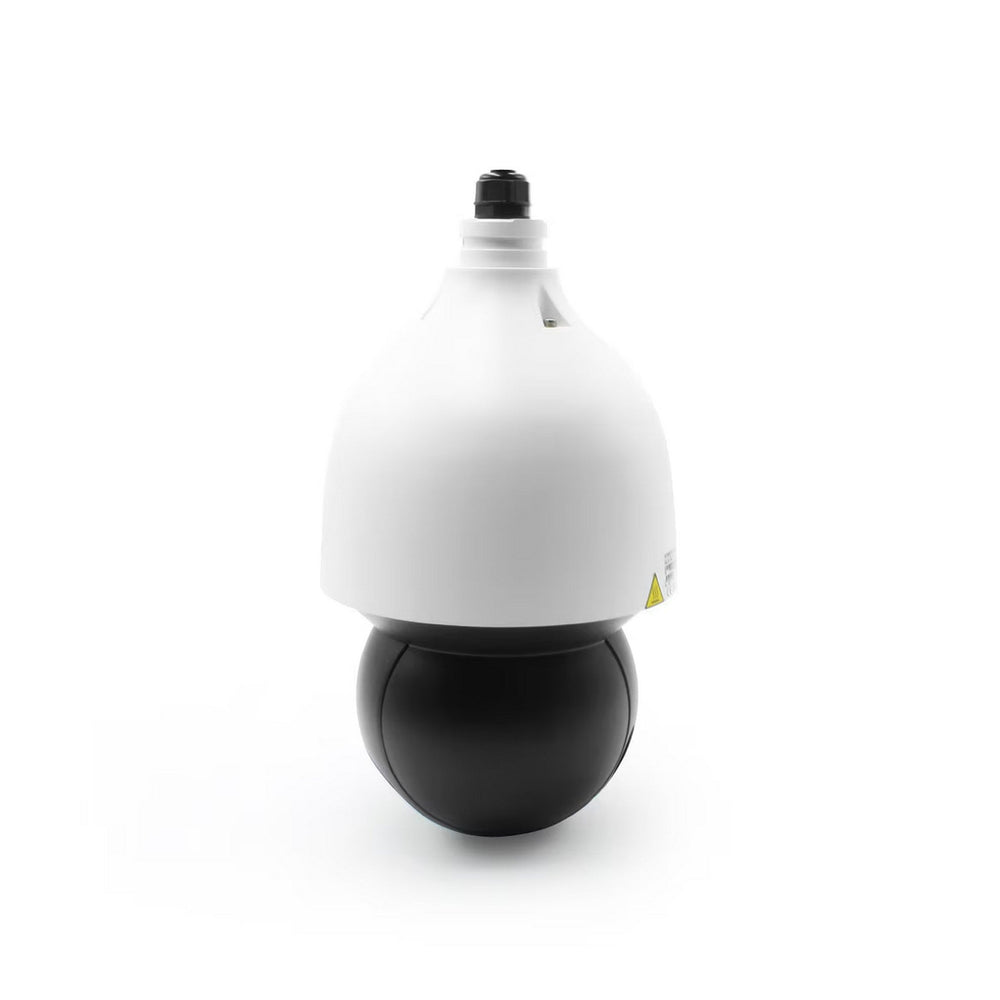

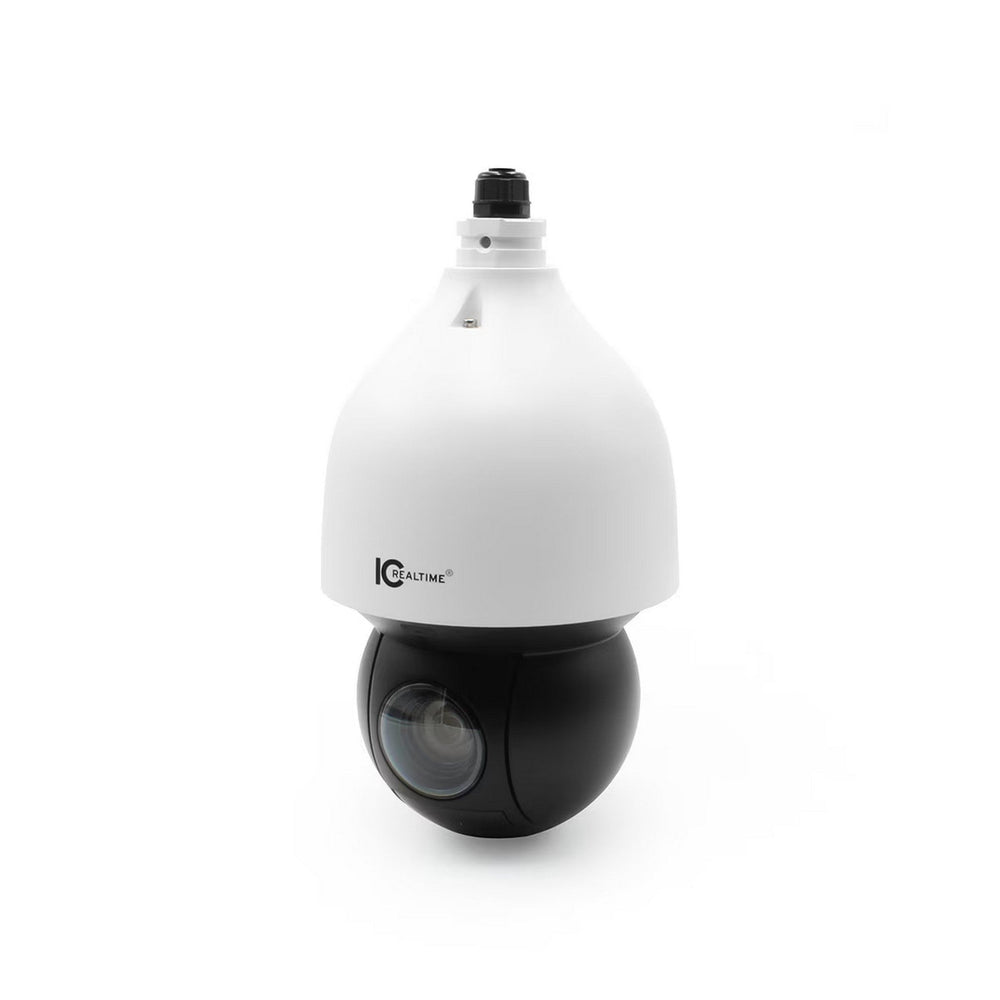

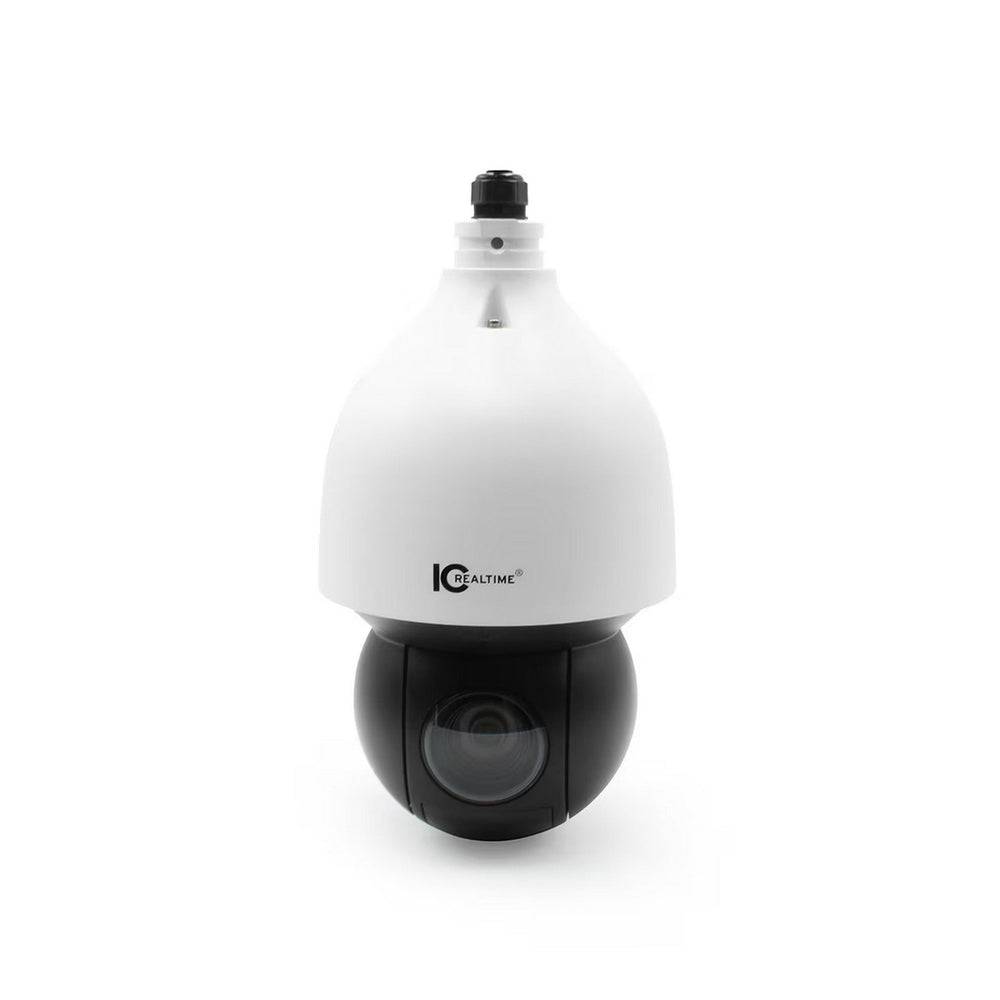

IC Realtime IPFX-P4032X-IRW2 4MP IP Mid-Size PTZ with 32X Optical Zoom

The IC Realtime IPFX-P4032X-IRW2 combines state-of-the-art technology with a robust build to deliver unparalleled surveillance solutions. Featuring a 1/2.8" CMOS image sensor, this camera captures high-resolution footage at 2560 × 1440 pixels, ensuring crisp and clear video quality in various lighting conditions. Its 32x optical zoom offers exquisite detail and monitoring precision over vast areas, making it a superb option for numerous security applications.

Designed for versatility, the IC Realtime IPFX-P4032X-IRW2 is suitable for both indoor and outdoor environments. With its IP67 weatherproof rating and IK10 vandal-resistant construction, this camera is built to endure challenging conditions while maintaining reliable performance. Advanced intelligent functions, such as Intelligent Video Surveillance (IVS) and Intelligent Motion Detection 2.0, ensure precise event detection, significantly reducing false alarms.

Whether you require constant monitoring or scheduled surveillance, the IC Realtime IPFX-P4032X-IRW2 provides exceptional results through its extensive feature set and superior imaging capabilities, making it an invaluable tool for effective security management.

Key Features

• 1/2.8" CMOS Image Sensor
• Effective Pixels: 2560 (H) × 1440 (V)
• 32x Optical Zoom
• 4MP Resolution
• Intelligent Video Surveillance (IVS)
• Intelligent Motion Detection 2.0
• Weatherproof (IP67) and Vandal Resistant (IK10)

Specifications

• Dimensions: 7.48" x 13.07" (190 mm x 332 mm)
• Weight: 17.64 lbs (8 kg)
• Image Sensor: 1/2.8" CMOS
• Effective Pixels: 2560 (H) × 1440 (V)
• RAM/ROM: 1GB/4GB
• Scanning System: Progressive
• Minimum Illumination: Color: 0.005 lux@F1.6
• Illumination Distance: 150 m (492.13 ft) (IR)
• Illumination LEDs: 4
• Camera Illumination Type: IR
• Lens Type: Varifocal
• Focal Length: 4.8 mm–154 mm
• Max. Aperture: F1.6–F4.0
• Angle of View: H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7°
• Optical Zoom: 32x
• Focus Control: Auto; semi-auto; manual
• PTZ Pan/Tilt Range: Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°
• Manual Control Speed: Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s
• Preset Speed: Pan: 400°/s; Tilt: 300°/s
• Presets: 300
• Idle Motion: Preset; Pattern; Tour; Scan
• Protocol: ICR-SD; Pelco-P/D (auto recognition)
• IVS: Tripwire, Intrusion (50 objects max), climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
• Advanced Intelligent Functions: Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people, 50 objects max)
• Video Compression: Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1)
• Streaming Capability: 3 Streams
• Frame Rate: Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)
• Bit Rate Control: CBR/VBR
• Audio Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
• Network: RJ-45 (10/100 Base-T)
• Protocol: HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
• Power Supply: DC 24 V/2.5 A ± 25% or PoE+ (802.3at)
• Power Consumption: Basic: 13 W, Max.: 22 W (IRs on + PTZ moving)
• Operating Conditions: -40° F ~ +158° F (-40° C ~ +70° C) / Less than 95% RH
• Ingress Protection: IP67
• Vandal Resistance: IK10

Package Contents

• IC Realtime IPFX-P4032X-IRW2 Camera

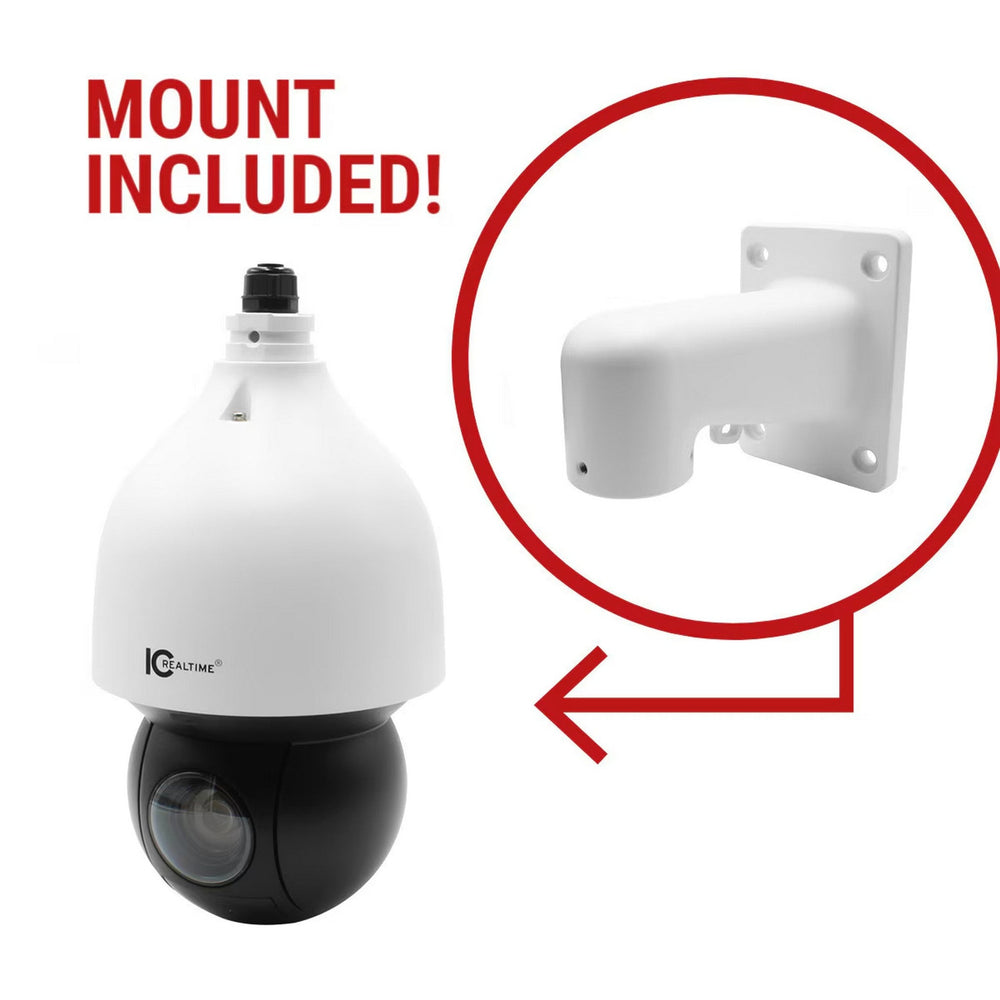

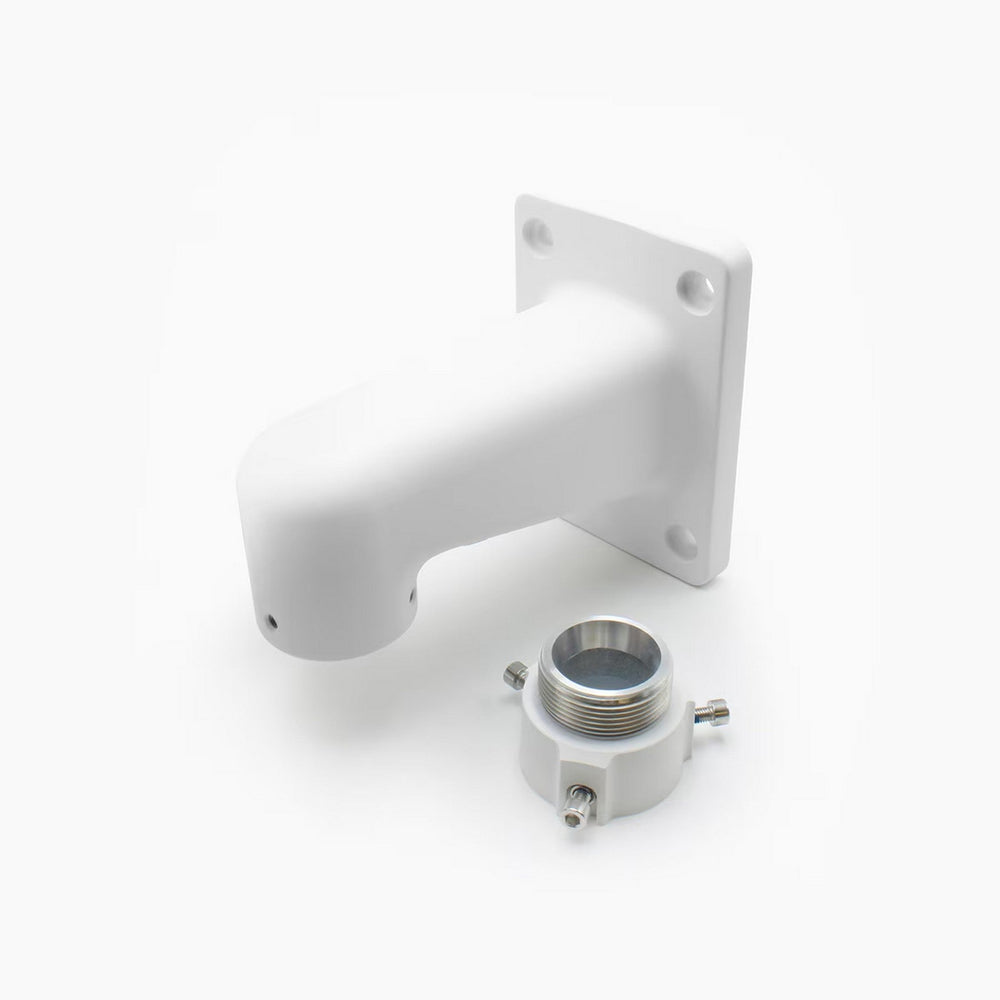

• Mounting Hardware
• Power Adapter
• User Manual
