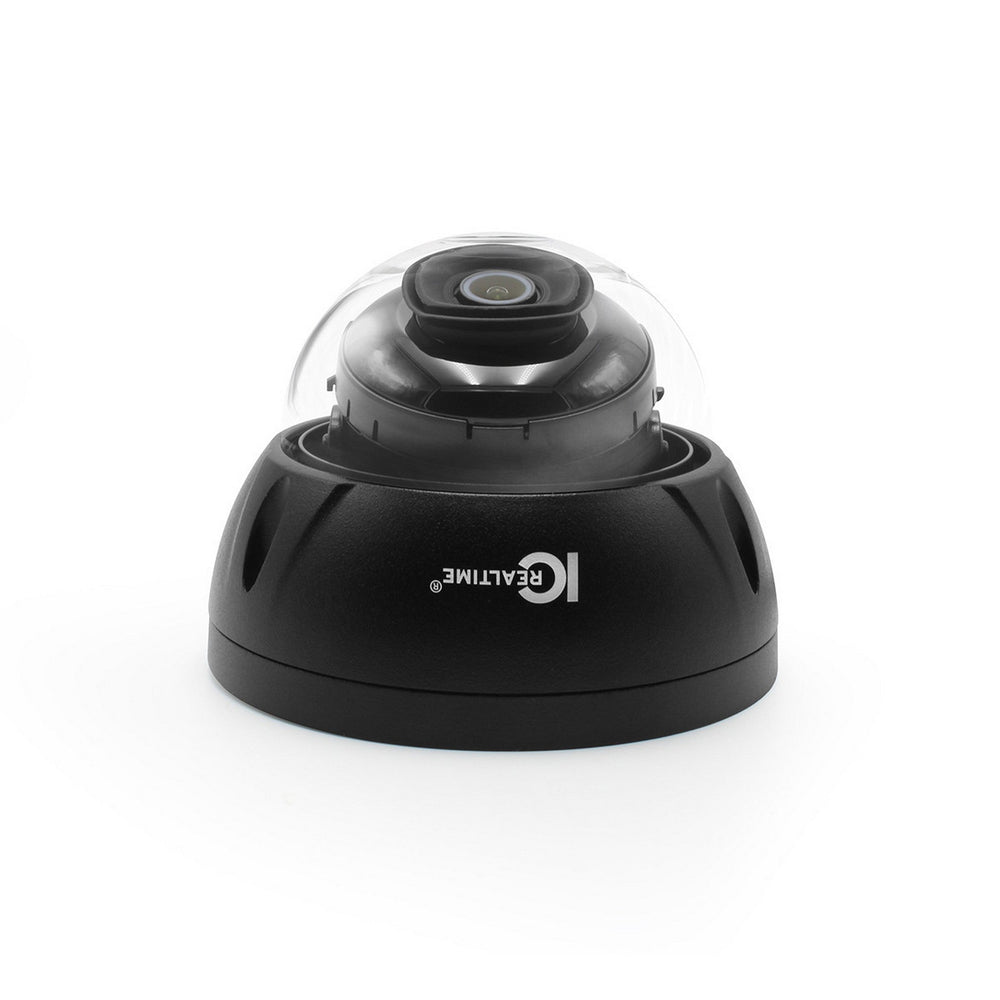

IC Realtime IPMX-D40F-IRB2 4MP IP Indoor/Outdoor Small Size Vandal Dome Camera, Black

When IC Realtime extended its selection of black-finished 4MP IP dome cameras, the South Korean-made IPMX-D40F-IRB2 topped the production priority list. Dome cameras are most at home high above a field of view (FOV) for clear and wide total area coverage. With excellent performance and convenient audio and alarm ports next to the PoE network port on the camera pigtail, it's easy to see why the white-finished version of this highly capable IP dome is one of our best sellers. Recognizing the demand for a discrete surveillance option in environments where a highly visible white camera isn't ideal, IC Realtime now offers their best-selling 4MP Starlight dome camera in a sleek black finish as the IPMX-D40F-IRB2.

The black-cased IPMX-D40F-IRB2 is a discrete choice for nightclub or restaurant ceilings or dark-finished building eaves. Equipped with both alarm ports and audio in/out RCA jacks on the camera pigtail, this camera provides a cost-effective solution for controlled entry points or gates. This TAA compliant 4MP FlexSmartAi IP dome camera features an impressive Starlight sensor holding color down to 0.005 Lux, a 2.8mm wide-angle lens, and Smart IR night vision for up to 160 feet. With streaming capabilities enhanced by IC Realtime's FlexSmartAi video management tools, including Human/Vehicle recognition with Intelligent Motion Detection (IMD) and Perimeter Protection support, this camera significantly reduces false alerts and ensures maximum streaming speed with scene-adaptive H.265 compression.

Boasting a rugged design, the IPMX-D40F-IRB2 features an internal 256GB SD card slot for local recording, a black cast metal base, and a robust acrylic dome, making it IK10 vandal and IP67 weather-resistant, suitable for both indoor and outdoor use. It can be powered by either 12VDC or PoE and is ONVIF/PSIA/CGI and P2P compatible, backed by an industry-leading 10-year limited warranty. A preferred choice for video integrators for years, this commercial-grade black finish IP dome camera delivers exceptional 4MP Starlight video, complete with essential alarm and audio in/out jacks and FlexSmartAi high performance.

Key Features

• 1/3 CMOS | 2.8mm | 30fps@4MP
• IMD Support | IVS Support | Perimeter Protection
• Max. IR Length 164ft | Starlight | 18 IR LEDs
• 1ch Audio In, 1ch Audio Out | 1ch Alarm In, 1ch Alarm Out | 128GB MSD
• IP67 | IK10 | 12VDC or PoE
• Made in South Korea, TAA Compliant

Specifications

• Image Sensor: 1/3 4 Megapixel progressive scan CMOS
• Effective Pixels: 2688(H) x 1520(V)
• RAM/ROM: 128MB/512MB
• Scanning System: Progressive
• Minimum Illumination: 0.005 Lux@F1.6
• S/N Ratio: More than 50dB
• Illumination Distance: Up to 164ft (50m)
• Illumination On/Off Control: Auto/Manual
• Illumination LEDs: 3
• IR Wavelength: 850 nm
• Lens Type: Fixed
• Mount Type: Board-in
• Focal Length: 2.8mm
• Max. Aperture: F1.6
• Angle of View: Horizontal: 103°; Vertical: 55°; Diagonal: 122°
• Focus Control: Fixed
• Close Focus Distance: 0.9m
• DORI Distances: Detect - 56m (184ft), Observe - 22m (73ft), Recognize - 11m (36ft), Identify - 5.6m (18ft)
• IVS: Tripwire, Intrusion
• Advanced Intelligent Functions: iMD, Perimeter Protection
• Compression: H.265, H.264, MJPEG
• Streaming Capability: 3 Streams
• Resolution: Up to 4M (2688 x 1520)
• Frame Rate: Up to 30fps
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 24K - 10240Kbps, H.265: 14K - 9984Kbps
• Day/Night: Auto (ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR (120dB)
• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
• Gain Control: Auto/Manual
• Noise Reduction: 3D DNR
• Motion Detection: On/Off (4 Zones)
• Region of Interest: On/Off (4 Zones)
• Smart IR: Supported
• Digital Zoom: 16X
• Flip: 0°/90°/180°/270°
• Mirror: On/Off
• Privacy Masking: On/Off (4 Areas)
• WDR: 120dB
• Audio Compression: G.711a, G.711Mu, G726, AAC
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, IPv4, IPv6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Interoperability: ONVIF, PSIA, CGI, Milestone
• Streaming Method: Unicast/Multicast
• Max. User Access: 20 (Total bandwidth: 64 M)
• Edge Storage: NAS, Local PC, Micro SD Card 256GB
• Web Viewer: IE, Firefox, Chrome, Safari
• Management Software: SmartICRSS, DSS
• Smart Phone: iOS, Android
• Audio I/O: 1/1 channel in/Out
• Alarm I/O: 1 channel in: 5mA 5VDC / 1 channel Out: 300mA 12VDC
• Memory Slot: Micro SD Card 256GB
• Power Supply: DC12V, PoE (802.3af) (Class 0)
• Power Consumption: <7.3W
• Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Casing: Metal
• Dimensions: 109.9mm x 81mm (4.33in x 3.19in)
• Gross Weight: 523 g (1.2 lb)
• Mounting Pan/Tilt/Rotation: Horizontal: 0°-355°, Vertical: 0°-65°, Rotation: 0°-355°

Package Contents

• IC Realtime IPMX-D40F-IRB2 Camera
• Mounting Bracket
• Installation Screws
• User Manual
