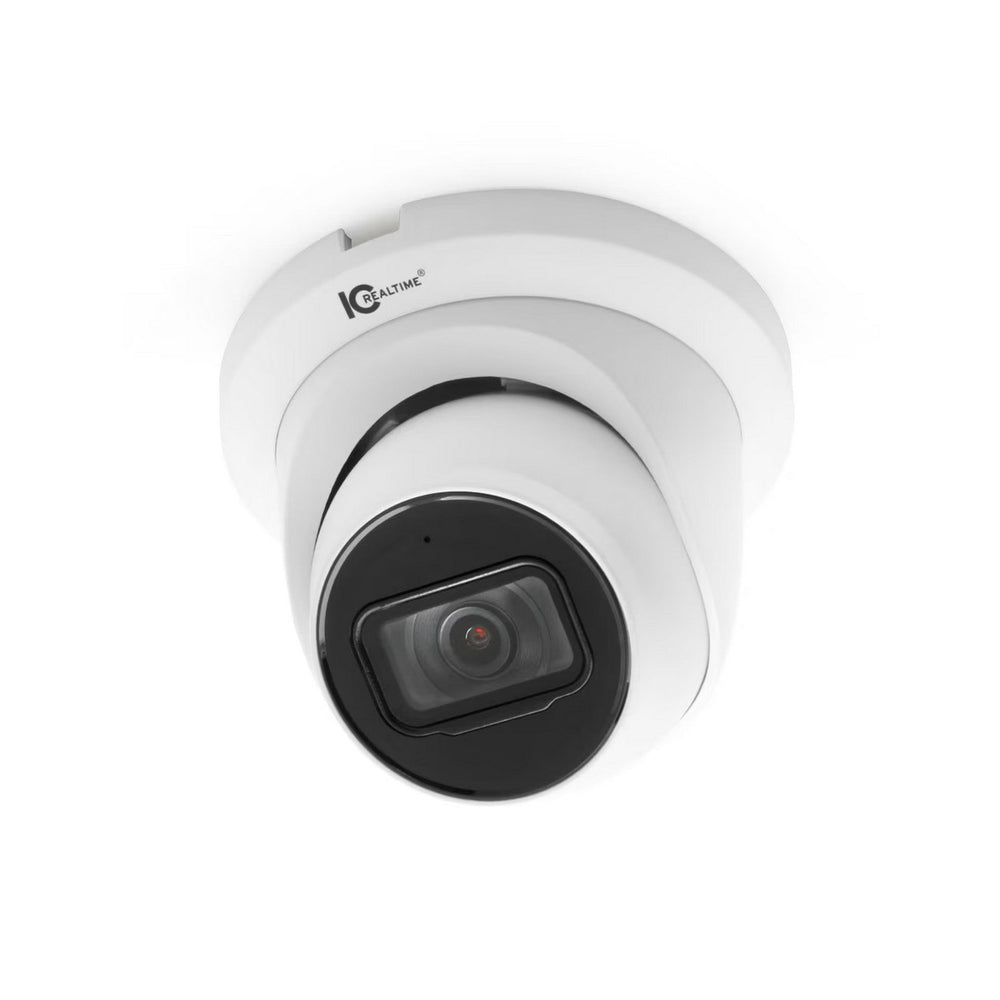

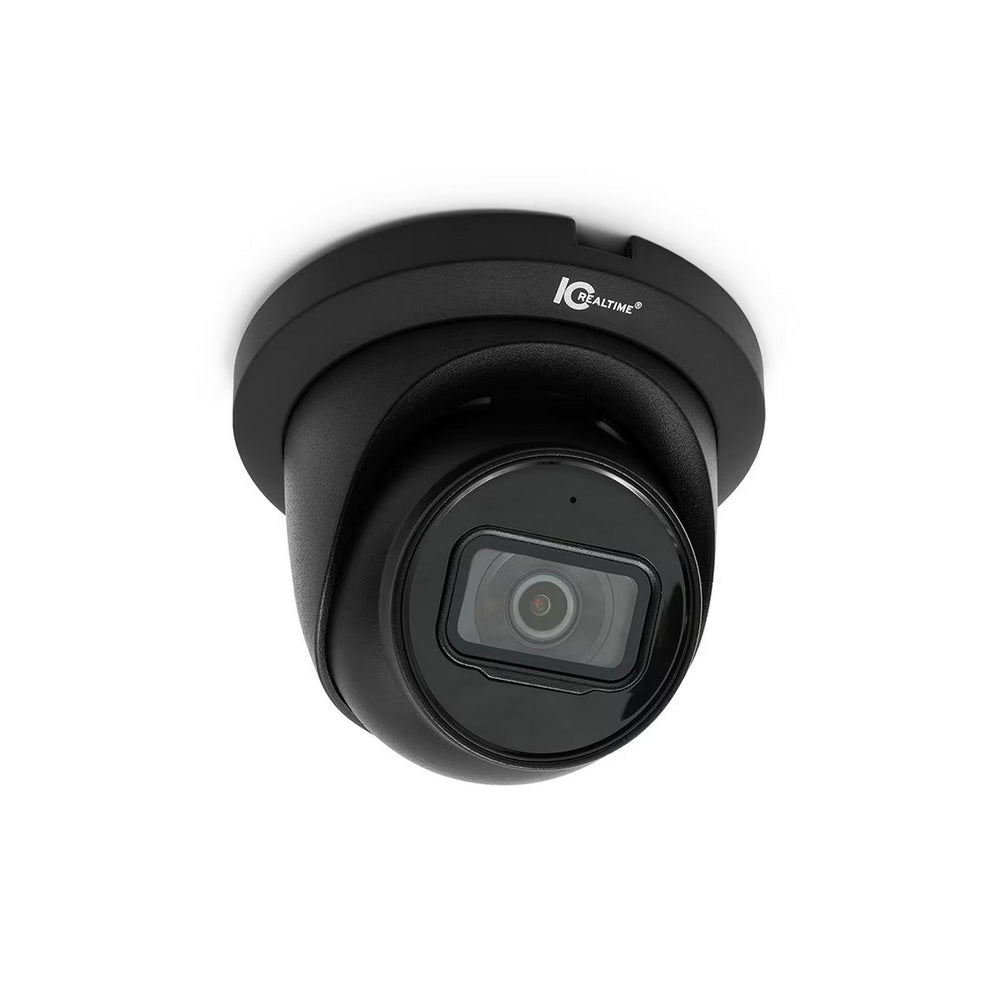

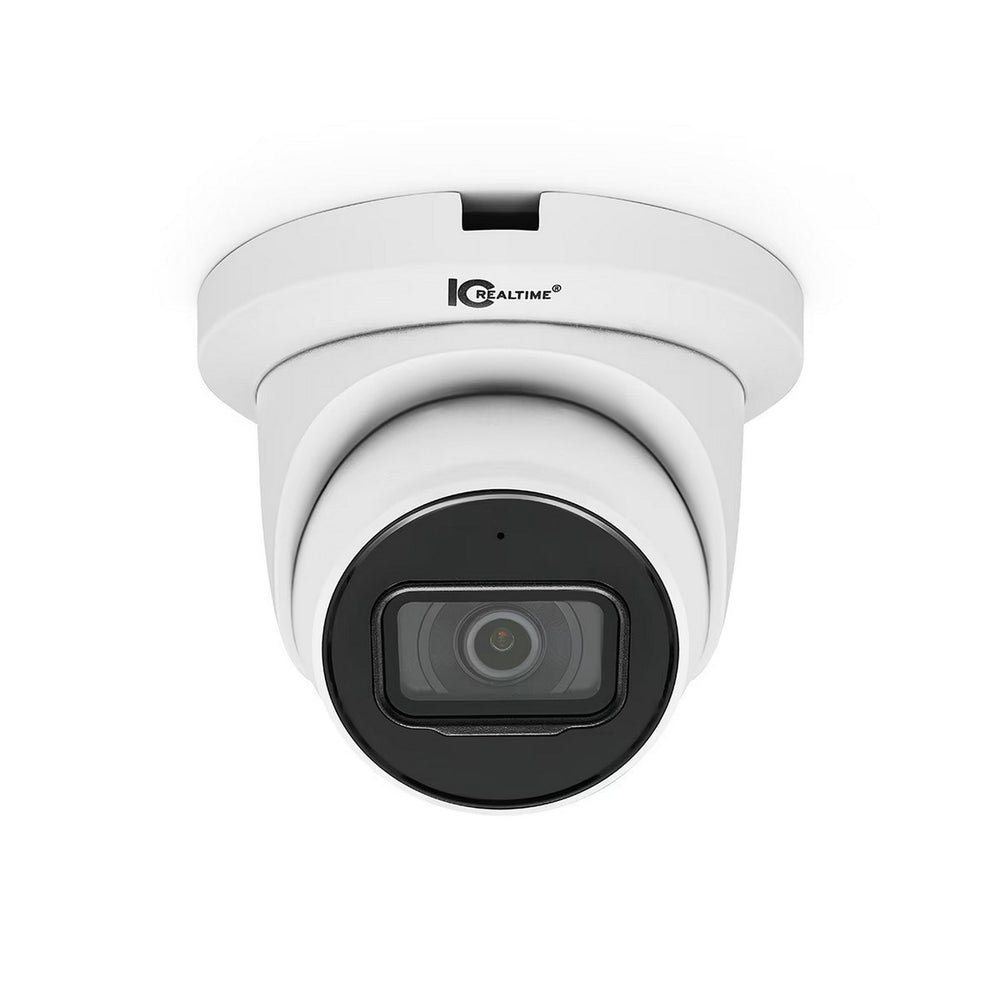

IC Realtime IPMX-E40F-IR 4MP Indoor/Outdoor Eyeball Network Dome Camera

The IC Realtime IPMX-E40F-IR 4MP Indoor/Outdoor Eyeball Network Dome Camera offers unparalleled surveillance capabilities for a variety of settings. Featuring advanced 4-megapixel Starlight technology, this camera excels in low-light conditions, ensuring high-quality footage day and night. With a 2.8mm fixed lens, the camera provides a broad 102° horizontal field of view, maximizing coverage and enhancing situational awareness.

Built to withstand harsh environmental conditions, this camera boasts an IP67 weather-resistant rating, making it suitable for both indoor and outdoor use. The robust metal and plastic construction ensures long-lasting durability. Additionally, the built-in infrared illumination extends your monitoring capabilities up to a remarkable 164 feet in complete darkness. Featuring Intelligent Video Surveillance (IVS) technology, the IPMX-E40F-IR is equipped with advanced features such as tripwire and intrusion detection.

One of the standout features is the Intelligent Motion Detect 2.0 (iMD 2.0). This advanced technology minimizes false alarms by accurately distinguishing between human and non-human objects. Power over Ethernet (PoE) support further simplifies the installation process by eliminating the need for additional power cables. The built-in microphone adds an extra layer of security by enabling audio monitoring, making this camera a comprehensive solution for your surveillance needs.

Key Features

• 4MP Starlight technology for superior low-light performance
• 2.8mm fixed lens with 102° horizontal field of view
• Infrared illumination up to 164 feet for night vision
• Intelligent Video Surveillance (IVS) with tripwire and intrusion detection
• Intelligent Motion Detect 2.0 (iMD 2.0) for reduced false alarms
• IP67 weather-resistant rating for indoor and outdoor use
• Power over Ethernet (PoE) support for simplified installation
• Built-in microphone for audio monitoring

Specifications

• Image Sensor: 1/3” CMOS
• Effective Pixels: 2688 (H) × 1520 (V)
• RAM/ROM: 128MB/512MB
• Scanning System: Progressive
• Minimum Illumination: 0.005 lux @ F1.4 (Color, 30 IRE); 0.0005 lux @ F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
• Illumination Distance: 164.0 ft (50 m)
• Illumination On/Off Control: Auto / Manual
• Illumination LEDs: 2
• Camera Illumination Type: IR
• Lens Type: Fixed focal
• Mount Type: M12
• Focal Length: 2.8 mm
• Max. Aperture: F1.4
• Angle of View: Horizontal: 102°; Vertical: 54°
• Close Focus Distance: 2.3 ft (0.7 m)
• DORI - Detect: 208 ft
• DORI - Observe: 83 ft
• DORI - Recognize: 41 ft
• DORI - Identify: 21 ft
• IVS: Tripwire; Intrusion
• Advanced Intelligent Functions: Perimeter Protection, Intelligent Motion Detect 2.0
• Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
• Streaming Capability: 3 Streams
• Resolution: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Frame Rate: Main Stream: (2688 × 1520) @1–25/30 fps; Sub Stream: (704 × 576) @1–25 fps/ (704 × 480) @1–30 fps; Third Stream: (1280 × 720) @1–25/30 fps
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps
• Day/Night: Auto(ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR(120dB)
• White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
• Gain Control: Auto / Manual
• Noise Reduction: 3D DNR
• Flip: 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
• Privacy Masking: Off / On (4 Area, Rectangle)
• Audio Compression: G.711a; G.711Mu; G726; AAC
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
• Interoperability: ONVIF(Profile S/Profile G); CGI; P2P
• Max. User Access: 20 (Total bandwidth: 64 M)
• Edge Storage: NAS, SFTP, Micro SD Card (support max. 256 GB); Local PC for instant recording
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: SmartICRSS, DSS
• Smart Phone: IOS, Android
• Audio I/O: Built-in MIC
• Memory Slot: Micro SD Card (support max. 256 GB)
• Power Supply: DC12V, PoE (802.3af)
• Power Consumption: Basic: 3.3 W (12 VDC); 4.2 W (PoE)<
• Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 7.9 W (PoE)
• Operating Conditions: -40°C to +60°C (-40°F to +140°F)/ less than≤95%
• Ingress Protection: IP67
• Casing: Metal/ Plastic
• Dimensions: 3.69" × Φ4.17" (93.6 mm × Φ106.0 mm)
• Gross Weight: 1.7 lb (770g)
• Mounting Pan/Tilt/Rotation: Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°

Package Contents

• IC Realtime IPMX-E40F-IRB3 or IPMX-E40F-IRW3 Camera
• Mounting Kit
• Power Adapter (DC12V or PoE)
• User Manual
