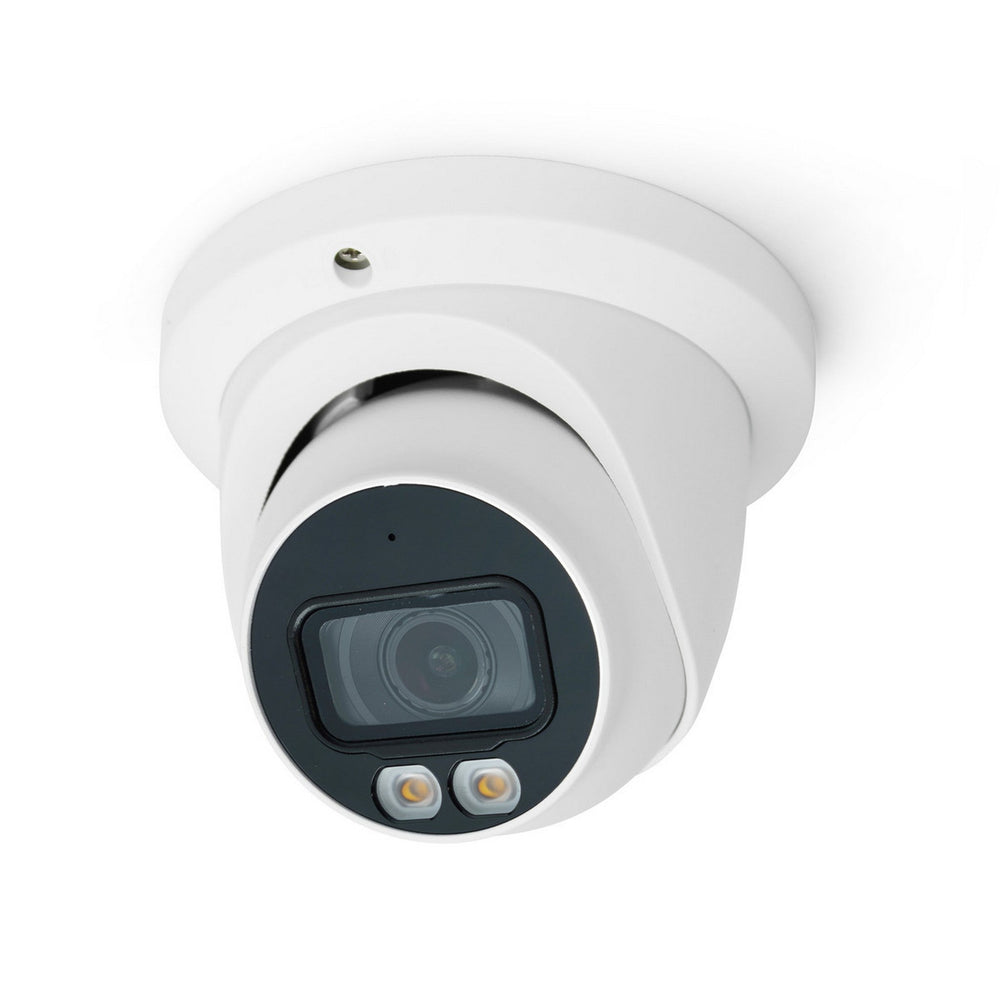

IC Realtime IPMX-E40F-W1-LED 4MP IP Indoor/Outdoor Small Size Eyeball Dome Camera

The IC Realtime IPMX-E40F-W1-LED represents cutting-edge video technology in a compact, vandal-resistant eyeball dome design. This versatile 4MP IP camera brings high-resolution color video both during day and night, ensuring that you never miss any details. The camera features a wide aperture 2.8mm lens with a 103-degree field of view (FOV) and advanced Starlight video sensor, making it a prime choice for a reliable, full-color night vision experience.

Known for its resilience, the IPMX-E40F-W1-LED is designed with a sealed, cast metal base that offers 360-degree rotation and a tilt range from 0 to 78 degrees. This, combined with its IP67 rating, makes it suitable for various installation points, handling tough environmental conditions with ease. With the ability to stream in full color even under minimal light conditions, this camera stands out in both commercial and residential settings. Additionally, its built-in microphone allows for complete audio-visual recordings, making it an excellent choice for security solutions.

The IPMX-E40F-W1-LED is equipped with IC Realtime's FlexSmartAI technology for superior motion detection and perimeter protection, eliminating up to 90% of false alerts. Other distinguished features include a 120dB Wide Dynamic Range for exceptional edge and detail definition, 3D Digital Noise Reduction for clearer video, and multiple intelligent functions to enhance overall performance. With support for H.265 and H.264 video compression codecs, this camera ensures high-quality video streaming while saving bandwidth and storage.

Key Features

• 1/2.7” CMOS | 4MP | 30fps@4MP
• 2.8mm | Fixed | AoV 103 degrees
• Max. Illumination Length 98ft | Colored Starlight (ISniper+)
• Intelligent Motion Detect | Perimeter Protection | Built-In Mic
• IP67 | 12VDC Or PoE | Max. 8.5W
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Specifications

• Image Sensor: 1/2.7” 4 Megapixel progressive CMOS
• Effective Pixels: 2688(H) x 1520(V) 4 Megapixels
• RAM/Rom: 128MB/ 512MB
• Scanning System: Progressive
• Minimum Illumination: 0.003 Lux@F1.0
• Illumination Distance: Distance up to 40 m (131.2 ft)
• Illumination On/Off Control: Auto/Manual
• Illumination LEDs: 2
• IR Wavelength: 850 nm
• Camera Illumination Type: White Light
• Lens Type: Fixed
• Mount Type: Board-in
• Focal Length: 2.8mm
• Max. Aperture: F1.0
• Angle of View: Horizontal 103 Degrees x vertical 53
• Focus Control: Fixed
• Close Focus Distance: 3.9 ft (1.2 m)
• DORI - Detect: 183ft
• DORI - Observe: 73ft
• DORI - Recognize: 36ft
• DORI - Identify: 18ft
• IVS: Tripwire, Intrusion
• Advanced Intelligent Functions: Intelligent Motion Detect (iMD), Perimeter Protection: Tripwire, Intrusion (Recognition of vehicle and people)
• Video Compression: H.265, H.264, H.264B, H.264H, MJPEG (sub stream)
• Streaming Capability: 3 Streams
• Resolution: 4M (2688 x 1520) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 352 x 240)
• Frame Rate: Main Stream: 4M (1 - 25/30fps) Sub Stream: D1(1 - 25/30fps) Third Stream: 1080P (1 - 25/30fps)
• Bit Rate Control: CBR/ VBR
• Bit Rate: H.264: 32 Kbps-8192 Kbps; H.265: 19 Kbps-8192 Kbps
• Day/Night: Auto (ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR
• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
• Gain Control: Auto / Manual
• Noise Reduction: 3D DNR
• Motion Detection: Off / On (4 Zones Rectangular)
• Region of Interest: Off / On (4 Zones)
• Flip: 0 Degrees /90 Degrees /180 Degrees /270 Degrees (Support 90 Degrees /270 Degrees with 1920 x 1080 resolution and lower.)
• Mirror: Off / On
• Privacy Masking: Off / On (4 Area Rectangle)
• Audio Compression: G.711a; G.711Mu; G726
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
• Compatibility: ONVIF (Profile S/Profile G/Profile T), CGI, P2P
• Streaming Method: Unicast / Multicast
• Max. User Access: 20
• Edge Storage: Edge Storage, NAS; FTP; SFTP
• Micro SD card: 256GB
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: SmartICRSS, DSS
• Smart Phone: IOS, Android
• Audio I/O: Built-in Microphone
• Memory Slot: 256MB Micro SD
• Power Supply: DC12V PoE (802.3af) (Class 0)
• Power Consumption: < 8.5W
• Operating Conditions: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
• Storage Conditions: -40 Degrees F to +140 Degrees F (-40 Degrees C to +60 Degrees C)
• Ingress Protection: IP67
• Casing: Metal
• Dimensions: 3.9” x 4.8” (99.1 mm x 121.9 mm)
• Gross Weight: 1.45 lb (660 g)

Package Contents

• IC Realtime IPMX-E40F-W1-LED Camera
• Mounting Accessories
• User Manual
