IC Realtime IPMX-W40F-IRW3 4MP Mini Wedge Vandal-Proof Dome Camera
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

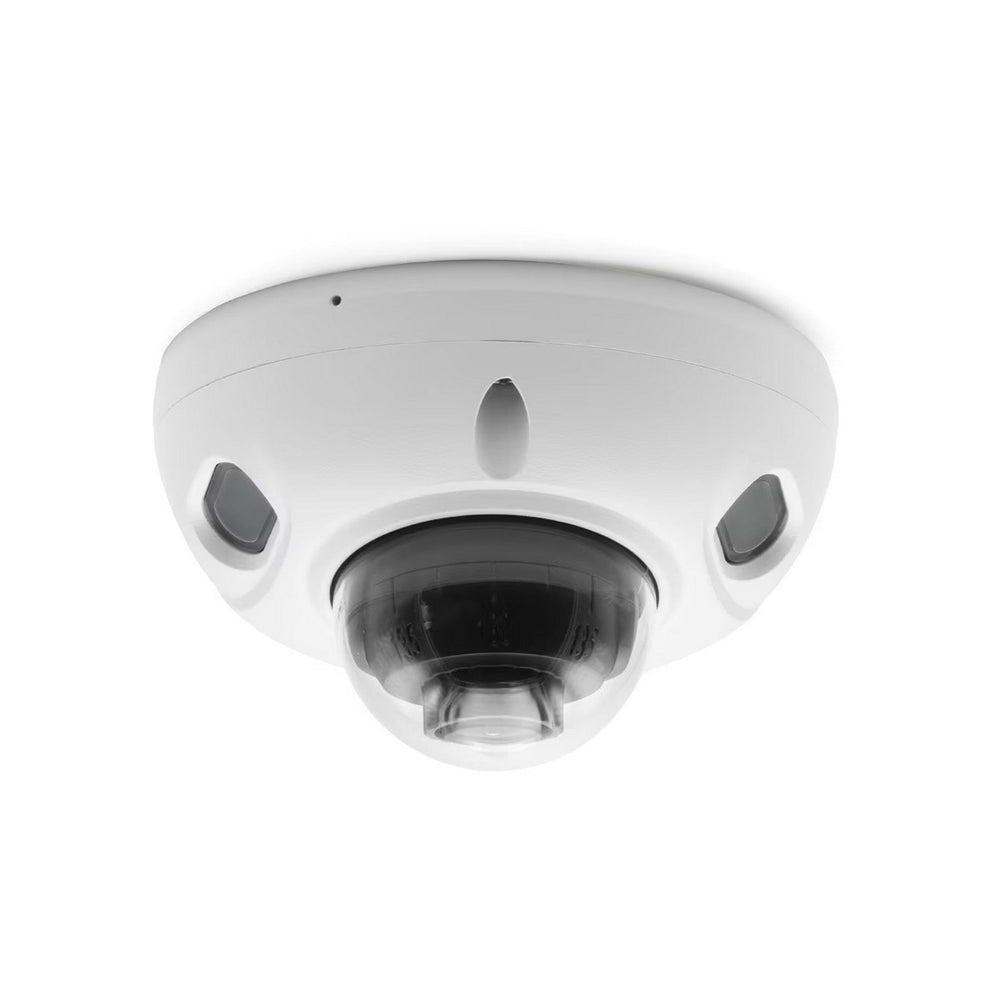

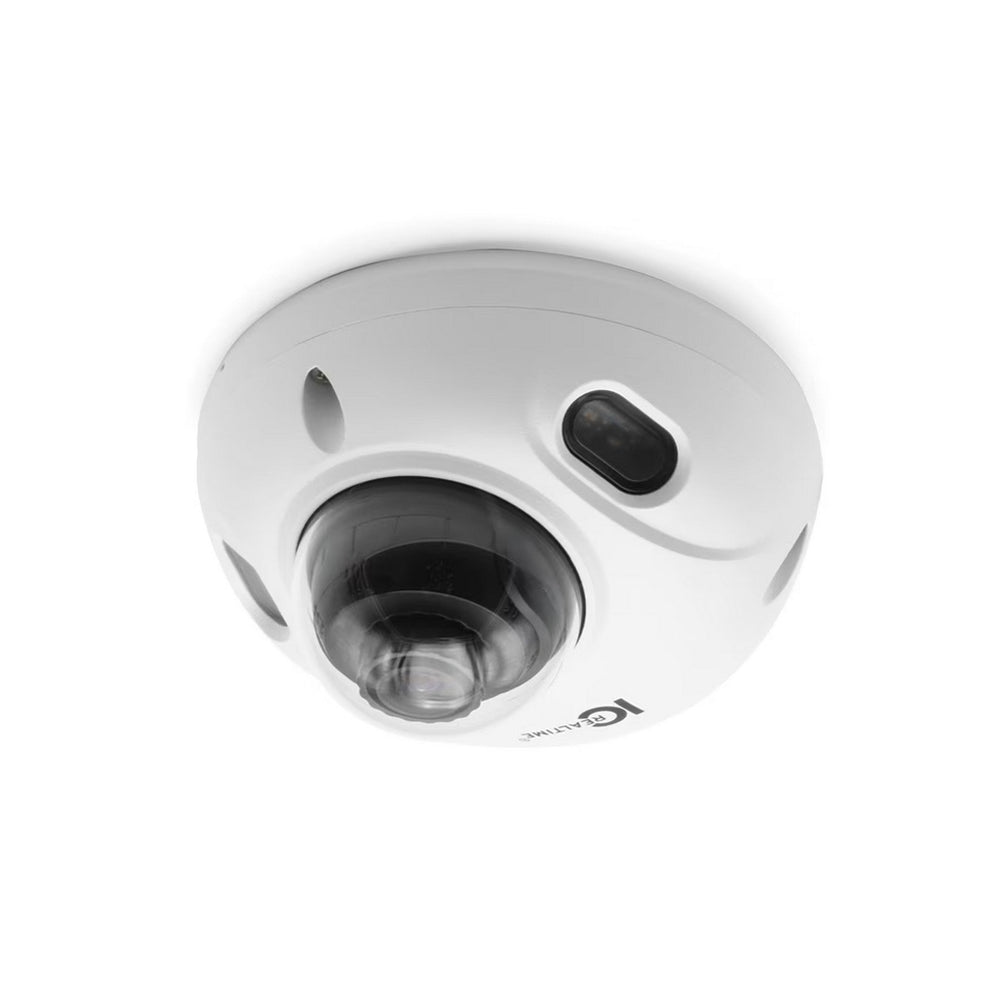

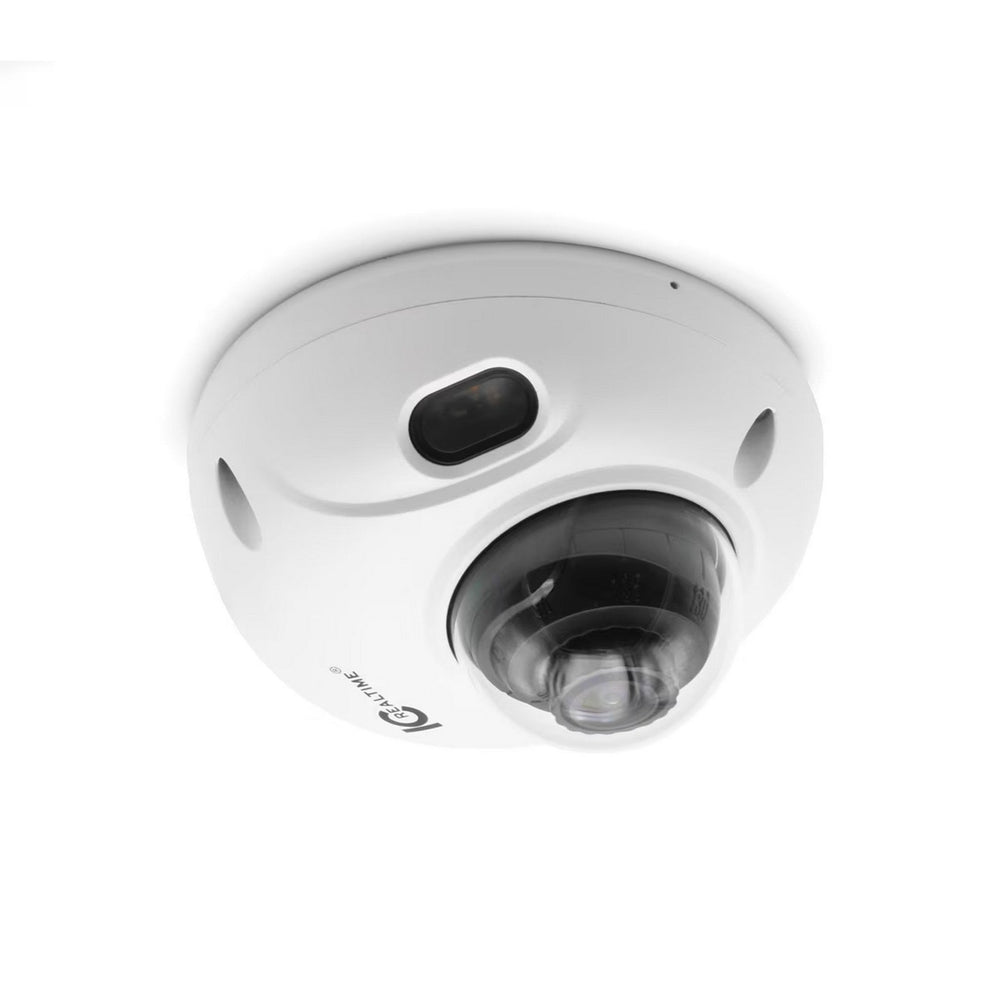

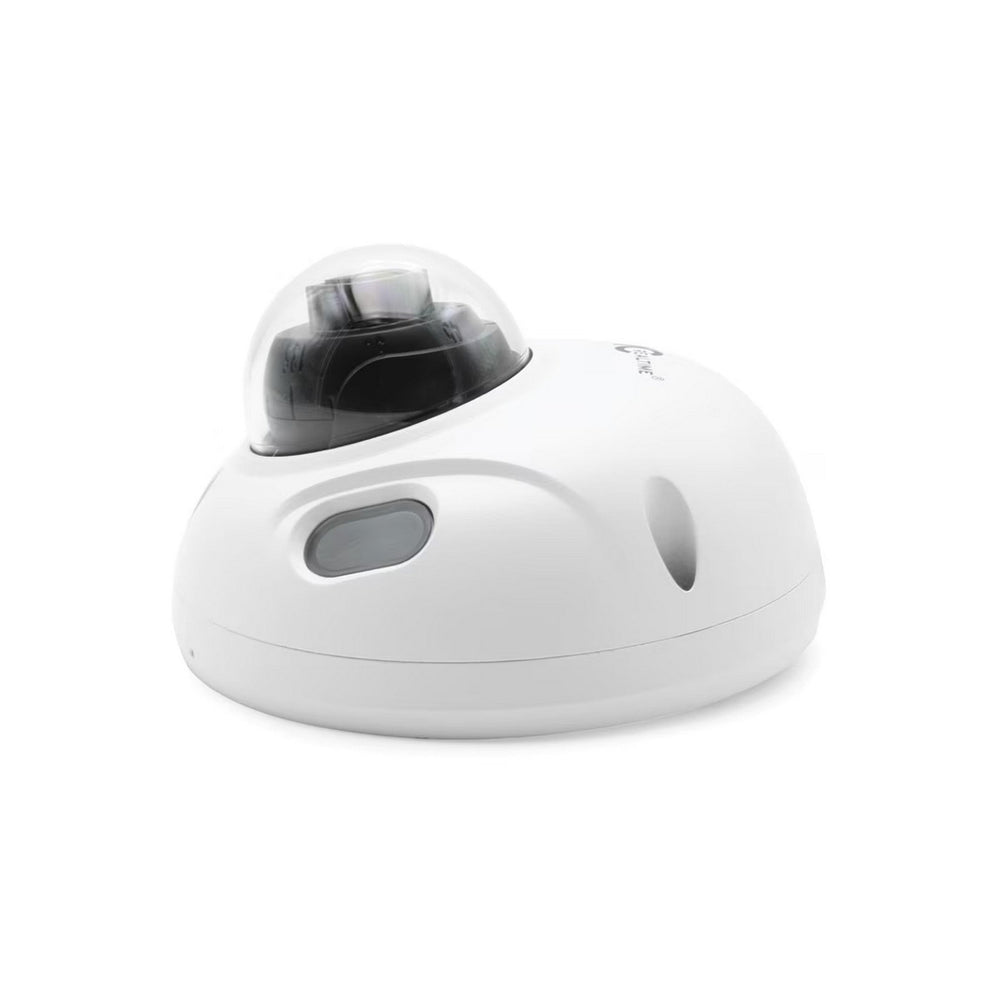

IC Realtime IPMX-W40F-IRW3 4MP Mini Wedge Vandal-Proof Dome Camera
The IC Realtime IPMX-W40F-IRW3 4MP Mini Wedge Vandal-Proof Dome Camera stands out as an exceptional surveillance device tailored for both indoor and outdoor scenarios. Its durable metal housing and compact wedge design make it an ideal solution for various security applications. This camera is loaded with intelligent motion detection, perimeter protection, and a robust IR illuminator ensuring clear video capture even in low-light conditions up to a range of 98 feet.
This camera's resilience is further enhanced by its IP67 rating and IK10 vandal resistance, providing superior protection against harsh weather conditions and physical impacts. Whether utilized in residential, commercial, or industrial environments, the IPMX-W40F-IRW3 delivers reliable surveillance performance, affirming its place as a vital component of any security setup.
Additionally, its advanced video compression technology, flexible streaming options, and smart features like Smart IR and 120dB Wide Dynamic Range ensure the IPMX-W40F-IRW3 is well-equipped to satisfy the requirements of modern security demands.
Key Features
- 4MP Mini Wedge Vandal-Proof Dome
- 98ft IR Night Vision
- Intelligent Motion Detection & Perimeter Protection
- IK10 Vandal Resistance
- IP67 Environmental Protection
- DC12V and PoE Power Options
- Compact Wedge Design
Specifications
- Image Sensor: 1/2.9" 4 Megapixel Progressive CMOS
- Effective Pixels: 2688 (H) × 1520 (V)
- RAM/Rom: 128MB / 512MB
- Scanning System: Progressive
- Minimum Illumination: 0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- Illumination Distance: 98.43 ft (30m)
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8mm
- Max. Aperture: F1.4
- Angle of View: Horizontal: 102°; Vertical: 54°
- Illumination Control: Auto / Manual
- Illumination LEDs: 2
- Camera Illumination Type: IR
- DORI - Detect: 208ft
- DORI - Observe: 83ft
- DORI - Recognize: 41ft
- DORI - Identify: 21ft
- Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
- Streaming Capability: 3 Streams
- Resolution: 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/ 704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
- Frame Rate: Main Stream: 2688 × 1520@ (1–25/30 fps); Sub Stream: 704 × 576@ (1–25 fps/ 704 × 480@1–30 fps); Third Stream: 1920 × 1080 @ (1–25/30 fps)
- Power Supply: DC12V, PoE (802.3af)
- Power Consumption: Basic: 3.8 W (12 VDC); 4.6 W (PoE); Max. (WDR + IR intensity + Intelligence): 5.9 W (12 VDC); 7.2 W (PoE)
- Operating Conditions: -40°C to +60°C (-40°F to +140°F) / less than 95%
- Ingress Protection: IP67
- Vandal Resistance: IK10

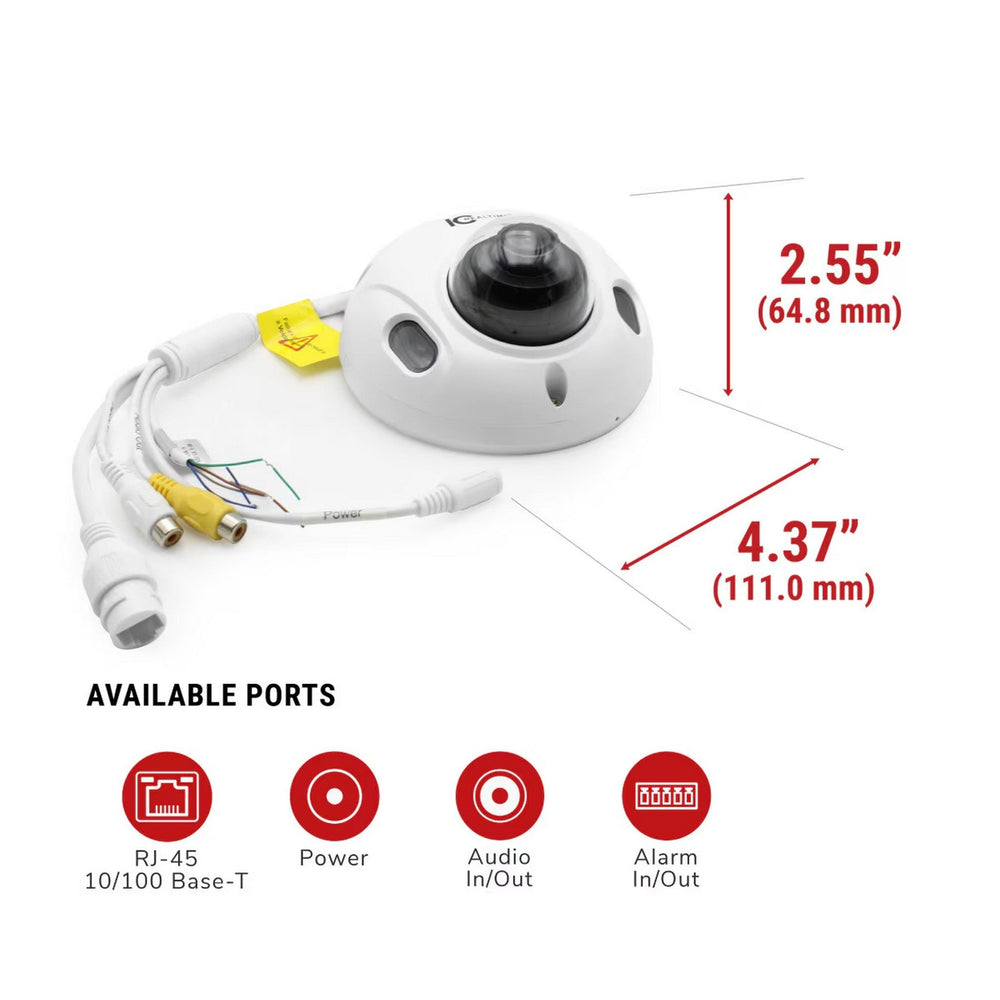

- Dimensions: 2.55" x Φ4.37" (64.8 mm x Φ111.0 mm)
- Weight: 1.17lb (530g)
Package Contents
- IC Realtime IPMX-W40F-IRW3 Camera
- Mounting Bracket
- Installation Hardware
- User Manual
