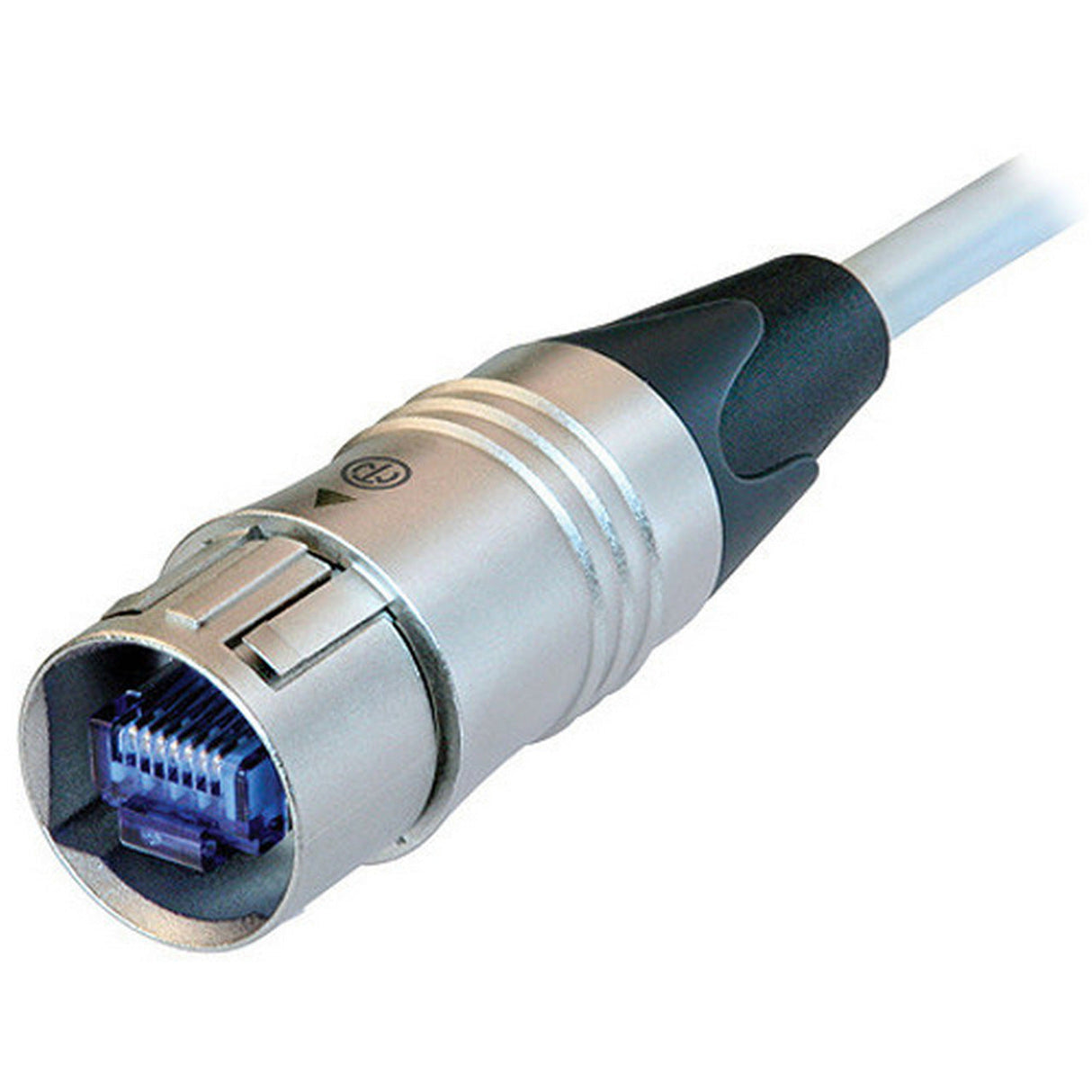

Neutrik NKE6S-3-WOC 3 M Patch Cable with CAT6 EtherCON and RJ45 Connectors
The preassembled etherCON CAT6 patch cables use a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system. One cable end with cable plug carrier.
Please Note! Does not intermate with CAT5 and CAT6A chassis connectors.
Key Features
- CAT6 compliant - data rate up to 10 GBIt's
- CAT6 performance - fast data transmission and high bandwidth applications
- CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
- IP65 - Dust and waterproof in mated condition
- Shielded system - high noise immunity and EMI protection
- Push Pull mating - secure and proven locking system
- Ready made patch cables with rugged cable carrier and unique chuck-type strain relief
Technical Specifications
Gender
male
Contact resistance
< 10 mO
Dielectric strength
1 kVdc
Frequency range
1 - 250 MHz
Insulation resistance
= 0.5 GO
Rated current per contact
1,5 A
Rated voltage
< 50 V
Insertion force
40 N
Withdrawal force:
= 20 N
Lifetime
> 1000 mating cycles
Wiresize
8 x AWG 27/7 mm2
Locking device
Push-Pull
Boot
Polyurethan
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Flammability
UL 94 HB
Standard compliance
CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
Protection class
IP 65
Temperature range: -10 degrees C to +60 degrees C
