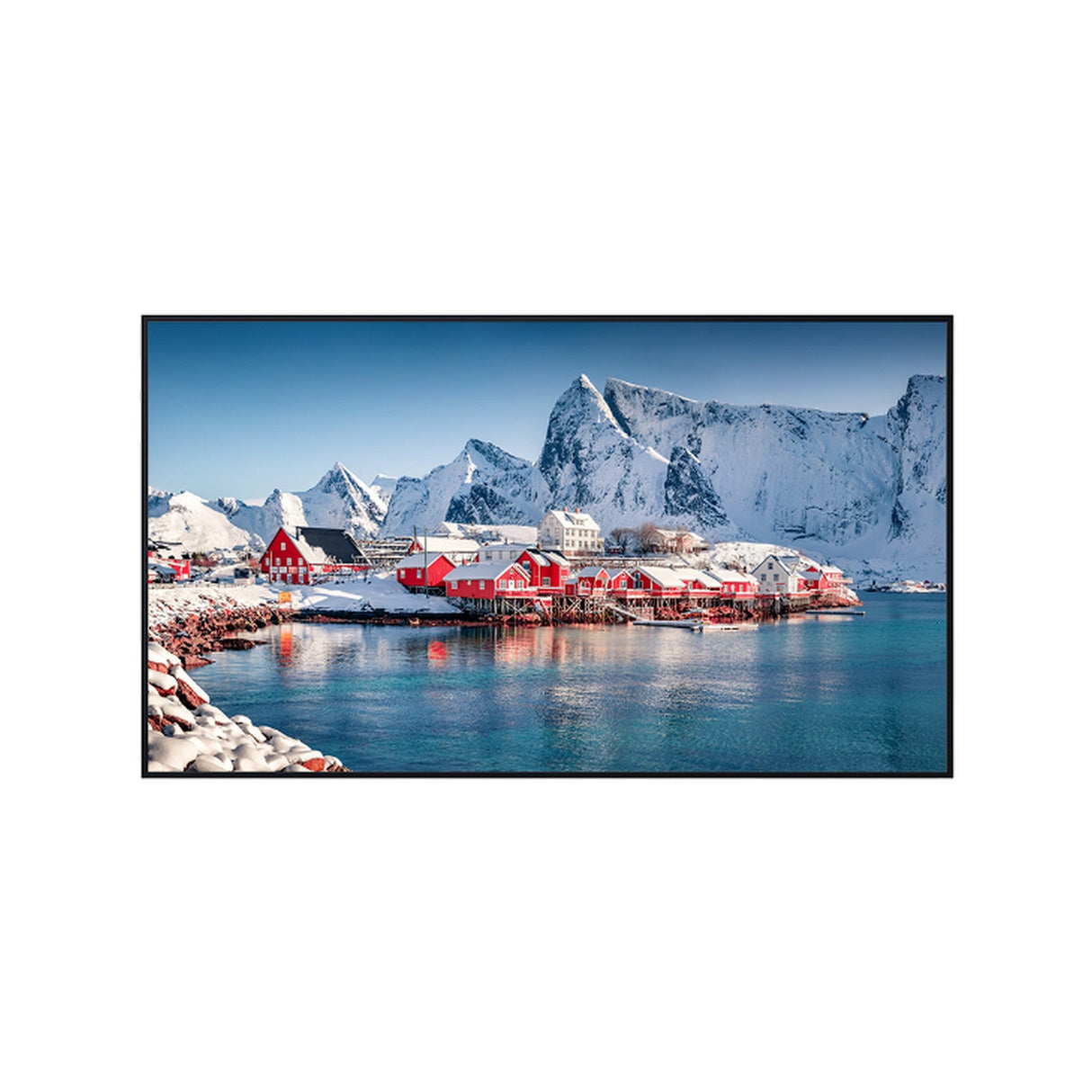

Panasonic TH-55SQE2W 55-Inch Class 4K UHD Digital Display

Panasonic TH-55SQE2W 55-Inch Class 4K UHD Digital Display

The Panasonic Connect TH-55SQE2W 4K Professional Display is built for continuous 24-hour operation and delivers crystal-clear viewing with a brightness of 500 cd/m². Its anti-glare panel with 25% haze treatment minimizes reflections from ambient light, ensuring optimal visibility in a variety of environments. This design makes it an excellent choice for digital signage and broadcast applications.

For a streamlined, clutter-free installation, the display features an integrated Intel® SDM slot that supports a built-in PC, terminal board, or wireless presentation system—eliminating the need for external set-top boxes or cables. Robust connectivity options further enhance its versatility for use in conference rooms, retail environments, or any setting that demands reliable, high-quality visuals.

Key Features

• High Image Quality: Offers exceptional clarity and legibility suitable for a wide range of applications.
• Reliable 24/7 Operation: Engineered for continuous use with easy installation.
• Versatile Connectivity: Supports various external linkages, making it ideal for both conference and digital signage setups.

Technical Specifications

• Panel Size: 55-inch display with dimensions approximately 48.64" x 27.92" x 3.28" (W x H x D, excluding remote IR sensor)
• Brightness: 500 cd/m²
• Surface Treatment: Anti-glare with 25% haze for minimized reflections
• DisplayPort IN: 1 x DisplayPort (compatible with HDCP2.2)
• USB Ports: Multiple ports including Type A (supporting USB 3.0 and 2.0) and Type C (supporting USB 3.0 and DisplayPort Alternate mode)
• microSD: Supports microSD/SDHC/SDXC cards up to 1 TB
• Serial IN: 1 x Stereo mini jack (3.5 mm), RS-232C compatible
• LAN: 1 x RJ45 port compatible with PJLink™ 10BASE-T/100BASE-TX/1000BASE-T
• IR In: 1 x Stereo mini jack (3.5 mm)
• Slot: Intel® SDM standard slot with 66W power supply capability
• Wi-Fi: Built-in wireless connectivity
• AUDIO OUT: 1 x Stereo mini jack (3.5 mm) and 1 x SPDIF output
• Built-in Speaker: 20 W output for audio
• Power Consumption: 270 W during operation; 0 W when off, approx. 0.5 W on standby
• Dimensions Including Remote IR Sensor: Approximately 48.64" x 28.66" x 3.28" (W x H x D)
• Weight: 18.2 kg (40.2 lbs)
• Wall Mounting: 400 x 400 mm mounting interface with M6 fixings
• HTML Browser: HTML5 (Vwed)
• Effective Display Area: Approximately 47.62" x 26.78" (W x H)
• Resolution: 3840 x 2160
• Contrast Ratio: 1200:1
• Viewing Angle: 178° vertical / 178° horizontal (CR > 10)
• HDMI IN: 4 x HDMI ports (compatible with HDCP2.2)
• HDMI OUT: 1 x HDMI port (compatible with HDCP2.2)
• Bluetooth: Built-in Bluetooth® support
• Android™-OS: Enabled for extended functionality
• Operating Mode: Suitable for 24-hour continuous operation
• Orientation: Supports both landscape and portrait modes
• Tilt Angle: Adjustable from 0° to 45° both forward and backward
• Power Requirements: AC 110 - 240 V, 50 Hz / 60 Hz
• Energy Efficiency: Rated as class G
• Bezel Width: 8.4 mm (0.33") on top, right, and left; 12 mm (0.47") on the bottom
• Operating Environment: Temperature 32°F to 104°F (0°C to 40°C) with non-condensing humidity levels (20-80%) up to 4,593 ft altitude; alternatively, temperature 32°F to 95°F (0°C to 35°C) for altitudes between 4,593 ft and 7,874 ft.
