Belden ProSNS RG-6 Universal BNC Coax Compression Connector - 1 Connector
Belden ProSNS RG-6 Universal BNC Coax Compression Connector
Belden ProSNS RG-6 Universal BNC Coax Compression Connector

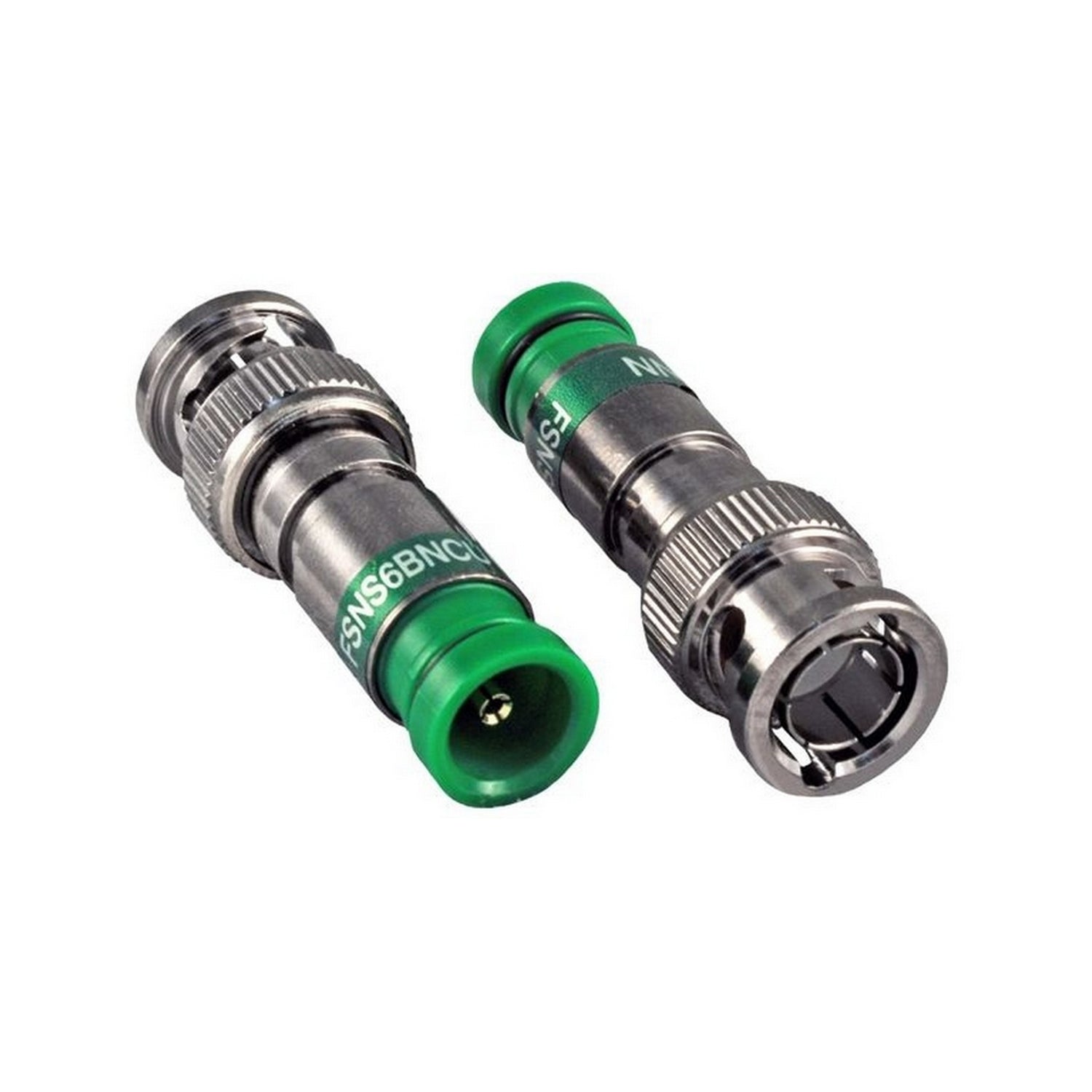

The Belden FSNS6BNCU is a professional-grade BNC compression connector designed for reliable performance in video and RF applications. Compatible with both standard and quad-shield RG-6 coaxial cables, it ensures secure, low-loss connections ideal for CCTV, broadband, and satellite installations. Featuring a 360Ā° compression design, it delivers superior RF shielding and long-term durability in indoor and outdoor environments.
Engineered for quick and efficient terminations, the connector features a non-blind entry with a split ferrule for easier cable insertion, and a floating-pin guide to reduce installation force. Built from nickel/tin-plated brass with UV-resistant components and sealed with an environmental O-ring, the FSNS6BNCU meets all SCTE specifications for performance and durability.
Available in: Single (1-Pack) or Bulk (25-Pack) configurations to suit small jobs or large-scale installations.
Key Features:
- Connector Type: BNC Male (Compression Type)
- Compression System: 360Ā° for enhanced RF shielding (ā„ -85 dB)
- Installation Aid: Floating-pin guide for low insertion force
- Build Quality: Nickel/Tin-Plated Brass with UV-resistant plastic
- Sealing: Environmental O-ring with NiTin finish
- Compatibility: Works with standard and quad-shield RG-6 coaxial cables
- Identification: Color-coded green band
Technical Specifications:
Impedance: 75 Ohms
Termination Type: Compression
Color Band: Green
Material: Nickel/Tin-Plated Brass, UV-Resistant Plastic
Contact Plating: Gold
Environmental Sealing: O-Ring with NiTin Finish
Cable Compatibility: RG-6 Standard and Quad Shield
Operating Temperature: -40Ā°F to 140Ā°F (-40Ā°C to 60Ā°C)
Return Loss: ā„ -32 dB up to 1 GHz (Typical)
Cable Jacket Diameter Range: 0.265" to 0.305" (6.73 mm to 7.75 mm)
Dielectric Diameter Range: 0.180" to 0.193" (4.57 mm to 4.90 mm)
Center Conductor Diameter: 0.0399" to 0.0418" (1.01 mm to 1.06 mm)
Compression Force: 20 lbf
RG Type: RG-6/U
Environment: Indoor/Outdoor
CE Certified: Yes
Plenum Rated: No
Package Contents:
- Belden FSNS6BNCU Snap-N-Seal BNC Connector (1-Pack or 25-Pack)
- Limited 10-Year Manufacturer Warranty
