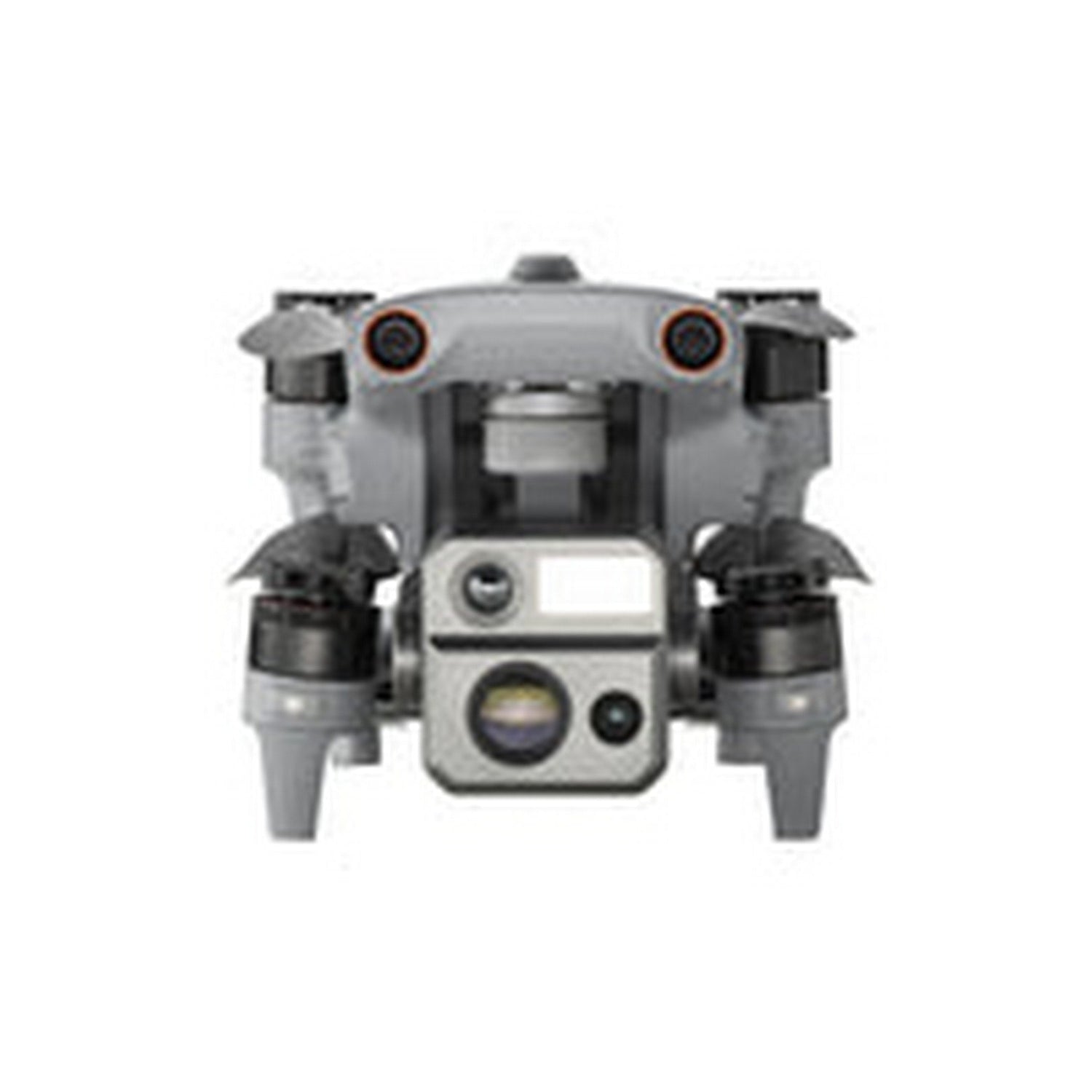

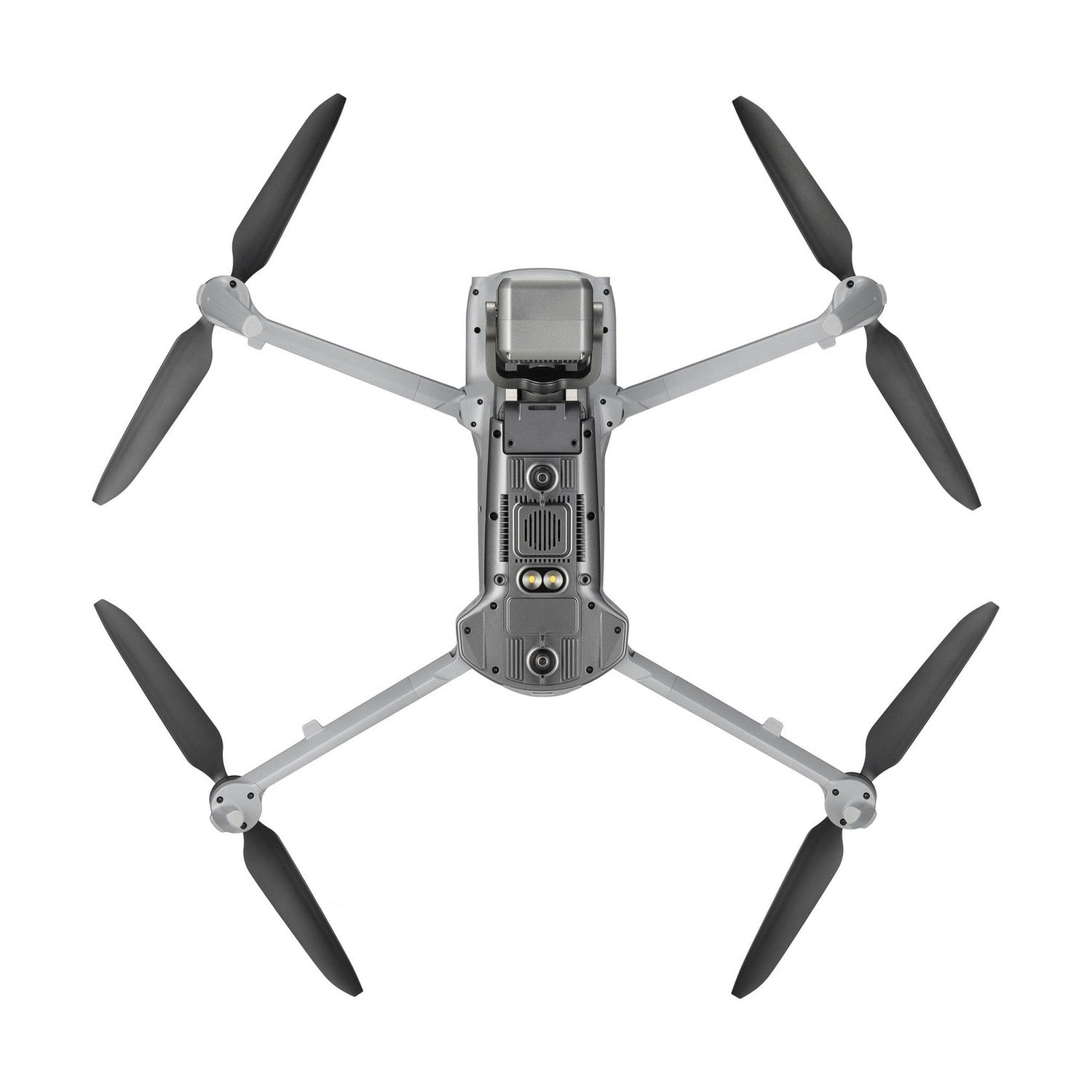

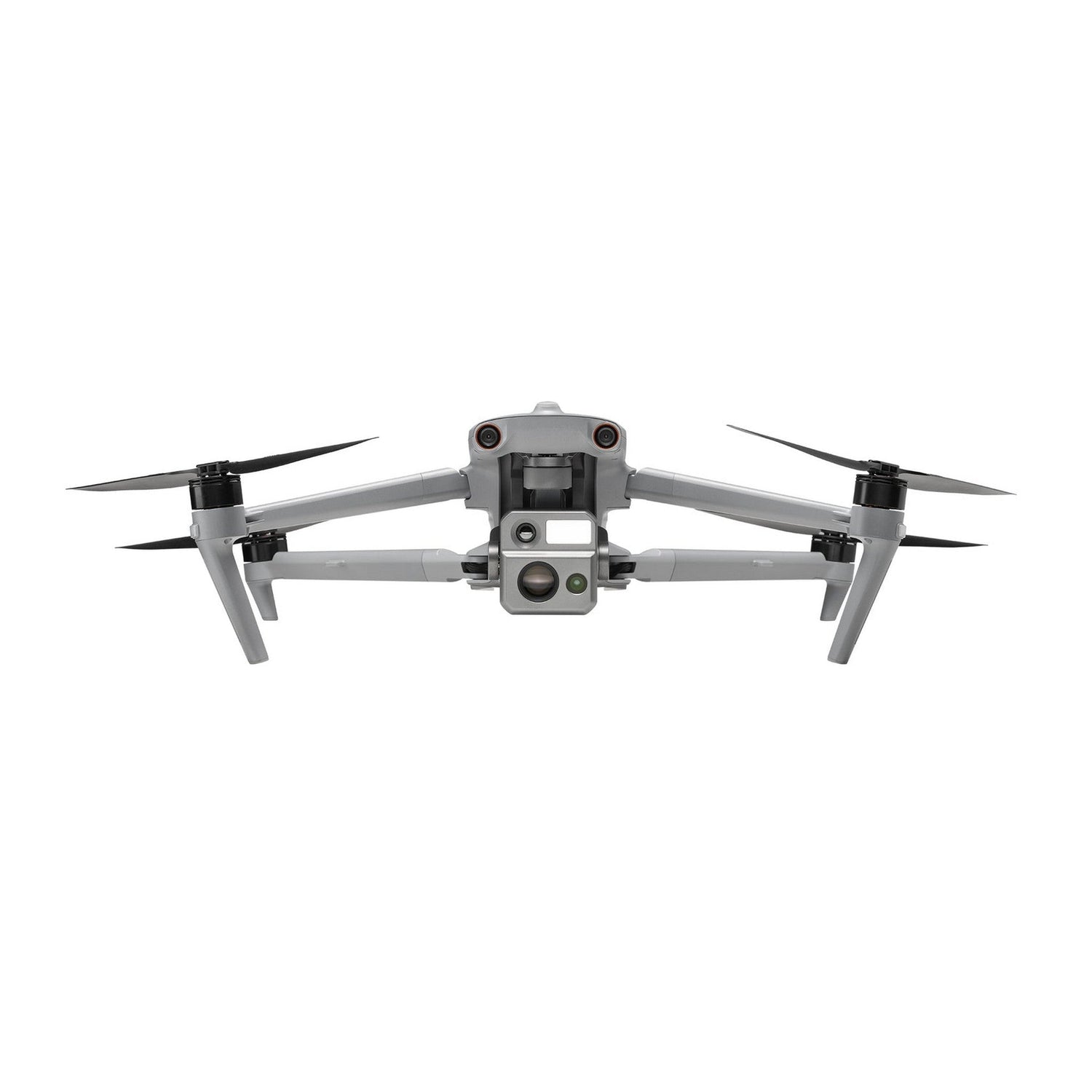

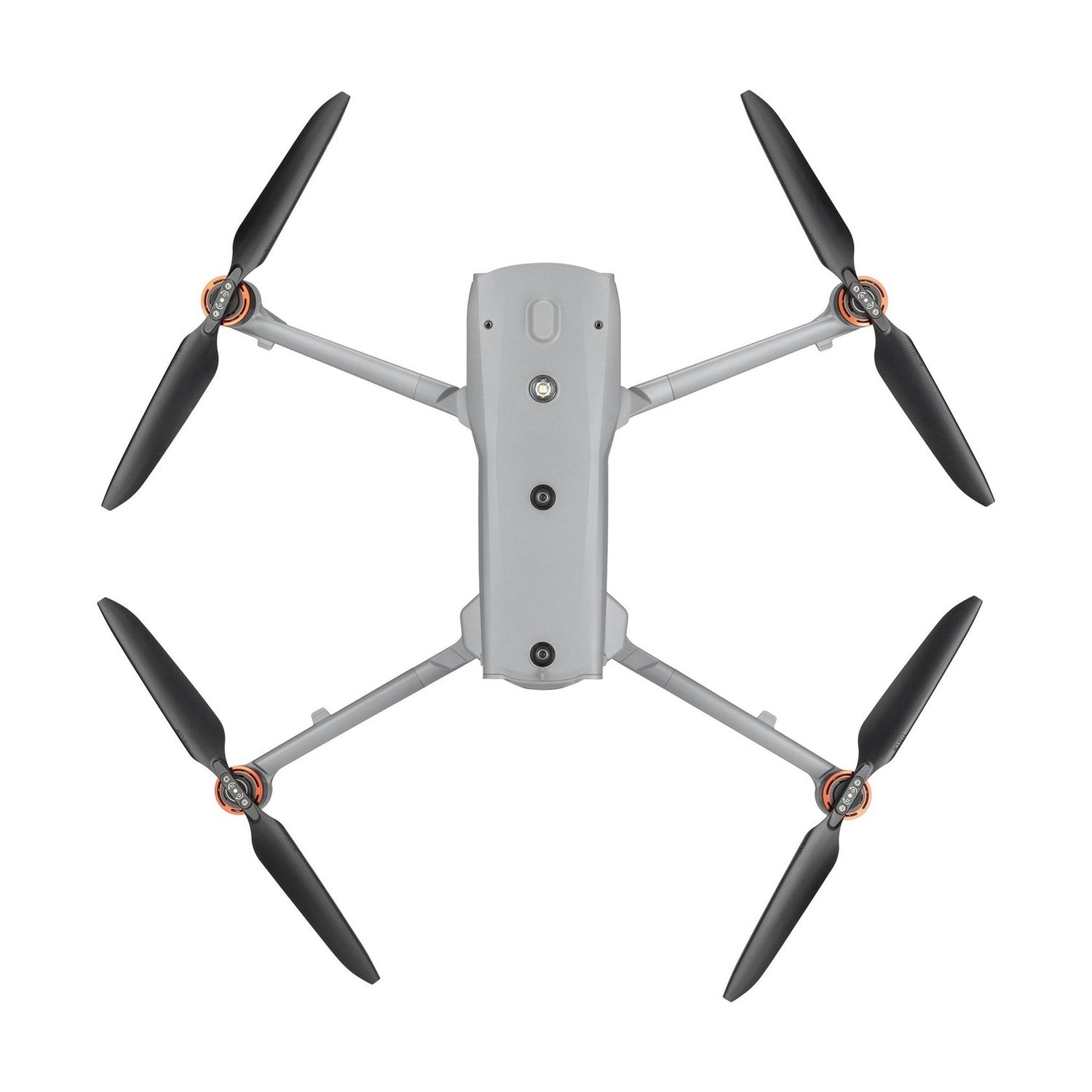

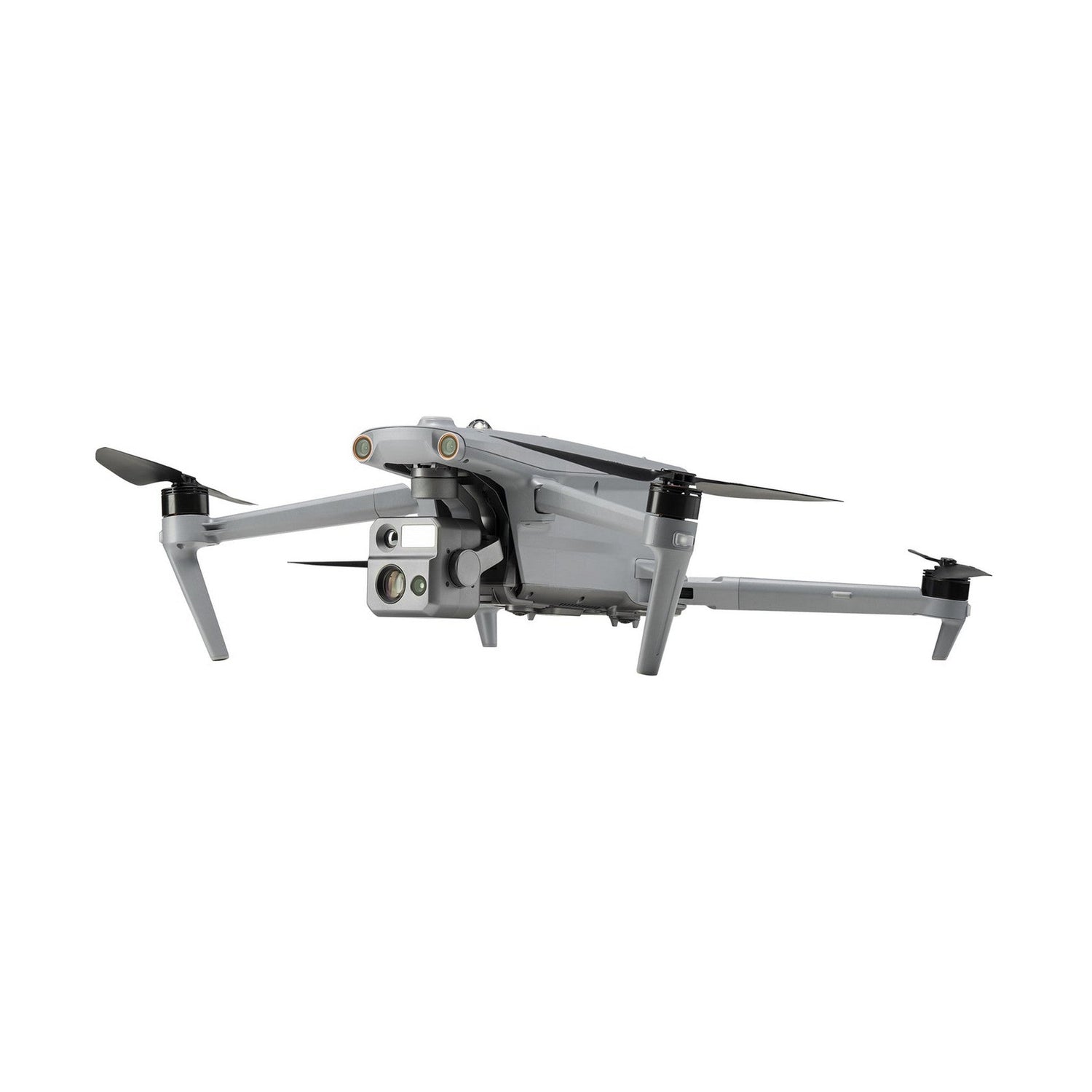

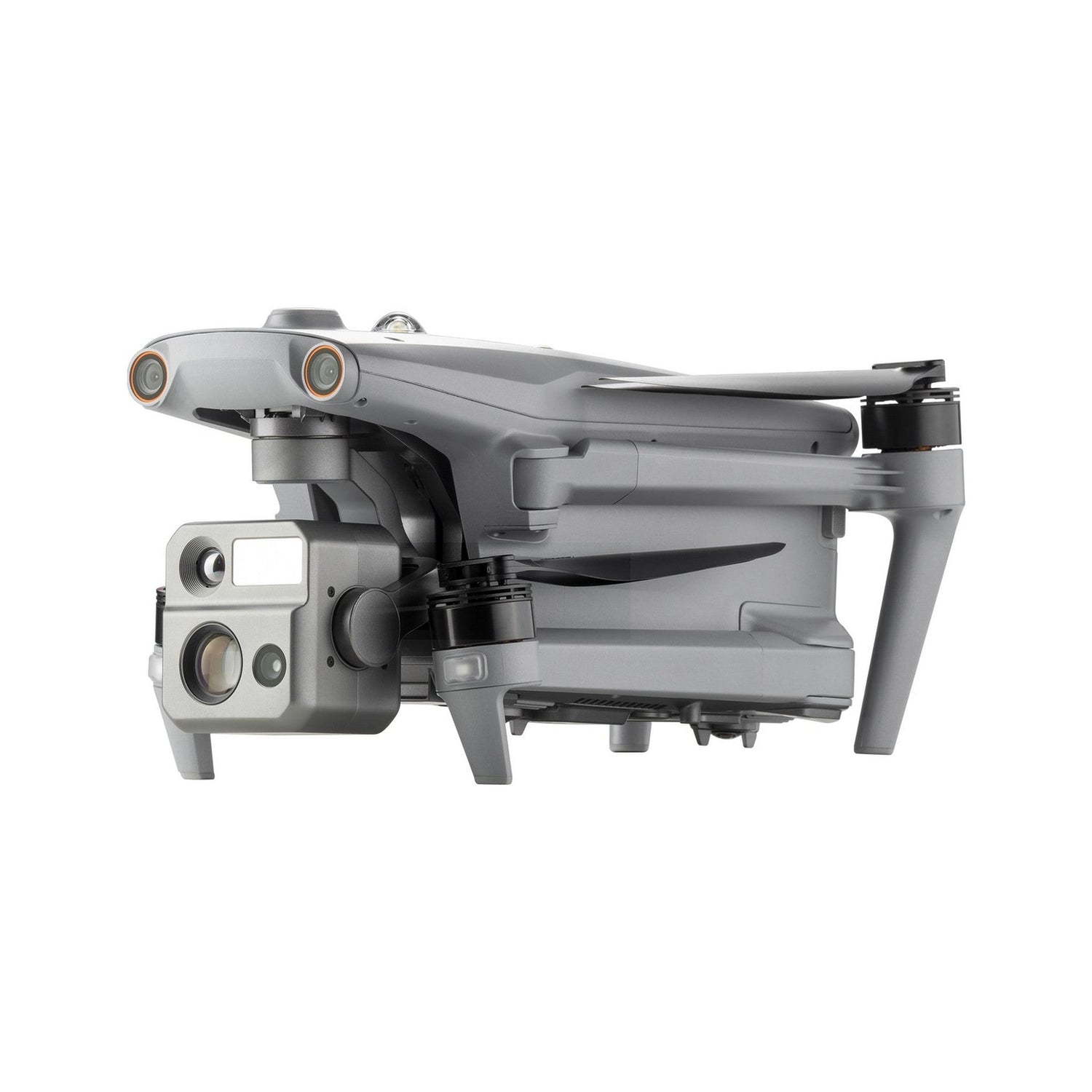

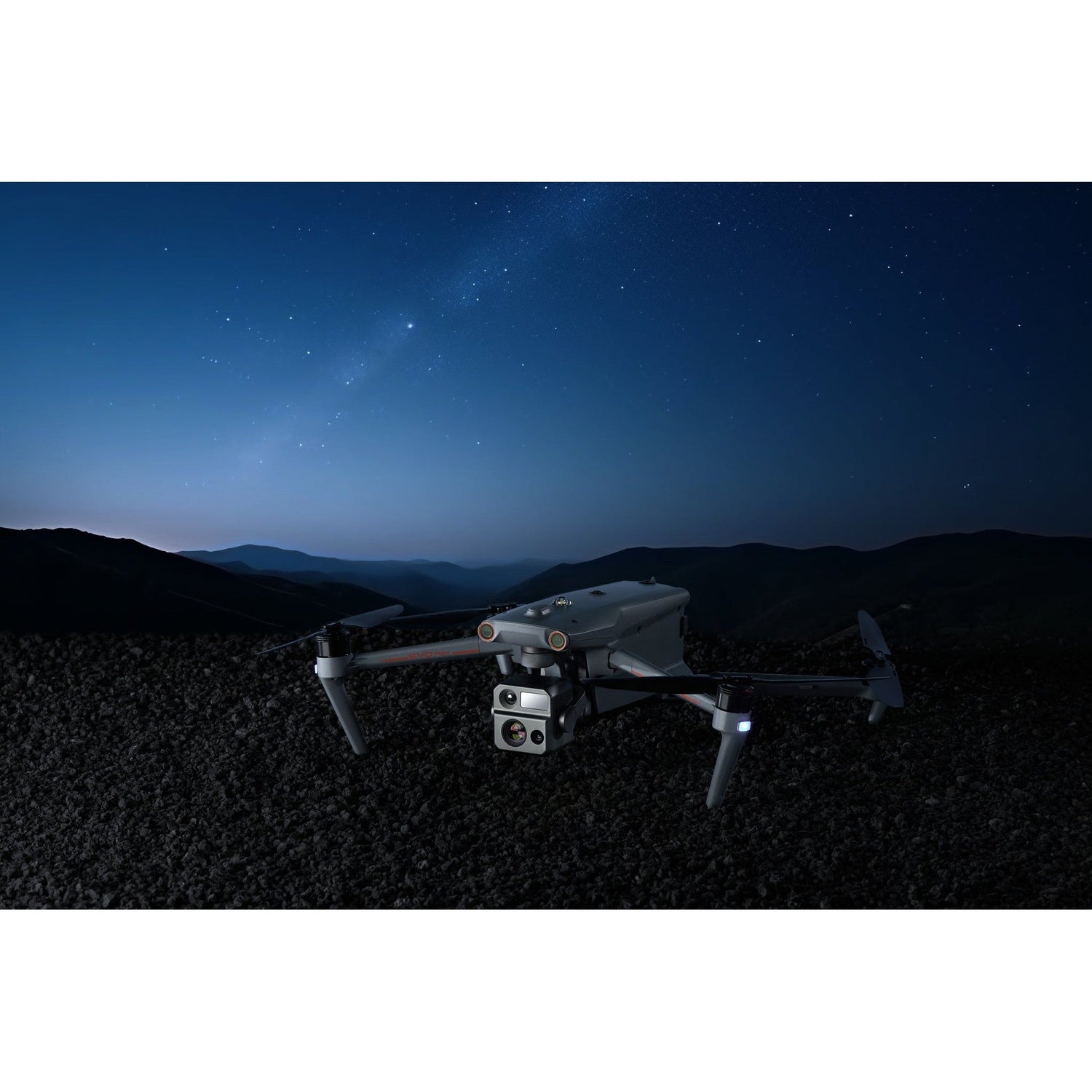

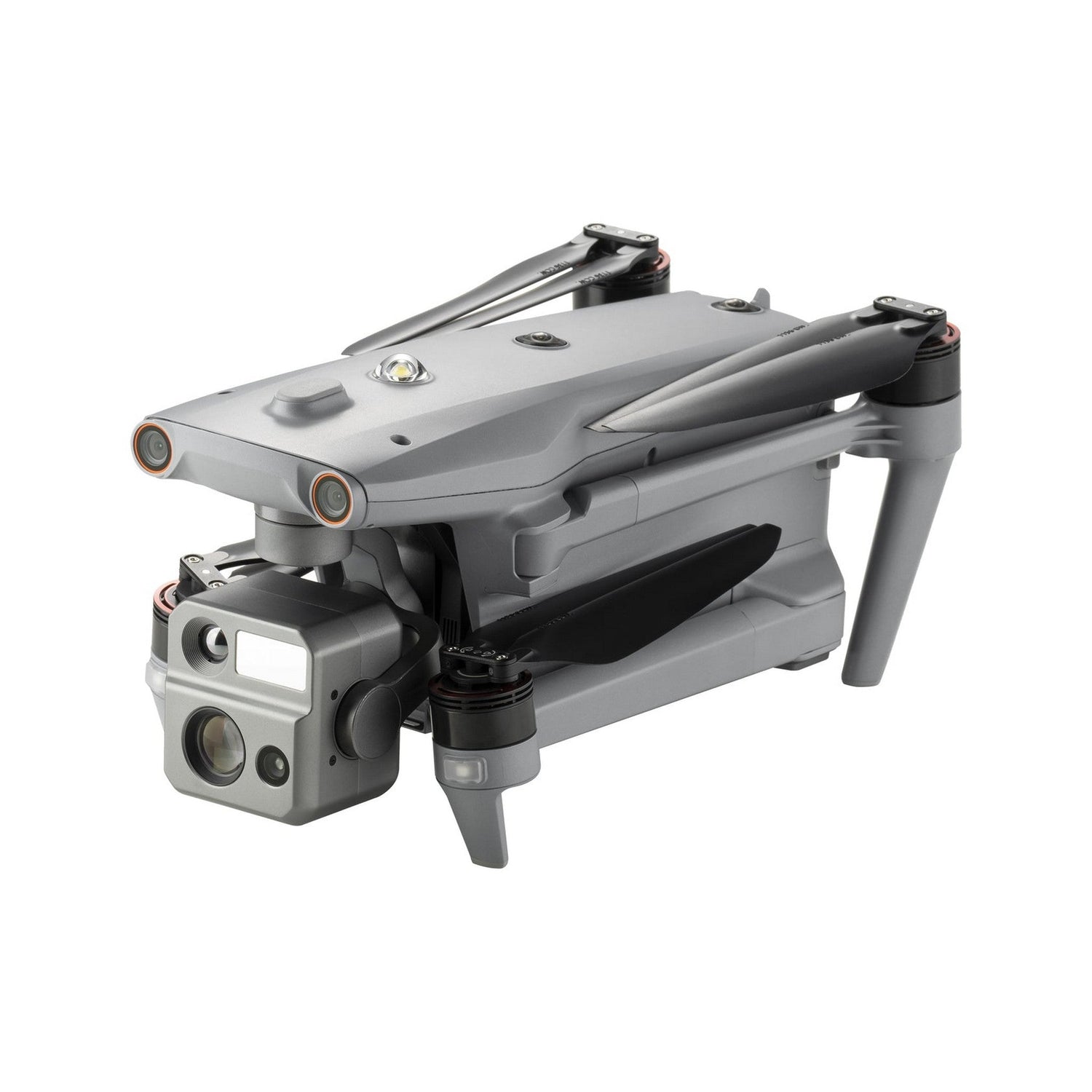

Autel Robotics EVO MAX 4N Bundle

Autel Robotics EVO MAX 4N Bundle

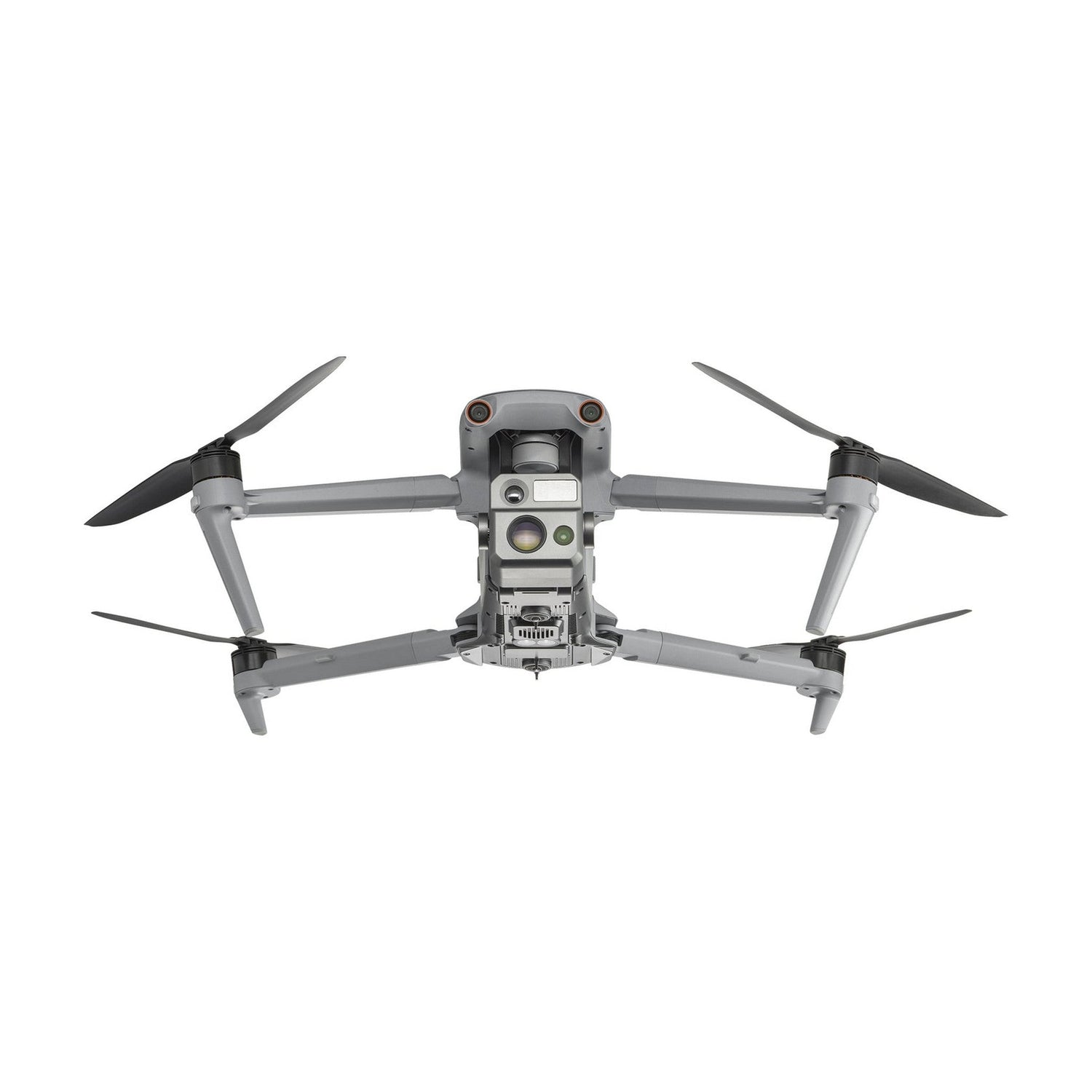

The Autel Robotics EVO Max 4N Premium Bundle is a high-performance drone tailored for professionals in law enforcement, search and rescue, infrastructure inspection, and other critical applications. Equipped with a suite of advanced imaging systems—including a 50MP wide-angle camera, a 2.3MP starlight camera, and a 640x512 thermal camera—the EVO Max 4N delivers exceptional imaging capabilities in various lighting and environmental conditions. Its robust design ensures reliable performance in challenging scenarios, making it an ideal tool for professionals requiring precision and versatility in aerial operations.

Designed for optimal performance, the EVO Max 4N boasts a maximum flight time of 42 minutes and a transmission range of up to 12.4 miles, facilitated by the Autel SkyLink 3.0 system. The drone's 720° obstacle avoidance system, powered by a combination of visual and millimeter-wave radar sensors, ensures safe navigation in complex environments. Additionally, the A-Mesh 1.0 mesh networking technology allows for seamless communication and data sharing among multiple units, enhancing coordination during multi-drone operations. The included 7.9-inch smart controller offers a high-brightness display for clear visibility in various lighting conditions, further enhancing operational efficiency.

Key Features:

• Imaging Systems: 50MP wide-angle camera, 2.3MP starlight camera, 640x512 thermal camera
• Maximum Flight Time: Up to 42 minutes
• Transmission Range: Up to 12.4 miles (20 km) with Autel SkyLink 3.0
• Obstacle Avoidance: 720° coverage with visual and millimeter-wave radar sensors
• Mesh Networking: A-Mesh 1.0 for multi-drone coordination
• Smart Controller: 7.9-inch high-brightness display for clear visibility
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)

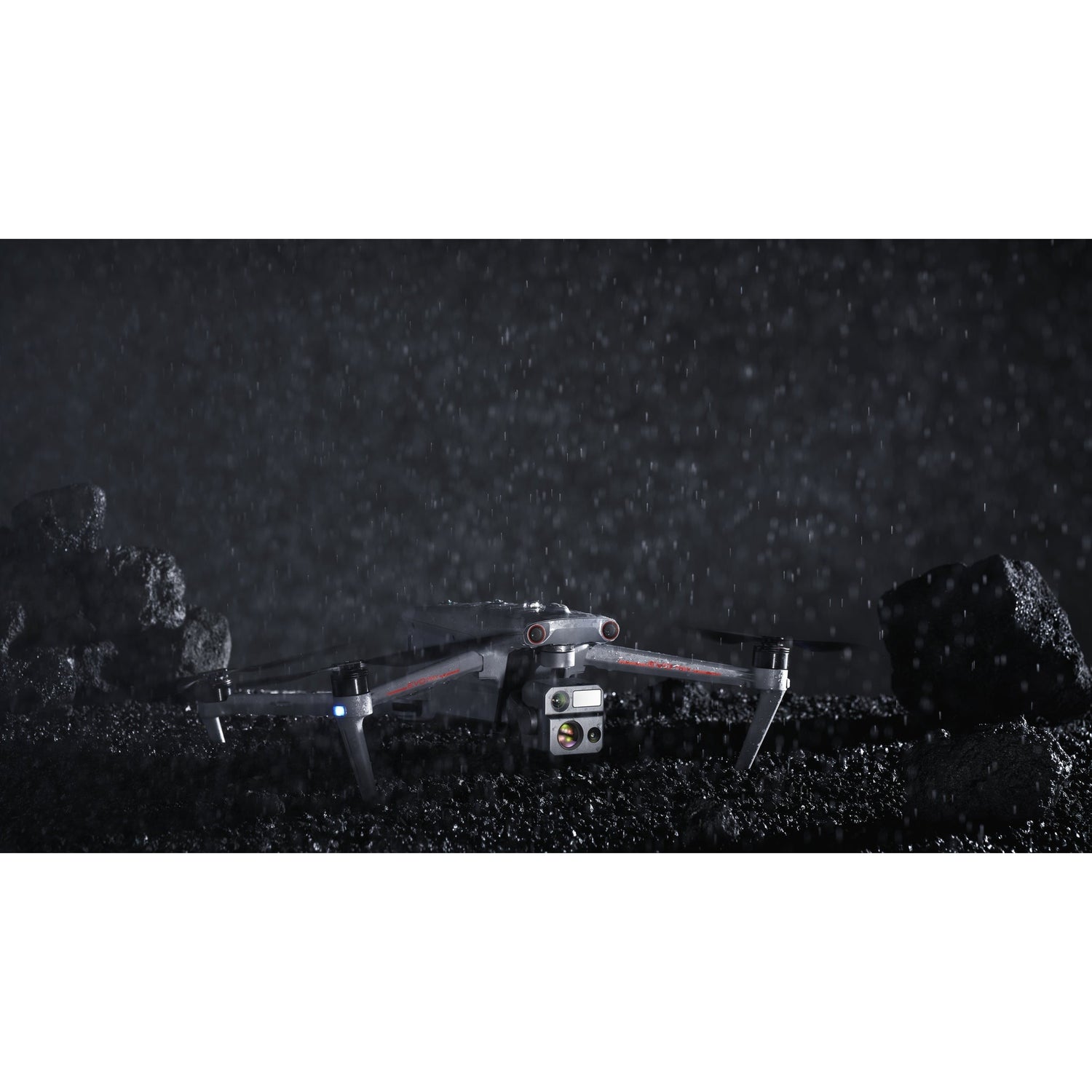

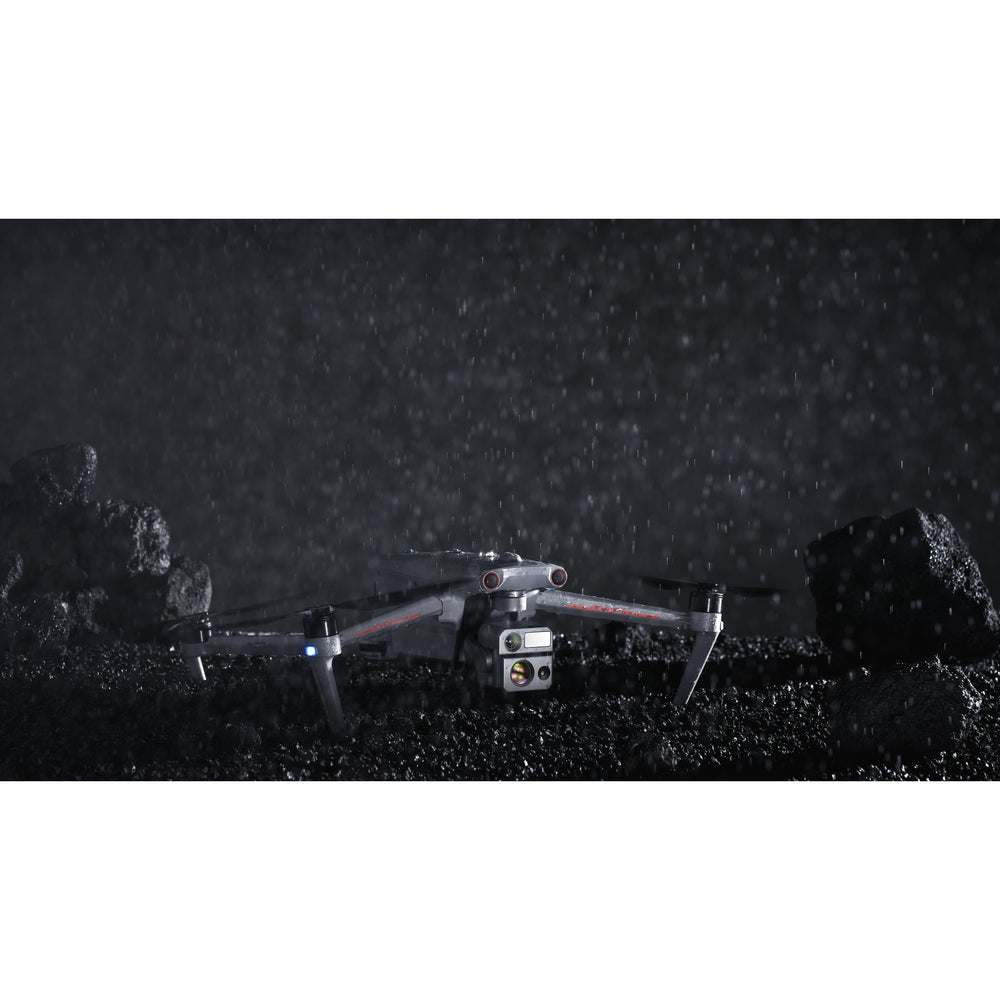

• Ingress Protection: IP43 rating for dust and water resistance

Technical Specifications:

• Weight: 3.5 lbs (1600 g) with battery and gimbal

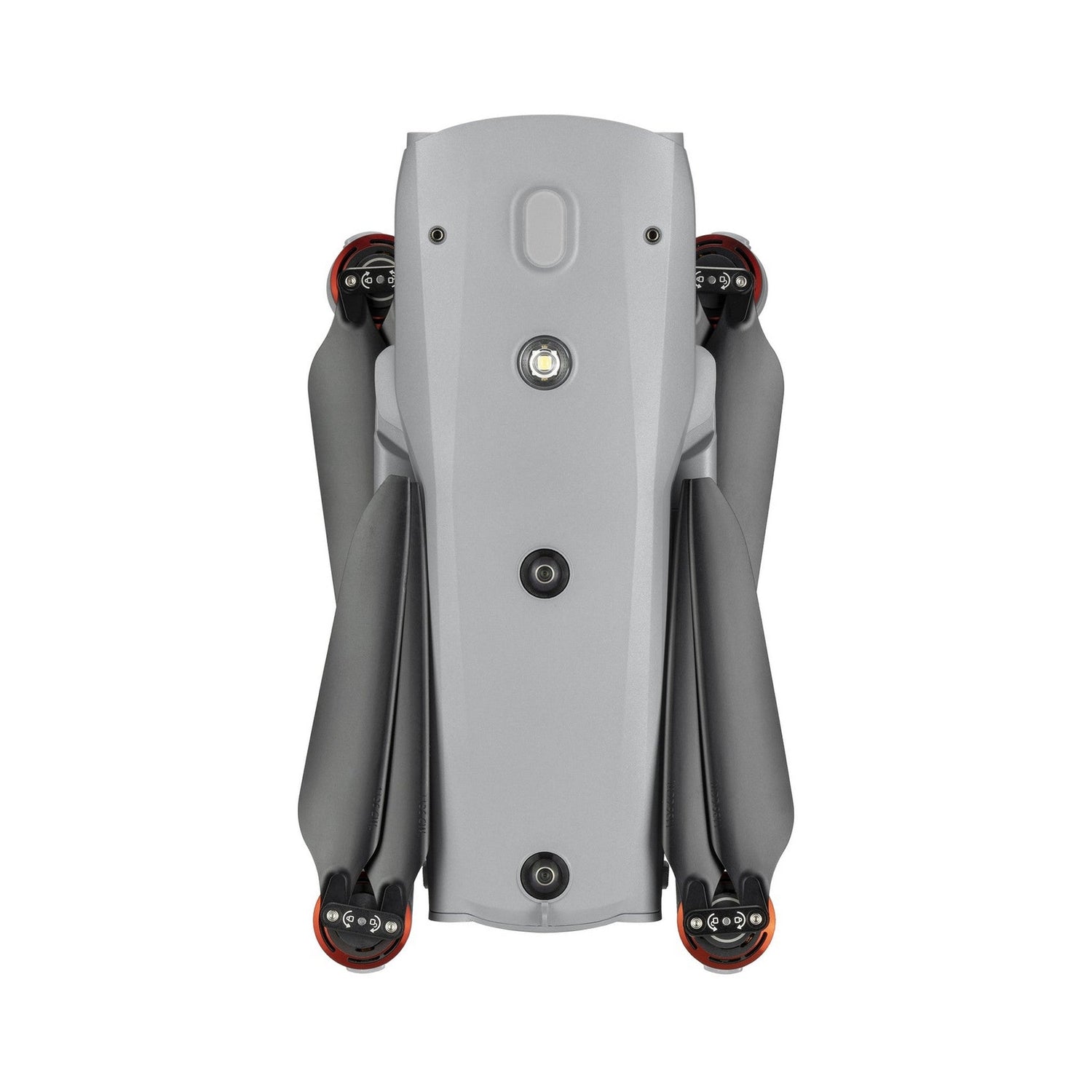

• Dimensions (Folded): 22.7 x 5.9 x 26.0 inches (576 x 149 x 660 mm)
• Dimensions (Unfolded): 10.1 x 5.2 x 5.4 inches (257 x 133 x 136 mm)
• Rotor Configuration: Quadcopter with 11-inch propellers
• Maximum Ascent Speed: 17.9 mph (8 m/s)
• Maximum Descent Speed: 13.4 mph (6 m/s)
• Maximum Horizontal Speed: 51.4 mph (23 m/s)
• Maximum Wind Resistance: 27 mph (12.1 m/s)
• Maximum Takeoff Altitude: 4.3 miles (7000 m)
• Maximum Tilt Angle: 35°
• Hovering Accuracy (Vision Positioning): Vertical: ±0.3 ft (0.1 m), Horizontal: ±0.49 ft (0.15 m)
• Hovering Accuracy (RTK): Vertical: ±0.49 ft (0.15 m), Horizontal: ±0.3 ft (0.1 m)
• GNSS Support: GPS, GLONASS, BeiDou, Galileo
• Operating Frequency: 2.4 GHz, 5.2 GHz, 5.8 GHz, 900 MHz
• Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC), 20 dBm (CE/SRRC/MIC); 5.8 GHz: 33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE); 5.15-5.25 GHz: <23 dBm (FCC/SRRC/MIC)
• Transmitter I/O: 1x HDMI (Video), 1x USB-C (Data, Power), 1x USB-A (Data, Power)
• Battery Type: Built-In Lithium-Ion (5800 mAh)
• Built-In Display: 7.9-inch LCD, 2048 x 1536 resolution, 2000 nits brightness
• Operating Temperature: -4°F to 104°F (-20°C to 40°C)
• Operating Frequency: 2.400 - 2.4835 GHz; 5.150 - 5.250 GHz; 5.725 ‒ 5.850 GHz
• Transmitter Power (EIRP): 2.400 - 2.4835 GHz: FCC/CE: ≤20 dBm; 5.150 - 5.250 GHz: FCC: ≤17 dBm; 5.725 ‒ 5.850 GHz: FCC: ≤17 dBm, CE: ≤14 dBm

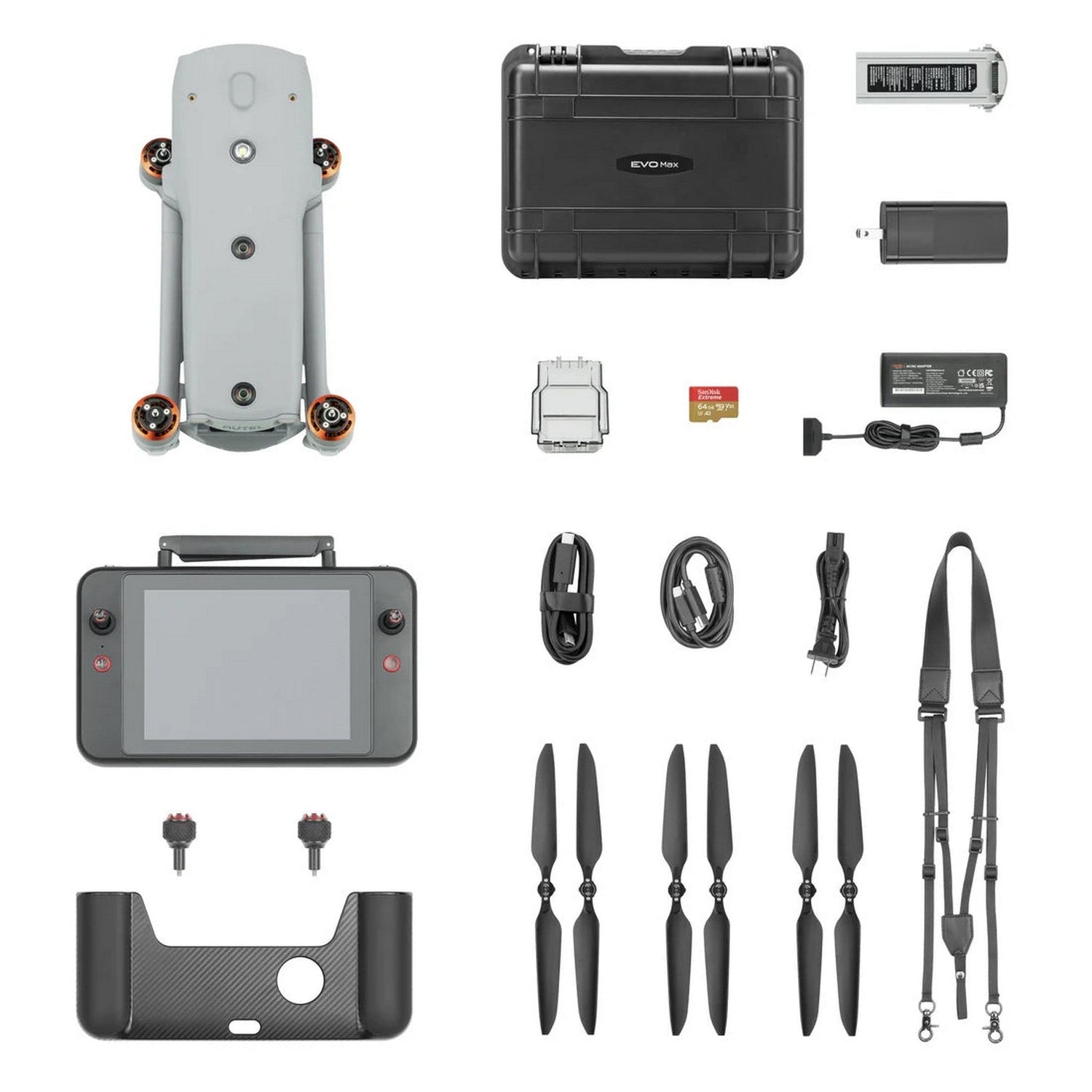

Package Contents:

• 1× Autel Robotics EVO Max 4N Drone
• 1× Smart Controller V3 with Sticks
• 1× Battery
• 1× Propeller
• 1× Gimbal
• 1× Gimbal Cover
• 1× 64GB SD Card
• 1× Battery Charger and Power Cable
• 2× Pair of Spare Propellers
• 1× Screwdriver
• 4× Screws
• 1× Smart Controller Lanyard
• 1× Smart Controller Cover
• 2× Smart Controller Spare Joysticks
• 1× RC Charger
• 1× RC Charging Cable
• 1× Data Cable
• 1× Rugged Case
• 1× Manual
