Blackmagic Design DeckLink SDI 4K Ultra HD Capture Playback PCIe Interface Card (Used)
Save $1625
$30875Free Shipping
Last 1
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: Used

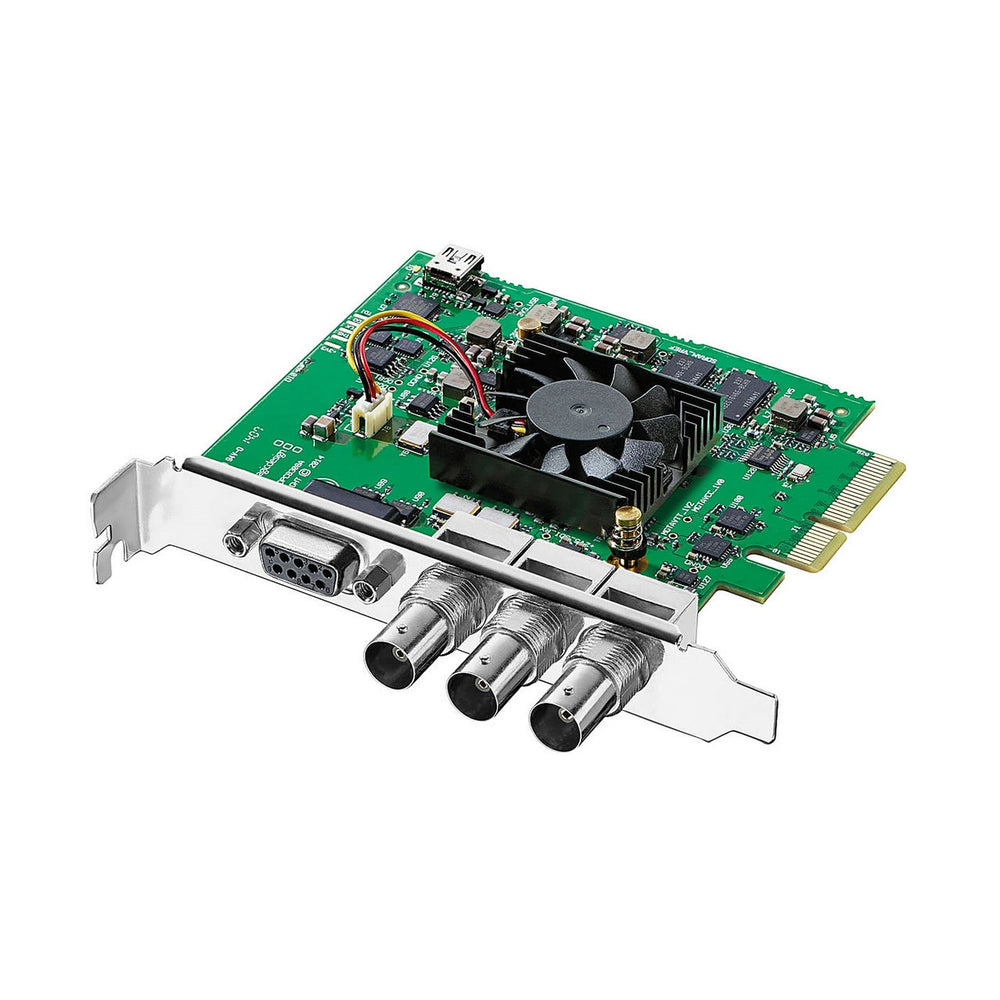

Blackmagic Design DeckLink SDI 4K Ultra HD Capture Playback PCIe Interface Card (Used)
The Blackmagic Design DeckLink SDI 4K Ultra HD Capture Playback PCIe Interface Card is a high-performance solution designed for professionals who need uncompromised SDI capture and playback. Despite being an open box product, it shows no signs of use, providing you with incredible quality 6G-SDI on any PCI Express Mac, Windows, or Linux computer. Known for its versatility, the DeckLink SDI 4K supports a wide range of video formats including SD, HD-SDI, 2K, and Ultra HD, making it an ideal choice for editing, paint, design, and more.
This world's smallest and most affordable multi-rate SDI video card not only ensures superior video capture and playback but also provides seamless connectivity options. With RS-422 deck control, internal keying, and a comprehensive reference input, the DeckLink SDI 4K is tailored to meet the complex needs of modern video production environments. Additionally, the device supports a wide array of codecs such as AVC-Intra, AVCHD, Canon XF MPEG2, and multiple Apple ProRes options, providing the flexibility to work with different media types effortlessly.
Key Features
- SDI Video Input: 1 x 10-bit SD/HD/2K/4K supporting 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
- SDI Video Output: 1 x 10-bit SD/HD/2K/4K supporting 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
- SDI Audio Input: 16 channels embedded in HD/2K/4K, 8 channels in SD
- SDI Audio Output: 16 channels embedded in HD/2K/4K, 8 channels in SD
- Sync Input: Blackburst in SD and various formats or Tri-Sync in HD, 2K, or UHD
- Device Control: Sony compatible RS422 deck control ports with software control for reversible TxRx direction
- Computer Interface: PCI Express 4 lane generation 1, compatible with 4, 8, and 16 lane PCIe Slots
- Multiple supported codecs including Apple ProRes, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2
Specifications
- Video Standards: SD Format Support 625/25 PAL, 525/29.97 NTSC
- HD Format Support: Full range from 720p50 to 1080p60
- 2K Format Support: 2048 x 1080p23.98 to 2048 x 1080p25
- 4K Format Support: Full range from 3840 x 2160p23.98 to 4096 x 2160p25
- SDI Compliance: SMPTE standards including 259M, 292M, 296M, 372M, 425M
- SDI Metadata Support: VITC read for 3:2 pulldown removal, VANC capture and playback
- Audio Sampling: Television standard sample rate of 48 kHz at 24 bit
- Video Sampling: 4:2:2 and 4:4:4 (4K is 4:2:2)
- Color Precision: 10-bit
- Color Space: REC 601, REC 709
- Multiple Rate Support: Switchable between SD/HD/2K and UHD
- Hardware-based real-time colorspace conversion
- HD Down Conversion: Built-in, high-quality hardware down converter
- HD Up Conversion: Software-based up conversion from SD to 720HD or 1080HD on capture
- Cross Conversion: Software-based cross conversion from 720HD to 1080HD
- Real-Time Effects: Compatible with Final Cut Pro X, Premiere Pro CC, Avid Media Composer, and DaVinci Resolve
- Operating Systems: Supports Mac OS X 10.9 Mavericks and later, Windows 7 64-bit and later, Linux
Package Contents
- Blackmagic Design DeckLink SDI 4K Ultra HD Capture Playback PCIe Interface Card
