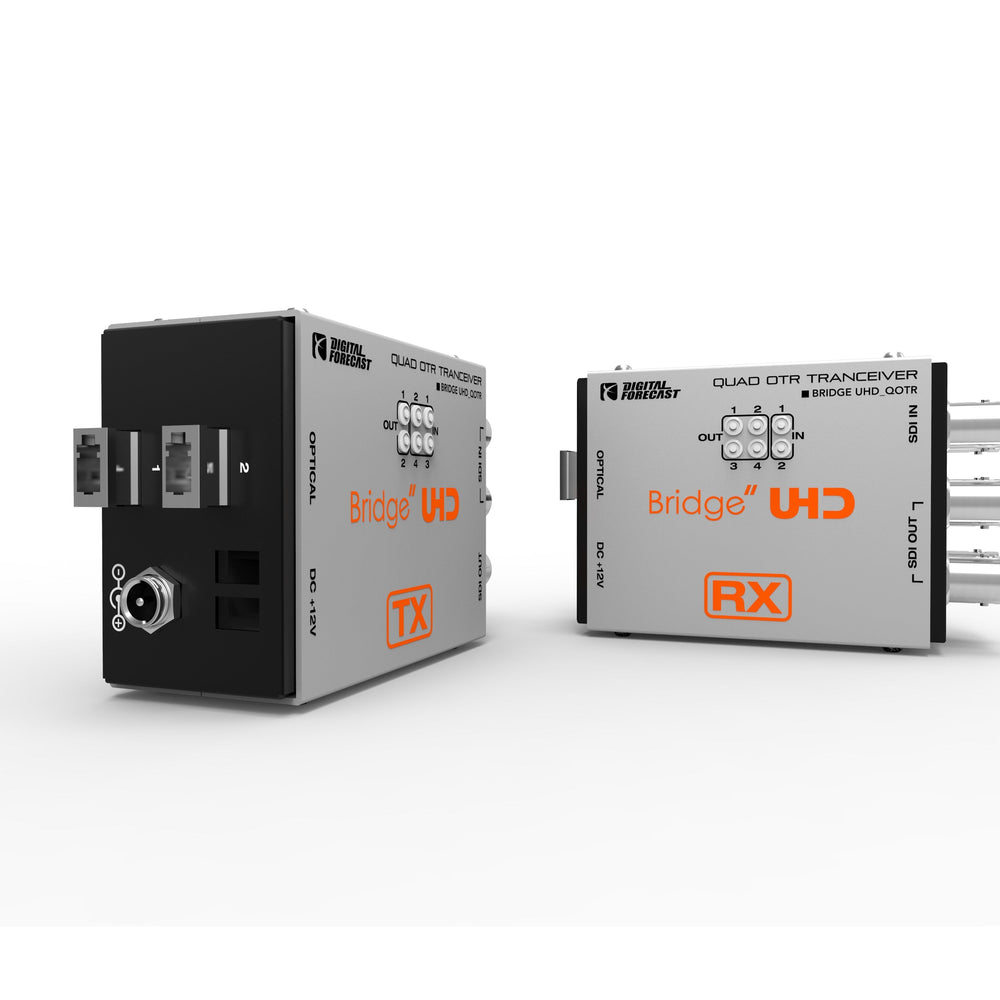

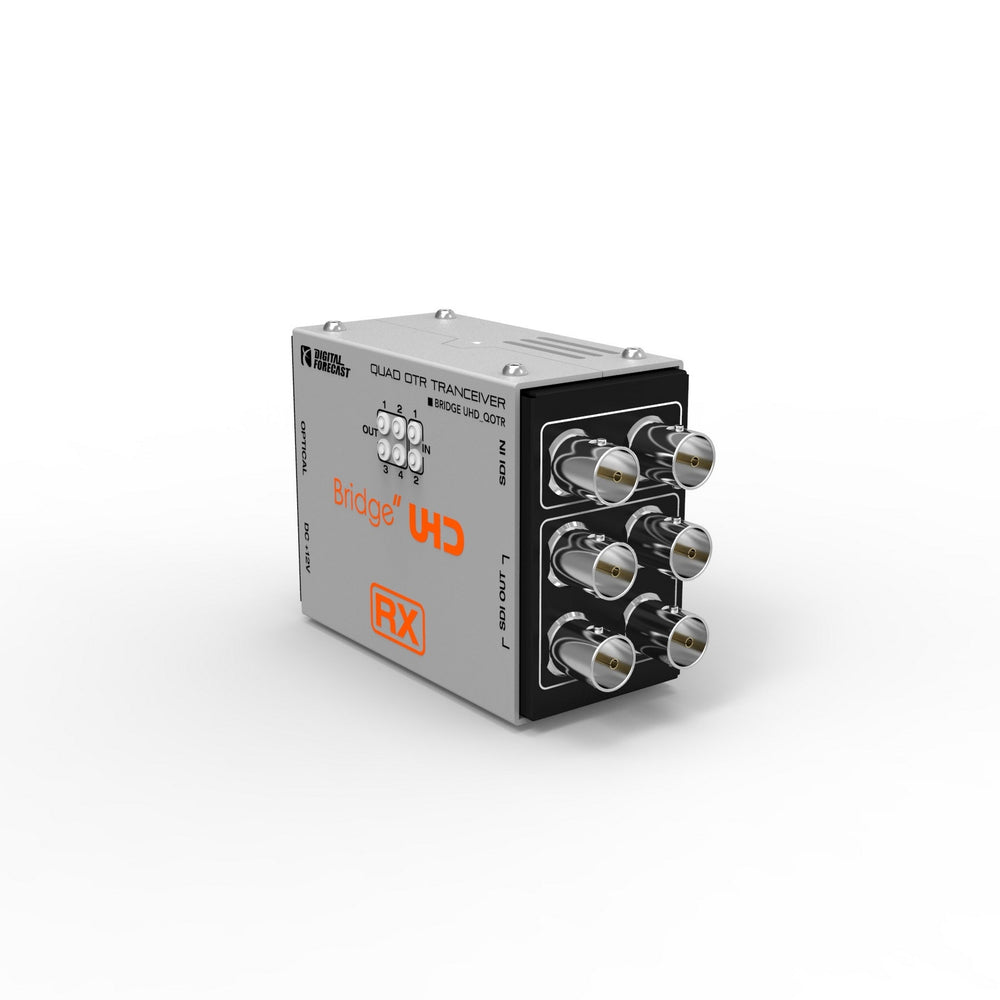

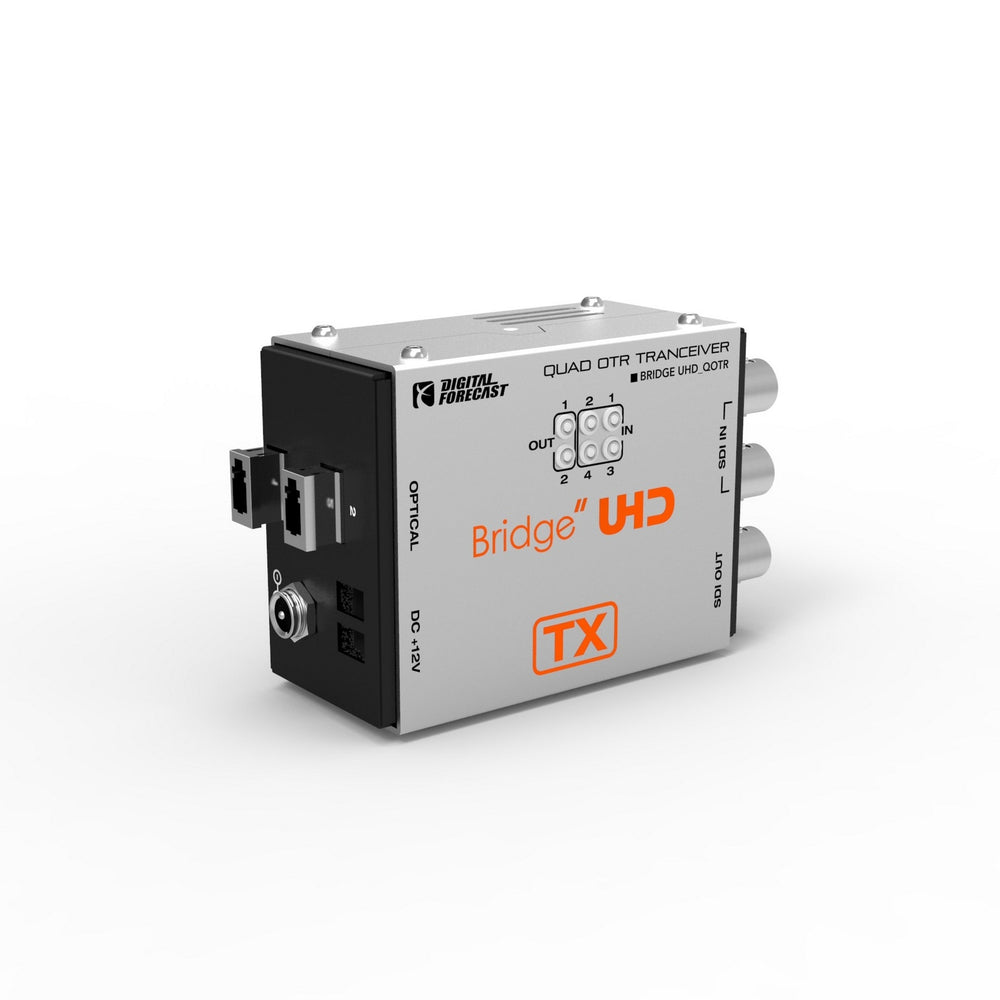

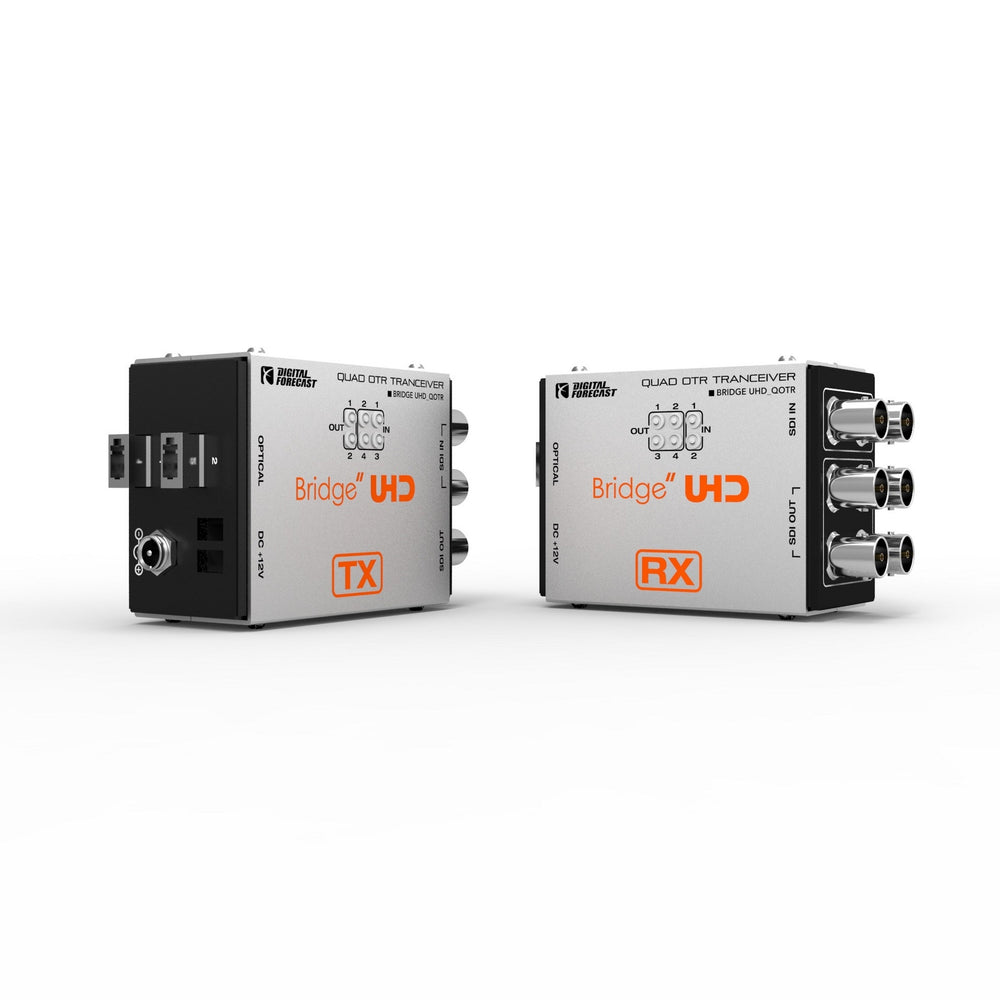

Digital Forecast Bridge UHD QOTR Quad-Link 3G-SDI and 3G/HD/SD-SDI Transceiver
Bridge UHD_QOTR is the device converting the 4 independent input signals of 3G SDI to dual core optical signal. Bridge UHD_QOTR is Bi-directional transmission module able to transmit the 4 independent signals as well as additionally receiving the 2 channels of 3G SDI input. Bridge UHD_QOTR is available to transmit not only UHD standard signal, but also a separate signal independently such as Non-standard 3D signal, Speed camera and so on.
Key Features
- Transport of Quad-Link 3G-SDI and 3G/HD/SD-SDI up to 10km
- Simultaneous Bi-directional Multi-Channel Optic Extension : SDI Tx 4CH / Rx 2CH.
- UHD 4K (Quad 3G-SDI to Optic) supported
- Standard SDI(SD,HD,3G) format supported
- LC single mode dual core fiber used
- SFP included?
- 12V DC Power supply (Operational Voltage Range : 7 ~ 17V DC)
Technical Specifications
Physical
Dimension (W x H x D)
79.1 x 59.2 x 37 (mm)
Weight
TX: 165g / RX: 165g
Power Level
5V ~ 17 VDC
Power Consumption
TX/RX 7.5/7.8 Watts (Max: 9/9 Watts)
Humidity
0 to 95% RH, non-condensing
Data Rate
3G
Signal Level
800mVp-p +/- 50m
Digital Video Specs.
SMPTE-296M
720P (60/59.94/50)
SMPTE-274M, SMPTE-292M
1080i (60/59.94/50)
SMPTE-424M
1080p (60/59.94/50) 3G
