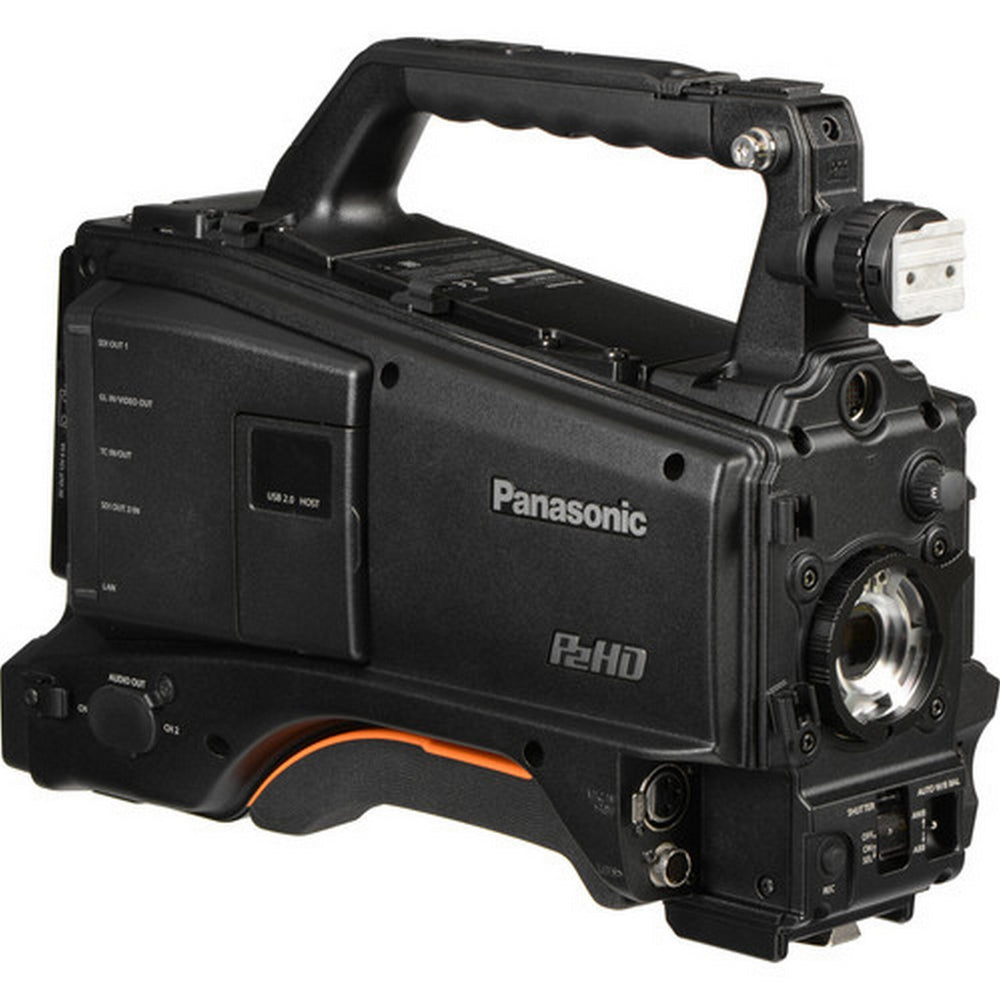

Panasonic AJ-PX380G Shoulder-Mount HD AVC-Ultra Camcorder, Body Only, No Lens

Overview

High Cost-Performance and Lightweight Design combine to deliver high-quality shooting and efficient network operation. The Panasonic AJ-PX380G shoulder-type camcorder raises broadcast picture quality while maintaining compact, lightweight mobility. It features 1/3‑type 2.2‑megapixel 3MOS sensors that provide high sensitivity, low noise, and a wide dynamic range. The AVC‑ULTRA codecs let you select the optimal bit rate for your needs—from high-quality 1080/60p (50p) 4:2:2 10‑bit recording to low‑rate streaming and FTP transmission.

With network functions supporting wired LAN, wireless LAN, and 4G/LTE connectivity, and a built‑in Camera Adaptor for simple base station connection via two BNC cables, this camcorder offers a cost‑efficient solution for a wide range of applications including news gathering, relay, live streaming, and studio operation.

Key Features

• Compact, Lightweight Design: 1/3 shoulder-type construction for enhanced mobility.
• Interchangeable Lenses: 1/3‑type bayonet mount accommodates various lenses.
• High Sensitivity & Low Noise: Equipped with 1/3‑type 3MOS sensors.
• Wide Dynamic Range: Delivers up to 600% dynamic range.
• Advanced Image Processing: Offers versatile image settings and processing functions.
• Focus Assist & Professional Shooting: Features advanced focus assist functions and professional shooting modes.
• Smart Display: Color HD viewfinder/monitor with a user-friendly “SmartUI”.
• Recording Versatility: Supports AVC‑ULTRA, full frame progressive recording, and multiple formats/codecs.
• High‑Quality Audio: 24‑bit four‑channel audio recording.
• Memory Card Options: Comes with microP2/P2 card slots for flexible storage.
• Simultaneous & Multifunctional Recording: Streamlines complex production workflows.
• Network Functions: Enables wired/wireless LAN and 4G/LTE, plus RTSP/RTMP/RTMPS‑compatible HD streaming.
• Live Streaming Enhancements: Compatible with LiveU or TVU video uplink solutions for stable transmission.
• Built‑In Camera Adaptor: Facilitates simple connections for camera studio systems.
• Remote Operation: Supports Camera Remote System and wireless control via the P2 ROP App using an iPad.
• SDI & HDMI Connectivity: Includes 3G‑SDI output, HD‑SDI input, and HDMI output for versatile connections.

Technical Specifications

General

• Power: DC 12 V (11.0 V to 17.0 V)
• Power Consumption: 19 W (body only, 1080/60i, AVC‑Intra 100 standard, LCD ON); 58 W (with all optional accessories connected)
• Operating Temperature: 32 °F to 104 °F
• Operating Humidity: 10% to 85% (relative humidity)
• Storage Temperature: -4 °F to 140 °F
• Weight: Approximately 6.0 lbs (body only, excluding battery and accessories)
• Dimensions: 5‑21/32" x 10‑1/2" x 13‑11/16" (Body only, excluding protrusions)

Camera Unit

• Pickup Device: 1/3‑type 2.2‑megapixel 3MOS sensor
• Lens Mount: 1/3‑type bayonet design
• ND Filter Options: 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
• Super Gain (S. GAIN): Selectable from 24 dB, 30 dB, 36 dB
• Shutter Open Angle: 3.0° to 360.0° in 0.5° increments (with angle display)
• Horizontal Resolution: 1000 TV lines or higher (center)

Memory Card Recorder

• Recording Media: Supports 1 P2 card and 2 microP2 cards
• System Format: Options include 1080/59.94p, 1080/59.94i, 1080/23.98psF, 720/59.94p, 480/59.94i, 1080/50p, 1080/50i, 720/50p, and 576/50i
• Recording Format: Choices include AVC‑Intra100, AVC‑Intra50, AVC‑LongG50, AVC‑LongG25, AVC‑LongG12, DVCPRO HD, DVCPRO50, DVCPRO, and DV formats
• Recording Video Signal: Multiple formats covering various resolutions and frame rates

Video Input/Output

• SDI OUT1: BNC x1
• HD‑SDI (3G/1.5G) and SD‑SDI: 0.8 V p‑p, 75 Ω
• SDI OUT2/IN: BNC x1 (menu selectable for HD‑SDI/SD‑SDI)
• GL In/Video Out: BNC x1 for GENLOCK IN and VIDEO OUT (Composite VIDEO OUT: 1.0 V p‑p, 75 Ω)
• HDMI OUT: HDMI Type A terminal (not compatible with VIERA Link)

Audio & Other I/O

• AUDIO IN CH1/3, CH2/4: XLR (3‑pin) x2 (with LINE/MIC selection; +48 V ON/OFF available)
• MIC IN: XLR (3‑pin) x1 with selectable gain options and support for +48 V
• Wireless IN: 25‑pin D‑SUB supporting 2 channels at -40 dBu
• AUDIO OUT: Pin jacks x2 (CH1 and CH2) with a 600 Ω output, 316 mV level
• Phones: 3.5 mm stereo mini jack
• Speaker: 20 mm diameter round speaker
• TC IN/OUT: BNC x1, configurable via menu (input: 0.5 V p‑p to 8 V p‑p; output: 2.0 ±0.5 V p‑p)
• LAN: 100BASE-TX/10BASE-T connectivity
• USB 2.0: Device (Type B, 4‑pin), Host (Type A, 4‑pin), and Sub Host (Type A, 4‑pin, exclusively for wireless module AJ‑WM30)
• DC IN/OUT: DC 12 V via XLR/4‑pin connectors; DC OUT supports up to 1.5 A
• Remote, Lens, & EVF Ports: 10‑pin (REMOTE), 12‑pin (LENS), 20‑pin (EVF)

Item Includes

• Camcorder: 1 x AJ‑PX380G Camcorder
• Accessories: 1 x Shoulder Strap and 1 x Mount Cap
