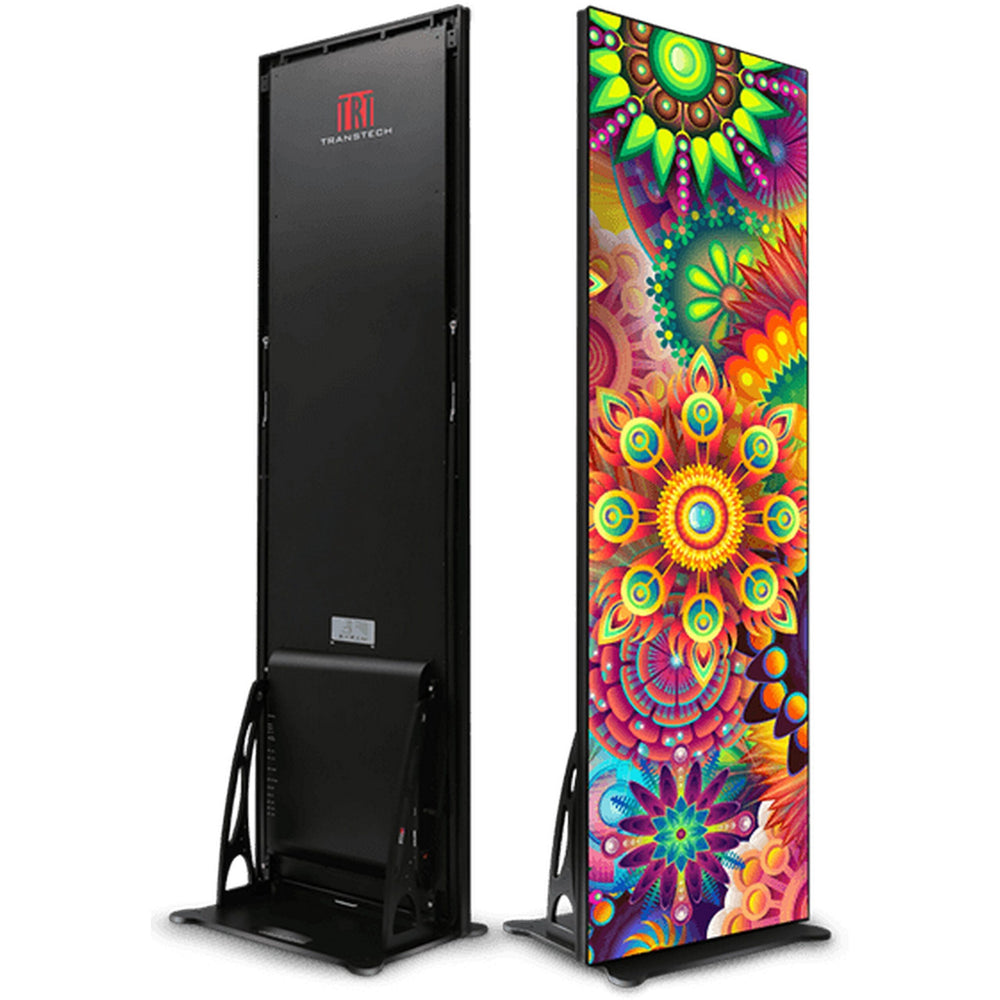

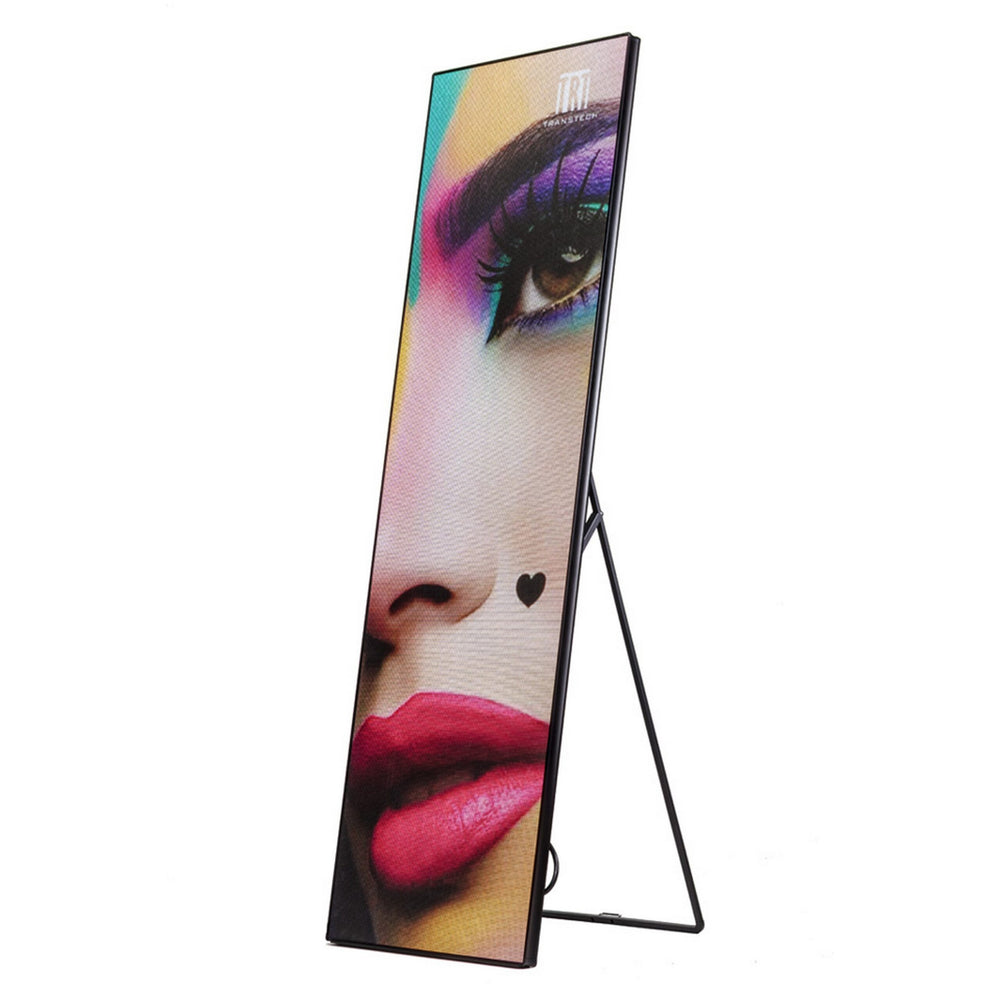

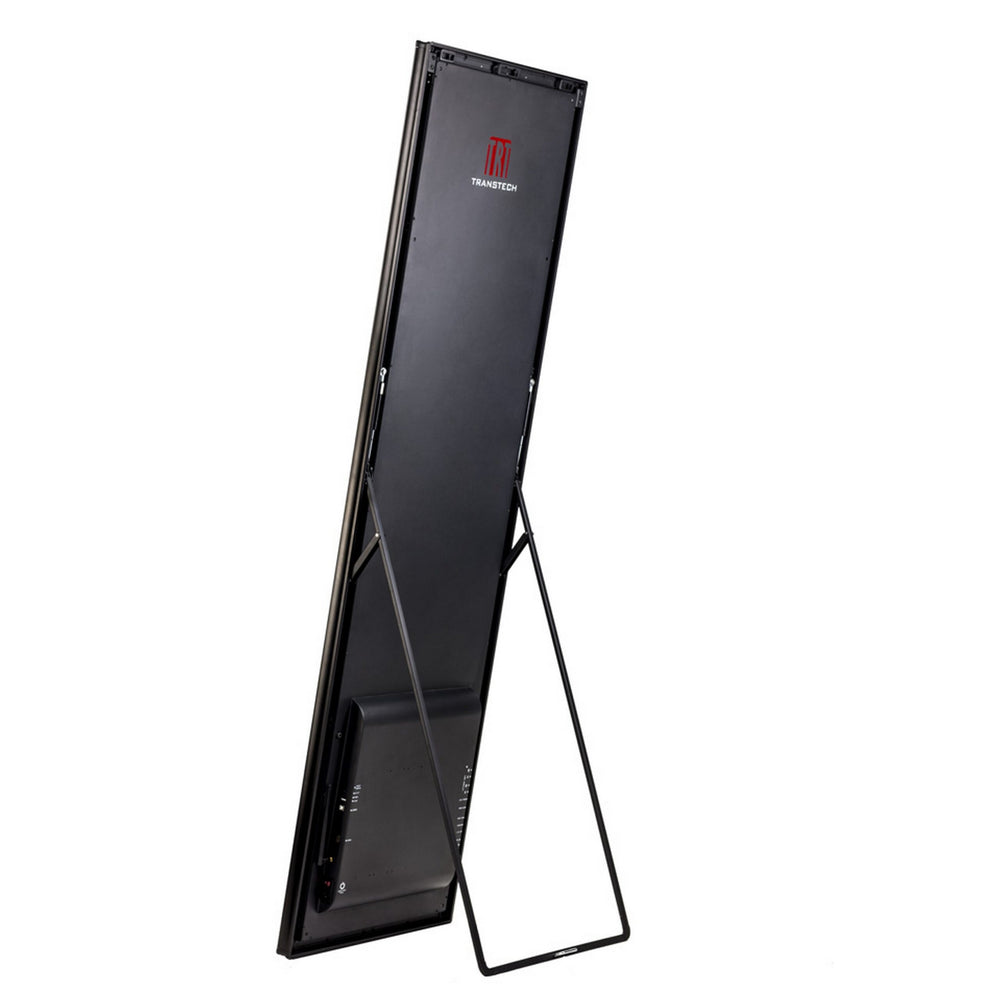

TRT IP25 2.5mm LedPoster LED Digital Display

LedPoster Digital Displays

Key Features

• High Refresh Rate and Brightness
• Wide Viewing Angle
• Realistic Color Reproduction

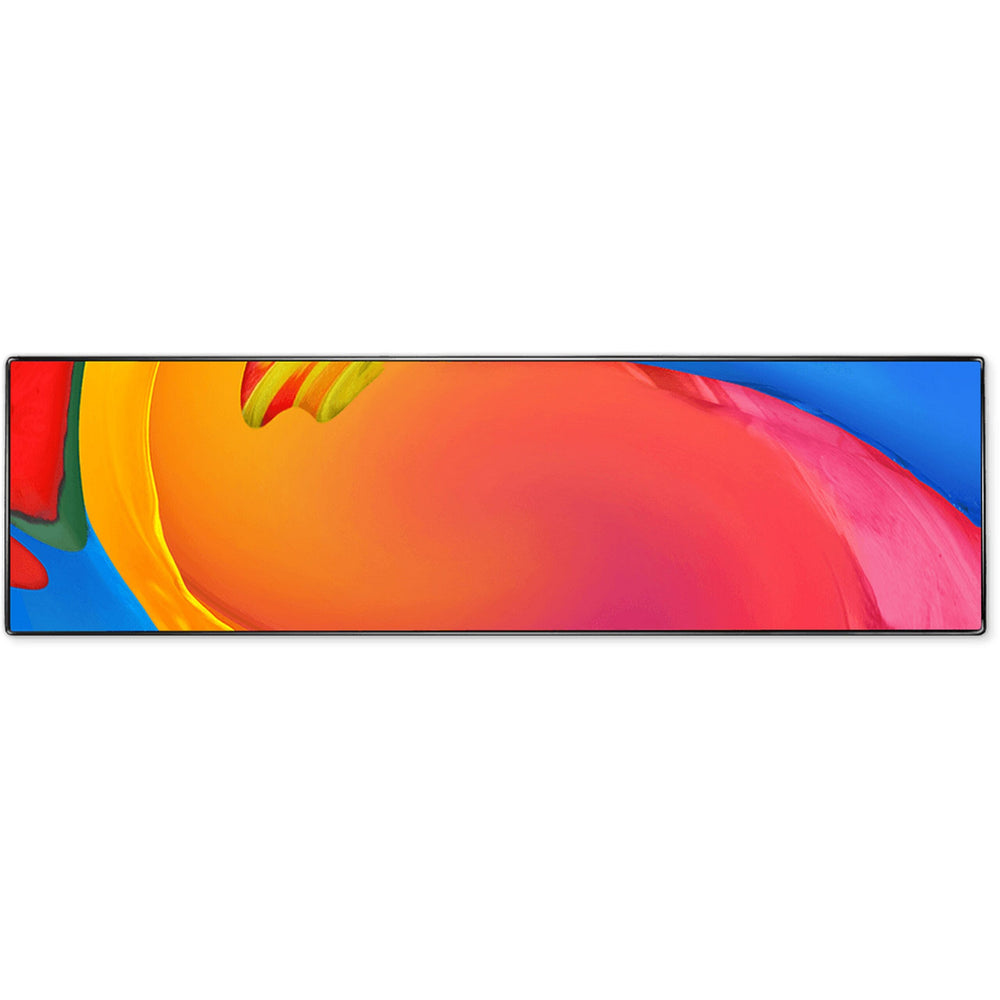

• Multiple Installation Configurations

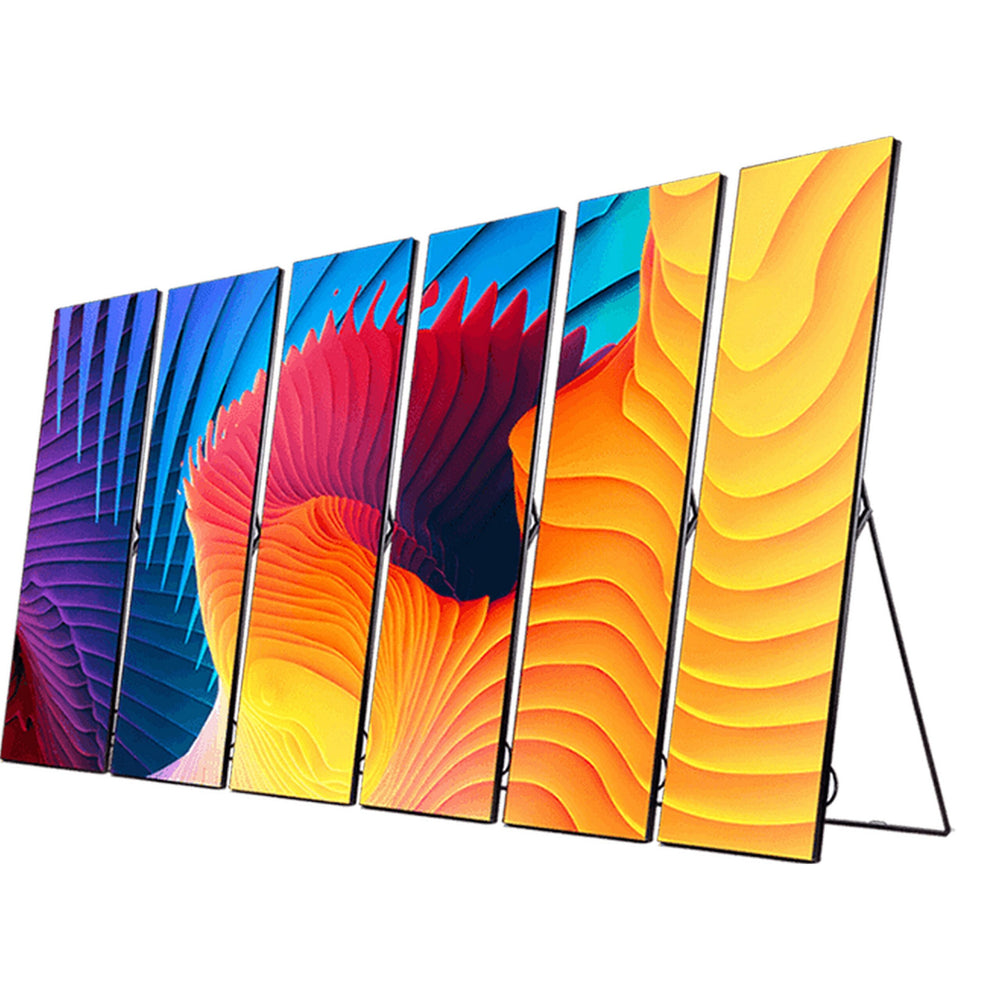

• Single Display or Multi-Screen Cascade
• Easily Controlled with SmartPhone or
• Computer via USB or Wi-Fi

Technical Specifications

LED Type
IP19C: SMD(1010)
IP25C: SMD(2020)
Pixel pitch
IP19C: 1.944 mm (0.0765 in)
IP25C: 2.5 mm (0.0984 in)
LED module size
IP19C: 210 280 mm (8.27 x 11.02 in)
IP25C: 210 280 mm (8.27 x 11.02 in)
Resolution (HW)
IP19C: 108 144
IP25C: 84 112
LED driving method
IP19C: 1/27 dynamic scan
IP25C: 1/28 dynamic scan
LED module layout (HxW)
IP19C: 9 x 2
IP25C: 9 x 2
Resolution (HW)
IP19C: 972 x 288
IP25C: 756 x 224
Display area
IP19C: 1.06 m2
IP25C: 1.06 m2
Cabinet size
IP19C: 1902 - 572 - 35 mm (74.88 x 22.52 x 1.38 in)
IP25C: 1902 - 572 - 35 mm (74.88 x 22.52 x 1.38 in)
Net. Weight
IP19C: 32 kg (70.5 lbs)
IP25C: 32 kg (70.5 lbs)
Ingress Protection
IP19C: Front IP40/Rear IP40
IP25C: Front IP40/Rear IP40
Power
IP19C: AC 240/100 +/-10%
IP25C: AC 240/100 +/-10%
Serviceability
IP19C: Front service
IP25C: Front service
Max. Power consumption
IP19C: 750 W
IP25C: 600 W
Avg. Power consumption
IP19C: 250 W
IP25C: 200 W
Viewing Angle (H/V)
IP19C: 160/160
IP25C: 160/160
Brightness
IP19C: 1000 cd/m2
IP25C: 1200 cd/m2
Pixel density (pixel/m2)
IP19C: 279,936
IP25C: 169,344
Contrast ratio
IP19C: 4,000:1
IP25C: 4,000:1
Temperature / Humidity (Operation/Storage)
IP19C: -10C to +40C; 10% to 90%
IP25C: -10C to +40C; 10% to 90%
Lifetime (50% brightness)
IP19C: 80,000 hours
IP25C: 80,000 hours
Processing
IP19C: 16 bit
IP25C: 16 bit
Colors
IP19C: 281 trillion
IP25C: 281 trillion
Refresh rate
IP19C: >= 2880Hz
IP25C: >= 2880Hz
HDMI
IP19C: HDMI In x 1; HDMI Out x 1
IP25C: HDMI In x 1; HDMI Out x 1
LAN
IP19C: RJ45 x 3
IP25C: RJ45 x 3
USB
IP19C: USB-A x 3; USB-B x 2
IP25C: USB-A x 3; USB-B x 2
Audio
IP19C: MiniStereo x 1
IP25C: MiniStereo x 1
