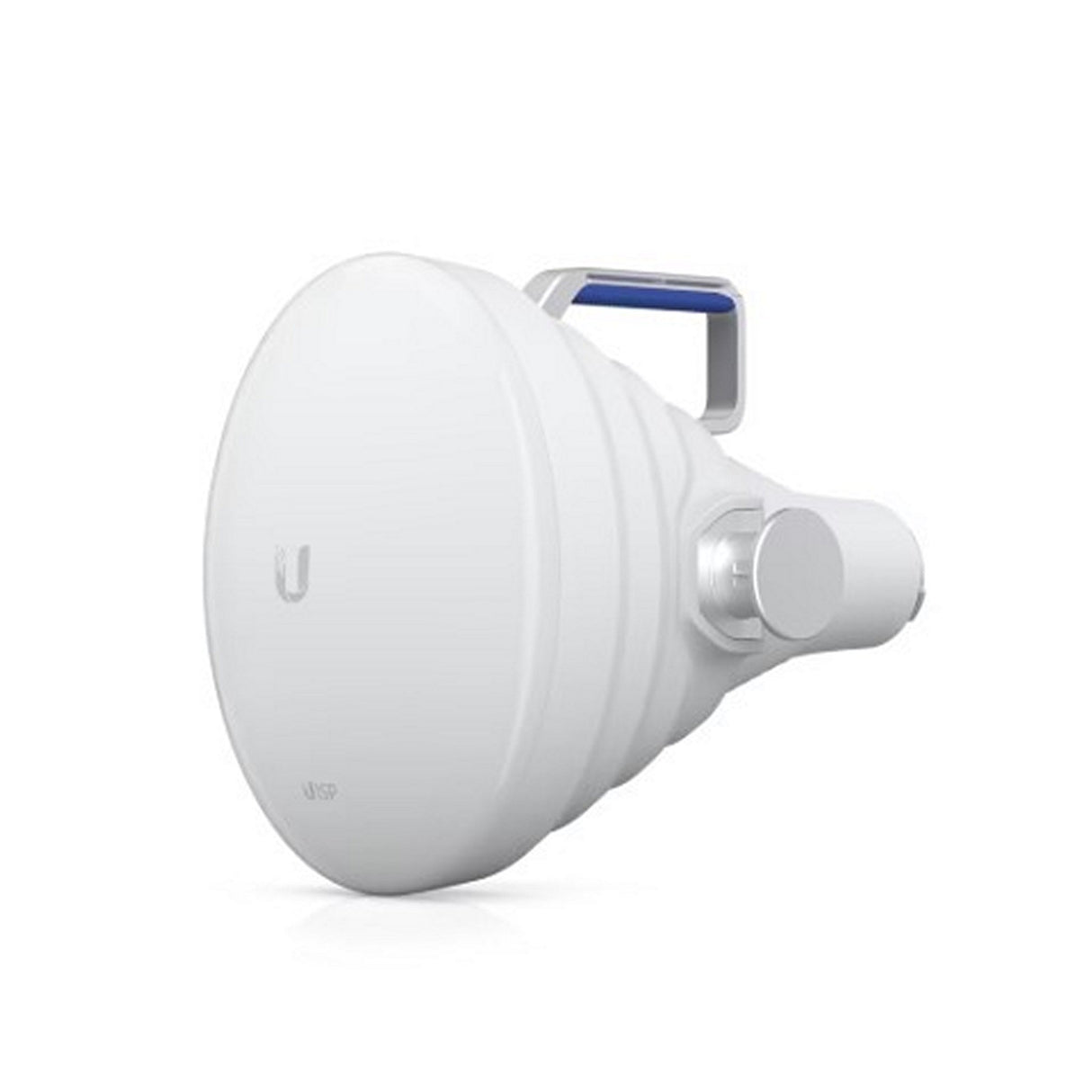

Ubiquiti UISP Horn Antenna – 19.5 dBi for Point-to-Multipoint
The Ubiquiti UISP Horn Antenna offers a high-performance solution for long-range point-to-multipoint (PtMP) connections, providing a wide frequency range of 5.15 GHz to 6.875 GHz. This antenna is engineered for reliability in outdoor environments, with robust weatherproofing (IPX6) and high wind survivability of up to 200 km/h (124 mph). Its compact design and mechanical adjustment capabilities make it easy to install, while delivering impressive gain and low interference, perfect for expansive coverage areas.
Key Features
- Wide frequency range: 5.15 to 6.875 GHz
- 19.5 dBi gain for efficient PtMP connectivity
- Azimuth beamwidth of 30° and elevation of 25° for optimal coverage
- Built-in weatherproofing (IPX6) for durability
- Wind survivability up to 200 km/h (124 mph)
- Easy installation with included mounting kit
- Dual-linear polarization for reduced interference
Technical Specifications
Dimensions: 282 x 224 x 380 mm (11.1 x 8.8 x 15")
Weight (Device): 3.06 kg (6.75 lb)
Weight (Mount): 925 g (2.04 lb)
Enclosure Materials: UV stabilized polycarbonate, aluminum alloy
Wind Survivability: Up to 200 km/h (124 mph)
Wind Loading: 90 N at 200 km/h
Mounting: Alignment mounting kit (included)
Mechanical Adjustment: ±20° elevation, ±25° azimuth
Pole Compatibility: Ø25 to 70 mm (Ø1 to 3")
Weatherproofing: IPX6
Frequency Range: 5.15 to 6.875 GHz
Gain: 19.5 dBi
Beamwidth: Azimuth: 30° (6 dB), Elevation: 25° (6 dB)
Electrical Downtilt: 0°
Maximum VSWR: 2:1
Polarization: Dual-linear
Cross-Pol Isolation: 20 dB
Front-to-Back Ratio: Typical: 45 to 50 dB, Min.: 40 dB
