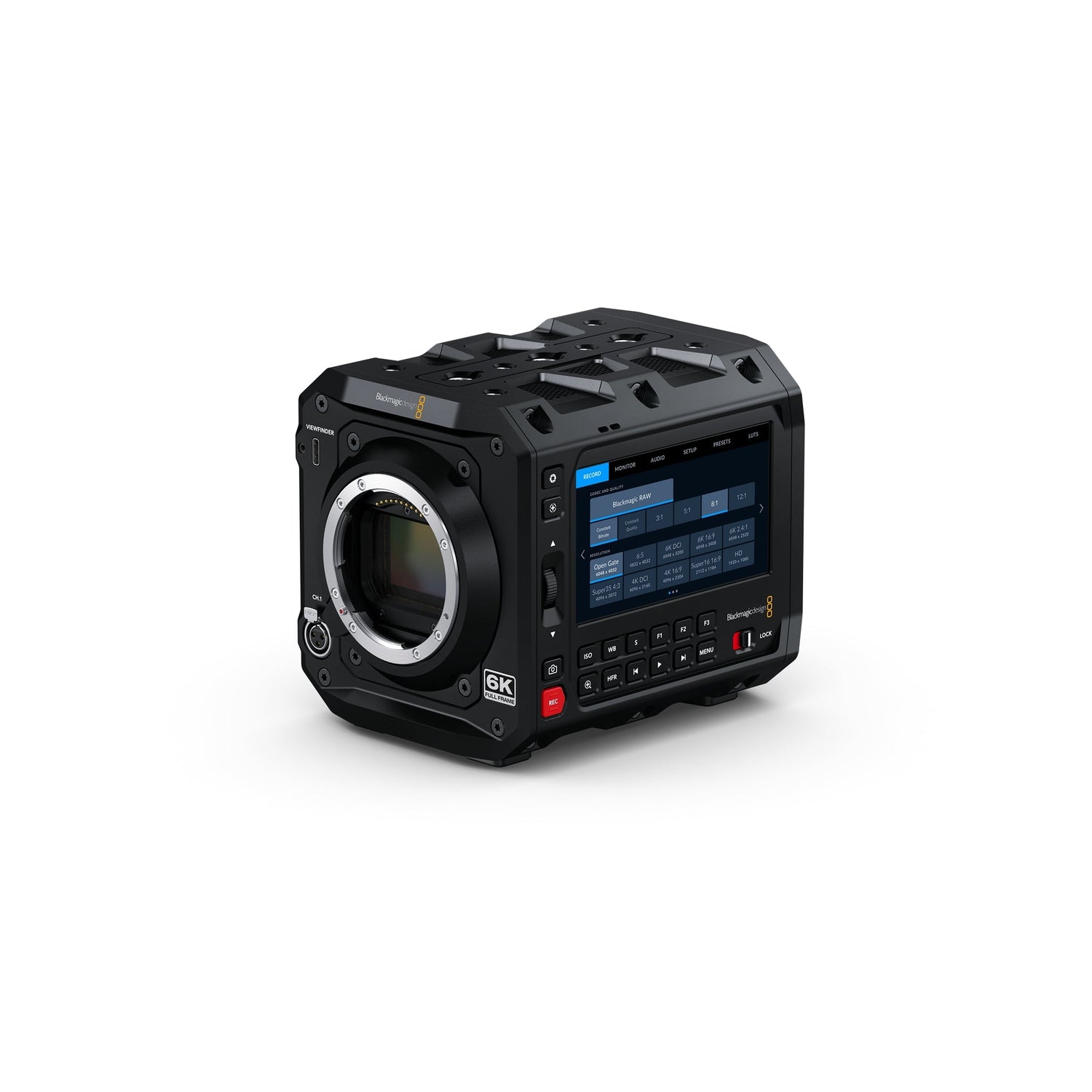

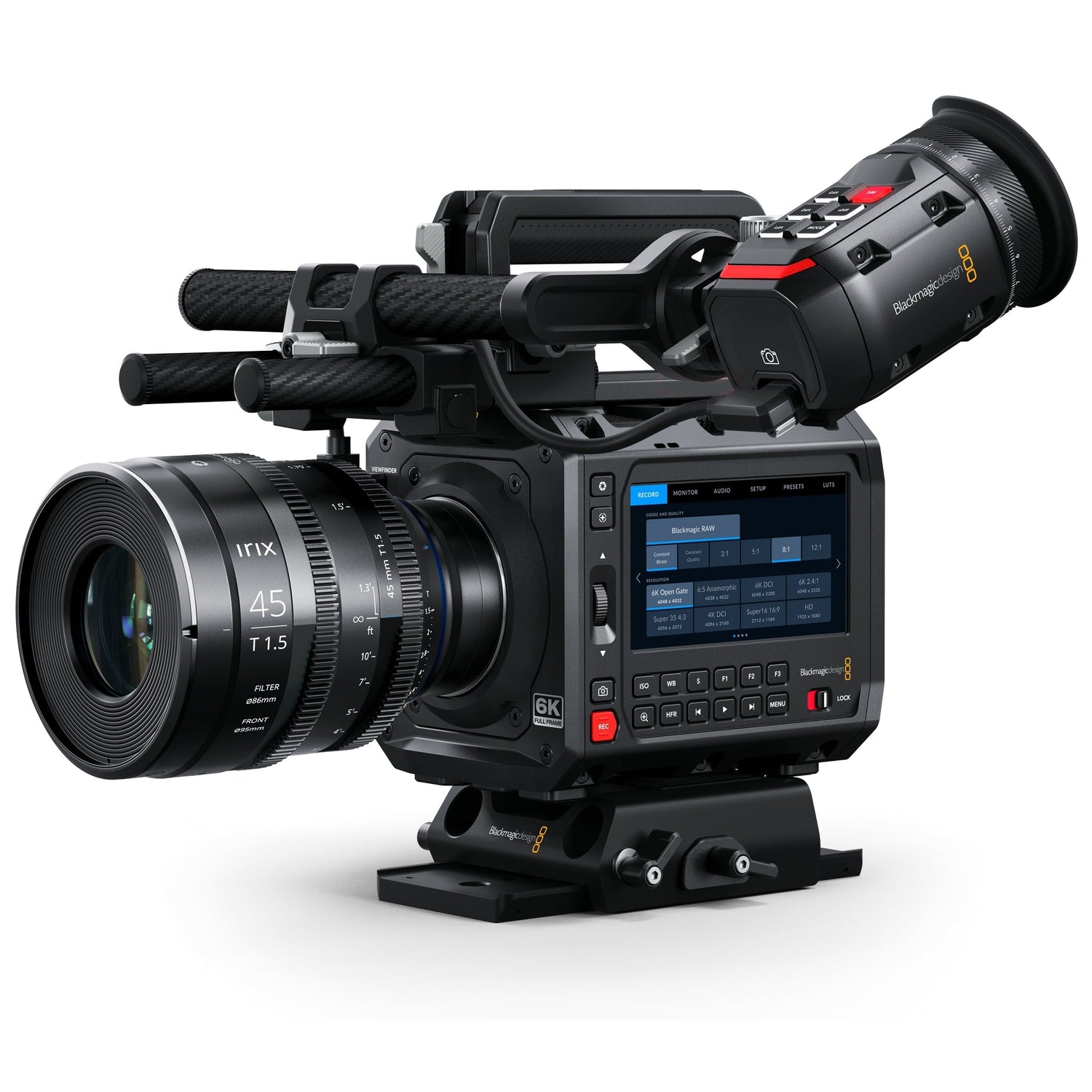

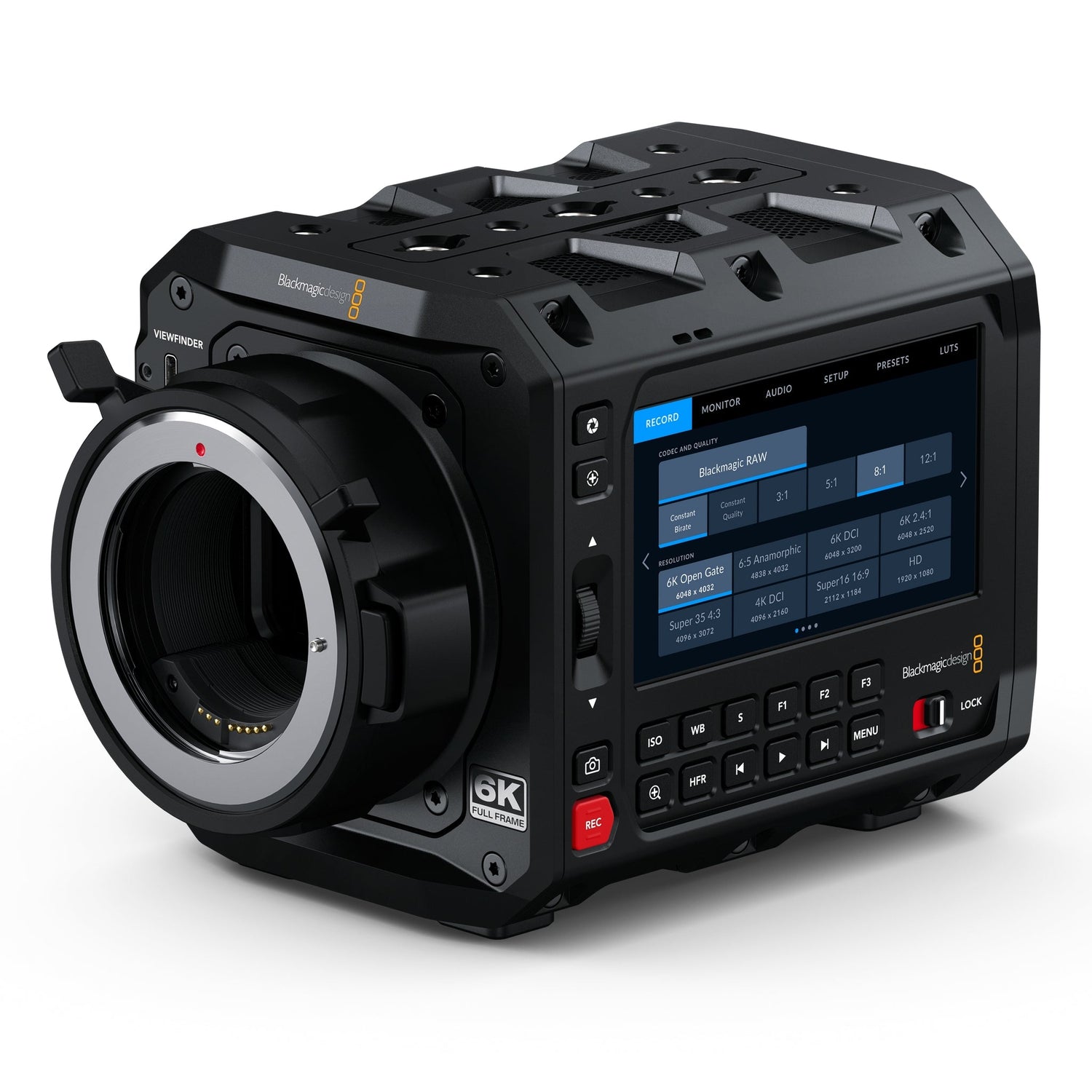

Blackmagic Design PYXIS 6K Cinema Camera - EF Mount

Blackmagic Design PYXIS 6K Cinema Camera – Capture Cinematic Greatness

Experience unparalleled cinematic quality and versatility with the Blackmagic Design PYXIS 6K Cinema Camera. This state-of-the-art digital film camera is designed for high-end video production, offering a customizable body and various mounting options suitable for any filming scenario. Boasting a full-frame HDR sensor with a resolution of 6048 x 4032, built-in optical low-pass filter, dual native ISO, and dual CFexpress media slots, the Blackmagic PYXIS 6K equips filmmakers with the tools needed to capture every detail with stunning clarity and dynamic range.

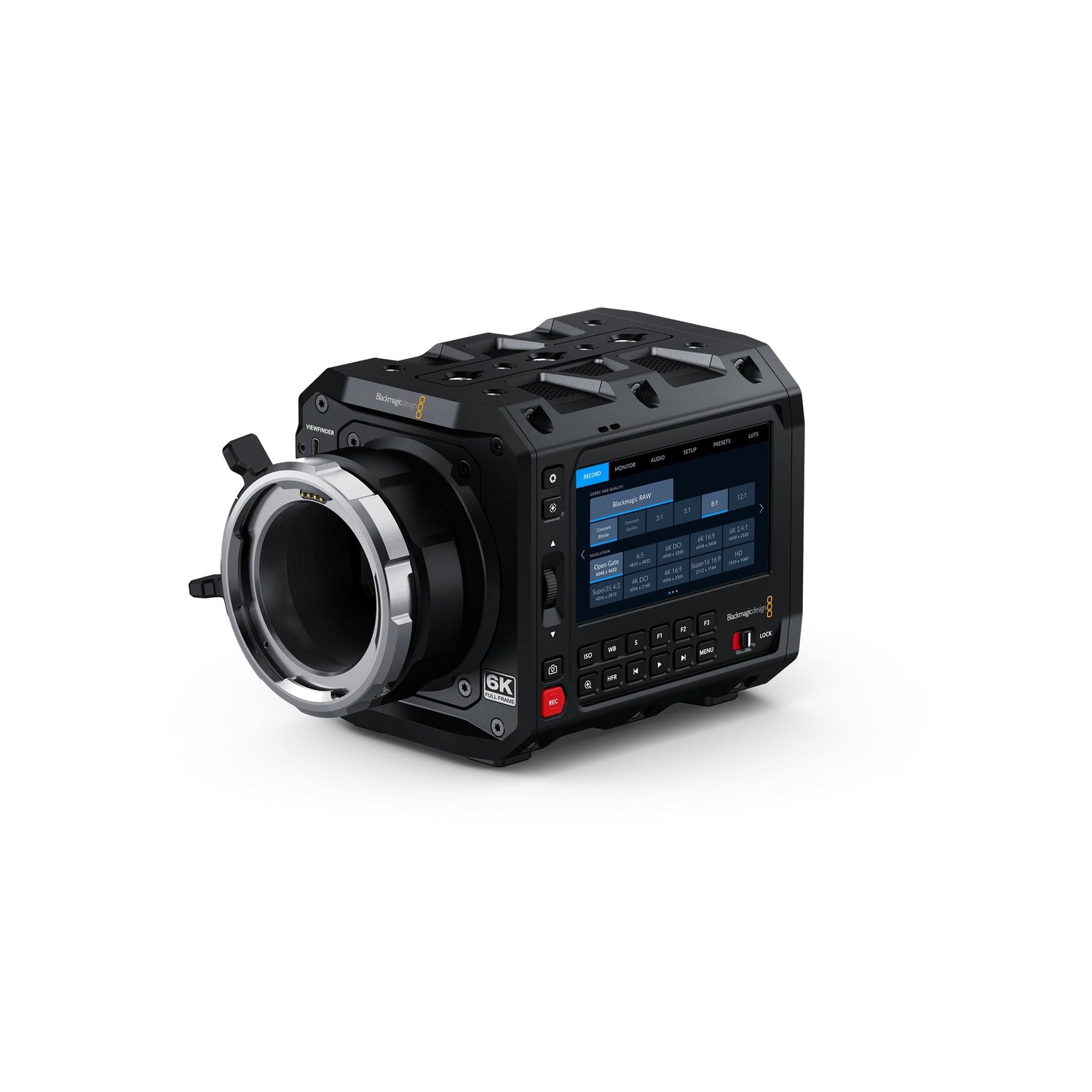

The Blackmagic PYXIS 6K is available in three different variants, specifically configured with fixed L-Mount, PL, or locking EF lens mounts. This customization ensures that filmmakers can select the perfect model based on their lens preferences and shooting requirements. Additionally, its precision CNC machined aerospace aluminum body makes it both lightweight and durable, ready for on-location shoots as well as studio settings. With multiple mounting points, accessory side plates, and versatile use compatibility with cranes, gimbals, and drones, the Blackmagic PYXIS 6K is adaptable to any shoot and every creative vision.

The camera's ability to record both 12-bit Blackmagic RAW and H.264 proxies simultaneously allows for flexible workflows in post-production, further enhancing its appeal to professional cinematographers. Whether it's for feature films, television programming, documentaries, social media content, or YouTube videos, the Blackmagic PYXIS 6K Cinema Camera stands out as a formidable tool for any videographer aiming to achieve top-tier results.

Key Features

• Customizable cinema camera designed for high-end digital film production
• Full-frame 36 x 24mm 6K sensor with wide dynamic range and built-in optical low-pass filter
• Available in EF, PL, or L-Mount models for different user preferences
• Equipped with dual CFexpress media recorders and Ethernet for easy media sharing to Blackmagic Cloud
• Records 12-bit Blackmagic RAW and H.264 proxies simultaneously for flexibility in post-production
• Multiple mounting points and accessory side plates for easy configuration
• Precision CNC machined aerospace aluminum body – lightweight and durable
• Compatible with various camera rigs like cranes, gimbals, and drones
• Various 1/4” and 3/8” thread mounts on the body and side plates for mounting accessories
• Suitable for feature films, TV programming, documentaries, social media content, and more

Specifications

• Effective Sensor Size: 36mm x 24mm (Full Frame)
• Lens Mount Options: Active L-Mount, PL, EF
• Dynamic Range: 13 Stops
• Dual Native ISO: 400 and 3200
• Shooting Resolutions up to 6048 x 4032 (6K) at 36 fps
• Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps supported
• Focus: Auto focus with compatible lenses
• Screen Dimensions: 4” 1920 x 1080 LCD capacitive touchscreen
• Screen Brightness: 1500 nits
• Audio Inputs: 1 x mini XLR, 1 x 3.5mm Stereo Input
• Audio Outputs: 1 x 3.5mm headphone jack
• Ethernet: 1 x 1Gb/s RJ-45 connector
• Media: 2 x CFexpress Type B card slots
• Power: External 12V power supply, 1 x 2-pin locking connector
• Weight: 3.3 lb
• Dimensions: Width: 5.94”, Height: 4.69”, Length: 4.17”

Package Contents

• Blackmagic PYXIS 6K Camera
• Lens turret dust cap
• PYXIS Standard Plate
• PYXIS SSD Plate
• 60W power supply with locking connector and international adapters
• Welcome booklet
• DaVinci Resolve Studio activation key
