Detailed Summary:

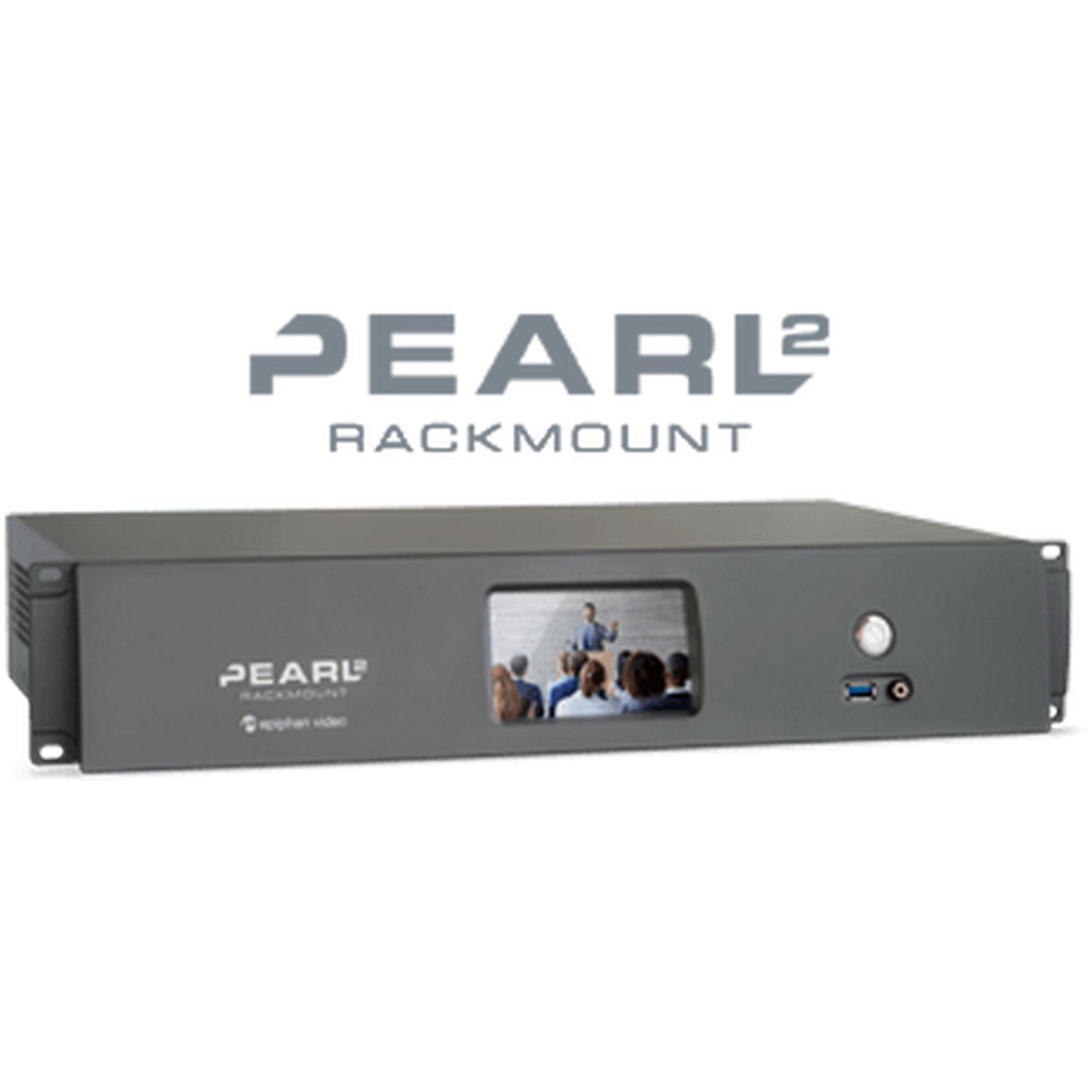

The Epiphan Pearl 2 Rackmount is an all-in-one system designed for live video switching, streaming, and recording in HD and 4K. It allows for live streaming to multiple platforms while simultaneously recording for post-production or video on demand.

Key Features:

• 2U rackmount chassis
• Live video switching using touch screen or web UI
• Support for multiple audio and video input sources including 12G-SDI, HD-SDI, SD-SDI, HDMI
• Ability to stream up to 6 1080p HD streams at 30 fps or 2 at 60 fps
• Visual layout editor for creating custom multi-view layouts
• Base model with option to activate add-ons for additional features

Technical Specifications:

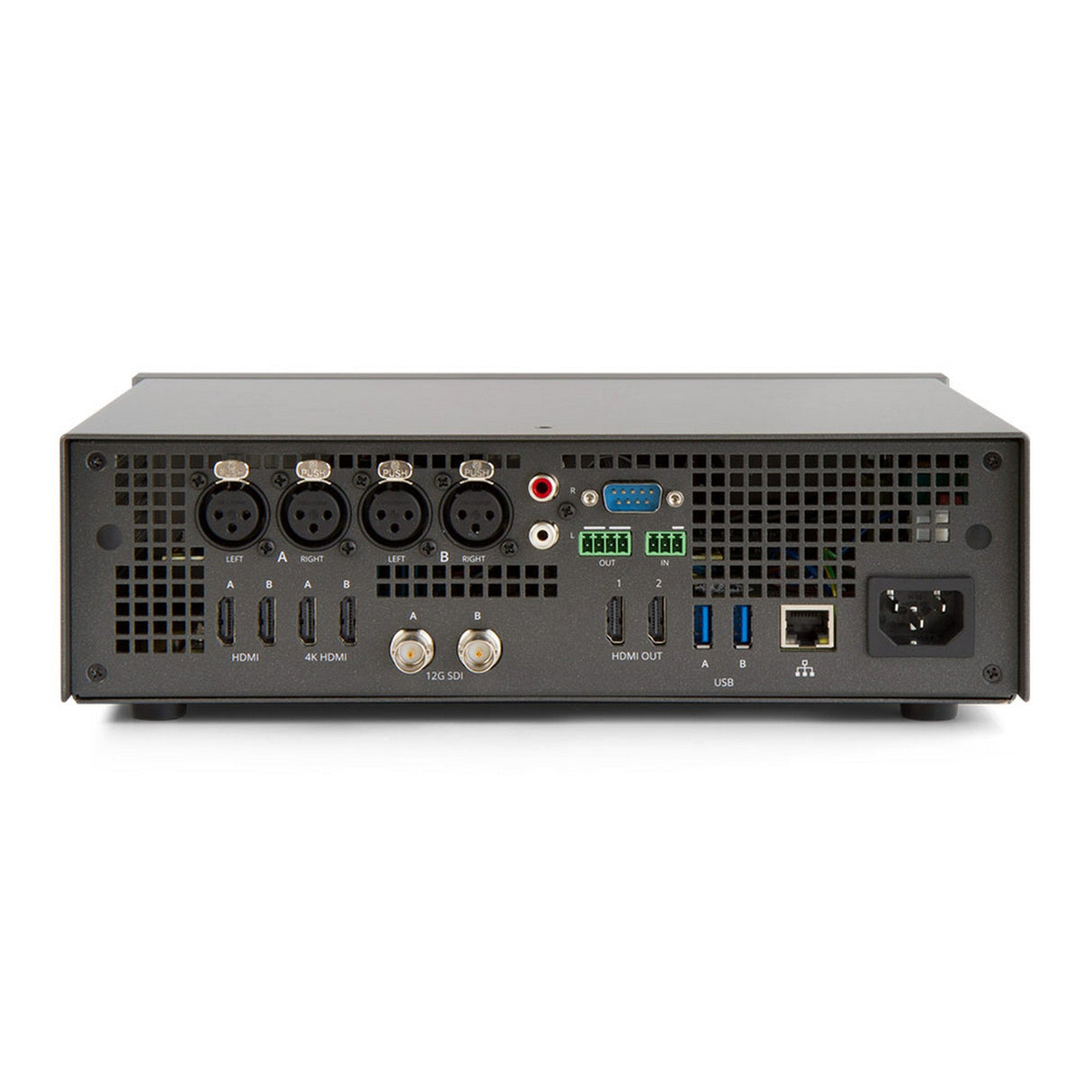

• Video Inputs:
  • (2) 12G SDI
  • (2) HDMI / DVI1
  • (2) 4K HDMI / DVI1
• Network Inputs: RTSP sources over IP
• Audio Inputs: Various connectors including XLR and RCA
• Video Output: (2) 4K HDMI out with audio
• Built-in Display: Front touch screen display
• Video Encoding:
  • Support for H.264 and MPEG-4 codecs
  • Configurable video bit rates and frame sizes
• IP Network Interfaces: Ethernet RJ45
• Video / Audio Recording: Internal storage and network storage options
• Administration: Admin panel for full control and multiple user accounts
• Power Use: 0.8 A, 100-240 V ac
• Product Dimensions:
  • Pearl-2: 11.81” x 9.45” x 3.54”
  • Pearl-2 Rackmount: 19 5/8” x 3 1/2” x 10 7/8”
  • Pearl-2 Rackmount Twin: 19 5/8” x 3 1/2” x 10 7/8”
• Product Weight:
  • Pearl-2: 8.38 lbs
  • Pearl-2 Rackmount: 12.1 lbs
  • Pearl-2 Rackmount Twin: 14.6 lbs
