Klipsch PRO-504-L THX Ultra2 Certified In-Wall LCR Speaker with Four 5.25-Inch Woofers, Single Unit
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Klipsch PRO-504-L THX Ultra2 Certified In-Wall LCR Speaker with Four 5.25-Inch Woofers, Single Unit

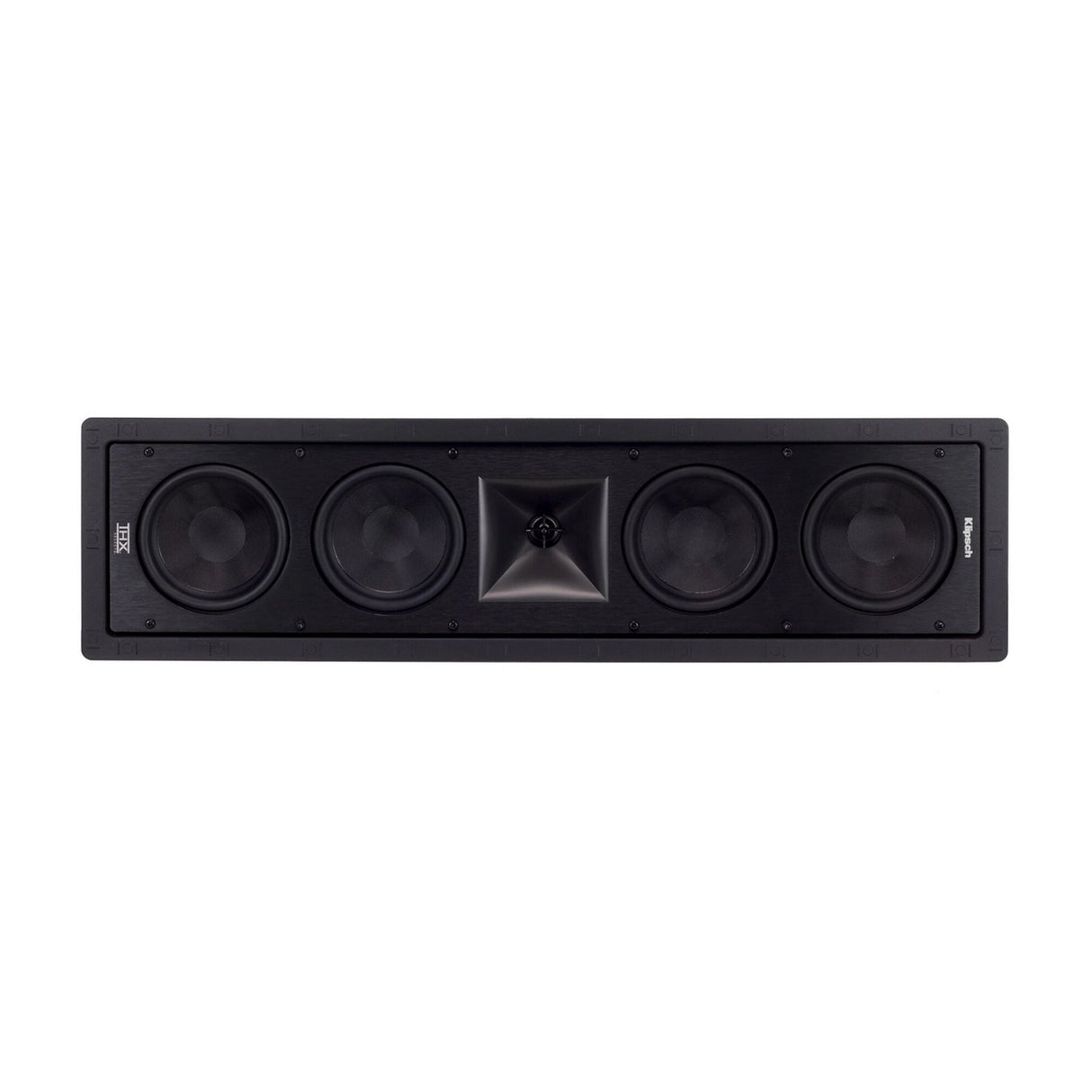

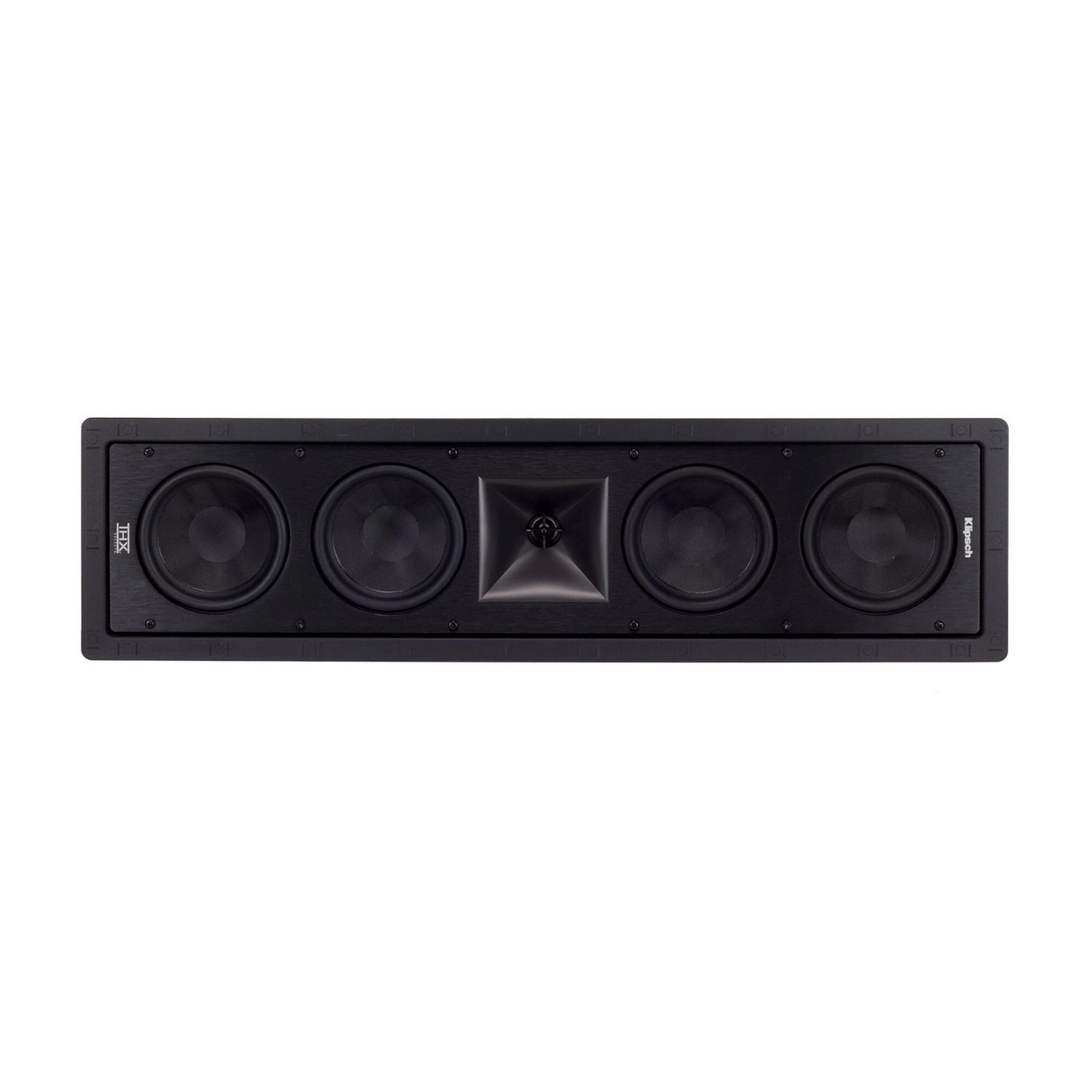

The Klipsch THX-504-L In-Wall Speaker delivers cinema-quality sound in a sleek, space-saving design. Engineered for high-performance home theater systems, it features a 1" titanium diaphragm compression driver paired with a 90 ° x 90 ° square Tractrix ® horn, ensuring precise and dynamic audio reproduction. Four 5.25" fiberglass cone woofers provide robust bass and midrange clarity, making it ideal for left, center, or right channel applications. With its THX Select certification, the THX-504-L guarantees consistent, compelling audio performance in medium to large-sized rooms.
Designed for seamless integration, the speaker boasts a paintable white magnetic grille that blends effortlessly with any décor. Its infinite baffle design and front flush wall mounting offer flexibility and ease of installation. The enclosure combines MDF and aluminum motorboard with an ABS frame, ensuring durability and acoustic integrity. Whether you're upgrading your existing setup or building a new home theater, the Klipsch THX-504-L In-Wall Speaker offers professional-grade sound without occupying valuable floor space.
Key Features
- THX Select Certified: Ensures high-performance audio suitable for medium to large home theater rooms.
- 1" Titanium Diaphragm Compression Driver: Delivers clear and detailed high-frequency response.
- Four 5.25" Fiberglass Cone Woofers: Provide powerful bass and accurate midrange reproduction.
- 90 ° x 90 ° Tractrix ® Horn: Enhances efficiency and dispersion for a wide soundstage.
- Paintable Magnetic Grille: Allows for a seamless blend with any interior design.
Technical Specifications
- System Type: 2-way In-Wall
- Frequency Response: 46 Hz - 20 kHz ± 3 dB
- Power Handling: 150W RMS / 600W Peak
- Recommended Amplifier Power: 150W
- Sensitivity: 92 dB @ 2.83V / 1m
- Nominal Impedance: 8 Ohms Compatible
- High Frequency Crossover: 250 Hz & 2100 Hz
- Enclosure Type: Infinite Baffle, Front Flush with Wall
- Mounting Depth: 3.52" (89.41 mm)
- Overall Dimensions: 28.88" (733.55 mm) H x 8.13" (206.50 mm) W
- Cutout Dimensions: 27.24" (691.90 mm) H x 6.5" (165.10 mm) W
- Weight: 18.3 lbs (8.3 kg)
- Finish: White Paintable Grille
- Installation Kit: IK-504-W (Sold Separately)
Included in the Box
- Klipsch THX-504-L In-Wall Speaker
- Paintable Magnetic Grille
- Mounting Hardware
- Installation Instructions
