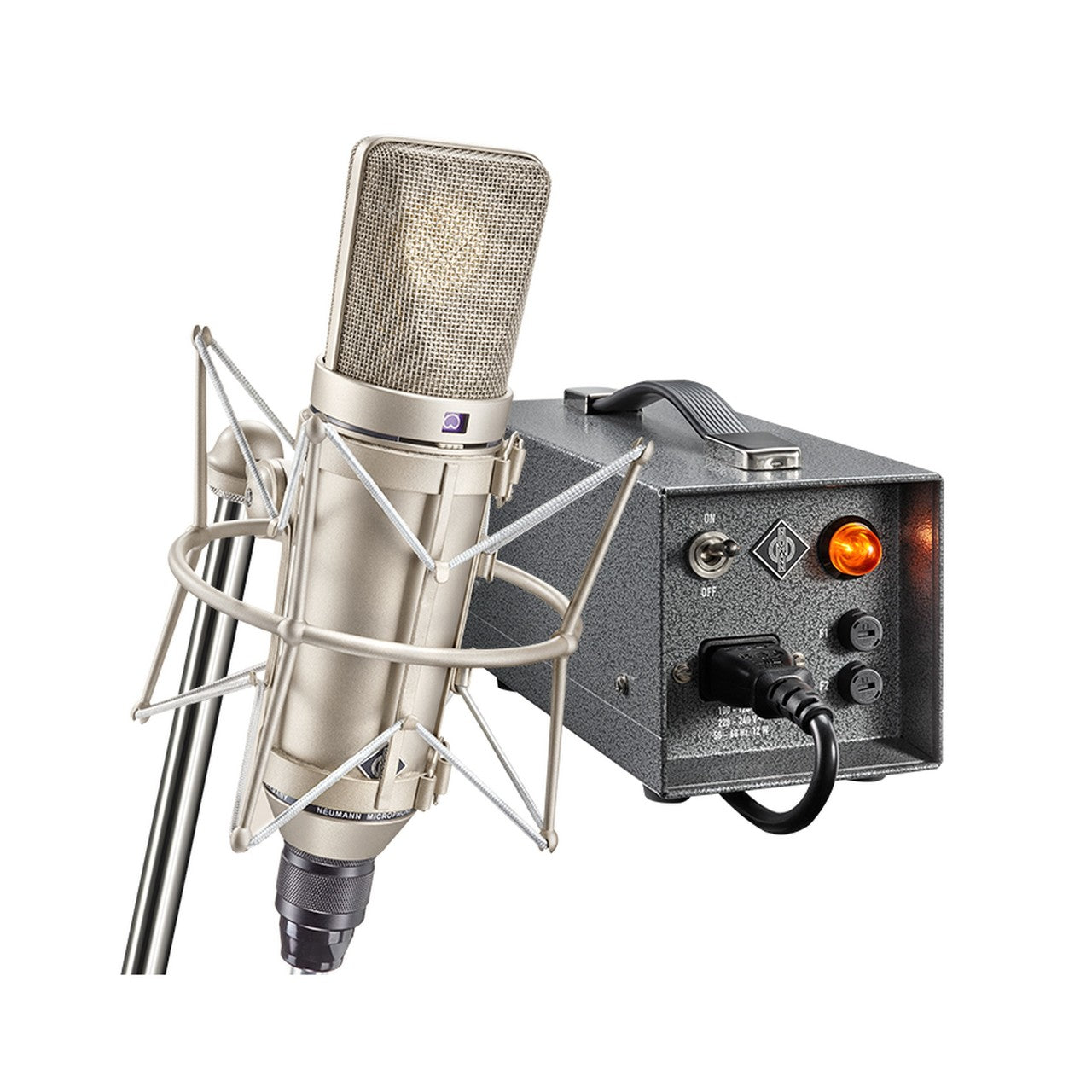

Neumann u 67 Set Multi-Pattern Studio Tube Microphone
Introduced in 1960, the U 67 was the quintessential studio workhorse throughout the formative years of modern music. Today, more than ever, its inimitably smooth sound continues to be in high demand. Now, for the first time in decades, Neumann’s legendary tube microphone is back in production, built to the original specifications.
Key Features
- Directional Pattern: Omnidirectional, cardioid, figure-8
- Classic tube circuit, transformer balanced
- Balanced sound in three polar patterns
- Meticulously reproduced to original specifications
- Vintage case, handmade in Germany
Technical Specifications
Acoustical operating principle
Pressure gradient transducer
Directional Pattern
Omnidirectional, cardioid, figure-8
Frequency Range
20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm
15/24/16 mV/Pa ± 1 dB (Omni/cardioid/8)
Rated Impedance
200 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR
32/28/31 dB (Omni/cardioid/8)
Equivalent noise level, A-weighted
21/17/20 dB-A (Omni/cardioid/8)
Maximum SPL for THD 0.5% 3
114 dB (cardioid)
Maximum SPL for THD 0.5% with preattenuation
124 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)
62/66/63 dB (Omni/cardioid/8)
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)
73/77/74 dB (Omni/cardioid/8)
Maximum output voltage
-9.8 dBu
Power supply
NU 67 V
Matching connector
Microphone: spec. 7pin, Power Supply: XLR 3 F
Weight
560 g
Diameter
56 mm
Length
200 mm
