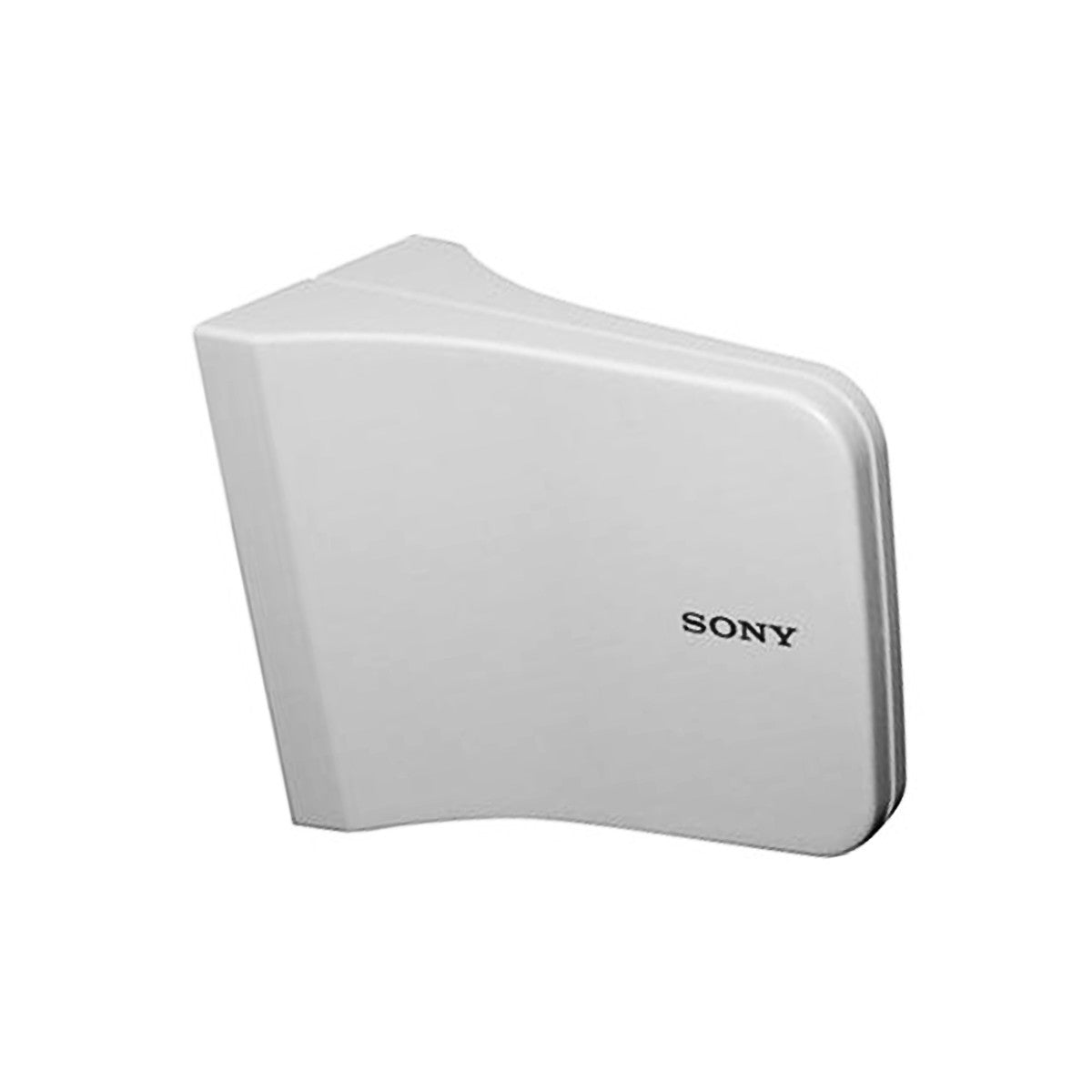

Sony AN820A/9L Active Omni Directional Antenna 566-662 MHz
Sony AN820A/9L Active Omni Directional Antenna 566-662 MHz
Free Shipping
Sony AN820A/9L Active Omni Directional Antenna 566-662 MHz
Wireless Active Antenna. Provides 10 db of gain. Omni-directional. Various mounting configurations (wall, mic stand, etc.). Two required for Diversity Tuner Operation. This AN-820A/9L is for use with with UHF-TV channels 30 through 45.
Key Features
- Active omni directional antenna
- For use with UHF-TV channels 30-45, 566-662 MHz
- Receives 9V DC power from receiver
- Adds 10 dB of gain. Compensates for cable loss/working distance
- Wall or stand mountable. Comes with adapter kits for electrical box mounting
- LED power indicator
Technical specs
Antenna type
Active omnidirectional
Power
9 VDC
Connector
BNC-R type
Output impedence
50 Ohms
3rd Intermodulation
>60dB
Frequency range
566 MHz -662 MHz, TV Channels 30-45
Gain
10 dB
Dimensions
2 7/8" x 4 5/8" x 5/1/4"
Weight
9 oz
Mounting system
1/2" and 5/8" screw adapter
