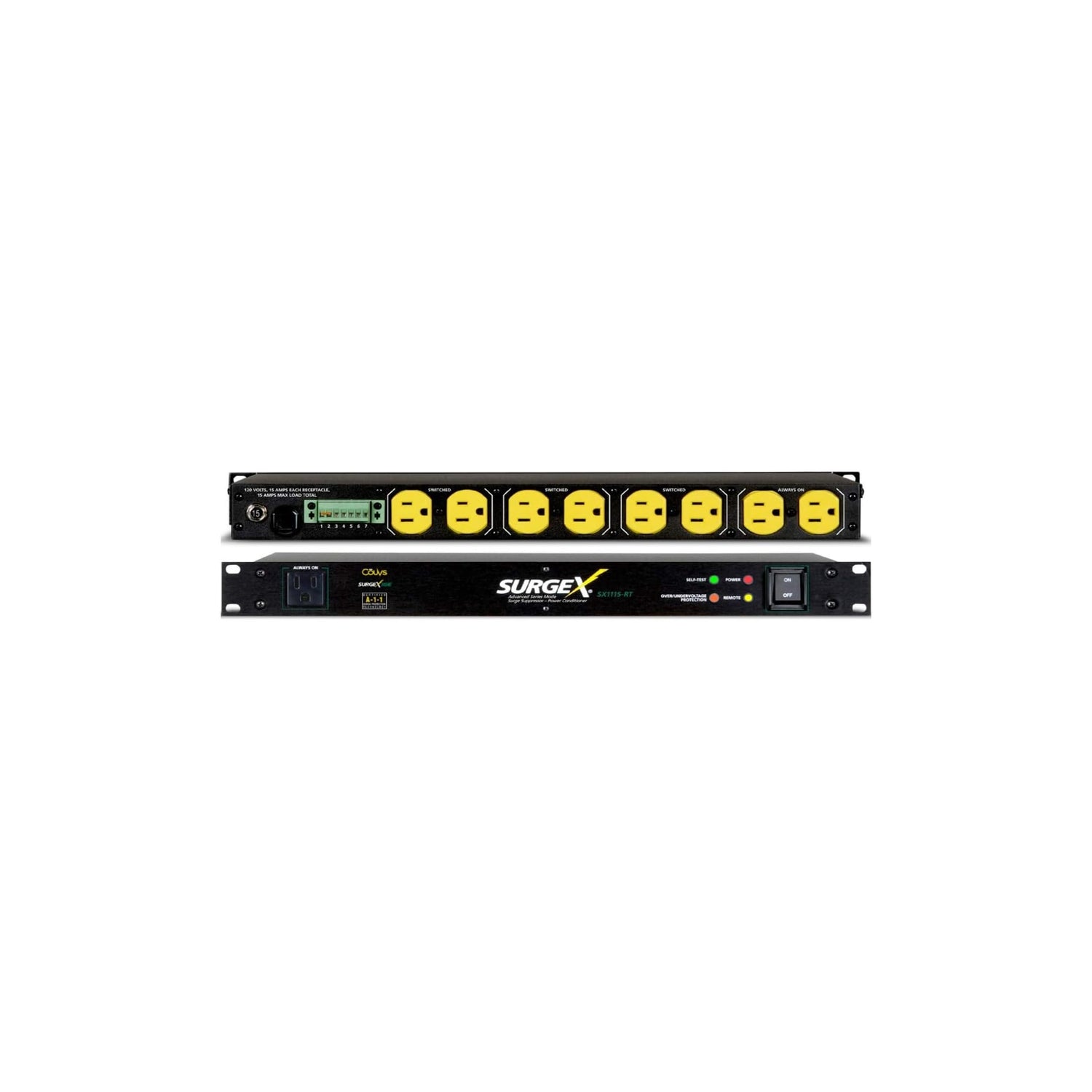

SurgeX SX-1120-RT 120V/20A Rack Mount Surge Eliminator and Power Conditioner, 1RU

The SurgeX SX-1120-RT is a professional-grade 1RU rackmount surge eliminator and power conditioner designed to protect sensitive audio, video, broadcast, and IT equipment from power disturbances. Engineered with SurgeX's Advanced Series Mode® technology, this unit provides non-sacrificial surge protection, eliminating surge energy up to 6,000 volts without producing harmful side effects such as ground contamination or common-mode disturbances.

Featuring a 20-amp load capacity and eight industrial-grade grounded AC receptacles (six switched and two always-on), the SX-1120-RT offers versatile power distribution. Additional features include Inrush Current Elimination (ICE®) to prevent equipment damage during power-up, Catastrophic Over/Under Voltage Shutdown (COUVS®) for voltage anomaly protection, and thermal circuit breaker overload protection. The unit also supports remote turn-on capabilities, allowing for convenient control in professional environments.

Key Features

• Advanced Series Mode® Surge Protection: Eliminates surge energy up to 6,000 volts without producing harmful side effects.
• Inrush Current Elimination (ICE®): Prevents equipment damage during power-up by controlling inrush currents.
• Catastrophic Over/Under Voltage Shutdown (COUVS®): Automatically disconnects power during voltage anomalies to protect connected devices.
• Thermal Circuit Breaker Overload Protection: Safeguards the unit and connected equipment from overload conditions.
• Remote Turn-On Capability: Allows for convenient control in professional environments.
• Eight Industrial-Grade AC Receptacles: Includes six switched and two always-on outlets for flexible power distribution.
• 1RU Rackmount Design: Compact form factor suitable for professional rack installations.

Technical Specifications

• Load Rating: 20 amps @ 120 volts
• Input Voltage: 120V AC
• Maximum Surge Voltage: 6,000 volts
• Maximum Surge Current: Unlimited (due to current limiting)
• Maximum Surge Energy: Unlimited (due to current limiting)
• EMI/RFI Filtering: Impedance Tolerant EMI/RFI filtering
• Remote Turn-On Voltage Range: 5 to 30 VDC
• Auxiliary Relay Contact Rating: 30 VDC at 1 amp
• Dimensions: 1.75" H x 19" W x 10.5" D (4.5 x 48.3 x 26.7 cm)
• Weight: 11 lbs (5 kg)
• Temperature Range: 5°C to 35°C
• Humidity Range: 5% to 95% R.H., non-condensing
• Agency Listings: ETL and cETL certified to UL 1449; CSA C22.2 No.8-M1986, R2000

What's Included in the Box

• SurgeX SX-1120-RT Rack Mount Surge Eliminator & Power Conditioner
• 9' Grounded 3-Wire #12 Line Cord
• Rack Mount Hardware
• User Manual
