Capture cards, video switchers, and hardware encoders often appear in the same live streaming setup, but they perform different jobs. A capture device brings video into a computer. A switcher manages multiple video sources. An encoder prepares and sends the finished video over a network.
The confusion comes from newer devices that combine two or more of these functions. Before choosing hardware, it helps to start with the signal flow and determine which jobs your setup actually needs.
For a broader look at cameras, audio, switching, networking, and other parts of the system, see our guide to building a professional live streaming setup.

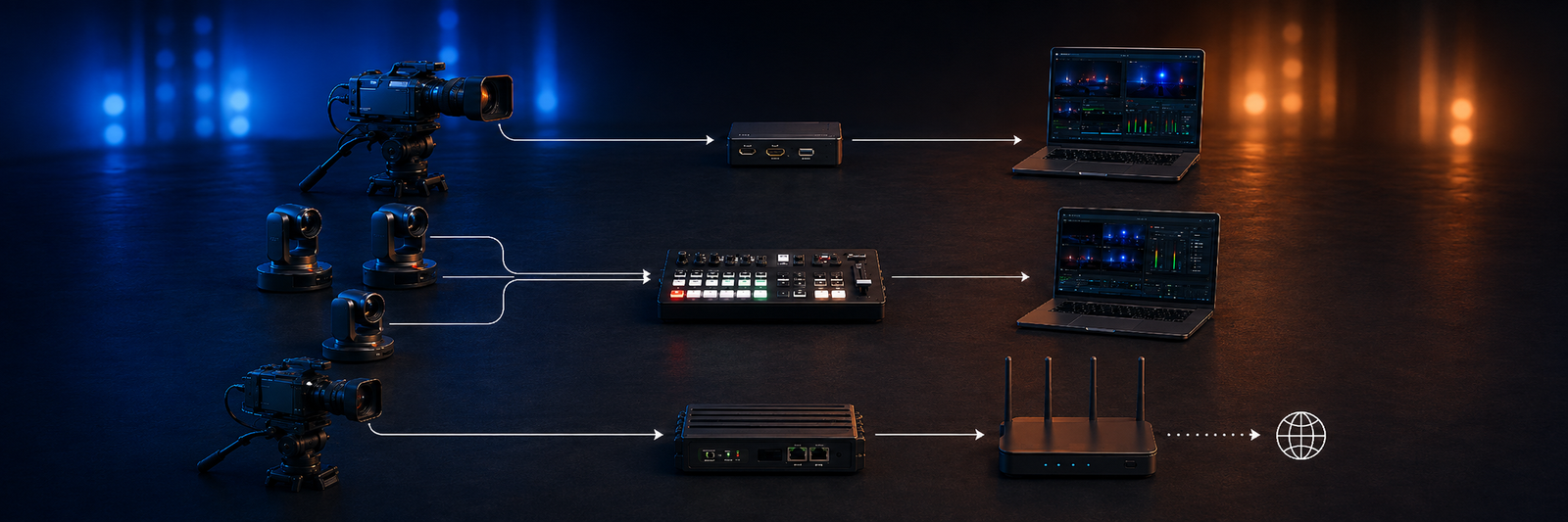

Capture Card vs Video Switcher vs Encoder
| Device | Main Job | Typical Use |
|---|---|---|
| Capture Card | Brings a camera or video signal into a computer | OBS, vMix, conferencing, recording |
| Video Switcher | Selects and combines multiple video sources | Multi-camera streams, events, presentations |
| Hardware Encoder | Compresses and sends video over a network | Dedicated streaming, remote delivery, recording |
The easiest way to choose between them is to identify where your current workflow needs help. If you need to get a camera into a computer, start with capture. If you need to control several sources, look at switching. If the challenge is network delivery, an encoder may be the missing piece.
When Is a Capture Device Enough?
If you have one camera and plan to run the production from a computer, a capture device may be all you need.
A basic workflow looks like this:
Camera → Capture Device → Computer → OBS or vMix → Streaming Platform
The capture device converts the camera's HDMI or SDI output into a signal the computer and streaming software can use. External USB devices work well with portable systems, while PCIe capture cards are commonly used in dedicated production computers.
Some newer devices combine video capture with other production functions. The RODE Streamer X, for example, combines video capture with an audio interface. A hybrid device like this can reduce the number of separate components needed in a compact creator or desktop streaming setup.
One specification to watch carefully is resolution. Input resolution, pass-through resolution, capture resolution, and streaming resolution are not necessarily the same. A device that accepts a 4K signal does not automatically record or stream that signal in 4K.
When Do You Need a Video Switcher?
A video switcher becomes useful when the production includes multiple cameras, presentation computers, graphics systems, or other live video sources.
Instead of routing each source independently through the computer, the switcher lets the operator select what the audience sees:
Cameras and Sources → Video Switcher → Streaming System
The Blackmagic Design ATEM Mini Pro illustrates this type of workflow. It provides four HDMI inputs for switching between connected sources, along with USB video output and built-in network streaming. This also shows why the line between capture, switching, and encoding is not always absolute.
For churches, classrooms, webinars, corporate events, podcasts, and other multi-camera productions, switching hardware can make the workflow easier to manage than handling every source independently in software.
What Does a Hardware Encoder Do?
Once the program feed has been created, it still needs to reach its destination. This is where a hardware encoder can become useful.
A hardware encoder takes a video feed, compresses it into a format such as H.264 or H.265, and sends it across a network to a streaming service, server, or remote destination.
A typical workflow might be:
Cameras → Video Switcher → Hardware Encoder → Network → Streaming Platform
This approach is useful when you want streaming and recording to operate independently from the production computer. It can also be important when the workflow requires specific network protocols or multiple delivery destinations.
The Magewell Ultra Encode AIO is an example of a dedicated encoder. It supports HDMI and SDI sources, H.264 and H.265 encoding, and streaming protocols including RTMP, RTMPS, SRT, RTSP, HLS, and NDI HX. It can also record to external storage or network-attached storage.
Those capabilities are different from simply getting a camera signal into OBS. That distinction is the main reason dedicated encoders remain useful in professional streaming systems.
Do You Need All Three?
Usually not. Many setups can eliminate one or more devices because modern hardware increasingly combines functions.
- One camera + computer-based production: A capture device may be enough.
- Multiple cameras + computer-based production: A switcher with USB output may handle both switching and computer capture.
- Multi-camera production with dedicated network delivery: A switcher and hardware encoder may make more sense.
- Portable creator setup: A hybrid capture and audio device can reduce the number of separate components.
The important question is not how many devices you can add. It is whether each device performs a job that another component in the system is not already handling.
What Should You Check Before Choosing Hardware?
Once you know which type of device fits the workflow, compare the specifications that affect the rest of the system.
- HDMI or SDI: Match the connections used by your cameras and other video sources.
- Number of sources: A single-camera stream has very different requirements from a four-camera production.
- Capture vs pass-through: Verify each supported resolution separately.
- Audio routing: Decide whether audio will enter through the camera, mixer, audio interface, switcher, or encoder.
- Recording: Determine whether you need only the final program or separate recordings for post-production.
- Network protocols: RTMP may be enough for a simple stream, while professional workflows may also require SRT, NDI, or other IP-based protocols.
The Bottom Line
Start with the signal path rather than the product category. If the main problem is getting a camera into a computer, look at capture devices. If the problem is controlling multiple sources, look at switchers. If the problem is reliably delivering the finished program over a network, look at hardware encoders.
In many modern systems, one device can perform more than one of these jobs. Understanding where capture, switching, and encoding happen in the workflow makes it much easier to avoid redundant hardware and build a system that can grow with the production.
Explore Live Streaming Equipment
If you have identified which part of your workflow needs an upgrade, you can compare equipment by function below. Start with the broader live streaming collection or go directly to the device category that matches your setup.
Frequently Asked Questions
Can a video switcher replace a capture card?
Sometimes. If a video switcher provides a USB video output that a computer recognizes as a video source, a separate capture card may not be necessary. Other switchers provide traditional video outputs and may still require capture hardware for computer-based streaming.
Do I need a hardware encoder if I use OBS?
Not necessarily. OBS can perform software encoding and streaming on the computer. A dedicated hardware encoder becomes more useful when you want to separate streaming from the production computer or need additional network, recording, or protocol capabilities.
Can one device be both a switcher and an encoder?
Yes. Many current live production devices combine switching, capture, recording, and streaming functions. Check the specific inputs, outputs, encoding formats, and network features rather than assuming every device in a category works the same way.
