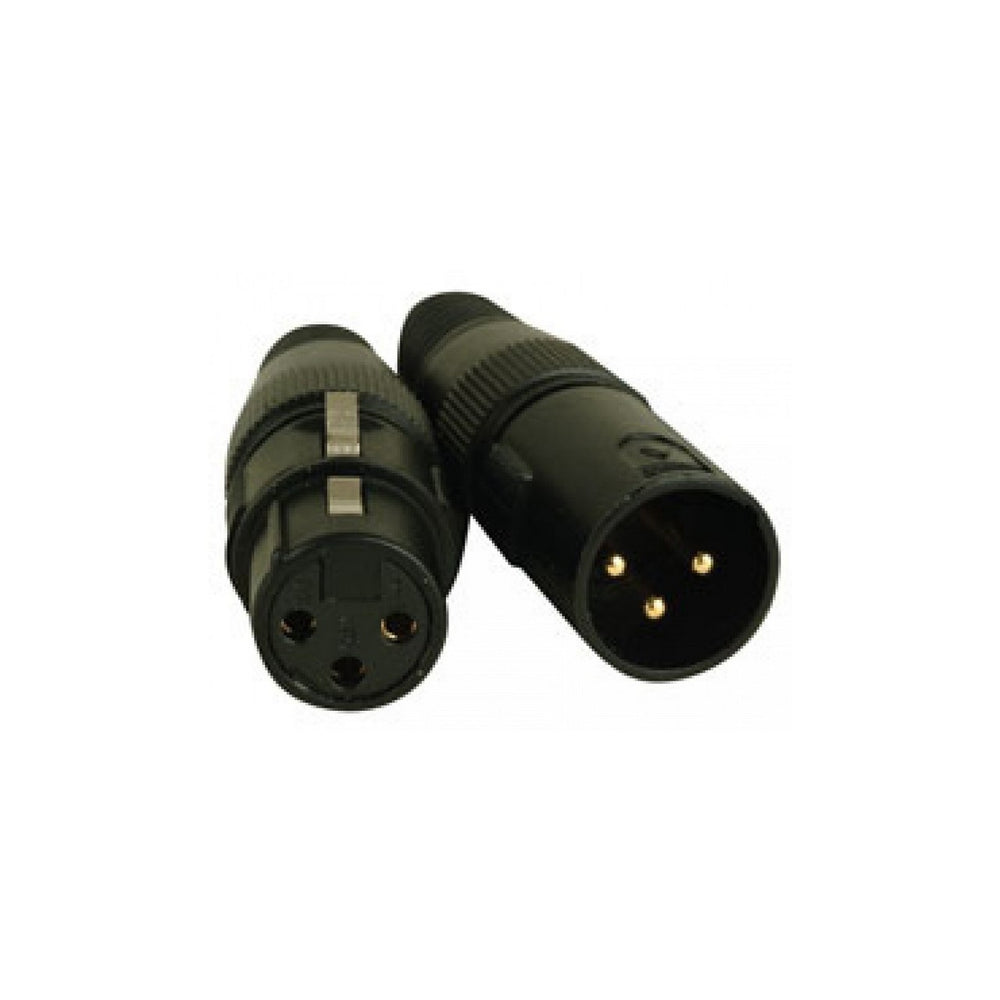

Accu Cable AC3PDMX5 5ft 3 Pin DMX Cable
Authorized Dealer
In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description
Accu Cable AC3PDMX5 5ft 3 Pin DMX Cable
22 AWG stranded (0.15 x 19) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.
Technical Specifications
Length
5 Foot
Conductor
Number of Pairs: 1
Total Number of Conductors: 2
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: .0354 inch
Conduct or Material: TC-Tinned Copper
Insulation
Insulation Material PE Polyethylene
Lay Length
Lay Length: 2.5 inch
Direction: Left Hand Lay
Twists: 4.8 per foot
Inner Jacket
Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: .055 inch
Pair Color Code: Black/White
Outer Shield
Outer Shield Trade Name: Duofoil
Outer Shield Type: Tape/Braid
Outer Shield Material
Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
Outer Jacket
Outer Jacket Material: PVC-Polyvinyl Chloride
Overall Nominal Diameter
Overall Nominal Diameter: .229 inch
Mechanical Characteristics
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 31 lbs/1000
Minimum Bend Radius (Install): 3.2 inch
Maximum Recommended Pull Tension: 72 lbs.
Electrical Characteristics
Nominal Characteristic Impedence: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
Installation / Use Cases
- Use the 5-foot 3-pin DMX cable for short DMX cabling runs where a compact cable length is appropriate.
- Suitable for DMX setups requiring a 110-ohm cable with 22 AWG tinned copper conductors and shielded construction.
Package Contents

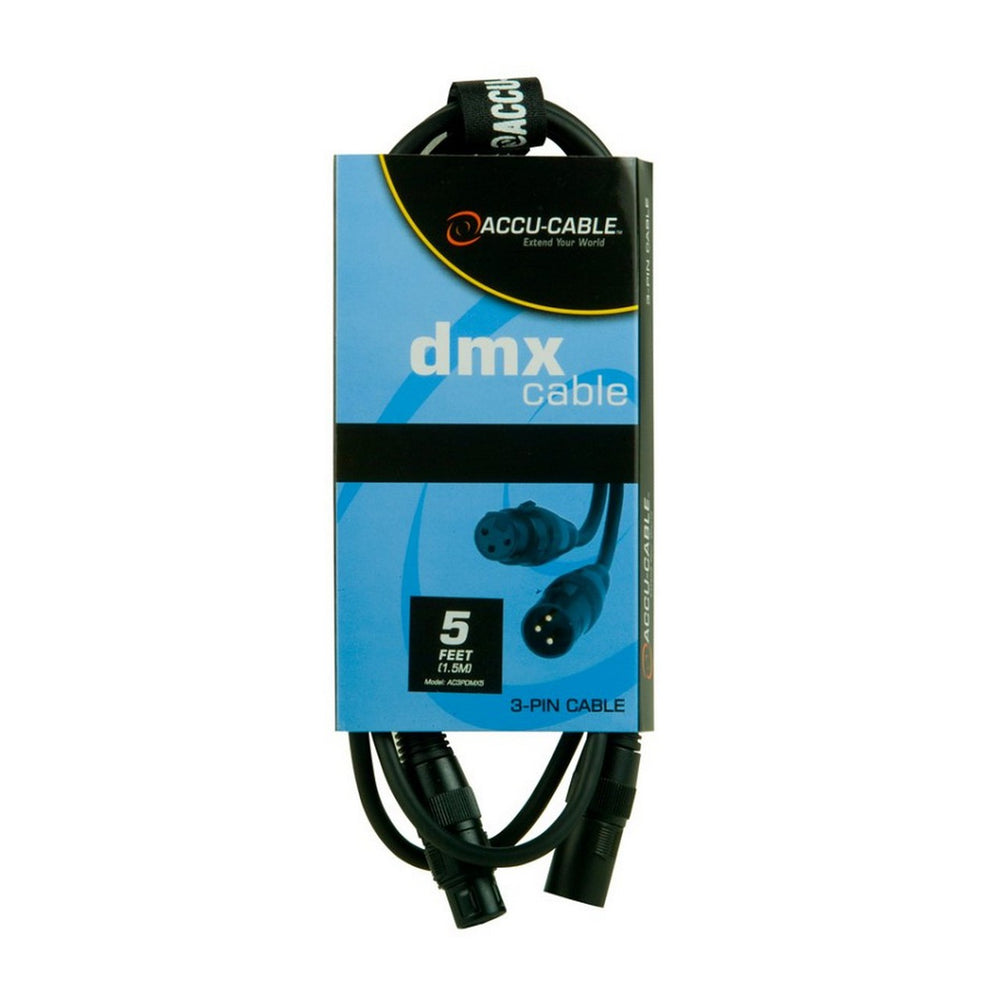

- Accu Cable AC3PDMX5 5ft 3 Pin DMX Cable
Frequently Asked Questions
How long is the Accu Cable AC3PDMX5?
The AC3PDMX5 is a 5-foot 3-pin DMX cable.
What conductor size does the AC3PDMX5 use?
The cable uses 22 AWG stranded tinned copper conductors with two total conductors arranged as one pair.
What is the nominal impedance of the AC3PDMX5?
The AC3PDMX5 has a nominal characteristic impedance of 110 ohms.
What type of shielding does the AC3PDMX5 use?
The cable uses a Duofoil tape and braid shield with 100% aluminum foil-polyester coverage and 85% tinned copper braid coverage.
What type of outer jacket does the AC3PDMX5 have?
The cable uses a PVC outer jacket and a polyethylene inner jacket.
What is the operating temperature range of the AC3PDMX5?
The operating temperature range is -30°C to +75°C.
